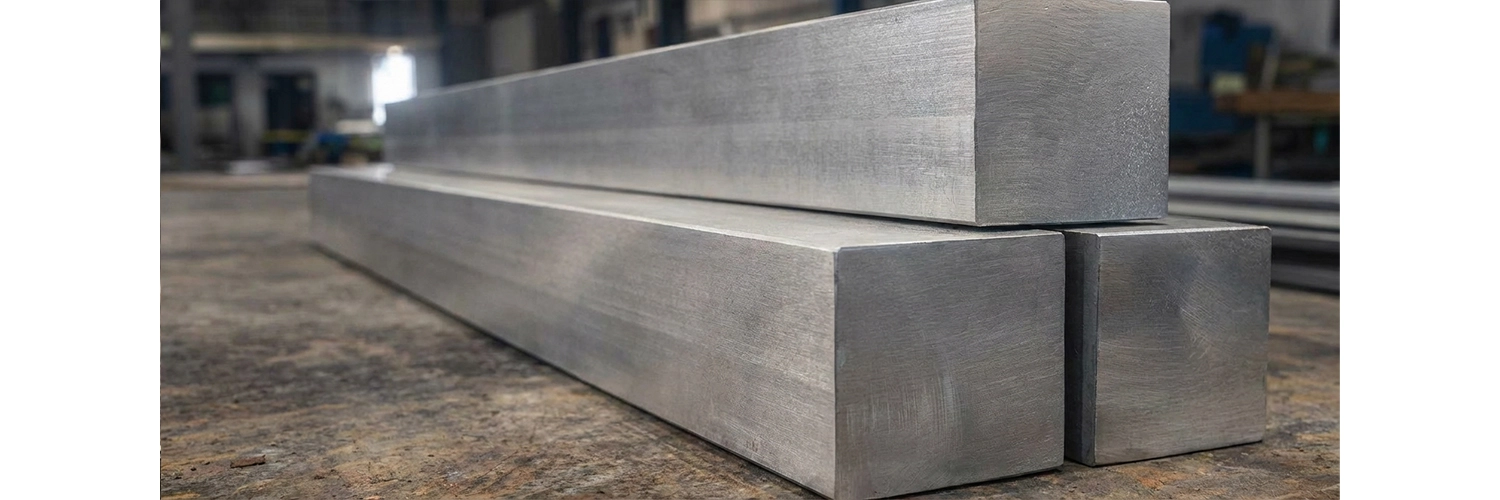

Dissolvable Magnesium Alloy Square Bar

Dissolvable Magnesium Alloy Square Bar: Engineered for Downhole Excellence

When you need reliable, temporary downhole components, Dissolvable Magnesium Alloy Square Bar from Shaanxi Hagrien Energy Technology delivers unmatched performance. Our enterprise-grade solution features tensile strength from 320 to 480 MPa, controlled dissolution rates adjustable from 1 to 100+ mg/cm²/h, and industry-leading extrusion capability up to Ø300 mm. With low density (~1.8 g/cm³), temperature resistance up to 150°C, and CNAS-accredited HPHT verification, our material enables you to manufacture dissolvable frac plugs, balls, seats, and sleeves with confidence. Backed by 7+ years of production expertise, ISO certifications, and full batch traceability, we help you reduce field intervention costs while maintaining structural integrity until complete autonomous degradation.

What Makes Our Dissolvable Magnesium Alloy Square Bar Different?

You face real challenges in oil and gas operations.

Traditional steel components require expensive milling. Retrieval operations eat into your schedule. Non-productive time costs you money.

Our square bar solves these pain points elegantly.

The material provides structural strength when you need it. Then it disappears completely in downhole fluids. No fishing. No milling. No leftover debris.

Key Performance Features:

• Predictable strength retention: Maintains load-bearing capacity throughout the functional window
• Tunable degradation: Dissolution rate calibrated to your specific fluid chemistry and temperature
• Superior machinability: Low density reduces cutting forces and extends tool life
• Anti-rotation geometry: Square profile simplifies interlocking designs for high-torque applications

Your machining teams will appreciate the consistency. Every bar delivers uniform microstructure and dimensional stability. This means fewer rejected parts and lower scrap rates.

Technical Specifications You Can Trust

We engineer our alloys based on real operating conditions. Not laboratory ideals.

Here's what you get:

Our HPHT laboratory validates every batch. You receive complete documentation packages including COA, COC, and SDS for audit readiness.

Why International Buyers Choose Hagrien?

You require more than fair fabric. You require a fabricating partner.

Closed-Loop Control:

We oversee each step inside. From combination dissolving through expulsion to accuracy machining. This vertical integration dispenses with supply chain uncertainty.

Engineering Support:

Our group makes a difference you optimize fabric choice for your particular application. We give drawing-based generation, model advancement, and FAT confirmation back. This abbreviates your approval cycle significantly.

Supply Reliability:

Since 2019, we've kept up persistent generation without interference. Security stock for standard sizes implies we're prepared when you are. Our U.S. substance gives nearby coordination adjusted with your commerce hours.

Responsive Communication:

RFQ reaction inside 24 hours. Citation inside 1–3 commerce days. Week after week venture overhauls that coordinate your plan. No time zone excuses.

You get reliable quality, unsurprising lead times, and full traceability. This makes a difference you diminish reliance on single-source providers and construct versatile supply chains.

Applications That Drive Value

Our Dissolvable Magnesium Alloy Square Bar excels in demanding environments:

Downhole Components:

• Dissolvable balls and seats
• Temporary mandrels and sleeves
• Structural slides in bridge plugs
• Anti-rotation tracks in setting tools

Why Square Profile Matters:

The geometry provides superior torque resistance. When you machine interlocking components, the square cross-section prevents rotation under load. This simplifies your design and improves field reliability.

The material fully degrades after use. Your primary byproduct is magnesium hydroxide—environmentally benign and safe. No toxic residue. No ecological concerns.

How We Ensure Quality Consistency?

Inconsistent material performance creates expensive problems. Failed parts. Rejected batches. Qualification delays.

We prevent these issues systematically:

Process Control:

• Strict metallurgy protocols ensure uniform grain structure
• Real-time monitoring during extrusion maintains dimensional accuracy
• CNC verification checks every production run

Laboratory Verification:

• CNAS-accredited HPHT testing simulates real well conditions
• Dissolution rate validation at multiple temperatures and salinities
• Mechanical property testing confirms strength specifications



Traceability:

• Each batch receives unique identification
• Complete inspection records from raw material to finished product
• Documentation packages support your supplier qualification audits

You receive material that performs predictably. Every time.

Material Science That Solves Real Problems

Standard magnesium alloys fail in two ways. They dissolve too quickly or corrode unevenly.

Our engineered alloy systems solve both issues:

Controlled Dissolution Rate:

We design micro-galvanic cells within the alloy structure. This creates uniform surface recession instead of localized pitting. Your component maintains structural integrity until final degradation stages.

Temperature Stability:

Dissolution follows predictable kinetics from 20°C through 150°C. We provide specific rate charts for your operating conditions. This lets you calculate functional lifetime with confidence.

Fluid Compatibility:

Performance is validated in various brine concentrations and completion fluids. Whether you work in 3% KCl or high-salinity environments, we help you select the right grade.

The chemistry is adjustable. We can tune composition and heat treatment to match your specific requirements.

From Sample to Volume Production

You need a clear path from testing to commercial supply.

Here's our proven workflow:

Phase 1 – Material Selection:

Share your operating conditions. We recommend alloy grades and predict dissolution behavior.

Phase 2 – Prototype Development:

We produce sample bars to your specifications. You machine test components and validate performance.

Phase 3 – Verification:

HPHT testing confirms dissolution rate and mechanical properties. We provide complete test reports.

Phase 4 – Scale-Up:

Once validated, we transition to volume production with identical process parameters. No performance drift.

Phase 5 – Ongoing Supply:

Regular deliveries with consistent quality. Batch documentation for every shipment. Technical support whenever you need it.

This reduces your trial-and-error costs significantly. You move from concept to qualified supply faster.

Our Exhibiton

Frequently Asked Questions

Q1: What is the product mainly used for?

This material is specifically designed for machining temporary downhole components. You'll use it to create dissolvable balls, seats, sleeves, mandrels, and structural elements in frac plugs and bridge plugs. The square profile provides anti-rotation properties that simplify mechanical design in high-torque applications. Buyers choose it when they need components that maintain structural integrity during installation and operation, then disappear completely without intervention. This eliminates milling costs and reduces non-productive time in multi-stage completion operations.

Q2: What key features should buyers evaluate when sourcing the product?

Focus on these critical factors:

• Chemistry stability: Consistent alloy composition ensures predictable performance across batches
• Machinability: Good cutting characteristics reduce tool wear and improve yield
• Dimensional tolerance: Tight specifications minimize downstream machining adjustments
• Dissolution predictability: Validated degradation rates for your specific well conditions
• Mechanical strength: Adequate load-bearing capacity during the functional window
• Supplier traceability: Complete documentation for quality audits and qualification processes

In export purchasing, these parameters directly affect your processing yield, field reliability, and total cost of ownership. Poor material consistency creates expensive problems downstream.

Q3: Why do international buyers choose Hagrien for the product?

We combine material development, large-diameter extrusion capability, CNC machining support, and complete batch traceability in one supplier. This integration helps you shorten validation cycles significantly. You work with engineers who understand both material science and downhole tool design. Our U.S. presence ensures responsive communication aligned with your business hours. We help you build a reliable second source, reduce single-supplier risk, and move from sample validation to stable volume supply more efficiently. Plus, our 7+ years of continuous production experience means we understand export documentation, shipping logistics, and supplier qualification requirements.

Q4: How does temperature affect dissolution behavior?

Dissolution accelerates as temperature increases, following predictable Arrhenius kinetics. We provide specific rate charts for temperatures from 40°C through 150°C. This lets you calculate component lifetime accurately for your well conditions. Higher temperatures reduce functional window duration, while cooler conditions extend it. During material selection, share your expected temperature range so we can recommend the optimal alloy grade.

Q5: Can the material withstand acidic completion fluids?

Yes, but dissolution rate increases significantly in acidic environments. We strongly recommend HPHT testing in your actual wellbore fluid before field deployment. This prevents premature degradation during the functional window. Our laboratory can simulate your specific conditions and provide validated performance data.

Q6: What is the shelf life when properly stored?

When stored in original vacuum-sealed packaging with desiccant at humidity below 40%, shelf life typically reaches 24 months. Protect the material from moisture exposure. If packaging is compromised, surface oxidation may affect machining characteristics. We recommend visual inspection before use if storage exceeds recommended conditions.

Q7: Is the degradation byproduct environmentally safe?

Absolutely. The primary byproduct is magnesium hydroxide [Mg(OH)₂], which is environmentally benign. This compound is actually used in water treatment and environmental remediation. No toxic residue remains in the wellbore. The material meets environmental safety standards for oil and gas operations.

Ready to Improve Your Supply Chain?

Partner with Hagrien for reliable Dissolvable Magnesium Alloy Square Bar dissolvable magnesium alloy solutions. Contact our team at cyrus@us-hagrien.com for technical specifications, samples, or project consultation today.​​​​​​​
