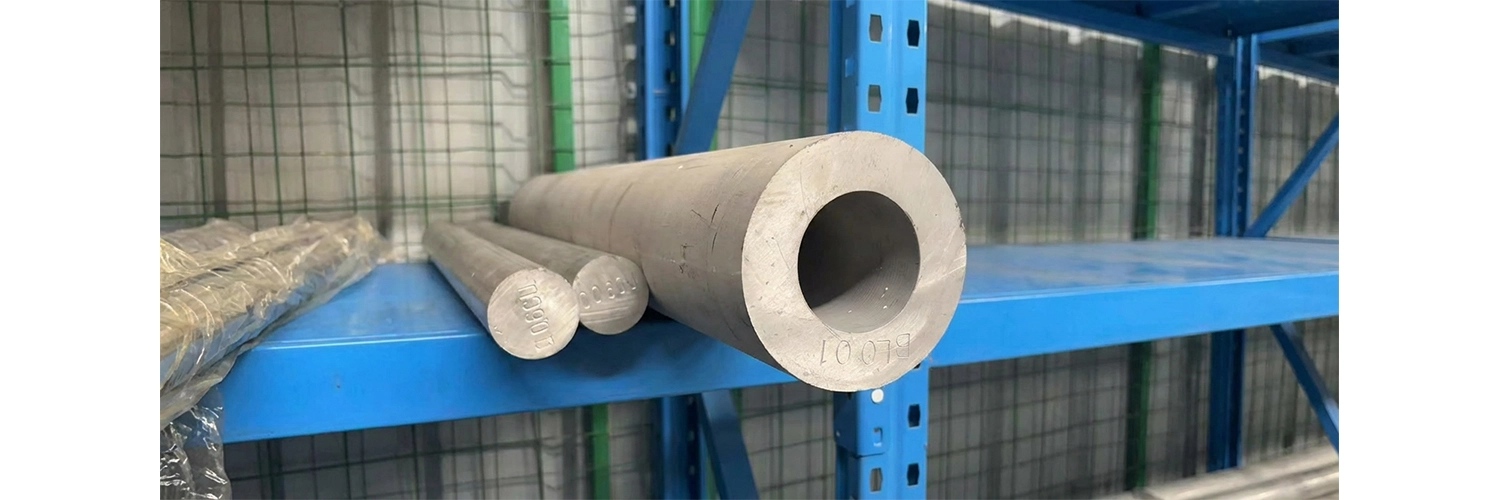

Dissolvable Magnesium Alloy Seamless Pipe

Dissolvable Magnesium Alloy Seamless Pipe – Engineered for High-Integrity Downhole Applications

Shaanxi Hagrien's Dissolvable Magnesium Alloy Seamless Pipe is precision-manufactured through a closed-loop system combining alloy melting, extrusion, and strict metallurgical control. Engineered for oil and gas completion tools, our pipes deliver high structural integrity with controllable dissolution rates tailored to your operating conditions. With extrusion capabilities up to Ø300 mm, tensile strength ranging from 250 MPa to 410 MPa, and dissolution rates calibrated from 0.1 to 100 mg/cm²/h, you get consistent wall uniformity and predictable performance. Our CNAS-accredited lab ensures full traceability with every batch, while standard lead times run 2–4 weeks for stock sizes and 4–8 weeks for custom specifications.

Why Choose Seamless Pipe for Dissolvable Tools?

When you're building frac plugs, packers, or flow control components, wall consistency matters.

Seamless construction eliminates weld-line weaknesses. You avoid stress concentration points that can crack under high pressure. Your downstream machining becomes more predictable because grain structure stays uniform across the diameter.

Our extrusion process locks in dimensional stability. That means less scrap during CNC operations and fewer surprises when you assemble multi-piece tools.

Temperature resistance? Our alloys maintain mechanical properties up to 150°C. Dissolution timing? We adjust chemistry based on your fluid salinity, temperature profile, and required working window.

You don't need to mill out components after the job. The pipe degrades naturally in brine or acidic completion fluids, leaving a clear wellbore and cutting intervention costs.

Technical Specifications

Key Applications in the Field

Multi-Stage Hydraulic Fracturing

Use our Dissolvable Magnesium Alloy Seamless Pipe as mandrels in bridge plugs. It holds pressure through the frac stage, then dissolves in produced water—no coiled tubing run needed.

Offshore Completions

In subsea wells where intervention costs run high, seamless pipes serve as temporary liners or valve sleeves. Once the well stabilizes, they degrade on schedule without wireline or ROV support.

Geothermal Energy Projects

Deploy them as flow control sleeves in high-temperature geothermal wells. After the thermal circuit reaches steady state, the pipe dissolves, maximizing flow diameter without leaving debris.

Extended-Reach Horizontal Wells

When you can't afford to leave steel or composite remnants in a long lateral, dissolvable seamless pipe ensures a clean path for production logging and future interventions.

What Sets Hagrien Apart?

Closed-Loop Manufacturing

We control every step—from alloy design to extrusion to final inspection. That reduces variability and gives you repeatable results batch after batch.

Large-Diameter Extrusion Capability

Most suppliers stop at Ø200 mm. We go up to Ø300 mm with uniform microstructure, so you can design heavier-duty tools without compromising material integrity.

Customizable Dissolution Kinetics

Tell us your bottom-hole temperature, salinity, and required working window. We calibrate alloy chemistry and process parameters to match your exact conditions.

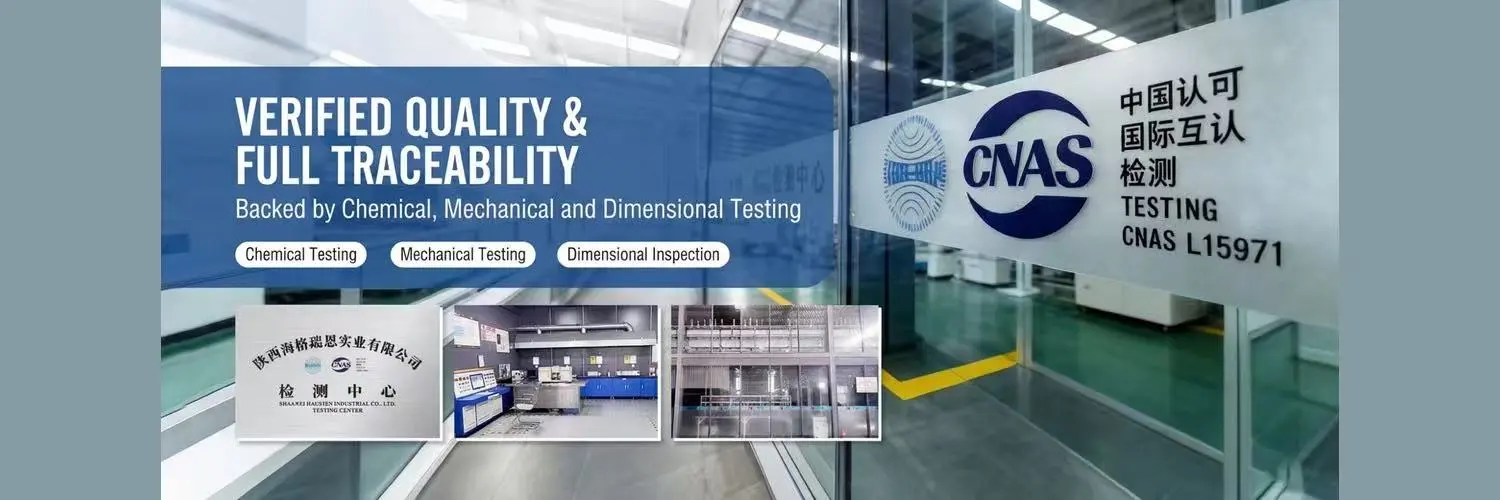

CNAS-Accredited Testing

Every batch comes with Certificate of Analysis (COA), full traceability records, and high-temperature/high-pressure lab validation. You stay audit-ready from day one.

Fast Turnaround with Safety Stock

Standard sizes ship in 2–4 weeks. Custom specs take 4–8 weeks. Expedited delivery available when your project timeline tightens.

Engineering-to-Spec Support

Share your drawings or performance targets. Our team helps you select the right alloy grade, wall thickness, and surface finish to reduce trial-and-error costs.

How to Source Dissolvable Pipe with Confidence?

Assess Divider Uniformity

Ask for cross-sectional micrographs. Uniform grain structure implies way better machinability and less machining rejects.

Check Amalgam Consistency

Request bunch composition reports. Tight control over alloying components (aluminum, zinc, uncommon earths) guarantees unsurprising disintegration and mechanical performance.

Verify Disintegration Testing Data

Look for lab-verified disintegration bends at your working temperature and saltiness. Nonexclusive information won't cut it when downhole conditions vary.

Assess Fabricating Traceability

Confirm the provider gives bunch numbers, warm treatment records, and third-party review certificates. This things for provider capability and chance management.

Review Lead Time Reliability

Late conveyances slow down your apparatus gathering line. Select a accomplice with in-house expulsion capacity and security stock for common sizes.

Exhibition

Frequently Asked Questions

1. What is the product mainly used for?

It's used for high-integrity hollow components where consistent wall thickness and soundness matter. You want to know whether the product can meet your target working condition, machining route, and final application requirement without creating unnecessary downstream risk.

2. What key features should buyers evaluate when sourcing the product?

Evaluate wall uniformity, soundness, alloy consistency, and downstream machinability, plus controlled degradation behavior and strength during the working window. In export purchasing, these factors directly affect processing yield, field reliability, product consistency, and the total cost of qualification.

3. Why do international buyers choose Hagrien for the product?

Hagrien combines alloy melting, extrusion, machining coordination, and quality control to support both standard supply and custom lightweight component development. This helps you reduce dependence on a single supplier, improve communication speed, and move from sample validation to stable volume supply more efficiently.

4. How does temperature affect dissolution time?

Dissolution is an electrochemical process. For every 10°C increase in temperature, the reaction rate typically doubles. We calibrate alloy chemistry to match your specific bottom-hole temperature.

5. Can the pipe withstand high-pressure fracturing (10,000+ psi)?

Yes. The seamless extrusion process provides superior hoop strength and collapse resistance compared to welded alternatives, specifically designed for ultra-high pressure stages.

6. Does the dissolution byproduct damage the formation?

No. The primary byproduct is magnesium hydroxide [Mg(OH)₂], which is generally non-toxic. It dissolves further in acidic environments or remains as a fine, inert powder that does not clog pores.

7. How should these pipes be stored to prevent premature corrosion?

Store them in a temperature-controlled, low-humidity environment. We recommend VCI (Volatile Corrosion Inhibitor) packaging to prevent atmospheric oxidation.

8. Is it compatible with standard drilling fluids?

It's stable in most oil-based muds and high-pH water-based muds. It will begin to react if the fluid becomes significantly acidic or high in chloride content.

Ready to Reduce Intervention Costs and Simplify Completions?

Let's discuss your Dissolvable Magnesium Alloy Seamless Pipe project requirements and delivery timeline. Reach us at cyrus@us-hagrien.com for technical support and quotations.​​​​​​​​​​​​​​
