Eco-friendly Magnesium Alloy hollow tube

Special profile for manufacturing downhole dissolvable tools in oil & gas wells.Features high strength, good temperature resistance and controllable dissolution.
It can fully degrade in specific downhole fluids without milling,efficient and eco-friendly, widely used for dissolvable frac plugs, dissolvable balls and other components.
Send Inquiry Download
  • Product Description

Eco-friendly Magnesium Alloy Hollow Tube – Lightweight, High-Performance & Sustainable

Shaanxi Hagrien Energy Technology Co., Ltd. delivers Eco-friendly Magnesium Alloy hollow tube solutions engineered for demanding applications across oil & gas, aerospace, and advanced manufacturing. Our closed-loop production system—from alloy melting to precision extrusion—ensures dimensional consistency with extruded profiles up to Ø300 mm. You benefit from strict wall-thickness uniformity (±0.05 mm), superior machinability, and controlled microstructure for reliable downstream processing. With ISO 9001/14001/45001 certifications, CNAS-accredited testing, and full batch traceability, we reduce your qualification risk and accelerate time-to-market. Standard lead times range from 2–4 weeks, with expedited delivery available to meet your project schedules.

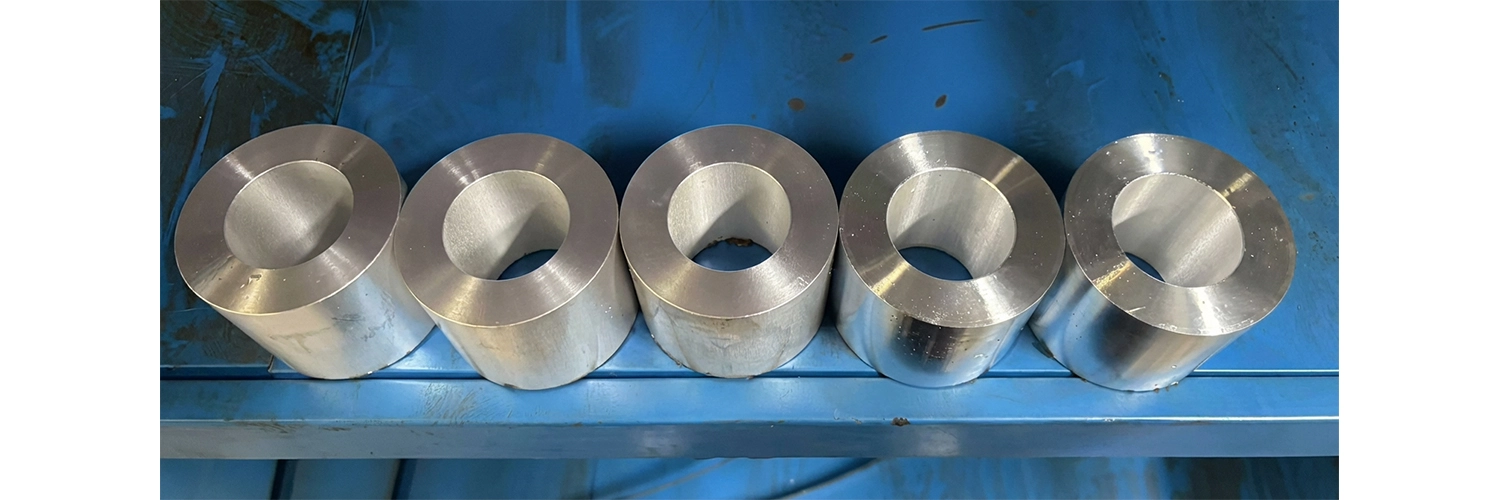

Hagrien Magnesium Alloy Hollow Tube

Why Choose Eco-friendly Magnesium Alloy Hollow Tube?

Lightweight Yet Strong

You get a material that is 33% lighter than aluminum and 75% lighter than steel. This weight reduction doesn't compromise strength. Tensile strength reaches 220–350 MPa, giving you high specific strength for load-bearing applications.

Exceptional Damping Performance

The damping capacity is 20 times higher than aluminum. This means reduced mechanical fatigue and vibration. Your components last longer in high-stress environments.

True Sustainability

Our tubes use non-toxic alloying elements. They are 100% recyclable with only 5% of the energy needed for primary production. You meet REACH and RoHS compliance effortlessly.

Superior Machinability

The refined grain structure reduces tool wear. Your CNC operations run smoother. Scrap rates drop significantly. You save time and cost in manufacturing.

team

Technical Specifications

Serial No.
Tensile Strength/MPa
Yield Strength/MPa
Elongation%
Hardness/HB
/mg/
DissolutionRate（cm2.h）
Dissolution Condition
AML001
≥310
≥220
≥15.0
≥60
2-10
93℃/3%KCL
AML003
≥200
≥140
≥32
≥50
1-5
93℃/3%KCL
AML004
≥220
≥160
≥12.0
≥55
130-150
93℃/3%KCL
AML005
≥300
≥200
≥15.0
≥60
90-140
93℃/3%KCL
AML006
≥270
≥190
≥13.0
≥55
40-80
50℃/0.84%KCL
AML007
≥290
≥190
≥14.0
≥60
40-80
93℃/3%KCL
AML009
≥190
≥120
≥30
≥50
20-70
93℃/3%KCL
AML010
≥220
≥170
≥14.0
≥55
30-50
50℃/0.84%KCL
AML011
≥220
≥170
≥12.0
≥55
30-60
50℃/0.84%KCL
AML012
≥260
≥210
≥9.0
≥70
60-100
50℃/0.84%KCL
AML013
≥370
≥260
≥2.5
≥90
50-70
93℃/3%KCL
AML014
≥195
≥125
≥27
≥45
15-35
93℃/3%KCL
AML015
≥310
≥220
≥7.0
≥80
50-70
93℃/3%KCL
AML016
≥230
≥180
≥12.0
≥55
45-65
50℃/0.84%KCL
AML017
≥260
≥220
≥5
≥65
50-70
43℃/0.05%KCL
AML018
≥400
≥280
≥4.0
≥100
40-60
93℃/3%KCL
AML020
≥100
≥60
≥7.0
≥42.0
50-100
93℃/3%KCL
AML021
≥400
≥300
≥3.0
≥100
40-60
93℃/3%KCL
AML022
≥275
≥200
≥12
≥65
90-110
50℃/0.84%KCL
AML023
≥450
≥340
≥3.0
≥100
10-30
93℃/3%KCL
AML024
≥270
≥220
≥5.0
≥70
60-120
50℃/0.84%KCL
AML025
≥360
≥260
≥3.0
≥100
40-70
50℃/0.84%KCL
AML026
≥310
≥220
≥8.0
≥60
0-5
93℃/3%KCL

Key Applications

Oil & Gas Downhole Tools

Our empty tubes serve as center components for dissolvable frac plugs and bridge plugs. They offer controlled disintegration rates custom fitted to your well conditions. No recovery required. You diminish fix time and operational costs.

Aerospace & UAV Frames

High vibration resistance meets weight-sensitive plan necessities. Your airplane accomplishes more prominent payload capacity and amplified flight length. The material's damping properties anticipate basic resonance.

Green Transportation

E-bike outlines and car crossbeams advantage from tall torsional inflexibility. You bolster carbon-neutrality objectives whereas conveying crashworthiness. The lightweight plan progresses vitality efficiency.

Medical Versatility Equipment

Wheelchair outlines and surgical robot skeletons request biocompatible, non-toxic surfaces. Our tubes withstand unforgiving sterilization cycles. You give patients with ergonomic, strong arrangements.

Our Manufacturing Advantage

Integrated Production Control

We oversee each step in-house. Amalgam dissolving, expulsion, metallurgy control, and exactness machining happen beneath one roof. This dispenses with provider reliance. You get steady quality and quicker communication.

Large-Diameter Expertise

Producing empty tubes up to Ø300 mm requires strict handle teach. We guarantee uniform microstructure over the whole cross-section. Dimensional soundness is ensured. Your downstream machining dangers drop.

Material Customization

You require particular mechanical properties for your application? We alter amalgam composition and expulsion parameters to coordinate your target conditions. Temperature, chemical presentation, and push prerequisites are all considered.

Verification-First Approach

Our CNAS-accredited HTHP research facility conducts thorough testing. Optical Emanation Spectroscopy (OES) affirms zero lead or cadmium defilement. Ultrasonic gages confirm concentricity. ASTM E8 mechanical tests approve quality and stretching.

Quality Assurance Protocol

Chemical Composition Analysis

We use OES to ensure your material is free from hazardous elements. Every batch meets environmental compliance standards.

Dimensional Tolerance Testing

High-precision ultrasonic gauges measure wall thickness uniformity. You receive tubes with concentricity within ±0.05 mm.

Non-Destructive Testing (NDT)

Eddy Current and X-ray inspections detect internal pores or extrusion defects. Only flawless tubes reach your facility.

Corrosion Resistance Validation

Neutral Salt Spray (NSS) tests per ISO 9227 confirm surface treatment effectiveness. Our Eco-friendly Magnesium Alloy hollow tube passes 120–240 hour tests, matching or exceeding aluminum performance.

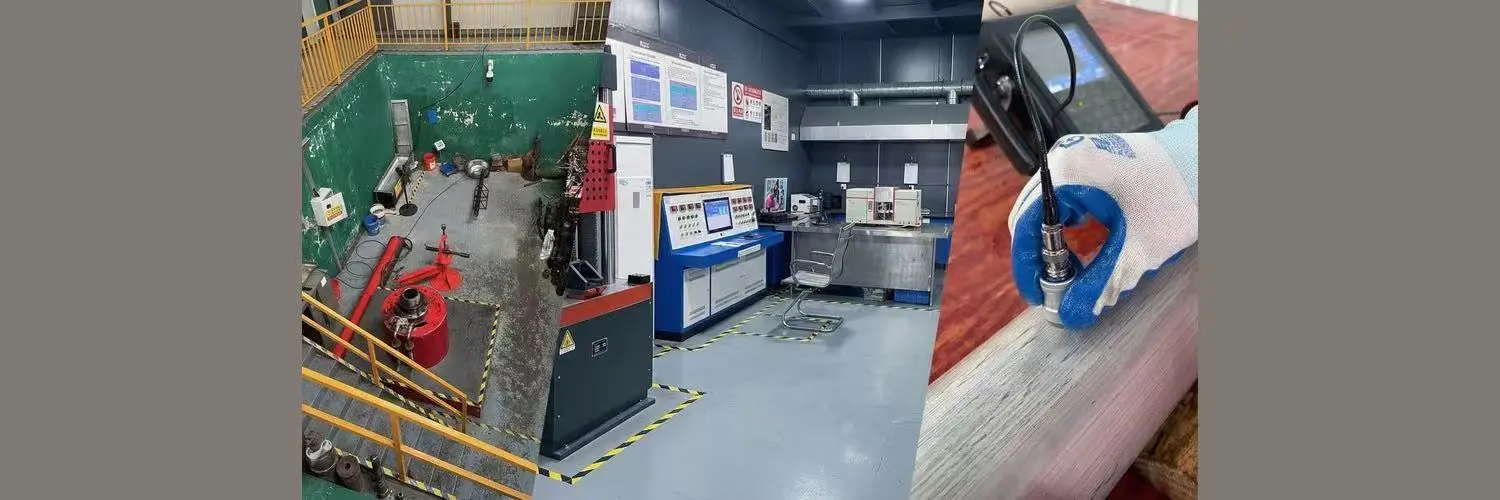

Hagrien MG Quality control

Engineering Support & Customization

OEM/ODM Collaboration

You provide drawings. We handle prototype development, testing, and scaling to mass production. Our co-design approach reduces trial-and-error costs.

Fast Response Times

RFQ answers within 24 hours. Full quotations delivered in 1–3 business days. Weekly project updates keep you informed.

Traceability & Documentation

Every shipment includes COA, COC, and SDS. Batch traceability ensures audit readiness. You pass supplier qualification smoothly.

Exhibition

Exhibition

Frequently Asked Questions

What is the product mainly used for?

The product is mainly used for lightweight hollow sections, tubes, and machined tubular components. Buyers usually want to know whether the product can meet the target working condition, machining route, and final application requirement without creating unnecessary downstream risk.

What key features should buyers evaluate when sourcing the product?

Buyers should evaluate wall-thickness consistency, internal soundness, alloy uniformity, and machining performance, plus reduced post-job intervention, less downhole metal left for milling or retrieval. In export purchasing, these factors matter because they directly affect processing yield, field reliability, product consistency, and the total cost of qualification.

Why do international buyers choose Hagrien for the product?

Hagrien combines alloy melting, extrusion, machining coordination, and quality control to support both standard supply and custom lightweight component development. This helps customers reduce dependence on a single supplier, improve communication speed, and move from sample validation to stable volume supply more efficiently.

Does the eco-friendly designation affect durability?

No. It refers to the removal of toxic alloying elements and the use of green surface treatments. Structural durability and fatigue life often exceed traditional alloys due to refined grain structures.

How do you manage flammability risk during machining?

While magnesium powder is reactive, solid hollow tubes have a high ignition point. We use specialized coolants and chip management protocols to ensure 100% safety during CNC processing.

Is welding possible without losing eco-friendly properties?

Yes. TIG and laser welding using matching eco-friendly filler rods maintain the alloy's integrity and recyclability.

How does corrosion resistance compare to aluminum?

With Micro-Arc Oxidation (MAO) or PVD coatings, these tubes pass 120–240 hour salt spray tests, matching or exceeding many aluminum grades in atmospheric conditions.

What is the end-of-life process?

They are 100% recyclable. Re-melting requires only 5% of the energy needed for primary production, significantly lowering total life cycle assessment (LCA) impact.

Why Partner with Hagrien?

7+ Years of Proven Expertise

Since 2019, we've delivered consistent quality to global oil & gas operations. Our experience translates into reliable supply and predictable lead times.

Global Service Network

Our U.S. entity ensures seamless coordination across time zones. You get support aligned with North American business schedules.

Scalable Production Capacity

We maintain safety stock for standard sizes. Whether you need prototype quantities or volume orders, we scale efficiently.

Compliance & Certifications

ISO 9001, ISO 14001, ISO 45001, and HSE management systems are in place. CNAS-accredited lab results and API recognition give you confidence.

Hagrien Certificates

​​​​​​​Contact Us

Ready to reduce program delivery risk with Eco-friendly Magnesium Alloy hollow tube traceable, engineerable solutions? Email us at cyrus@us-hagrien.com to discuss your project requirements today.​​​​​​​​​​​​​​
