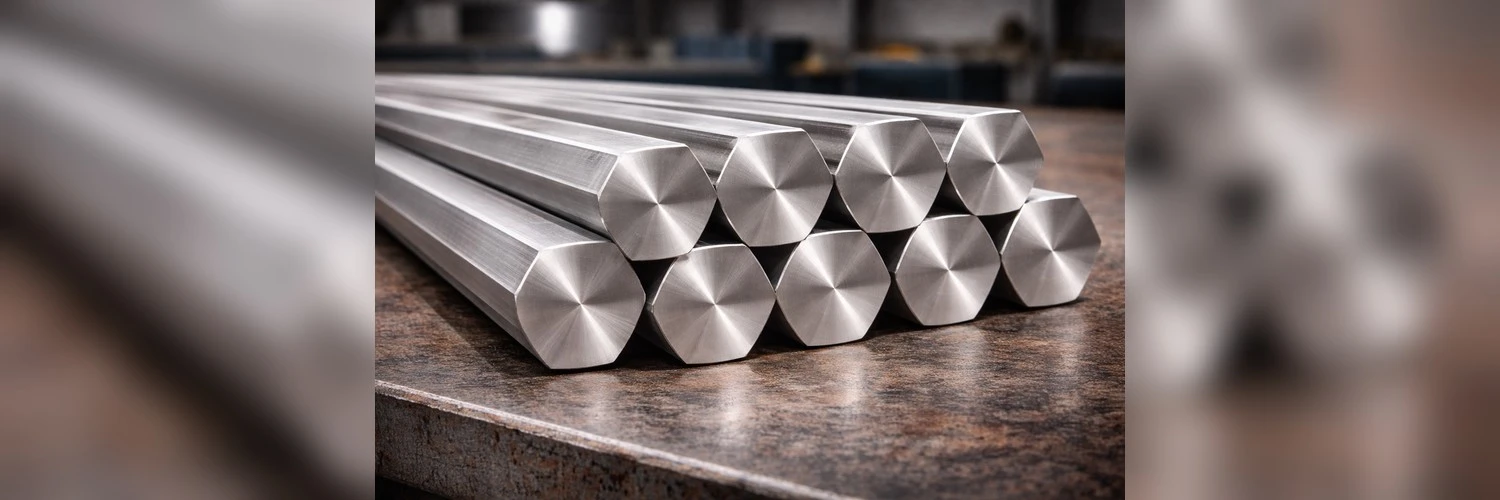

Automotive Magnesium alloy hex bar

Automotive Magnesium Alloy Hex Bar – Precision-Engineered for Vehicle Lightweighting

Our Automotive Magnesium alloy hex bar delivers exactly that. Manufactured by Shaanxi Hagrien Energy Technology, these precision-extruded hexagonal profiles combine low density (1.74–1.83 g/cm³) with impressive tensile strength (240–310 MPa). You get 33% weight savings versus aluminum and 75% lighter than steel. Our closed-loop system—from alloy melting through extrusion to precision machining—ensures dimensional tolerance to H9/H11, uniform microstructure, and diameters up to Ø300 mm. With ISO 9001/14001/45001 certification, CNAS-accredited lab verification, and full batch traceability, you can trust consistent quality for both prototype runs and volume production.

What Makes Our Magnesium Alloy Hex Bar Different?

Engineered for Real-World Automotive Demands

You need materials that work—not just on paper, but on the assembly line and in the field.

Our hex bars are formulated with elements like aluminum, zinc, and manganese (AZ31B, AZ61A, ZK60A). This blend gives you high specific strength and excellent damping performance.

Why does that matter?

Because your components face vibration, thermal cycling, and demanding machining schedules. We design alloy chemistry and process parameters based on those conditions.

Lightweight Performance That Delivers

Weight reduction is critical for both electric vehicles and internal combustion engines.

• 33% lighter than aluminum
• 75% lighter than steel

That deciphers specifically into expanded EV extend and moved forward fuel economy.

But lightweighting as it were works if the portion performs dependably. Our hex bars keep up basic keenness whereas cutting mass.

Superior Damping for NVH Control

Noise, vibration, and brutality (NVH) can demolish the driving experience.

Magnesium amalgam offers up to 10 times higher damping capacity than aluminum 6061.

Use our hex bars in directing columns, drivetrain gatherings, or mounting brackets. You'll take note the contrast in cabin consolation and component longevity.

Machining Effectiveness Built Into the Shape

The hexagonal geometry isn't fair for looks.

It gives a near-net shape for robotized CNC turning and Swiss machining. That implies:

• Reduced material waste
• Shorter cycle times
• Lower tool wear

Your production floor runs smoother. Your costs drop. Your lead times shrink.

Technical Specifications at a Glance

Where You'll Use These Hex Bars

Precision Fasteners and Lightweight Bolts

High-strength, low-mass jolts and nuts are basic in non-critical auxiliary zones and motor covers.

The hex shape streamlines computerized bolstering and turning. You get steady parts with negligible setup time.

EV Battery Warm Administration Fittings

Battery frameworks create warm. Overseeing that warm amplifies battery life and keeps up execution.

Our Automotive Magnesium alloy hex bars excel in machining fluid connectors, manifold plugs, and cooling system components. Excellent thermal conductivity ensures efficient heat dissipation.

Steering and Interior Structural Components

Steering precision depends on stiffness-to-weight ratio.

Use our bars to machine adjustment levers, mounting pins, and support brackets. You reduce front-end weight while maintaining tight tolerances and responsive handling.

Why Hagrien Is Your Trusted Partner?

Closed-Loop Manufacturing for Consistency

We control every step—alloy melting, metallurgy, extrusion, and machining coordination.

That means:

• Uniform microstructure across batches
• Dimensional stability you can count on
• High surface quality straight from extrusion

No surprises. No rework. Just reliable supply.

Verification-First Quality Assurance

Our CNAS-accredited high-temperature, high-pressure (HTHP) laboratory tests every batch.

You receive:

• Certificate of Analysis (COA)
• Certificate of Conformance (COC)
• Safety Data Sheets (SDS)
• Full batch traceability

Audit-ready documentation supports your supplier qualification and compliance requirements.

Engineering Support from Prototype to Volume

Need a custom profile or special alloy formulation?

We provide material + structural co-design. Share your drawings, and we'll develop prototypes, scale to production, and support Factory Acceptance Testing (FAT).

This reduces trial-and-error costs and accelerates your commercialization timeline.

Fast Response and Predictable Delivery

• RFQ response within 24 hours
• Quotation within 1–3 business days
• Weekly project updates aligned with North American schedules
• U.S. entity for coordination and local support

We keep you informed and on schedule.

Addressing Your Practical Concerns

Is Magnesium Safe During Machining?

Solid hex bars are safe to machine.

Yes, magnesium fines can ignite, but you manage that risk with:

• High cutting speeds
• Sharp tools
• Mineral-oil-based coolants (not water-based emulsions)

Follow standard protocols, and machining is no more hazardous than aluminum.

How Do I Prevent Galvanic Corrosion?

When magnesium contacts steel or other metals, galvanic corrosion can occur.

Solutions:

• Use isolation coatings or zinc-rich primers
• Install tin-plated washers
• Apply anodized or PEO surface treatments

We can recommend the best approach based on your assembly design.

Can These Bars Be Welded?

Absolutely.

Use TIG or MIG welding with matching filler rods (AZ61 or AZ92). Post-weld heat treatment may be needed to restore mechanical properties.

Our engineering team can provide welding parameters and procedure support.

What About Custom Sizes?

Standard sizes (8 mm to 50 mm across-flats) are usually in stock.

Custom profiles require tooling and extrusion, typically 4–6 weeks lead time.

We maintain safety stock for high-demand sizes to minimize your wait.

Quality Control You Can Trust

We follow a multi-tier inspection protocol aligned with IATF 16949 automotive standards.

Key Inspection Steps:

1. Chemical Composition Analysis – Verified via Optical Emission Spectroscopy (OES) or ICP-OES
2. Ultrasonic Testing (UT) – Detects internal porosity, inclusions, or cracks
3. Dimensional Tolerance Verification – Precision measurement of across-flats and straightness
4. Microstructural Examination – Grain size analysis for consistent mechanical properties
5. Salt Spray Testing – Evaluates corrosion-resistant coatings per ASTM B117

Each clump is recorded and traceable. You get repeatable, dependable performance.

Exhibition

Frequently Asked Questions

Q1: What is the item primarily utilized for?

It's utilized for lightweight basic parts, lodgings, and machined components in vehicles. Buyers need to know if the item meets target working conditions, machining courses, and last application necessities without making downstream risk.

Q2: What key highlights ought to I assess when sourcing hex bars?

Focus on amalgam review consistency, dimensional resistance, surface quality, and machining execution. Moreover consider mass lessening potential and handle consistency for rehash generation. These variables influence handling surrender, field unwavering quality, and add up to capability cost.

Q3: Why do universal buyers select Hagrien?

Hagrien combines combination softening, expulsion, machining coordination, and quality control. This coordinates approach makes a difference you diminish reliance on single providers, progress communication speed, and move from test approval to steady volume supply more efficiently.

Q4: How does damping capacity compare to aluminum?

Magnesium combination hex bars display up to 10 times higher damping capacity than aluminum 6061. This makes them perfect for components requiring vibration isolation.

Q5: What is the ordinary lead time for custom hex sizes?

Standard sizes dispatch in 2–4 weeks. Custom profiles ordinarily require 4–8 weeks for tooling and expulsion. Sped up conveyance is accessible for critical ventures.

​​​​​​​Ready to Lighten Your Design?

Let's discuss how our Automotive Magnesium alloy hex bar fits your application. Reach out to our team at cyrus@us-hagrien.com for technical specs, samples, or a fast quote.​​​​​​​​​​​​​​
