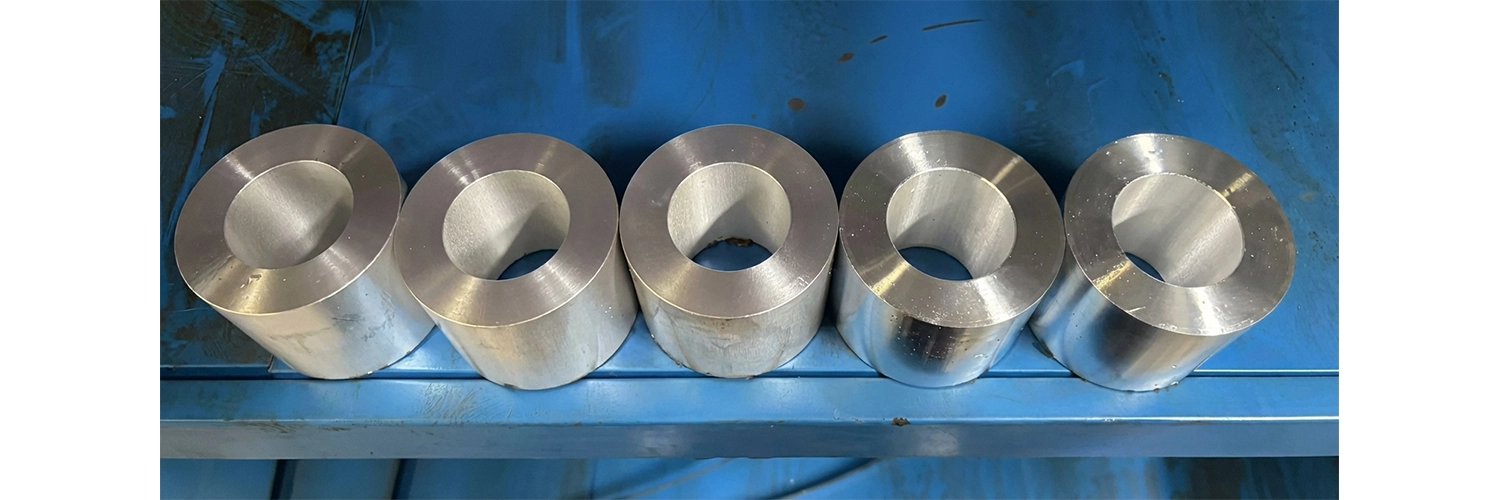

Controlled-Dissolution Magnesium Alloy Seamless Pipe

Controlled-Dissolution Magnesium Alloy Seamless Pipe

High-Performance Dissolvable Pipe for Demanding Downhole Applications

When your operations demand reliable, predictable dissolution without compromising structural integrity, our Controlled-Dissolution Magnesium Alloy Seamless Pipe delivers engineered performance you can trust. Manufactured by Shaanxi Hagrien Energy Technology Co., Ltd., these pipes feature precision-extruded magnesium alloys with customizable dissolution rates from 0.1 to 100+ mg/cm²/h. With tensile strength up to 410 MPa and a density of just 1.74-1.85 g/cm³, our seamless pipes offer exceptional specific strength while maintaining dimensional stability in temperatures reaching 150°C. Backed by 7+ years of continuous production experience and a fully integrated manufacturing system handling diameters up to Ø300 mm, we ensure consistent microstructure and repeatable performance across every batch.

What Makes Our Controlled-Dissolution Magnesium Alloy Seamless Pipe Different?

Built for Your Working Conditions

You confront interesting challenges in each well. That's why we do not offer one-size-fits-all solutions.

Our item is planned around your particular environment. We figure in your temperature ranges, saltiness levels, and required disintegration timelines. This approach gives you ideal adjust between mechanical quality and controlled degradation.

The result? Unsurprising execution when you require it most.

True Consistent Construction

Why does consistent matter for dissolvable applications?

Welded channels contain Warm Influenced Zones. These zones ended up erratic erosion locales that compromise your disintegration control. Our consistent expulsion prepare disposes of this chance entirely.

You get uniform divider thickness all through. Each area breaks down at the same built rate. No frail focuses. No untimely disappointments.

Large-Diameter Capability with Microscopic Precision

We produce pipes up to Ø300 mm diameter while maintaining tight microstructure control.

Our closed-loop manufacturing system ensures:

• Uniform grain structure throughout the cross-section
• Consistent alloying element distribution
• Minimal dimensional variation batch-to-batch

This consistency reduces your machining risks and virtually eliminates scrap rates during component manufacturing.

Technical Specifications

Key Applications That Benefit From Controlled Dissolution

Dissolvable Frac Plugs and Bridge Plugs

Your completion efficiency depends on eliminating milling operations. Our Controlled-Dissolution Magnesium Alloy Seamless Pipes form the structural components of frac plugs that hold pressure during stimulation, then completely dissolve in wellbore fluids.

You save rig time. You reduce operational complexity. You open the production path without mechanical intervention.

Dissolvable Ball Seats and Sliding Sleeves

In multi-stage fracturing, you need components that isolate zones temporarily, then disappear on schedule. Our seamless pipes machine into ball seats and sleeve components that maintain precise tolerances throughout the dissolution process.

Temporary Packers and Flow Control Devices

When you need temporary zonal isolation that self-removes, our pipes provide the structural backbone. They maintain sealing integrity during operations, then dissolve according to your programmed timeline.

How We Ensure Quality You Can Verify?

Material-Level Traceability

Every pipe comes with complete documentation. You receive:

• Chemical composition analysis (ICP-OES verified)
• Mechanical property test results
• Dissolution rate validation data
• Batch traceability records

Our CNAS-accredited research facility conducts all basic testing in-house. You get audit-ready documentation with each shipment.

Dissolution Rate Validation

We do not fair claim controlled dissolution—we demonstrate it. Each generation parcel experiences inactive and energetic weight-loss testing in reenacted downhole liquids coordinating your conditions.

You get the real disintegration bend for your particular bunch. No mystery. No shocks downhole.

Non-Destructive Testing

Our ultrasonic and whirlpool current testing confirms consistent judgment all through. We distinguish and kill any inside voids or considerations some time recently the pipe comes to you.

Microstructure Verification

Metallographic examination per ASTM E112 affirms refined, equiaxed grain structure. This consistency is what gives you unsurprising, steady disintegration over the whole component.

Manufacturing Capabilities That Support Your Projects

From Prototype to Production

Need to test a concept before committing to volume? We support your development cycle with:

• Drawing-based prototype production
• Small-batch sampling for field trials
• Scalable transition to series production
• Engineering collaboration on material-structure optimization

Reliable Lead Times

Standard specifications: 2-4 weeks

Customized alloys or dimensions: 4-8 weeks

Expedited delivery: Available upon request

We maintain safety stock of common sizes to support your urgent requirements.

Global Coordination

Our U.S. presence ensures responsive communication aligned with North American business hours. You get RFQ responses within 24 hours and formal quotations within 1-3 business days.

Exhibition

Frequently Asked Questions

Q: How do you anticipate untimely disintegration amid capacity and transportation?

We store all channels in climate-controlled offices with mugginess underneath 40%. Each pipe is vacuum-sealed with desiccant bundling that avoids climatic dampness contact. Legitimate capacity keeps up pipe keenness for 12+ months some time recently deployment.

Q: Can you customize the disintegration rate for our particular brine chemistry?

Absolutely. We alter alloying elements—particularly aluminum and zinc ratios—along with our expulsion parameters to coordinate your downhole liquid composition and temperature profile. Share your working conditions with us, and we'll build the fitting disintegration kinetics.

Q: What avoids the pipe from dissolving as well rapidly once uncovered to wellbore fluids?

Our surface passivation strategies and controlled auxiliary stage dispersion make an built delay period. The pipe keeps up full basic quality amid your operational window, at that point enters dynamic disintegration on your timeline—not prematurely.

Q: How does consistent development progress execution versus welded alternatives?

Welded channels contain heat-affected zones that erode capriciously and quicken disintegration in localized ranges. This causes untimely auxiliary disappointment. Consistent development disposes of these powerless zones completely, giving you uniform disintegration over the whole component.

Q: What buildup remains after total dissolution?

The essential byproduct is magnesium hydroxide [Mg(OH)₂], which is non-toxic and ecologically kind. It scatters innocuously in wellbore liquids without influencing generation or requiring extraordinary handling.

Q: Do you give fabric certifications for provider capability processes?

Yes. Each shipment incorporates Certificate of Investigation (COA), Certificate of Conformance (COC), and Security Information Sheet (SDS). Our ISO 9001/14001/45001 certifications and CNAS-accredited lab reports bolster your provider review requirements.

Q: What least arrange amounts do you require?

We oblige both development-phase testing and generation volumes. Least orders shift by specification—contact us with your prerequisites for particular MOQ data.

Why Partner With Hagrien for Your Dissolvable Pipe Needs?

Integrated Manufacturing Control

We control every critical step from alloy melting through final machining. This vertical integration eliminates supplier variability and ensures repeatable quality.

Application-Focused Engineering

We don't just sell material—we solve your completion challenges. Our team works with you to select optimal alloy chemistry and dissolution parameters for your specific wells.

Proven Track Record

Since 2019, we've continuously supplied dissolvable magnesium components to demanding oil and gas operations. Our customers return because we deliver consistent performance and responsive service.

Verification Before Shipment

Our verification-first approach means every pipe is tested and documented before leaving our facility. You receive only material that meets specifications—guaranteed.​​​​​​​

Ready to Discuss Your Specific Requirements?

Let's talk about your dissolution timeline, operating temperatures, and performance requirements with Controlled-Dissolution Magnesium Alloy Seamless Pipe. Contact us at cyrus@us-hagrien.com to start the conversation.​​​​​​​
