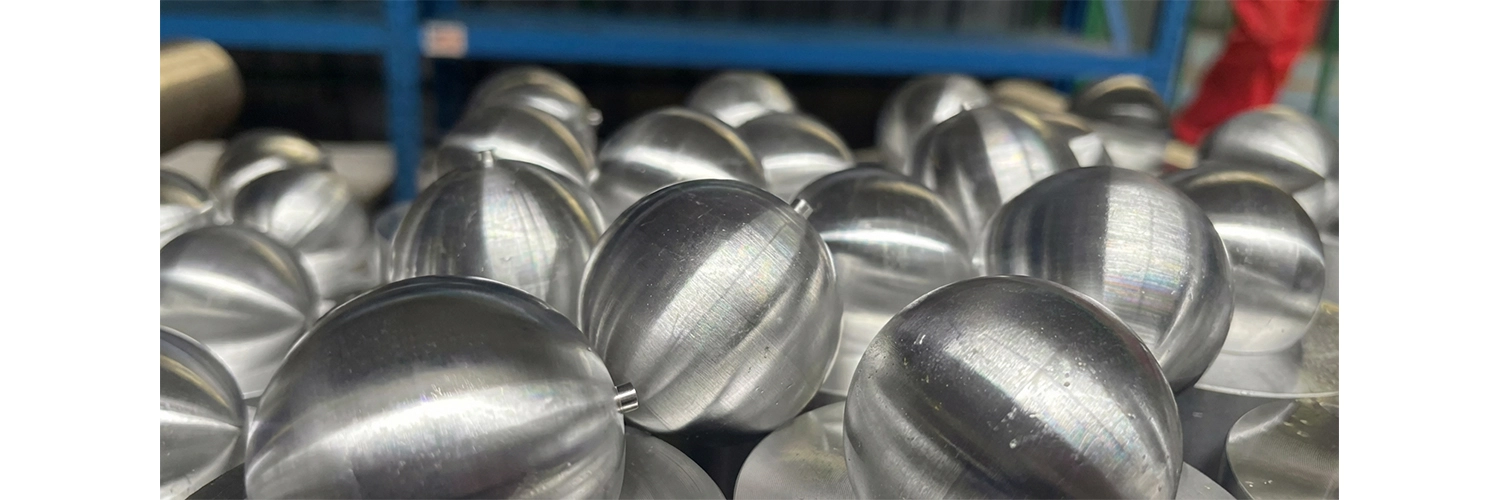

Dissolvable Magnesium Alloy Frac Ball
Form: Customizable
Dissolution rate: Adjustable by alloy design and test condition
Documents:CNAS Inspection/ COA/COC available.
- Product Description
Dissolvable Magnesium Alloy Frac Ball – Engineered for Multi-Stage Completion Efficiency
When you're planning multi-stage hydraulic fracturing in extended-reach laterals, the Dissolvable Magnesium Alloy Frac Ball from Shaanxi Hagrien Energy Technology offers a proven, mill-out-free solution. Our enterprise-grade balls deliver compressive strength exceeding 450 MPa and withstand differential pressures up to 10,000 psi (70 MPa) across temperatures from 40°C to 150°C. With a low density of approximately 1.8 g/cm³ and customizable dissolution rates engineered to your well's salinity and temperature profile, you get predictable performance backed by full traceability. Each batch comes with COA/COC documentation and is produced in our closed-loop manufacturing system—from alloy melting to precision machining—ensuring dimensional tolerance within ±0.002 inches and uniform microstructure across diameters up to Ø300 mm billet stock.
What Makes Our Dissolvable Magnesium Alloy Frac Ball Different?
You're not just buying a ball. You're getting a complete engineered solution.
Our Dissolvable Magnesium Alloy Frac Ball is a high-performance completion tool designed for operators who need reliability under extreme downhole conditions. It's built from a specialized magnesium-matrix composite that maintains structural integrity during stimulation, then dissolves completely in your wellbore fluids—whether brine or acid.
Here's why it matters to you:
Eliminate Mill-Out Operations
Traditional composite or steel balls require costly coiled tubing interventions. Our solution dissolves on its own. No rig time wasted. No mechanical risk in your laterals.
Engineered for HTHP Environments
Your wells operate at the edge of performance. So do our balls. They maintain seat seal integrity under loads up to 15,000 psi before controlled dissolution begins.
Tailored Dissolution Kinetics
We design alloy systems based on your actual operating conditions: temperature, salinity, fluid chemistry, and required dissolution timeline. This isn't off-the-shelf. It's application-specific engineering.
Technical Properties You Can Count On
Serial No. | Tensile Strength/MPa | Yield Strength/MPa
| Elongation% | Hardness/HB | mg/ DissolutionRate（cm2.h） | Dissolution Condition |
AML001 | ≥310 | ≥220 | ≥15.0 | ≥60 | 2-10 | 93℃/3%KCL |
AML003 | ≥200 | ≥140 | ≥32 | ≥50 | 1-5 | 93℃/3%KCL |
AML004 | ≥220 | ≥160 | ≥12.0 | ≥55 | 130-150 | 93℃/3%KCL |
AML005 | ≥300 | ≥200 | ≥15.0 | ≥60 | 90-140 | 93℃/3%KCL |
AML006 | ≥270 | ≥190 | ≥13.0 | ≥55 | 40-80 | 50℃/0.84%KCL |
AML007 | ≥290 | ≥190 | ≥14.0 | ≥60 | 40-80 | 93℃/3%KCL |
AML009 | ≥190 | ≥120 | ≥30 | ≥50 | 20-70 | 93℃/3%KCL |
AML010 | ≥220 | ≥170 | ≥14.0 | ≥55 | 30-50 | 50℃/0.84%KCL |
AML011 | ≥220 | ≥170 | ≥12.0 | ≥55 | 30-60 | 50℃/0.84%KCL |
AML012 | ≥260 | ≥210 | ≥9.0 | ≥70 | 60-100 | 50℃/0.84%KCL |
AML013 | ≥370 | ≥260 | ≥2.5 | ≥90 | 50-70 | 93℃/3%KCL |
AML014 | ≥195 | ≥125 | ≥27 | ≥45 | 15-35 | 93℃/3%KCL |
AML015 | ≥310 | ≥220 | ≥7.0 | ≥80 | 50-70 | 93℃/3%KCL |
AML016 | ≥230 | ≥180 | ≥12.0 | ≥55 | 45-65 | 50℃/0.84%KCL |
AML017 | ≥260 | ≥220 | ≥5 | ≥65 | 50-70 | 43℃/0.05%KCL |
AML018 | ≥400 | ≥280 | ≥4.0 | ≥100 | 40-60 | 93℃/3%KCL |
AML020 | ≥100 | ≥60 | ≥7.0 | ≥42.0 | 50-100 | 93℃/3%KCL |
AML021 | ≥400 | ≥300 | ≥3.0 | ≥100 | 40-60 | 93℃/3%KCL |
AML022 | ≥275 | ≥200 | ≥12 | ≥65 | 90-110 | 50℃/0.84%KCL |
AML023 | ≥450 | ≥340 | ≥3.0 | ≥100 | 10-30 | 93℃/3%KCL |
AML024 | ≥270 | ≥220 | ≥5.0 | ≥70 | 60-120 | 50℃/0.84%KCL |
AML025 | ≥360 | ≥260 | ≥3.0 | ≥100 | 40-70 | 50℃/0.84%KCL |
AML026 | ≥310 | ≥220 | ≥8.0 | ≥60 | 0-5 | 93℃/3%KCL |
How It Works in Your Operation
The magic happens at the microstructure level.
Our magnesium matrix reacts with chloride ions in your wellbore fluids through an electrochemical process. Higher salinity accelerates the reaction. Lower salinity? We adjust the alloy grade accordingly.
During Stimulation:
The Dissolvable Magnesium Alloy Frac Ball seats perfectly. It holds pressure. Your frac stages execute as planned.
Post-Stimulation:
Controlled dissolution begins. Within 24 to 72 hours—depending on your well conditions—the ball breaks down into microscopic particles and aqueous ions.
During Flowback:
Everything clears out naturally. No residue. No obstruction. Full bore access restored.
Real-World Applications Where You Need This
Extended-Reach Lateral Wells
In horizontal wells exceeding 10,000 feet, coiled tubing faces friction limits. Our balls give you full bore access without mechanical intervention.
HTHP Reservoirs
Deep-water and tight-gas formations demand more than polymer balls can deliver. Our alloy maintains integrity under extreme loads, then dissolves on schedule.
Offshore Completion Logistics
Reduce your surface equipment footprint. Eliminate flowback units and milling tools. Lower your total cost of operation in remote environments.
Multi-Stage Fracturing Programs
Available in multiple ball sizes, our solution supports efficient stage isolation. Pump and move on. Your completion timeline accelerates.
Why HAGRIEN's Manufacturing Makes the Difference
You need consistency. We deliver it through vertical integration.
Closed-Loop Manufacturing System

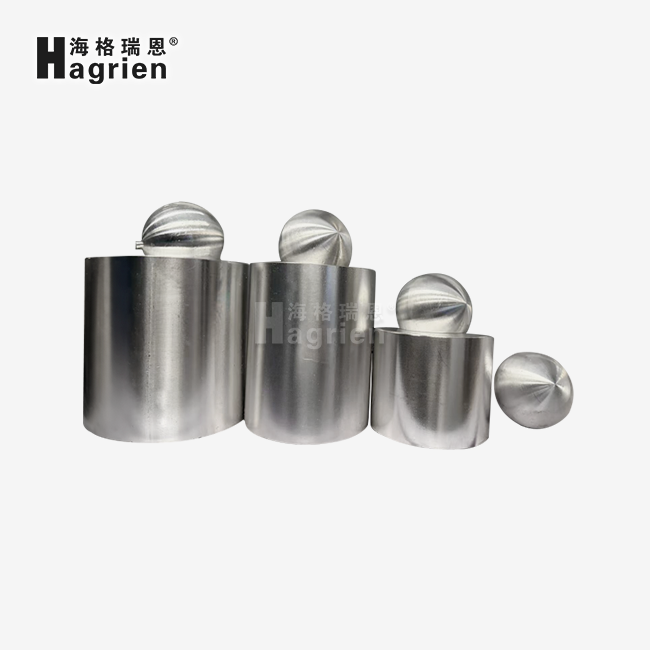

We control every step: alloy melting, metallurgy control, extrusion, precision machining. From Ø300 mm billets to finished balls, everything happens in-house.
Large-Diameter Capability
Our extrusion capacity and strict process discipline ensure uniform microstructure, dimensional stability, and high surface quality. That means lower scrap rates for you.
Verification-First Approach
Our CNAS-accredited HTHP laboratory validates every batch. SEM microstructure analysis. Dimensional checks. Hydrostatic pressure testing. Dissolution rate verification in simulated brine.
Full Traceability
Every production run comes with complete documentation. Batch records. Inspection reports. Spectroscopy data confirming magnesium-aluminum-zinc-calcium ratios. Audit-ready, always.
Predictable Lead Times
- Standard products: 2–4 weeks
- Customized solutions: 4–8 weeks
- Expedited delivery available
Quality Control That Protects Your Program
We don't guess. We measure.
Microstructure Analysis
Scanning Electron Microscopy ensures uniform distribution of dissolving agents throughout the alloy matrix.
Dimensional Tolerance Verification
High-precision machining checks guarantee perfect seating every time.
Dissolution Rate Testing
Batch-tested in simulated KCl/NaCl brine to verify degradation timeframes match your technical data sheet.
Hydrostatic Pressure Testing
Both destructive and non-destructive methods confirm collapse ratings at your operating temperatures.
Spectroscopy
Proprietary metallurgical specs are verified for predictable downhole performance.
Frequently Asked Questions
Q: How does fluid salinity affect dissolution?
A: Salinity acts as a catalyst. Higher chloride concentrations accelerate the electrochemical reaction. For low-salinity environments, we offer specialized alloy grades engineered for those conditions.
Q: Can the ball survive an acid squeeze?
A: Magnesium reacts with HCl. If you're planning an acid wash, we can apply a protective coating or help you adjust your treatment sequence.
Q: What's the typical dissolution timeframe?
A: Depending on temperature and brine concentration, we engineer dissolution to occur within 24 to 72 hours post-stimulation. Your well conditions drive our alloy design.
Q: Is there any residue left in the wellbore?
A: No. The alloy breaks down into microscopic particles and aqueous ions that flow out naturally during flowback.
Q: What's the shelf life?
A: When stored in original vacuum-sealed packaging with desiccant, our balls have a 24-month shelf life. This prevents premature oxidation.
Q: Can you customize ball sizes?
A: Absolutely. We support drawing-based production and prototype development. Our engineering team works with you to match your specific completion design.
Engineering Support Tailored to Your Project
We're not just a supplier. We're your technical partner.
Material Selection Guidance
Tell us your well conditions. We'll recommend the optimal alloy formulation.
Drawing-Based Production
Send us your specs. We'll machine to your exact requirements.
Prototype Development
Need to test before committing to volume? We support small-batch trials with full verification.
FAT & Verification Plans
We align with your quality protocols and provide inspection witnessing when you need it.
Weekly Project Updates
Our U.S. entity ensures communication aligned with North American schedules. RFQ response within 24 hours. Quotation within 1–3 business days.
Compliance & Certifications You Expect
- ISO 9001 / ISO 14001 / ISO 45001
- HSE management system
- CNAS-accredited laboratory
- API recognition
- ASTM B94 alloy compliance
Ready to Eliminate Mill-Out Risk from Your Completion Program?
Contact our team at cyrus@us-hagrien.com to request technical data sheets and pricing for Dissolvable Magnesium Alloy Frac Ball.
