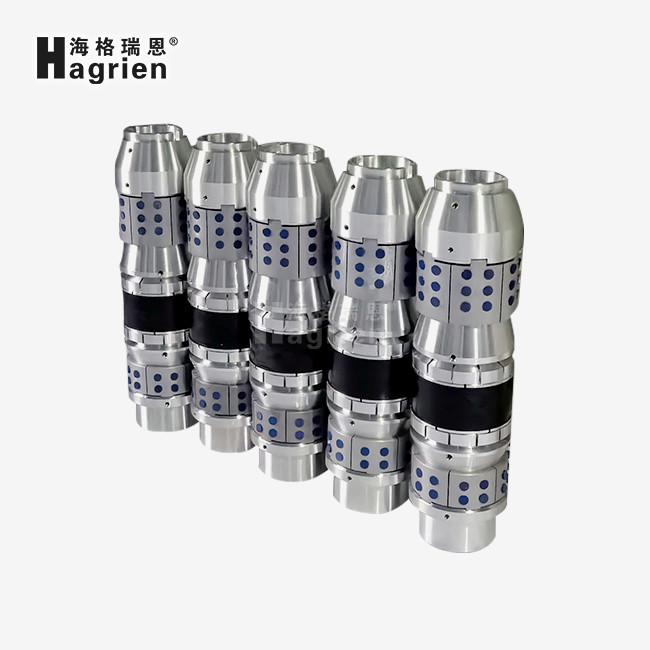

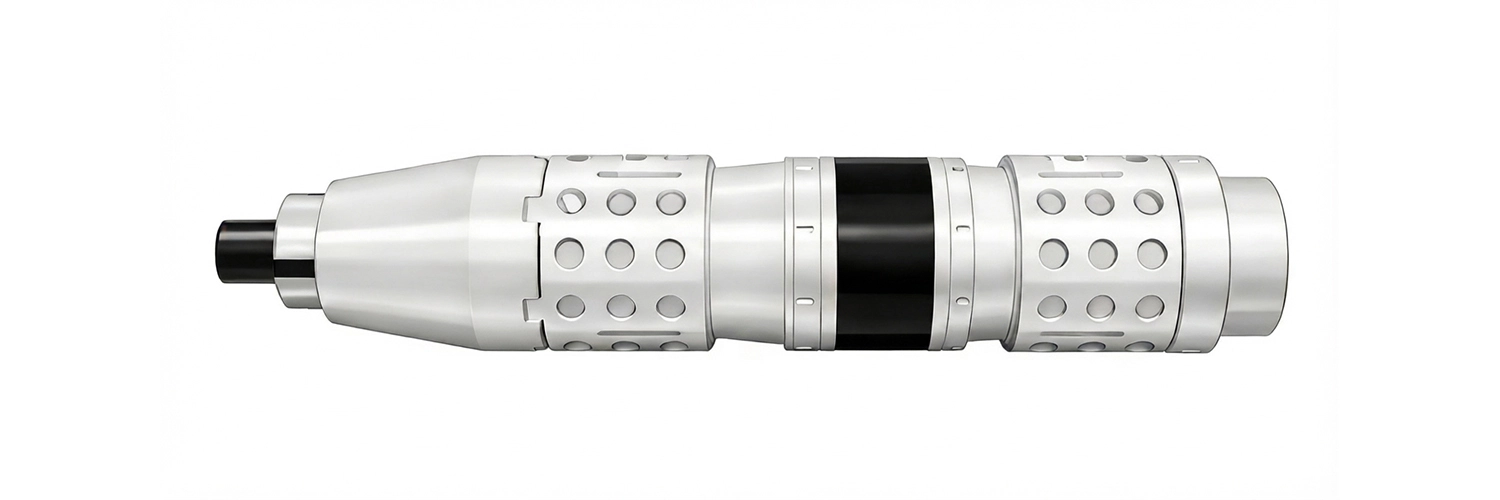

Frac Plug Assembly

Frac Plug Assembly: Advanced Magnesium Alloy Solutions for Multi-Stage Fracturing

When you're arranging multi-stage level well operations, you require separation apparatuses that won't let you down. HAGRIEN's Frac Plug Assembly conveys enterprise-grade execution through built magnesium amalgam development, advertising weight evaluations surpassing 10,000 PSI and temperature resistance from 150°F to 400°F. Our closed-loop fabricating system—from amalgam dissolving to exactness machining—produces expelled bars up to Ø300 mm distance across with full clump traceability. You get unsurprising 2–4 week lead times for standard setups and total documentation bundles (COA/COC/SDS) that streamline your provider capability handle. With 7+ a long time of persistent generation involvement, we've refined our fabric detailing to adjust auxiliary quality with controlled disintegration rates custom fitted to your wellbore conditions.

​​​​​​​What Makes Our Isolation System Different

You're confronting complex downhole challenges. Our approach rearranges them.

Engineered Material Performance

We do not fair supply plugs. We plan combination frameworks based on your real working parameters—temperature profiles, saltiness levels, and liquid chemistry. This implies you get disintegration rates that coordinate your well cleanup plan, not nonexclusive timelines that make bottlenecks.

Manufacturing Consistency You Can Audit

Every component comes from our CNAS-accredited office with full traceability. You'll get review records, metallurgical certifications, and clump documentation that fulfill indeed the strictest acquirement benchmarks. No shocks amid capability audits.

Rapid Response for Critical Projects

RFQ answers arrive inside 24 hours. Point by point citations take after in 1–3 trade days. When you're dashing against fix plans, that responsiveness ensures your timeline.

Technical Specifications

Why Operators Choose This Solution

Reduces Non-Productive Time

Traditional composite or cast-iron gatherings require mill-out runs that devour fix hours and produce flotsam and jetsam. Our Frac Plug Assembly breaks down typically in wellbore liquids, letting you move straight to generation without intercession. You spare days per well.

Simplifies Multi-Stage Completions

Horizontal wells request dependable organize segregation. Our full-metal magnesium development gives strong fixing whereas keeping up compatibility with standard wireline setting devices (E-4 or equivalent). You get the mechanical quality you require with the cleanup effortlessness you want.

Adapts to Your Well Conditions

Temperature and saltiness change over plays. We alter amalgam composition and component geometry to coordinate your particular environment—whether you're working in the Permian, Falcon Portage, or universal flighty supplies. One provider, different solutions.

Lowers Wellbore Risk

Drill-out operations present metal shavings and elastomer flotsam and jetsam that can plug holes or harm ESP frameworks. Dissolution-based segregation dispenses with that chance completely. Your generation tubing remains cleaner, and your counterfeit lift gear endures longer.

Application Scenarios

Unconventional Shale Plays

You're running 40+ stage completions in horizontal laterals. Our assemblies set reliably at depth, hold pressure during high-rate fracturing, and dissolve on schedule during flowback. No coiled tubing mobilization required.

Extended Reach Wells

Lightweight magnesium construction reduces running loads on wireline. You reach total depth without exceeding tensile limits, even in wells with complex trajectories or high dogleg severity.

High-Pressure High-Temperature Operations

Deep formations demand materials that won't fail under thermal cycling and corrosive fluid exposure. We engineer alloys to maintain structural integrity through the stimulation phase, then dissolve predictably once conditions stabilize.

Offshore and Remote Locations

When rig costs exceed $500,000 per day, every hour matters. Predictable dissolution eliminates the need for cleanout runs, cutting completion time and reducing logistical complexity in environments where backup equipment isn't readily available.

How the Dissolution Process Works

You might wonder: "Will this actually dissolve when I need it to?"

Here's what controls the process:

Temperature

Higher bottomhole temperatures accelerate the electrochemical reaction between magnesium and wellbore fluids. We calibrate alloy composition to your expected thermal profile.

Fluid Salinity

Chloride concentration drives dissolution rate. In high-salinity brines, our assemblies break down faster. In fresher fluids, we can adjust the formula or recommend salt-pill triggers to initiate the process.

Surface Area Exposure

Component geometry matters. We optimize wall thickness and contact area to balance structural strength during pressure containment with predictable dissolution during cleanup.

Backup Drillability

If unexpected conditions slow dissolution, our design includes a drillable profile compatible with standard mill assemblies. You always have a mechanical removal option.

Engineering Support and Customization

Off-the-shelf solutions don't fit every well. That's why we offer OEM/ODM capabilities.

Drawing-Based Manufacturing

Send us your tool specifications. We'll produce components to your exact dimensional and metallurgical requirements, with prototype validation before full-scale production.

Co-Design Collaboration

Our materials engineers work with your completion team to optimize alloy selection, component geometry, and dissolution characteristics for your specific play. You get a solution that fits your operational reality, not a generic catalog item.

Factory Acceptance Testing

Before shipment, we run pressure tests, dimensional inspections, and metallurgical validation in our CNAS-accredited lab. You receive test reports that document performance before the tools leave our facility.

Frequently Asked Questions

Q: What factors influence dissolution rate?

A: Wellbore temperature, fluid salinity (especially chloride concentration), and the surface area-to-volume ratio of components are the primary drivers. We provide dissolution curves based on your specific well parameters during the engineering phase.

Q: Can I use these in fresh-water environments?

A: Yes, though dissolution slows in low-salinity fluids. We can engineer faster-dissolving alloys or recommend salt-pill triggers to accelerate the process when needed.

Q: What happens if a plug doesn't dissolve?

A: Every assembly includes a drillable profile compatible with standard mill bits. If unexpected wellbore conditions halt dissolution, you can mechanically remove the tool using conventional coiled tubing or wireline operations.

Q: Are these compatible with standard setting tools?

A: Absolutely. Our designs work with industry-standard E-4 hydraulic and electric setting tools, so you don't need to modify your existing wireline equipment or procedures.

Q: What's the shelf life?

A: When stored in climate-controlled, low-humidity conditions (below 50% RH, away from direct sunlight), our assemblies maintain full performance characteristics for 12+ months. We provide storage guidelines with every shipment.

Q: Do you support sour gas environments?

A: Yes. For H₂S-containing wells, we formulate alloys and select sealing elements that meet NACE MR0175 corrosion resistance standards. Specify sour service requirements when requesting a quote.

Q: How do you ensure batch consistency?

A: Our closed-loop system controls every step—from raw material melting through final machining. Each batch receives metallurgical testing, dimensional inspection, and performance validation. You get certification documents that prove repeatability across orders.

Q: Can you expedite delivery for urgent projects?

A: Yes. We maintain safety stock for common sizes and can prioritize production runs when rig schedules demand faster turnaround. Contact us with your timeline, and we'll confirm feasibility within 24 hours.

Why Partner with HAGRIEN

You're choosing more than a Frac Plug Assembly. You're selecting a manufacturing partner with deep materials expertise.

Integrated Supply Chain

We control alloy formulation, extrusion, machining, and quality testing in-house. That vertical integration eliminates third-party delays and ensures consistent quality you can audit at the source.

Global Coordination, Local Responsiveness

Our U.S. entity provides commercial support aligned with North American business hours, while our Xi'an headquarters manages production and logistics. You get responsive communication without sacrificing manufacturing capability.

Continuous Improvement Culture

Since 2019, we've refined our processes based on field performance data and customer feedback. When you report results, we incorporate that learning into future production runs—making every batch better than the last.

Get Started with Your Custom Solution

Let's discuss your well parameters and build a Frac Plug Assembly solution that fits your operational needs. Reach out to our team at cyrus@us-hagrien.com.
