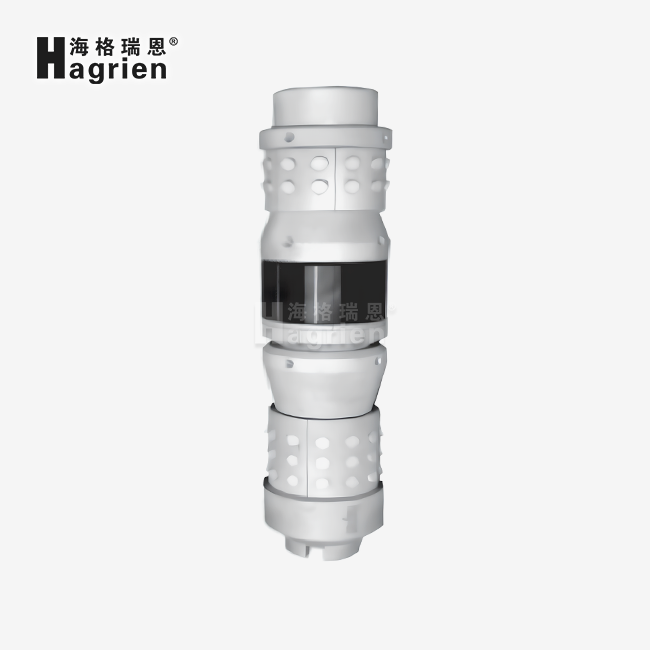

Wireline Set Dissolvable Bridge Plug

Wireline Set Dissolvable Bridge Plug – Engineerable Zonal Isolation Solutions

When you're managing multi-stage completion programs, every plug counts. HAGRIEN's Wireline Set Dissolvable Bridge Plug eliminates the costly milling step while maintaining zone integrity throughout your frac sequence. Built from proprietary magnesium alloys extruded in-house up to Ø300 mm, our plugs deliver pressure ratings of 10,000–15,000 psi and temperature resistance from 80°F to 350°F. With controlled dissolution windows from 24 hours to 21 days—tuned to your wellbore chemistry—you get predictable performance backed by CNAS-accredited lab verification, full COA/COC documentation, and batch-level traceability. Every plug ships with engineered repeatability and audit-ready quality assurance.

What Is The Product?

This downhole tool provides temporary zonal isolation during hydraulic fracturing operations.

You deploy it using standard electric wireline and a conventional setting tool.

Once set, it holds pressure during stimulation.

After the job, it dissolves naturally in wellbore fluids—no coiled tubing mill-out required.

Why Dissolvable Technology Matters

Traditional composite plugs leave debris.

That debris risks:

• Blocking your production tubing
• Requiring additional intervention runs
• Extending your time-to-production window

Dissolvable plugs vanish into microscopic, non-toxic particles.

Your flowback carries them to surface.

You save time. You reduce risk. You accelerate revenue.

Product Specifications

Core Advantages of HAGRIEN's Wireline Set Dissolvable Bridge Plug

1. Wireline-Compatible Deployment

You don't need specialized conveyance.

Standard electric wireline and setting tools work seamlessly.

This means:

• Faster run-in-hole speeds
• Precise depth control
• Lower deployment costs compared to coiled tubing operations

2. Engineered Dissolution Control

We design alloy chemistry and microstructure based on your well conditions.

Temperature? Salinity? Fluid chemistry?

We tune the dissolution rate accordingly.

You get predictable timing—no premature failure, no unexpected delays.

3. In-House Material & Manufacturing Control

HAGRIEN operates a closed-loop production system:

• Alloy melting and formulation
• Extrusion up to Ø300 mm diameter
• Precision CNC machining
• Full FAT and verification support

This vertical integration ensures:

• Consistent metallurgical properties
• Dimensional accuracy
• Repeatability across batches

4. High Pressure & Temperature Performance

Our Wireline Set Dissolvable Bridge Plug maintain structural integrity under extreme conditions.

They hold pressure during frac jobs.

Then they dissolve on schedule.

No compromise between strength and degradability.

5. Full Traceability & Compliance

Every batch includes:

• Spectrographic analysis reports
• Hydrostatic seal test data
• Dimensional inspection records
• COA/COC certificates

We're ISO 9001, ISO 14001, and ISO 45001 certified.

Our CNAS-accredited lab ensures audit-ready documentation.

6. Customization & OEM/ODM Support

Need a specific profile? A unique alloy blend?

Send us your drawings.

We support:

• Prototype development
• Scaled production runs
• Material + structural co-design

You reduce trial-and-error. We accelerate your commercialization timeline.

Where You Can Use This Technology

Extended Reach Lateral (ERL) Completions

In laterals beyond 10,000 feet, coiled tubing hits its operational limits.

Milling becomes risky—or impossible.

Dissolvable plugs solve this.

Deploy them wireline. Let them dissolve.

No intervention. No buckling risk.

High-Pressure/High-Temperature (HPHT) Wells

Deepwater and complex gas reservoirs demand reliability.

Our plugs withstand harsh conditions while ensuring a clean flowpath.

No debris to compromise subsea equipment.

Water-Sensitive or Low-Velocity Formations

Traditional plug debris can accumulate as "proppant dunes."

This blocks your production.

Dissolvable technology keeps your wellbore clear.

Maximum hydrocarbon recovery from day one.

Plug-and-Perf Operations

You need fast, repeatable isolation for multi-stage fracs.

Wireline deployment is faster than coiled tubing.

Dissolvable plugs eliminate the milling sequence.

You complete more stages per day.

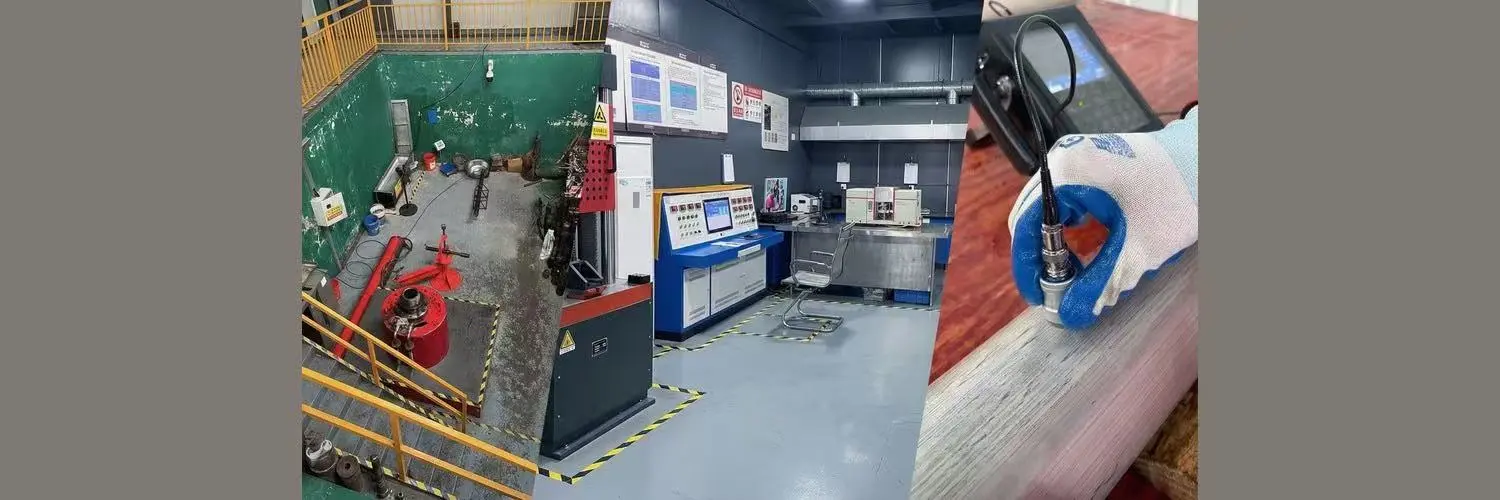

Quality Control That Protects Your Operations

Material Verification

Every magnesium alloy batch undergoes spectrographic analysis.

We verify chemical composition and galvanic properties.

This ensures your dissolution rate matches the design spec.

Pressure Testing

We simulate downhole conditions in our HTHP lab.

Hydrostatic seal tests confirm V3-level performance.

You deploy with confidence.

Elastomer Degradation Analysis

Our dissolvable rubber components are tested for:

• Shore hardness retention
• Dissolution rate consistency across salinity ranges
• Compatibility with wellbore fluids

Dimensional Precision

CNC coordinate measuring machines (CMM) verify every critical dimension.

Tight tolerances ensure reliable wireline setting.

No surprises downhole.

How We Support Your Program

Fast Response Times

• RFQ response: Within 24 hours
• Quotation: 1–3 business days
• Weekly project updates aligned with North American schedules

Engineering Collaboration

We work with your completion engineers to:

• Select optimal alloy formulations
• Design custom profiles
• Plan FAT and verification protocols

Reliable Supply Chain

• Standard products ship in 2–4 weeks
• Custom solutions in 4–8 weeks
• Safety stock for high-demand sizes
• U.S. entity for logistics coordination

Frequently Asked Questions

Q: How long does the product take to fully dissolve?

A: Dissolution time ranges from 24 hours to 21 days. We tune this by adjusting alloy chemistry and matching it to your wellbore temperature and chloride concentration.

Q: Can the plug be used in fresh-water environments?

A: Yes. Dissolution is a galvanic process, so low-salinity fluids may require a "salt pill" or alloy adjustments to initiate the reaction. We'll engineer the right solution for your conditions.

Q: Is there a risk of premature setting?

A: No. Our plugs feature a multi-stage shear system and anti-preset design. They activate only when your wireline setting tool applies the specified force.

Q: Does the dissolved material harm the formation?

A: No. The magnesium ions and elastomer particles break down into microscopic, non-toxic fragments. They transport easily to surface during flowback without plugging pore throats.

Q: What is the shelf life of these plugs?

A: When stored in original vacuum-sealed packaging with desiccant, structural integrity is maintained for extended periods. We provide storage guidelines with every shipment.

Q: Can you match our existing plug specifications?

A: Yes. Send us your drawings and performance requirements. We'll develop a compatible solution with full traceability and verification documentation.

Why HAGRIEN for Your Dissolvable Plug Program

You need more than a Wireline Set Dissolvable Bridge Plug.

You need a manufacturing partner who understands downhole risk.

HAGRIEN delivers:

• 7+ years of continuous production since 2019
• Ø300 mm extrusion capability for large-diameter applications
• In-house alloy development tuned to real well conditions
• Full traceability from melt to final inspection
• Global service with U.S. coordination support

We reduce your program delivery risk through:

• Consistent quality across batches
• Predictable lead times
• Engineering-driven customization
• Long-term supply stability

Get Started Today

Let's discuss your well conditions and build a custom solution for Wireline Set Dissolvable Bridge Plug. Reach out to cyrus@us-hagrien.com.

​​​​​​​
