Bridge Plug Running and Setting Tool
Form: Customizable
Dissolution rate: Adjustable by alloy design and test condition
Documents:CNAS Inspection/ COA/COC available.
- Product Description

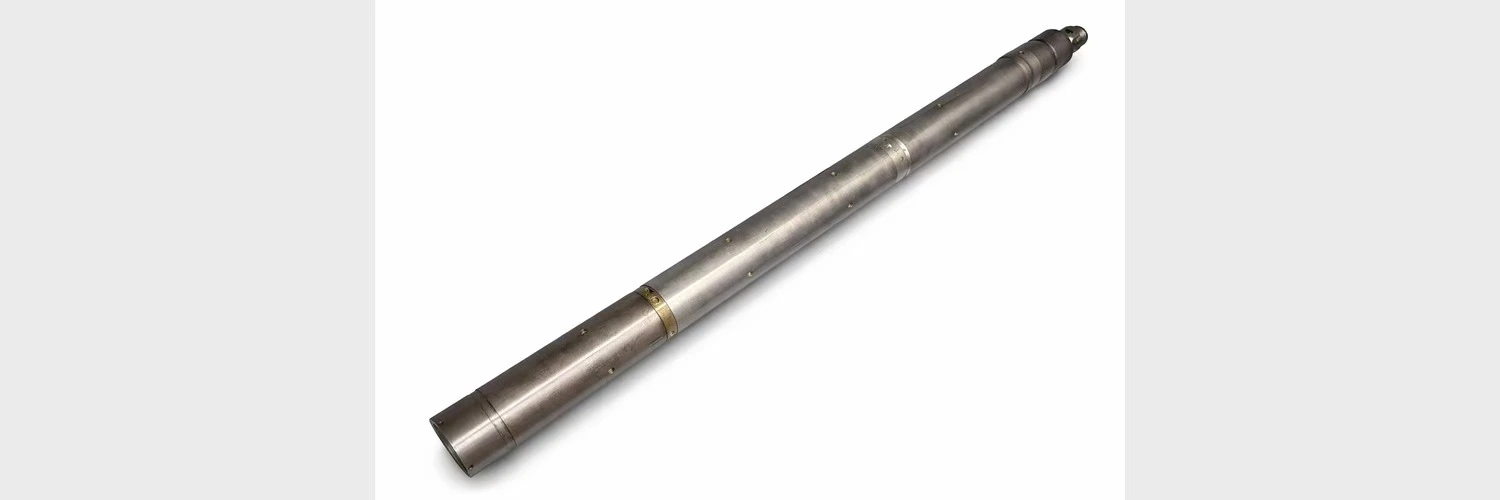

Bridge Plug Running and Setting Tool
Shaanxi Hagrien Energy Technology Co., Ltd. brings you an expertly engineered Bridge Plug Running and Setting Tool designed for reliable downhole plug deployment. Built from premium magnesium alloy, our tool supports both plug running and setting functions with enterprise-grade precision. We offer customizable forms with adjustable dissolution rates tailored to your specific wellbore conditions. Every unit comes with complete COA/COC documentation and full batch traceability. Backed by our CNAS-accredited laboratory and ISO-certified manufacturing system, we deliver standard tools within 2–4 weeks and customized solutions within 4–8 weeks, ensuring your project timeline stays on track.
What Makes Our Running and Setting Tool Different
Material Innovation Meets Downhole Reliability
You need equipment that performs under pressure. Our magnesium alloy construction combines high tensile strength with controlled dissolution properties. This matters when you're working in high-temperature, high-salinity environments.
We design each alloy system based on your actual operating conditions. Temperature ranges, fluid chemistry, and required dissolution timelines all factor into our material selection process. This engineering-first approach gives you stable, repeatable performance every time.
Large-Diameter Capability with Zero Compromise
Our extrusion capability reaches up to Ø300 mm. That's not just a number—it means you get uniform microstructure throughout the entire tool body. No weak spots. No dimensional inconsistencies that cause problems during deployment.
Strict process discipline ensures every batch meets the same high standards. Your procurement team will appreciate the reduced scrap rates and predictable lead times.
Technical Specifications
No. | Item Name | *MDM Material Description | Quality Standard | Technical Requirements (Main Parameters) | Lead Time |
1 | Electrically Controlled Setting Tool, 56 mm | Special setting tool, electrically controlled setting tool, 56 mm, 105 MPa, 17-4PH | SY/T 5158-2020 General Technical Specifications for Petroleum Exploration Imaging Logging Systems | 1. Single-core shock-resistant connector. | 60 days |
2 | Electrically Controlled Setting Tool, 76 mm | Special setting tool, electrically controlled setting tool, 76 mm, 140 MPa, 17-4PH | SY/T 5158-2020 General Technical Specifications for Petroleum Exploration Imaging Logging Systems | 1. Single-core shock-resistant connector. | 60 days |
3 | Electrically Controlled Setting Tool, 96 mm | Special setting tool, electrically controlled setting tool, 96 mm, 140 MPa, 17-4PH | SY/T 5158-2020 General Technical Specifications for Petroleum Exploration Imaging Logging Systems | 1. Single-core shock-resistant connector. | 60 days |
4 | Upper Connector | Electric setting tool accessory ETP961032-140A-V10 upper connector | SY/T 5158-2020 General Technical Specifications for Petroleum Exploration Imaging Logging Systems | 1. Single-core shock-resistant connector. | 45 days |
5 | Lower Connector | Electric setting tool accessory ETP961032-140A-V10 lower connector | SY/T 5158-2020 General Technical Specifications for Petroleum Exploration Imaging Logging Systems | 1. Single-core shock-resistant connector. | 45 days |
6 | Intelligent Controller | Electric setting tool accessory ETP961032-140A-V10 intelligent controller | SY/T 6235 General Technical Specifications for Computerized Surface Logging Units | 1. Commitment required that within three months after award, it will be compatible with the perforating surface depth system. | 45 days |
7 | Surface Reset Box | Electric setting tool accessory ETP961032-140A-V10 surface reset box | SY/T 6235 General Technical Specifications for Computerized Surface Logging Units | 1. Operating temperature: -30℃ to 50℃. | 45 days |
8 | Magnetic Collar Locator | Perforating downhole instrument, magnetic collar locator, CCL-73-V10, 73 mm | SY/T 5158-2020 General Technical Specifications for Petroleum Exploration Imaging Logging Systems | 1. Single-core shock-resistant connector. | 45 days |
9 | Electronic Select-Fire Switch | Analog-digital hybrid integrated circuit, electronic select-fire switch, EFS-V30 | Q/SY 02866-2020 Technical Specification for Bridge Plug and Perforating Operations | 1. Commitment required that within three months after award, it will be compatible with the intelligent controller. | 45 days |
10 | Electronic Select-Fire Switch | Analog-digital hybrid integrated circuit, electronic select-fire switch, EFP-FA11-V10 | Q/SY 02866-2020 Technical Specification for Bridge Plug and Perforating Operations | 1. Commitment required that within three months after award, it will be compatible with the intelligent controller. | 45 days |
Why Service Companies Choose Our Tool
Coordinated Completion-Tool Supply
You're managing multiple vendors. We get it. That's why our Bridge Plug Running and Setting Tool integrates seamlessly into coordinated completion projects. Whether you're running dissolvable plugs or conventional systems, our tool adapts to your workflow.
Project-Based Customization
No two wells are identical. We offer engineering-to-spec customization that addresses your specific challenges. Bring us your drawings, and we'll produce tools that match your exact requirements. Our prototype-to-production process reduces your trial-and-error costs significantly.
Verification Before Deployment
Our CNAS-accredited lab tests every batch under real downhole conditions. You receive complete documentation packages before the tool ever reaches your wellsite. This verification-first approach minimizes non-productive time and keeps your frac schedule moving.
Key Applications in Energy Operations
Multi-Stage Hydraulic Fracturing
Horizontal shale plays demand speed and reliability. Your wireline crew needs tools that set plugs rapidly between frac stages without premature activation. Our tool's balanced design prevents atmospheric pressure interference during high-flow pump-down operations.
Zonal Isolation and P&A Operations
During permanent well closure, you need a setting tool that positions plugs with absolute precision. The cement column weight places enormous loads on the isolation device. Our high-load capacity design ensures your plug stays anchored exactly where you set it.
High-Pressure Re-completion Projects
Mature fields present unique challenges. Scaled casing. Corrosion. Deviated wellbores. Our tool's customizable design accommodates specialized adapter kits that ensure secure grip even in compromised tubulars.
Manufacturing Excellence You Can Verify
Closed-Loop Production System
From alloy melting to final machining, we control every production step in-house. This vertical integration gives you consistent quality across every order. You won't see batch-to-batch variations that cause field failures.
Material Performance Engineered for Your Well
We don't use off-the-shelf alloys. Our metallurgy team designs material systems based on your wellbore chemistry. Salinity levels, CO2 content, and temperature profiles all influence our alloy formulation. This application-oriented approach delivers optimal strength, toughness, and machinability.
Quality Control That Meets Industry Standards
Every tool undergoes dimensional verification with precision micrometers. We conduct non-destructive testing on all load-bearing components. Material test reports verify chemical composition and hardness levels that meet NACE requirements for sour service environments.
How We Support Your Tool Planning
Fast Response Times
You need quotes quickly. We respond to RFQs within 24 hours and deliver detailed quotations within 1–3 business days. Weekly project updates keep you informed throughout production.
OEM and ODM Capabilities
Private labeling? Custom configurations? We support both. Our engineering team collaborates with you on material and structural co-design. This partnership approach accelerates your product commercialization timeline.
Global Service Network
With operations in Xi'an and the United States, we align with North American schedules. Our U.S. entity handles coordination, so you're never waiting for answers across time zones.
Frequently Asked Questions
Q: What dissolution rate options are available?
A: We adjust dissolution rates through alloy design and can test performance under your specific fluid conditions. Our lab simulates your wellbore environment to predict accurate dissolution timelines.
Q: Can you manufacture to our existing tool drawings?
A: Absolutely. Send us your specifications, and we'll produce tools that match your dimensional and performance requirements. We support both prototype development and scaled production.
Q: How do you ensure batch-to-batch consistency?
A: Our closed-loop manufacturing system maintains strict process discipline. Every batch receives identical metallurgy control, extrusion parameters, and machining procedures. Full traceability documentation proves consistency.
Q: What documentation comes with each order?
A: You receive Certificate of Analysis (COA), Certificate of Conformance (COC), and Safety Data Sheets (SDS). Material test reports include chemical composition, mechanical properties, and hardness verification.
Q: Do you maintain safety stock?
A: Yes, for standard sizes. This reduces lead times when you need expedited delivery. Custom configurations require the full production timeline.
Q: How does your tool interface with different conveyance methods?
A: Our design accommodates wireline, coiled tubing, and jointed pipe deployment. We can customize connection types to match your specific conveyance equipment.
Your Partner in Downhole Tool Innovation
Service companies choose HAGRIEN because we reduce program delivery risk. You get consistent quality, predictable lead times, and engineering support that solves real wellsite challenges. Our 7+ years of continuous production experience means we understand what works downhole—and what doesn't.
The Bridge Plug Running and Setting Tool represents our commitment to manufacturing excellence. From material formulation through final inspection, every step focuses on delivering reliable performance in your toughest wells.
Contact Us
Ready to discuss your project requirements for Bridge Plug Running and Setting Tool? Reach out to our team at cyrus@us-hagrien.com.
