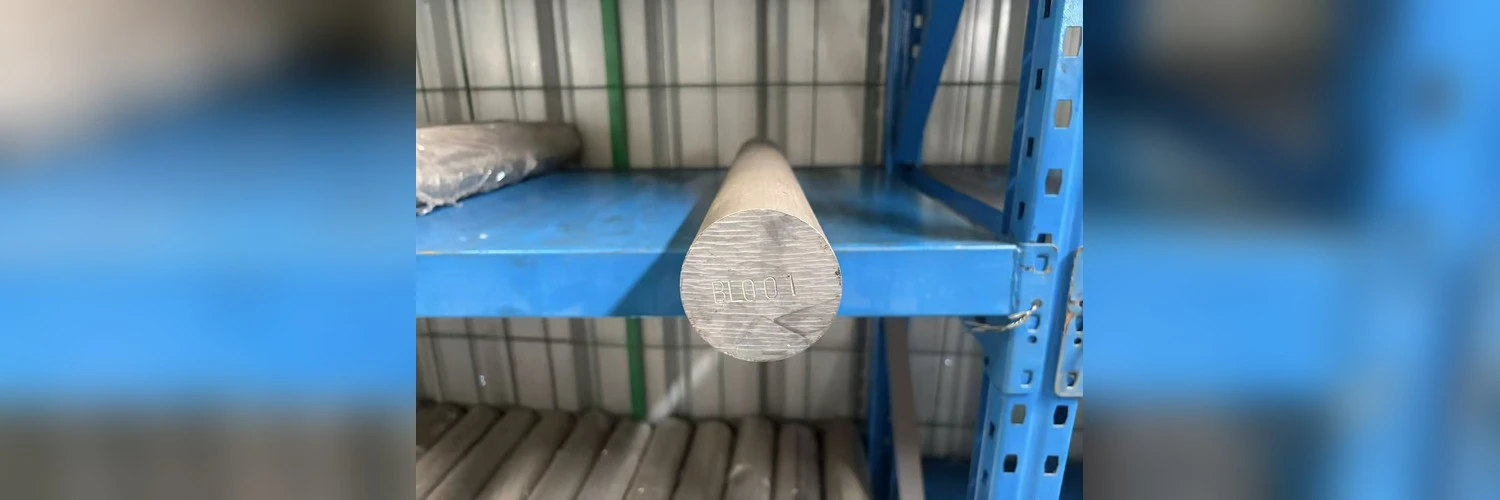

Best Dissolvable Magnesium Alloy Round Bar for Downhole Tools

When finishing service providers and OEM makers look at downhole tool materials, the Dissolvable Magnesium Alloy Round Bar stands out as a well-designed option that offers high mechanical strength, controlled dissolution kinetics, and the ease of not having to retrieve the bar. It is predicted that this specialty profile will dissolve in wellbore fluids without grinding. This cuts down on downtime and costs for hydraulic fracturing, intervention, and recompletion. The material's tensile strength can be changed from 240 to 380 MPa, and its dissolving rates can be adjusted to match well conditions. It also provides consistent quality at scale, which is why it is the best substrate for dissolvable frac plugs, bridge plug components, and stage separation hardware.

Introduction

The oil and gas industry is changing because of the need to be more efficient and responsible with the environment. Some problems that have been around for a long time have been solved by Dissolvable Magnesium Alloy Round Bars. These materials can be used to solve problems like high prices for interventions after stimulation, mechanical risks from cutting debris, and longer production times in unusual situations. This guide shows procurement managers, completion engineers, and downhole tool OEMs how to find, rate, and use high-performance Dissolvable Magnesium Alloy Round Bar stock in an organized way. We talk about the basics of material science, how it can be used, what factors should be considered, and the best ways to source materials. This gives B2B buyers the information they need to make choices that are in line with business goals and sustainability requirements.

Understanding Dissolvable Magnesium Alloy Round Bars for Downhole Tools

Dissolvable Magnesium Alloy Round Bars are a type of high-tech metals that are designed to keep their structure intact for a short time before breaking down naturally in wellbore settings that are high in electrolytes. When magnesium is mixed with other elements like aluminum, zinc, manganese, and rare earths, these bars use magnesium's galvanic corrosion qualities to get a balance between strong structure and reliable dissolution behavior.

Core Material Properties and Engineering Design

The performance is based on the alloy's makeup. Manufacturers can change the yield strength (180–300 MPa), tensile strength (240–380 MPa), and elongation properties to fit different tool designs. They can do this by changing the alloying elements and heat treatment methods, such as T4 or T6 tempering. In a 3% KCl solution at temperatures between 25°C and 150°C, the rate of dissolution is usually between 10 and 200 mg/cm²/h. According to the Arrhenius equation, higher temperatures and salinities speed up the electrochemical process.

It's important that the designed breakdown window works. In contrast to the uncertain corrosion that happens in older materials, Dissolvable Magnesium Alloy Round Bars show uniform surface decay instead of pitting in specific areas. This makes sure that the structure is stable during high-pressure pumping operations and that it breaks down safely afterward, leaving a full-bore output tunnel without having to pay for expensive milling runs or coiled tubing interventions.

Manufacturing Standards and Traceability

Protocols for quality verification are very important. Leading providers follow ASTM B107/B107M for magnesium alloys that are extruded and use their own standards to make sure that the alloys dissolve consistently and are micro-alloyed precisely. Performance data that can be checked includes ISO 9001, ISO 14001, and ISO 45001 standards, as well as high-temperature, high-pressure lab tests that are approved by the CNAS. Certificates of Analysis (COA), Certificates of Conformance (COC), and Safety Data Sheets (SDS) are all parts of batch traceability. This helps with source qualification checks and following the rules in both U.S. and foreign markets.

Performance and Application Benefits in Downhole Tools

Elimination of Mechanical Retrieval and Non-Productive Time

Milling is needed to make traditional composite or cast-iron bridge plugs, which takes time on the rig, poses technical risks, and could damage the wellbore. Within set time frames—usually 12 hours to 30 days, based on alloy grade and downhole temperature—dissolvable magnesium components break down completely in formation brines or finishing fluids. This happens without any help from a person. This change shortens the time it takes to finish a job, speeds up the first production run, and lowers the chance that tools will get stuck or grinding trash will build up.

Superior Strength-to-Weight Ratio and Machinability

Magnesium metals have a density that is about two-thirds that of aluminum and one-quarter that of steel. This makes tool combinations lighter, which makes them easier to handle and use. Even though these materials aren't very dense, they work well mechanically even when they're under a lot of pressure and heat. Good machinability lets you make complicated shapes (like threads, seals, and slip profiles) with great accuracy and without wearing out your tools too quickly. This lowers the cost of production and shortens wait times.

Environmental and Safety Benefits

Magnesium dissolving mostly leaves behind magnesium hydroxide (Mg(OH)₂), a harmless chemical that is often used to clean up the environment and keep the pH level stable. As operators are being watched more closely over their garbage management and carbon footprints, this eco-friendly decline profile fits in with what regulators want and what companies say they will do. Not having to do post-frac milling also cuts down on the diesel used and greenhouse gas pollution that come with long rig operations.

Selecting the Best Dissolvable Magnesium Alloy Round Bar: Decision-Making Criteria

Mechanical Strength and Temperature Resistance

The qualities of the material must be matched to the conditions in the wellbore, especially when using Dissolvable Magnesium Alloy Round Bar in demanding downhole applications. To keep slip-out and seal failure from happening, high-pressure fracture steps need yield strengths above 200 MPa. High temperatures at the bottom of wells, like those found in geothermal, CCUS, and deep ocean wells, speed up the dissolution process. To keep the structure intact during pumping and make sure it breaks down properly afterward, alloy makeup and heat treatment must be carefully calibrated.

Dissolution Rate and Predictability

The plan for dissolution must match the dates for operations. Rapid breakdown (within 24 hours) works well for re-entry and recompletion situations, while slower rates (7–30 days) work well for long multistage campaigns. When suppliers offer designed dissolution windows based on temperature, salinity, and fluid chemistry, they give businesses more operating freedom and lower the risk of tools breaking down early or production being held up.

Large Diameter Capability and Batch Consistency

For high-torque mandrels, slip systems, and packer elements, downhole tools often need stock with a width of up to 300 mm (12 inches). For this level of production, strict process control is needed to make sure that all production lots have the same microstructure, dimensions, and surface quality. Suppliers with tested extrusion capacities, like 3,600-ton and 5,600-ton presses, and batch-to-batch tracking lower the risks of scrap and repair in the next step of the process.

Customization Flexibility and Engineering Support

OEMs and service providers of completion tools often have to deal with unique design problems. Faster time-to-market and lower trial-and-error costs are possible with suppliers that offer alloy/process co-design, quick prototyping, and scalable production—from single samples to orders for multiple tons. Engineering paperwork, such as information on how to choose materials, how to heat treat them, and how easily they can be machined, speeds up internal approval and project execution.

Procuring Dissolvable Magnesium Alloy Round Bars: Best Practices for B2B Buyers

Supplier Evaluation and Certification Verification

Quality risk is kept to a minimum by working with makers of Dissolvable Magnesium Alloy Round Bar that have ISO 9001, 14001, 45001, API recognition, and Safety Production Licenses. Asking for audit-ready paperwork like COA, COC, batch traceability, and inspection records makes sure that internal buying policies and third-party compliance checks are followed. Suppliers with CNAS-accredited testing facilities can confirm the mechanical qualities and dissolution rates independently, which makes it easier for buyers to do their own checks.

Pricing Transparency and Order Flexibility

To figure out the total cost of ownership, you need to look at more than just the unit price. You need to look at minimum order amounts, bulk discounts, rush fees, and how the product will be delivered. Standard sizes like Ø50mm, Ø100mm, and Ø200mm round bars can be kept in stock by suppliers so they can fill pressing orders within 2–4 weeks. Custom specifications, on the other hand, usually take 4–8 weeks, based on how complicated the alloy is and how many tests need to be done. Clear prices and a choice of trade terms (EXW, FOB, CIF) help buyers keep track of their budgets and operating capital.

Technical Responsiveness and After-Sales Support

In project-driven settings, responsive communication is very important. North American and global projects move at the same speed, so suppliers who respond to inquiries 24 hours a day, turn around quotes in 1–3 business days, and send weekly progress reports are in sync. Access to application engineering services like material selection help, process advice, and remote troubleshooting improves the success of rollout and lowers the cost of mistakes in the field.

Future Trends and Innovations in Dissolvable Magnesium Alloy Technology

Advanced Alloy Formulations

Researchers are working on new formulas that have higher strengths (>400 MPa) and can still dissolve at different rates. This means that they can be used in geothermal settings with very high pressures (>15,000 psi) and very high temperatures. Micro-alloying techniques that use rare earth elements improve grain refinement, rust regularity, and stress resistance. This makes it possible for dissolvable tools to be used in more situations.

Sustainable Manufacturing and Supply Chain Transparency

Using eco-friendly ways to make things, like recycling magnesium scrap in a closed loop, heating technologies that use less energy, and using fewer chemicals in the process, is making the whole supply chain more sustainable. Lifecycle assessments, carbon footprint reports, and ESG documents are becoming more common from suppliers to help buyers with their corporate responsibility reporting and meet investor standards.

Expanded Market Adoption and Regulatory Alignment

Dissolvable technologies are becoming more popular around the world, especially in unusual areas offshore and in North America's Permian Basin, Eagle Ford, and Bakken plays. Regulatory bodies are starting to see the benefits for the environment and safety, and groups of businesses are working together to create standard testing methods and material requirements. To make sure they can get access to talent and new ideas, procurement strategies are moving toward long-term relationships with suppliers, framework agreements, and co-development agreements.

Conclusion

The Dissolvable Magnesium Alloy Round Bar is now an important part of modern finishing and intervention operations because it improves performance and costs less. To be successful at procurement, you need to know how the qualities of the material, the needs of the application, and the supplier's skills all work together. B2B buyers can lower project risks and improve operational quality by putting mechanical strength, predictable dissolution, batch consistency, and seller traceability at the top of their list of priorities. As long as the industry cares about being efficient and environmentally friendly, it will be important for users, service providers, and OEM makers to keep investing in high-quality dissolvable magnesium alloy materials.

FAQ

1. How does temperature affect the dissolution of dissolvable magnesium alloy round bars?

Temperature speeds up the breakdown process by a large amount. According to the Arrhenius relationship, the rate of chemical reactions rises rapidly as the temperature of the bottom hole rises from 25°C to 150°C. Reliable providers offer dissolution rate charts that are calibrated across a range of temperatures (40°C, 90°C, 120°C, and 150°C) and fluid chemistries. This lets engineers correctly predict when Dissolvable Magnesium Alloy Round Bars will break down and make changes to the alloys they use or the way they stage their tools.

2. Can dissolvable magnesium alloy round bars withstand acidic wellbore environments?

Even though Dissolvable Magnesium Alloy Round Bars are designed to break down slowly, acidic fluids make the breakdown process go much faster. In acidic stimulation or low-pH finishing fluids, tools may break down too soon. During certification, it is important to test in typical wellbore fluids. If a supplier has an HTHP lab, they can recreate conditions downhole and check the performance before putting it into use in the field.

3. What is the shelf life of dissolvable magnesium alloy round bars?

The shelf life is usually 24 months if Dissolvable Magnesium Alloy Round Bars are kept in their original vacuum-sealed packaging with desiccant and the humidity level stays below 40%. When stored correctly, surface rust and moisture absorption are stopped, which can change the material's mechanical qualities and how it dissolves. During the procurement process, buyers should check the standards for packing and storage suggestions.

Partner with HAGRIEN for Reliable Dissolvable Magnesium Alloy Round Bar Supply

As a technology-driven company, HAGRIEN makes Dissolvable Magnesium Alloy Round Bars for finishing service providers, E&P operators, and downhole tool OEMs in the US and around the world. We can do everything in-house, from melting and extruding alloys (up to Ø300mm) to precise machining and quality paperwork. This gives us control over the uniformity of each batch, the ability to create dissolution windows, and the ability to track qualification support. We have ISO 9001/14001/45001 certifications, API recognition, a CNAS-accredited HTHP laboratory, and seven years of ongoing production experience. We offer audit-ready COA/COC packages, normal delivery within two to four weeks, and faster options for important projects. Email our engineering team at cyrus@us-hagrien.com to talk about your needs, get a quote, or look into OEM/ODM partnerships.

References

1. Smith, J.R., and Thompson, L.K. (2021). Dissolvable Downhole Materials: Engineering and Field Performance in Unconventional Completions. Society of Petroleum Engineers Technical Journal.

2. Chen, W., and Martinez, A. (2020). Magnesium Alloy Corrosion Kinetics in High-Salinity, High-Temperature Wellbore Environments. Journal of Materials Science and Engineering for Energy Systems.

3. Anderson, P.T., et al. (2022). Economic and Environmental Benefits of Dissolvable Frac Plug Technology in North American Shale Plays. Energy Policy and Technology Review.

4. Li, Q., and Zhang, H. (2019). Microstructural Control and Mechanical Properties of Large-Diameter Extruded Magnesium Alloys for Oilfield Applications. International Journal of Advanced Manufacturing Technology.

5. Roberts, K.M., and O'Neill, D. (2023). Regulatory Trends and Material Standards for Dissolvable Downhole Tools in Global Markets. Petroleum Technology Quarterly.

6. Williams, S.E., and Kumar, V. (2020). Lifecycle Assessment and Sustainability of Dissolvable Magnesium Alloys in Oil and Gas Completions. Environmental Science and Sustainable Energy Journal.
