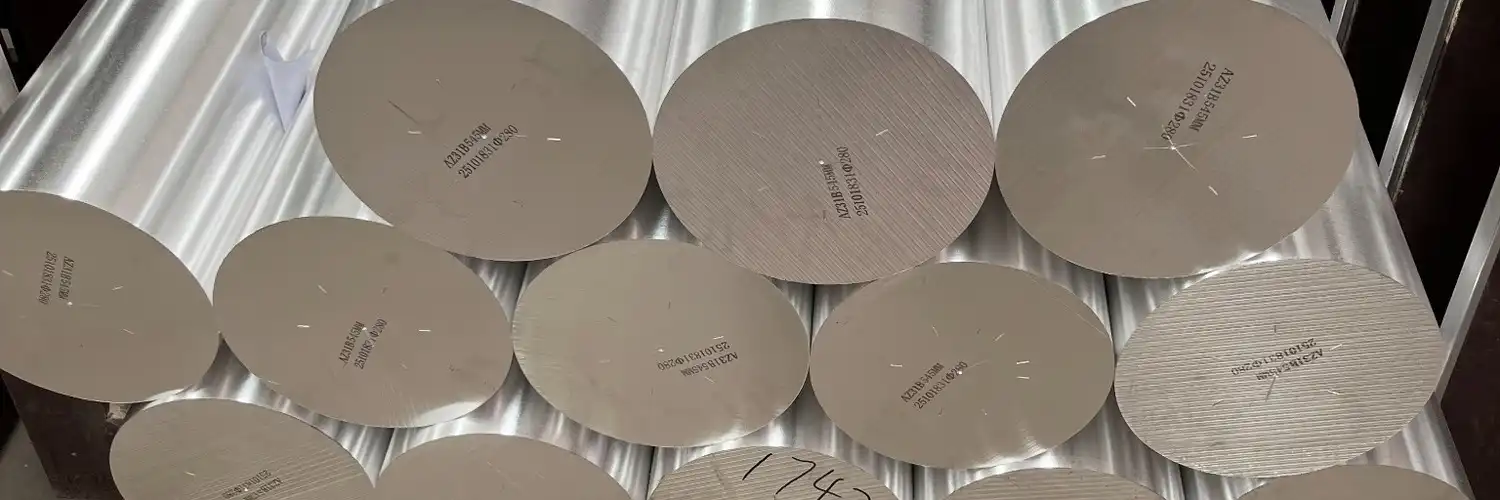

Dissolvable Magnesium Alloy Ingot and Round Bar: An Innovative Material for O&G

Dissolvable Magnesium Alloy Round Bar technology is a big change from the usual downhole materials used in oil and gas completions, which are always changing. These designed metals, which come in the form of ingots and molded profiles, have a high mechanical strength, a controlled dissolution behavior, and don't need any expensive recovery operations. Dissolvable magnesium materials change temporary downhole tools into self-removing parts by predicting how fast they will corrode in wellbore fluids. This cuts down on the time and complexity needed for involvement in fracking, completion, and workover applications.

Introduction

Materials used in modern oil and gas processes need to be strong and smartly designed to do their job. This problem can be solved with Dissolvable Magnesium Alloy Round Bar bars and profiles, which offer short-term mechanical support that goes away when it's not needed anymore. Dissolvable magnesium alloys react with brines, acids, and finishing fluids in a controlled way, unlike standard steel or composite parts that need to be milled or retrieved. This means that wellbores can be used for production without any extra work.

As a whole, this article talks about the scientific basics, practical advantages, and buying options for dissolvable magnesium metal materials. We answer the most important questions that completion service providers, E&P operators, downhole tool makers, and procurement teams have about these new metals for their next project cycle. These questions range from the chemical makeup to the details of the supply chain.

Understanding Dissolvable Magnesium Alloy Round Bars and Ingots

Material Composition and Physical Properties

Carefully mixed magnesium, aluminum, zinc, and rare earth elements make up soluble magnesium alloys. Mixtures with tensile strengths of 320-480 MPa and low density of 1.8 g/cm³ (approximately 25% of steel) remain robust. Due of its incredible strength-to-weight ratio, engineers can create powerful tools that are lightweight.The constant size and consistent composition of the Dissolvable Magnesium Alloy Round Bar make it ideal for complicated downhole parts. Bridge plug mandrels, packer bodies, and stage separation systems that can withstand differential pressures of over 10,000 psi during fracturing may be made using 300 mm extrusions.

Controlled Dissolution Mechanisms

Designated galvanic corrosion between alloy pieces melts it. Wellbore fluids high in electrolytes cause micro-galvanic cells to equally break down the surface without breaking. Altering the alloy's chemistry and heat treatment may increase dissolution rate from 1 mg/cm²/h to over 100 mg/cm²/h. Milligrams per square centimeter per hour is dissolution rate.Temperature, salt, pH, and flow speed impact dissolution. Advanced formulae account for these elements to provide realistic performance windows and completion dates. The magnesium primarily converts into magnesium hydroxide and hydrogen gas, which are discharged into wellbore fluids without harming the environment.

Environmental and Operational Advantages

If you leave traditional metal downhole tools in place, they either cause lasting limits or need milling processes that use a lot of energy and make metal debris. These problems are completely solved by magnesium metals that dissolve. When a material dissolves completely, it leaves behind no leftover blocks. This lets production flow freely and reduces the damage to the environment by keeping metal trash out of underground formations.

Key Benefits and Applications in the Oil & Gas Industry

Exceptional Strength-to-Weight Performance

Because dissolvable magnesium materials aren't very dense, they are easier to handle and put less stress on the equipment when the tool is being used. Even though they are much lighter than steel options, properly made Dissolvable Magnesium Alloy Round Bar parts keep their structural integrity under high downhole stresses. This mix makes it easier to spread deeper, run for longer, and install with less wear on the tubes.

Another important benefit is that it can be machined. Standard tools can be used to cut dissolveable magnesium metals easily, which lets you get very close tolerances for slip surfaces, seal grooves, and threaded connections. This makes it easier to handle, which directly leads to lower production costs and faster wait times for custom tool geometries.

Core Operational Applications

Dissolvable magnesium round bars are the main building blocks for many finishing methods, such as:

• Dissolvable Bridge Plugs: Mandrels, slips, and load-bearing parts made from dissolvable magnesium keep the zone isolated during multiple stages of fracturing before melting fully, which means there is no need to mill out between stages.
• Frac Balls and Seats: Spherical parts and seat profiles made from these metals temporarily redirect flow, but they disappear after treatment, so you don't have to deal with the mechanics of ball-drop retrieval.
• Packer Elements and Setting Tools: Temporary closing systems use controlled breakdown to get rid of mechanical limitations when they're no longer needed.

These uses directly lead to changes in operations that can be measured. Completion service companies say that cutting out mill-out rounds between fracturing steps cuts rig time by a large amount. Operators benefit from starting up production earlier and having less risk of having to step in, while tool makers gain design freedom that was previously limited by the need to retrieve tools.

Quantifiable ROI and Safety Enhancements

By getting rid of recovery operations, crews are exposed to less high-pressure wellbore conditions and there is less chance that motorized fishing equipment will break. Costs go down because the rig doesn't have to work as hard, cutting tools aren't needed, and fishing problems that can take days or weeks longer to fix can be avoided.

It's easier to follow environmental rules when dissolvable materials are used instead of fixed metal blocks or milling methods that make trash. The clean breakdown profile is helpful for regulatory reporting, especially in coastal or protected land areas that are sensitive to the environment.

Comparing Dissolvable Magnesium Alloy Round Bars with Alternatives

Material Performance Benchmarking

Steel alloys, aluminum alloys, hybrid plastics, and ceramic parts are all common finishing materials. Steel is stronger overall, but it needs to be retrieved or milled. Even though aluminum doesn't rust as easily as steel, it still needs to be removed. Composite plastics break down, but they don't usually have enough mechanical power for high-pressure uses. Ceramic materials are stable at high temperatures, but they are expensive and easy to break.

Dissolvable Magnesium Alloy Round Bar materials have special qualities: their mechanical properties are similar to heat-treated aluminum, and they can dissolve in water like engineered plastics. This mix makes it possible to create tools that weren't possible with single-material methods before. When you combine magnesium structure parts with polymer seals, you get the best of both worlds: better mechanical performance and total dissolution.

Selection Criteria for Specific Environments

Which alloy to use depends on how it will be used. For wells that are above 150°C, rare-earth-modified formulas that are more thermally stable are needed. High-salinity brines speed up breakdown, so types that dissolve more slowly are needed for longer service windows. Acidic finishing fluids speed up rusting, which lets the material dissolve quickly when the wellbore needs to be cleared right away.

When choosing the grades of Dissolvable Magnesium Alloy Round Bar, procurement teams should think about the required mechanical strength, the goal dissolving timeline, the fluid chemistry, and the temperature profile. Reliable suppliers offer dissolution models based on specific wellbore factors. This makes sure that the alloy chosen meets operational goals without failing too soon or staying in place too long.

Procurement and Supply Chain Insights for Global Buyers

Product Specifications and Ordering Considerations

There are dissolveable magnesium alloy bars with widths ranging from 25 mm to 300 mm and lengths ranging from 500 mm to 3000 mm, but this depends on how much they can be extruded and how they need to be shipped. Because they are easier to machine, round bar shapes are most common. However, square bars and unique extrusions are useful for certain tasks. Surface finish, straightness tolerance, and measurement accuracy all have a direct effect on how well downstream machining works, so they should be made clear in purchase requests.

Minimum order amounts depend on the goods and the supplier. Standard sizes may be in stock with minimum order quantities as low as 500 kg. Custom metal formulations or non-standard measurements, on the other hand, usually need production runs of 1000 kg or more. For stocked things, the lead time is two to four weeks. For engineered metals, it may take four to eight weeks, which includes matching the alloy, validating the process, and writing up quality paperwork.

Supplier Qualification and Quality Assurance

To find dissolvable magnesium products, you have to carefully evaluate the suppliers you work with. Look for companies that have ISO 9001, ISO 14001, and ISO 45001 certifications. These show that they care about quality control, the environment, and worker safety. API recognition and CNAS-accredited lab skills are signs of technical proficiency for oil and gas uses.

Every package of materials should have traceability paperwork like Safety Data Sheets (SDS), Certificates of Analysis (COA), and Certificates of Conformance (COC). Batch traceability connects produced bars to lots of raw materials and process factors. This lets you figure out what went wrong if there are performance problems in the field. When a supplier offers OEM/ODM services, they can work with you to create a custom alloy recipe and offer engineering help from the pilot stage through mass production.

Logistics and Trade Terms

Materials made of magnesium that dissolve in water must be kept safe from moisture during transport in export packaging. Wrapping that is vacuum-sealed or covered by a desiccant stops the surface from oxidizing too quickly, which can change how well it dissolves. Standard trade terms are EXW (Ex Works), FOB (Free On Board), and CIF (Cost, Insurance, and Freight). The buyer can choose which one to use based on their risk tolerance and ability to handle operations.

Suppliers with North American coordination organizations can make clearing customs easier and offer local technical help. This makes it easier for buyers in the U.S. and Canada to communicate and reduces the risk of late deliveries. Regional stocking plans cut wait times even more for jobs that need the same materials over and over again.

Technical Guidance for Using Dissolvable Magnesium Alloy Round Bars

Storage and Handling Best Practices

Properly kept Dissolvable Magnesium Alloy Round Bar doesn't degrade rapidly. Managed temperatures and relative humidity below 50% RH reduce surface corrosion. Long-term material is best preserved by vacuum-sealed or desiccant enclosures. Galvanic corrosion may occur if you contact metals that are different before deployment.Handling should minimize surface contamination. When you use clean gloves and equipment, you avoid oils and salts that cause localized rust. Building up fine chips from machining may spark a fire. Safe chip removal and disposal are essential.

Installation and Operational Monitoring

Don't use magnesium-unfriendly thread oils or sealants while assembling tools. Discuss appropriate chemicals with the provider to avoid premature corrosion. Following manufacturer directions will prevent thread stripping; torque parameters should account for magnesium's reduced thread shear strength.In critical scenarios, downhole monitoring may track breakdown in real time. When components lose structural stability, pressure and temperature monitoring detect changes. Sound waves can detect active breakdown hydrogen gas emission patterns. These data streams let the surface decide whether to finish or start manufacturing.

Troubleshooting Common Challenges

Underestimating fluid aggression or heat might induce premature breakdown. Talking to material suppliers throughout planning ensures the alloy matches the wellbore chemistry. Slow dissolving may indicate poor fluid chemistry or low temperatures. Changing finishing fluid compositions or increasing soak periods fixes most issues.Raw bar surface defects or uneven dimensions might make cutting harder and affect tool performance. By verifying vendor credentials, incoming goods are checked for quality issues before manufacturing. Clear size and surface finish tolerances in the purchase specifications prevent issues later.

Conclusion

Dissolvable magnesium alloy technology greatly enhances the costs of oil and gas completion by getting rid of the need for recovery operations, lowering the risk of intervention, and speeding up the start of production. The Dissolvable Magnesium Alloy Round Bar shape has the mechanical strength, machinability, and controlled dissolution behavior needed for tough downhole conditions. It also works with a wide range of tool designs, from frac balls to bridge plugs. For adoption to go smoothly, the right alloy must be chosen based on the conditions of the wellbore, suppliers must be carefully screened with a focus on tracking and expert support, and best practices must be followed throughout the supply chain. As finishing strategies put more emphasis on being efficient and caring for the environment, dissolvable magnesium materials put operators and service providers at the center of new ideas in the industry.

FAQ

1. How long does it take for dissolvable magnesium alloy bars to fully dissolve downhole?

Dissolution times vary on the type of metal, the fluid, the temperature, and the shape of the part. In normal completion brines that are between 90°C and 120°C, standard formulas break down fully in 48 to 120 hours. Engineered types that dissolve quickly can be gone in 24 hours, while forms that dissolve slowly and are meant to last longer may stay in place for 7 to 14 days before they are completely gone. To correctly predict performance, suppliers offer dissolution models based on individual wellbore factors.

2. Are dissolvable magnesium alloys safe for the environment and wellbore integrity?

When magnesium-based products dissolve, they turn into magnesium hydroxide and hydrogen gas. It is safe to be around magnesium hydroxide, which is found naturally in rock formations, and hydrogen is safe to be around in small amounts. These alloys don't leave behind any metal waste or formation damage that lasts, so they are better for the environment than steel parts that need to be milled or left alone permanently.

3. Can I order custom sizes and alloy grades for specialized applications?

Most well-known sources can make custom alloys and sizes that aren't normal to meet specific needs. Custom projects usually need thorough wellbore condition specs that include a temperature range, the chemistry of the fluid, the pressure profile, and a goal dissolution window. When expert teams from buyers and suppliers work together as engineers, they can make sure that the best alloys are chosen and that the right dimensions are met. Lead times for unique solutions can be anywhere from four to eight weeks, based on how complicated they are.

Partner with HAGRIEN for Advanced Dissolvable Magnesium Alloy Solutions

HAGRIEN is ready to help you with your next finishing project by providing you with the best Dissolvable Magnesium Alloy Round Bar materials that are made to last and work well. Our combined production method, which includes melting alloys in-house, precision extrusion, and machining, makes sure that quality is always the same, batches can be tracked, and delivery dates are always known. With ISO 9001, 14001, and 45001 standards, a CNAS-accredited lab, and API recognition, we give global buying teams the paperwork and technical precision they need.

Whether you need standard bar stock for ongoing tool production or special alloy development for tough HPHT conditions, our engineering team can help you with everything from choosing the right material to putting it to use in the field. With the ability to extrude up to 300 mm in width and the ability to speed up production, we can meet both short-term needs and long-term supply deals. Email our team at cyrus@us-hagrien.com to talk about your needs, ask for samples of the materials, or look into OEM partnerships that let you use our materials and production know-how. As a reliable provider of Dissolvable Magnesium Alloy Round Bar, HAGRIEN blends new technology with a reliable supply chain to help you lower project risk while meeting your goals for speedy completion and environmental friendliness.
