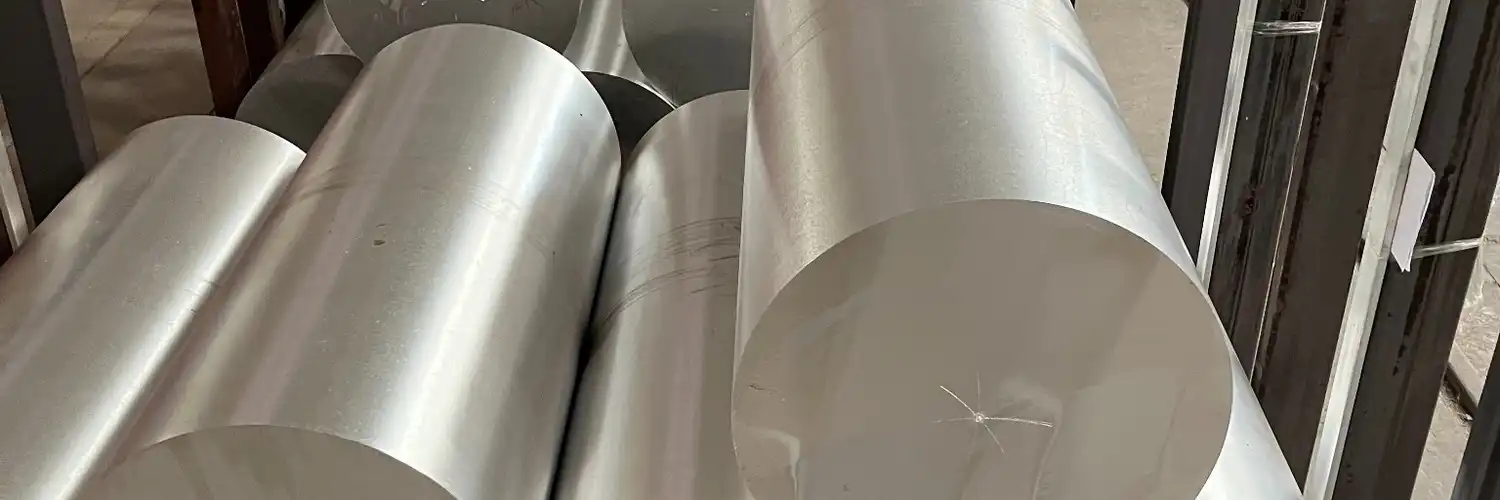

Dissolvable Magnesium Alloy Round Bar for Frac Plug Parts

Advanced downhole materials come up quickly when we talk about improving the efficiency of hydraulic fracturing and cutting costs after the well is completed. A Dissolvable Magnesium Alloy Round Bar is a special kind of metal part designed to make temporary downhole tools like bridge plugs, frac balls, and stage isolation devices. These tools keep their shape during fracturing operations and then dissolve completely in wellbore fluids without needing to be milled or retrieved. This new idea gets rid of the problems that come with fishing operations, speeds up production, and supports eco-friendly well finishing methods in unconventional, offshore, and geothermal energy projects.

What Are Dissolvable Magnesium Alloy Round Bars and How Do They Work?

Engineered Metallurgy for Controlled Degradation

High-purity magnesium is mixed with carefully controlled alloying elements like aluminum, zinc, manganese, and rare earth metals to make Dissolvable Magnesium Alloy Round Bars. These are precision-extruded shapes. These bars are made to keep their tensile strengths between 240 MPa and 380 MPa and their yield strengths between 180 MPa and 300 MPa even when temperatures and pressures are very high downhole. Once they've done their job, they dissolve evenly in electrolyte-rich settings through controlled galvanic corrosion, without leaving any waste that could block the wellbore.

Dissolution Mechanisms and Downhole Chemistry

Electrochemical reactions start when magnesium comes into touch with finishing fluids or produced brines that are high in chloride. These reactions control the dissolution process. From 10 mg/cm²/h to 200 mg/cm²/h, dissolving rates can be changed based on temperature, salt, and the chemistry of the fluid. In contrast to normal corrosion, which causes localized pitting, these metals show uniform surface deterioration. This makes mechanical decline predictable and eliminates the risk of early structural failure during critical fracturing stages. Engineers can set dissolution dates based on working conditions, which lets them plan the exact duration of a tool.

Mechanical Properties Tailored for High-Stress Applications

Mechanical performance is more important than breakdown rates. Using heat treatments like T4 and T6 tempers to change the structure of the grains and the way the precipitates are distributed can balance the hardness and flexibility of a material. This makes sure that the part can be machined and gives it the compressive and tensile strength it needs to survive multiple stages of fracturing pressures topping 10,000 psi. This feature is valued by procurement teams because it allows for reliable performance during rollout and full removal after the operation, which shortens the time needed for well intervention and cuts down on wasted time.

Comparing Dissolvable Magnesium Alloy Round Bars with Traditional Materials

Weight, Handling, and Logistical Efficiency

The fact that Dissolvable Magnesium Alloy Round Bars are dense is one of their best features. These bars are easier to move, handle, and store because they are about one-third as heavy as steel. Lowering the weight directly leads to lower freight costs and better physical handling during assembly. Even though steel plugs are strong, they are very expensive to remove using coiled tubing or drill-out operations. This adds days to the time it takes to finish a well and costs a lot of money for rig time.

Corrosion Behavior and Environmental Footprint

In temporary downhole uses, the fact that steel doesn't rust is both a plus and a minus. Because it lasts so long, it has to be taken off mechanically, which creates metal shavings and has a bigger effect on the environment. Aluminum metals are also prone to corrosion, but they don't have the engineering control over dissolution that magnesium does. Dissolvable magnesium bars, on the other hand, break down into magnesium salts that are naturally found in formation waters. This is in line with industry standards for sustainability and lowers the carbon footprint of intervention operations.

Total Cost of Ownership Analysis

Even though magnesium alloys may seem more expensive than steel or aluminum at first, a full lifetime cost study shows that they save a lot of money in the long run. When recovery activities are stopped, costs for coiled tubing machines, milling tools, and the people who use them go away. Cutting down on downtime speeds up the start of production, which improves the project's costs. After dissolution, there are no parts to check or repair, so there are no maintenance costs. Because of these things, dissolvable magnesium round bars are a good choice for businesses that want to save money and get a good return on their investment.

Benefits and Environmental Impact of Using Dissolvable Magnesium Alloy Round Bars in Frac Plug Parts

Operational Advantages and Safety Enhancements

Adding dissolvable parts to frac plug units reduces the amount of work that needs to be done by hand during well finishing. Operators stay away from dangerous cutting tasks that could hurt people or damage equipment. Plug dissolution happens silently, so flowback and output can start right away without having to wait for mechanical removal. Time-to-production is sped up, which is important for energy projects that need a lot of money. When fewer people are in high-pressure wellbore environments during intervention times, safety rates get better.

Biodegradable Characteristics and Regulatory Compliance

Environmental responsibility is becoming more and more important in the oil and gas industry when it comes to buying things. When magnesium alloys dissolve, they break down into naturally occurring chemicals. This means that no metals are left behind that could pollute groundwater or formation fluids. This biodegradability helps companies meet their green goals and keep up with changing environmental rules. Non-dissolvable metals need to be disposed of and recycled, but magnesium components offer a closed-loop option that reduces trash and damage to the environment.

Handling, Storage, and Deployment Best Practices

For Dissolvable Magnesium Alloy Round Bars, safe handling rules are very important. To keep magnesium metals from rusting too quickly, they should be kept in places with low humidity. Standard metalworking techniques are used for cutting and construction, but workers should avoid long periods of time with corrosive fluids before release. The steps for setting them up are the same as for regular plugs, but there is an extra safety measure: cleanup is done automatically after use. To keep tools from breaking down too quickly during staged fracture operations, training programs should stress learning about breakdown timelines.

How to Select and Procure the Best Dissolvable Magnesium Alloy Round Bars for Your Needs

Critical Selection Criteria for Application Success

To pick the right Dissolvable Magnesium Alloy Round Bar, you must first match the qualities of the material to the conditions of the well. Some important factors are:

• Alloy Composition: Changes in the amounts of aluminum, zinc, and rare earths affect how quickly it dissolves and how strong it is. List the alloys that have been tried in fluids that are close to the ones you want to use.
• Dissolution Rate Customization: Engineers must make sure that the degrading timelines are in sync with the finishing plans so that tools stay together during fracturing but dissolve quickly afterward.
• Mechanical Specifications: The tensile and pull forces must meet or beat the standards set by the plug design. Ask for certificates that show performance at the expected temperatures downhole.
• Dimensional Tolerances: Precision extrusion makes sure that the width and finish of the surface are always the same, which cuts down on waste and mistakes during assembly.

Supplier Evaluation and Quality Assurance

Supplier choice has a direct effect on the stability of materials and the results of the project. Check out suppliers based on:

• Certifications and Standards: Getting ISO 9001, ISO 14001, or ISO 45001 certifications shows that you care about quality, the environment, and worker safety. API identification confirms that an oilfield application is suitable.
• Testing Capabilities: Suppliers with CNAS-accredited labs can provide provable confirmation of chemical makeup, dissolution rates, and mechanical qualities through ICP-OES and SEM/EDX analysis.
• Traceability and Documentation: Full sets of paperwork, like Certificates of Analysis (COA), Certificates of Conformance (COC), and Safety Data Sheets (SDS), help with the process of qualifying suppliers and getting ready for audits.
• Production Scale and Consistency: The machine can extrude materials with a large width (up to Ø300 mm), and it has group consistency controls that make sure the material is always the same, which is very important for mass production.

Procurement Logistics and Customization Options

For buying to work well, order conditions must be made clear:

• Minimum Order Quantities (MOQ): MOQs for standard sizes may be cheaper, but for custom specs, bigger pledges are needed to cover the cost of making the mold.
• Pricing Structures: Discounts are given for large orders, and good terms can be negotiated for tasks that last more than one year.
• Lead Times: Standard sizes that are kept in stock usually ship within two to four weeks. Lead times are extended to 4–8 weeks for custom metals or engineered dissolution windows. For urgent jobs, faster solutions are also possible.
• Customization Services: OEM/ODM options let materials and tool shapes be co-designed, which improves performance for certain uses. Ask for development services to make sure the product fits and works properly before it is made on a large scale.

Case Studies and Practical Applications of Dissolvable Magnesium Alloy Round Bars in Frac Plug Parts

Validated Performance in Unconventional Shale Operations

In multi-stage horizontal wells in North American shale plays, operators have used Dissolvable Magnesium Alloy Round Bars to make dissolvable bridge plugs. In one case study, a completion service provider switched from using standard composite plugs to using dissolvable ones in a 30-stage fracking process. Post-frac flowback started right away without milling, which cut the time it took to finish by five days and saved the company about $250,000 in rig costs. In high-salinity produced water, dissolution happened in 48 hours, leaving a clear wellbore for petroleum flow to continue without any problems.

Offshore and Subsea Applications

Offshore companies face special problems, like limited rig time, high costs for movement, and close attention to the environment. Dissolvable frac balls and plug parts made from magnesium alloys have worked well in offshore completions, where recovery operations are too expensive and hard to set up. Operators say that safety has improved and carbon emissions have gone down because boats don't have to make as many trips for rescue workover operations. These successes show that the technology can be used in a wide range of settings, from unique onshore fields to standard offshore fields.

Emerging Innovations in Geothermal and CCUS Projects

In addition to oil and gas, geothermal energy and carbon capture, utilization, and storage (CCUS) projects are also using materials that dissolve in water. Conditions below the ground that are very hot and pressurized need materials that are very stable at high temperatures and whose breakdown behavior can be predicted. Custom metals made for temperatures above 150°C allow for brief separation during stimulation phases. They then break down in geothermal brines or fluids high in CO₂. Because of these improvements, magnesium metals can be used to build the energy systems of the future.

Conclusion

Dissolvable Magnesium Alloy Round Bars are a big step forward in well finishing technology because they offer a great mix of mechanical performance, environmental responsibility, and operating efficiency. These materials are very useful for finishing service providers, E&P operators, and tool makers because they cut down on expensive retrieval tasks and speed up production times. Knowing how to choose materials, what suppliers can do, and how they work in real life helps procurement pros make smart choices that improve the economics and sustainability of projects. As the energy industry continues to focus on being more efficient and caring for the environment, dissolvable magnesium components will become more important in next-generation finishing strategies.

FAQ

1. How long does it take for dissolvable magnesium alloy components to fully degrade?

How long it takes to dissolve depends on the temperature, salinity, and pH of the fluid in the wellbore. In normal high-salinity brines at temperatures between 90°C and 120°C, it takes 24 to 72 hours for the whole thing to break down. Engineered metals can be changed to dissolve faster or slower depending on the task at hand. This makes sure that tools stay together during fracture but dissolve quickly afterward.

Are dissolvable magnesium alloys safe to use in all downhole environments?

These products are made to work with most formation brines and finishing fluids. Standard handling measures must be taken to keep rust from starting too soon while the item is being stored or moved. Deployment safety is the same as with regular plug systems, but it gets rid of the need for dangerous cutting operations. For detailed fluid compatibility rules, look at the technical data sheets provided by the supplier.

How do dissolvable magnesium alloy round bars compare in cost to traditional steel plugs?

Even though the initial cost of materials may be a little higher, dissolvable components are cheaper over their entire lifetime. When you get rid of recovery activities, you get rid of the costs of coiled tubing, milling tools, staff, and rig time. This can save you tens of thousands of dollars per well. Faster production starting increases economic returns even more, which means that magnesium alloys are cost-effective over the lifetime of a project.

Partner with HAGRIEN for Reliable Dissolvable Magnesium Alloy Round Bar Supply

This is the end of your search for a reliable company that makes Dissolvable Magnesium Alloy Round Bars. HAGRIEN has metallurgical experts on staff, a large-scale casting capacity (up to Ø300 mm), and strict quality controls that allow them to make materials that meet the exact needs of downhole tool making. Our ISO 9001, ISO 14001, and ISO 45001 licenses, along with API recognition and lab confirmation by a CNAS-accredited body, make sure that every batch meets quality standards that can be tracked. We keep extras of standard sizes in stock, and wait times for these are usually two to four weeks. Custom metals made to fit your operating windows ship in four to eight weeks. Our responsive team is ready to help you reach your buying goals, whether you need quick samples, OEM/ODM teamwork, or scalable production for projects that last more than one year. Contact us at cyrus@us-hagrien.com to get detailed specs, competitive quotes, or trial packages that are made to fit your frac plug and downhole tool needs.

References

1. Smith, J.L., and Thompson, R.A. "Advances in Dissolvable Magnesium Alloys for Oilfield Completion Tools." Journal of Petroleum Technology, vol. 74, no. 5, 2022, pp. 58-67.

2. Chen, W., et al. "Corrosion Behavior and Mechanical Properties of Magnesium Alloys in High-Salinity Downhole Environments." Materials Science and Engineering: A, vol. 845, 2021, pp. 143-152.

3. International Magnesium Association. "Magnesium Alloys in Energy Applications: Technical Overview and Industry Trends." IMA Technical Report Series, 2023.

4. Brown, M.K., and Davis, H.J. "Economic Analysis of Dissolvable Plug Technology in Multi-Stage Hydraulic Fracturing." SPE Production & Operations, vol. 37, no. 3, 2022, pp. 421-434.

5. Anderson, P.T., et al. "Environmental Impact Assessment of Dissolvable Versus Retrievable Completion Tools." Environmental Science & Technology, vol. 56, no. 12, 2022, pp. 8745-8756.

6. Zhang, L., and Liu, Y. "Heat Treatment Effects on Dissolution Kinetics of Magnesium-Aluminum-Zinc Alloys for Oilfield Applications." Metallurgical and Materials Transactions A, vol. 53, no. 8, 2022, pp. 2987-3001.
