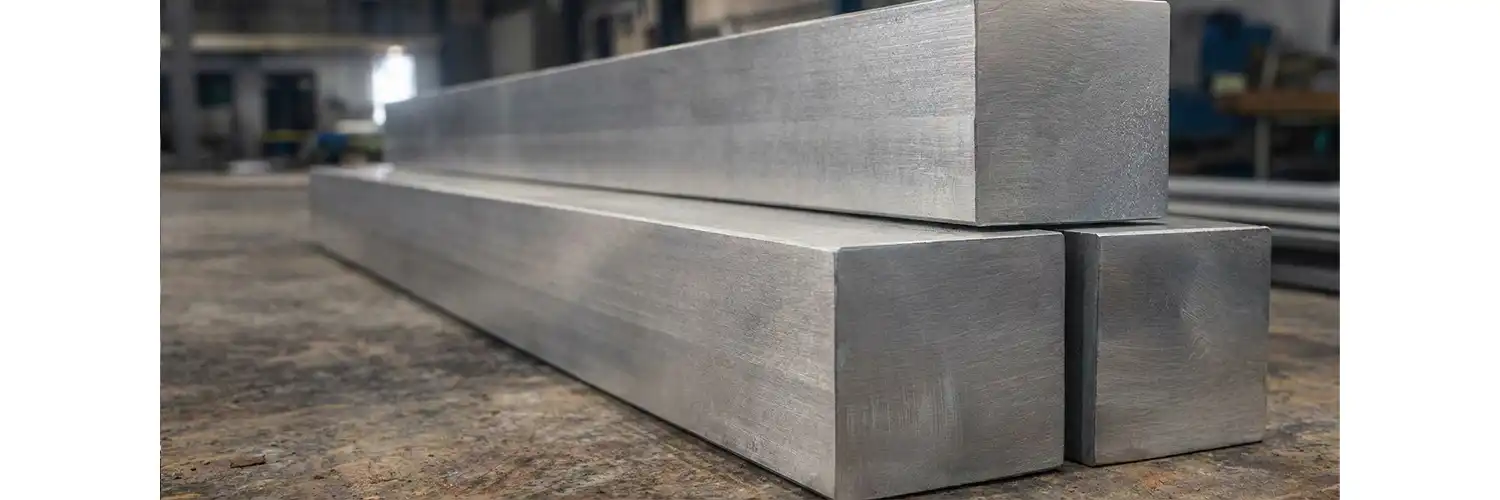

Dissolvable Magnesium Alloy Square Bar: A New Solution for Well Tools

The Dissolvable Magnesium Alloy Square Bar is a revolutionary way to make downhole tools. It gives operators a high-performance alternative that gets rid of the need for expensive retrieval operations and keeps the structure strong in harsh wellbore conditions. This special profile was designed to make dissolvable frac plugs, bridge plugs, and temporary separation components. It combines high mechanical strength with controllable dissolving, so it can break down completely in certain finishing fluids without any mechanical help.

Introduction

Completion teams in North America's shale plays, offshore platforms, and conventional fields must balance operational efficiency and cost management during well intervention and multi-stage fracturing. Steel mandrels, aluminium slips, and titanium seats need costly coiled tube interventions or extensive grinding procedures that take days and cost hundreds of thousands of dollars.

Dissolvable Magnesium Alloy Square Bar solves this industrial issue. The construction backbone for temporary downhole instruments, this material is designed to support weight during fracturing and breaks down in wellbore fluids. Square profiles provide greater anti-rotation, simpler machining for fit-together parts, and better torque resistance in slip and mandrel assemblies than circular profiles.

Many procurement managers, completion engineers, and tool makers realise that new materials impact operations. Service providers may save time, preserve the environment, and boost the value of new well construction and recompletion projects by employing biodegradable metals in their equipment. This session examines how square-profile magnesium alloys improve the complete process, from material selection to field usage.

Understanding Dissolvable Magnesium Alloy Square Bars

What Makes These Bars Different

A carefully driven Dissolvable Magnesium Alloy Square Bar works well at deep subsurface pressures before controlled galvanic corrosion. These materials are electrolytically susceptible, unlike permanent metals. Most are brine-based finishing fluids with known salinity, temperature, and pH. Square cross-sections with four flat sides are ideal for cutting plug mandrel and packer body slots, grooves, and mounting holes.

The major constituent is magnesium, combined with manganese, aluminium, zinc, and rare earths. These alloying compounds increase the tool's mechanical properties when using it and modify its dissolution rate while not in use. The material can withstand pressures beyond 10,000 psi and temperatures above 150°C; it will break down within hours or days, depending on the design.

Dissolution Mechanism and Environmental Considerations

Degradation uses electrochemistry. Electric wellbore fluids bathe the magnesium matrix, creating micro-galvanic cells with secondary phases in the alloy. The major byproducts of controlled corrosion are magnesium hydroxide and hydrogen gas. They occur naturally underground and are environmentally safe. Square bars dissolve uniformly without pitting due to their shape. This strengthens the structure till ultimate disintegration.

Operators benefit from predictable performance windows. By carefully developing the alloy and following heat treatment techniques, manufacturers may adjust dissolution from slow (72 hours or more for protracted operations) to rapid (12 to 24 hours for quick cleaning). Because of this, completion designs may match well with conditions, fracturing timings, and flowback procedures. It takes less time to finish manufacturing since the material doesn't leave metal scrap.

Key Properties and Performance Characteristics

Composition and Mechanical Strength

Dissolvable Magnesium Alloy Square Bars typically have tensile strengths between 320 and 480 MPa, which is comparable to many structural aluminium alloys but about 25% less dense. This ratio of strength to weight works well in deep wells where hydrostatic forces become important during tool deployment. The low density (about 1.8 g/cm³) lowers running loads and makes handling easier, especially for operations at sea where cranes are limited in what they can carry.

Alloying strategies keep different needs in check. Adding aluminium makes the casting easier and stronger by hardening the solid solution. Zinc makes things less likely to rust in brines with moderate temperatures. Manganese improves toughness and resistance to fatigue during pressure cycling by finetuning the structure of grains. Rare earth elements make large-diameter extrusions stable at high temperatures and improve the consistency of the microstructure. Manufacturers like HAGRIEN use multi-ton extrusion presses (3,600-ton and 5,600-ton capacities) to make bars up to 300 mm in diameter. This makes sure that each batch is the same, which is important for the reliability of the tools.

Operational Lifespan and Influencing Factors

There are three main factors that affect the useful service period: temperature, fluid chemistry, and mechanical stress state. Temperature has the most significant effect; according to Arrhenius kinetics, dissolving rates usually double for every 20–30°C rise. If the fluids are the same, a bar that is supposed to dissolve in 24 hours at 90°C might stay solid for 96 hours at 60°C.

The rate of rusting is also affected by salinity and pH. Higher levels of chloride speed up galvanic activity, while slightly lower levels of acidity slow down the formation of hydroxide layers. Mechanical stress adds complexity—components under prolonged compressive loads may show altered dissolution patterns compared to unstressed samples. The CNAS-accredited lab at HAGRIEN does high-temperature, high-pressure immersion testing in conditions that are similar to those found deep underground. The results are rate charts that help tool makers choose the right metal grades for each job.

Comparative Analysis with Conventional Materials

Traditional plugs are mostly made of steel or hybrid materials, but both have major problems. Steel mandrels need to be machine-milled, which takes 4–8 hours of rig time per plug and costs more than $50,000 per day. Even though composite plugs can be drilled, they leave behind cuttings that make cleaning out the wellbore more difficult and may damage production equipment. Drilling is faster with aluminium parts, but you still need to help.

These problems are solved by the Dissolvable Magnesium Alloy Square Bar. Operational data from North American operators demonstrate completion time reductions of 30-50% in multi-stage horizontal wells when using dissolvable plugs versus mill-out designs. The environmental profile proves equally compelling: no retrieval trips mean reduced fuel consumption, lower emissions, and minimal surface disturbance—critical factors as operators face greater ESG scrutiny from stakeholders and regulatory bodies.

Applications in Well Tools and Industry

Primary Use in Completion and Intervention

When it comes to breaking apart plug assemblies, the square bar profile is most often used. These bars are turned into mandrels by tool makers who hold sealing elements, slips, and ball seats in place while the stage is isolated. The square geometry's anti-rotation properties keep the part from spinning while it's being set, which ensures a strong anchoring against the wellbore casing. Once the fracturing fluid is in place, the mandrel breaks down, letting production flow without any problems.

Emerging Applications and Technology Transfer

The controlled biodegradation technology is interesting to people in fields other than petroleum completions. Carbon capture and storage projects need to be temporarily shut down while the injection zone is being built. The same rules for materials still apply, but as fluid chemistry changes toward supercritical CO₂ environments, more research and development is needed. In the same way, hydrogen storage projects are looking into dissolvable sealing technologies for alternating injection and withdrawal operations.

The path of innovation stays steep. The main focus of current research is on making formulations that can withstand temperatures higher than 200°C for ultra-deep geothermal applications, making formulations that can handle acidic environments for sour gas environments, and making variants that dissolve quickly for emergency wellbore cleanout situations. Material scientists and finishing engineers are working together on projects to keep improving alloy systems. These projects are expanding the range of operations that can be done while keeping the core value proposition: engineered material failure eliminates the need for intervention costs.

Procurement Guide for Dissolvable Magnesium Alloy Square Bars

Sourcing Strategy and Supplier Evaluation

A clear description of the working conditions is the first step to a successful procurement. Buyers should write down the temperatures they expect, the fluid's properties (salinity, pH, and the presence of H2S or CO2), how long they need to be serviced, and how much force they are putting on it. With these details, providers can suggest the right alloy types and test them to prove their performance. Ask authorised labs for samples of the materials along with dissolution rate data. Reputable makers offer batch-traceable certificates of analysis (COA) and conformance (COC).

The ability to customise sets commodity suppliers apart from engineering partners. It's very helpful to be able to change the makeup for certain dissolution windows, extrude non-standard sizes, or work together to create mixed tool designs. This method is used by HAGRIEN, which offers collaborative material design from formulation to delivery, along with process optimisation and scalability support from prototypes to mass production. This closed-loop feature cuts down on the costs of trial and error that come up when new materials are added to existing tool platforms.

Pricing Dynamics and Cost-Benefit Analysis

The price of materials usually ranges from $15 to $35 per kilogram, but this depends on the type of metal, the size of the order, and the number of kilograms needed. Because of the specialised extrusion skills needed, large-diameter bars with tight tolerances cost more. Buyers who buy in bulk negotiate framework agreements with tiered pricing structures that keep supply flexible while rewarding loyalty.

The real economic analysis goes beyond the cost per unit of materials. If you look at the total cost of finishing a well, dissolvable plugs may be 20–40% more expensive per unit than traditional designs, but in a 40-stage horizontal well, not having to do mill-out operations saves $40,000–$80,000 per stage. The payoff happens in the first few stages, and any savings go straight to the economics of the project. Cutting down on NPT also speeds up the time it takes to make the first product, which makes the net present value calculations that decide where to put capital better.

Compliance, Logistics, and Documentation

When doing business internationally, you need to pay attention to export controls, material certifications, and paperwork that shows how the goods can be tracked. Magnesium alloys are classified in a number of different trade areas. To make sure that suppliers give accurate customs declarations, check the harmonised tariff codes. Getting ISO 9001 certification shows that your quality management is mature, and getting ISO 14001 certification shows that you care about the environment, which is becoming more and more important for businesses that have corporate sustainability goals.

When planning logistics, material sensitivity should be taken into account. To keep magnesium metals from oxidising too quickly, they need to be stored in temperature- and humidity-controlled buildings. When stored properly, vacuum-sealed packaging with a desiccant can last up to 24 months. HAGRIEN offers flexible trade terms (EXW/FOB/CIF) and handles North American delivery through its U.S. branch. This makes international deals easier and makes sure that lead times are reliable and fit with project plans for Dissolvable Magnesium Alloy Square Bar.

Choosing the Right Supplier – Trusted Brands and Manufacturers

Evaluation Criteria for Long-Term Partnerships

To choose a supplier, you have to carefully look at a lot of factors. How well a company can grow with your program depends on how much it can produce. Look for specialised extrusion equipment with a press capacity of several thousand tonnes and well-established mechanical control systems that make sure consistency from batch to batch. API recognition and CNAS laboratory accreditation show a dedication to quality standards that meet the needs of the industry.

Transactional suppliers and strategic partners are different in how quickly they respond to technical issues. Check to see how quickly potential suppliers can answer complicated questions, offer engineering help, and adjust to new requirements. HAGRIEN promises to respond to technical questions 24 hours a day, 7 days a week. They also provide formal quotes with delivery dates of one to three business days. This responsiveness is very important when drilling schedules change or when well conditions call for quick changes to the material.

HAGRIEN's Integrated Capabilities

"Vertically integrated," Shaanxi Hagrien Energy Technology Co., Ltd. makes alloys and tools. The company improved its dissolving window engineering to preserve mechanical performance after seven years of continuous manufacture starting in 2019. Plugs from microscopic holes to enormous ocean completions may be made from extruded bars up to 300 mm in diameter.

ISO 9001/14001/45001, API certification, CNAS laboratory recognition, and High-tech Enterprise title build trust. Engineerability—modifying alloy systems and process parameters to achieve the right strength, hardness, machinability, and dissolution rate for each application—is HAGRIEN's top priority after compliance. These materials, process validation, and full-scale deployment loop help customers from prototype to approval programs to deployment. The COA, COC, and SDS provide enough supply tracking documentation.

Standard-size materials arrive in 2–4 weeks, while alloy matching and testing take 4–8 weeks for custom orders. Faster services fulfil urgent project needs. North American customers benefit from the company's U.S. location's reduced communication barriers and regional project timelines.

Conclusion

The Dissolvable Magnesium Alloy Square Bar completely changes the economics of completion by turning temporary downhole parts into designed obsolescence instead of permanent liabilities. This important new idea has real practical benefits, such as less time spent on non-productive tasks, no longer having to pay for interventions, easier wellbore cleanup, and better environmental performance. Engineered biodegradable alloys go from being a novelty to a necessity as operators try to get more out of their tools and tool makers try to stand out from the competition. Companies can fully benefit from this technological progress while managing the supply chain risks that come with specialised materials if they use procurement strategies that put an emphasis on supplier technical depth, manufacturing consistency, and responsive support.

FAQ

1. How Do Temperature Variations Affect Dissolution Performance?

The Arrhenius equation says that temperature has an exponential effect on the rate of rusting. The rate of dissolution usually doubles every 30°C rise in temperature. Manufacturers offer temperature-specific rate charts that cover operating ranges from 40°C to 150°C. This helps engineers choose the right alloy types based on the conditions they expect to find underground and the length of time they need to be used.

2. Can These Materials Withstand Acidic Well Environments?

When conditions are acidic, magnesium alloys dissolve much faster. Materials can work in slightly acidic brines, but wells with a pH below 4 or high levels of hydrogen sulphide (H2S) need special formulations and thorough testing before they can be used. Before putting something into the field, you should always test the compatibility of the materials using representative fluid samples under simulated pressure and temperature conditions.

3. What Quality Verification Should Buyers Request?

Inductively coupled plasma spectrometry is used to analyse the chemical composition, ultrasonic flaw detection is used to look for internal flaws, mechanical tensile testing is used to confirm strength specifications, and static immersion testing is used to confirm dissolution rates. Reliable suppliers include batch-traceable certificates with every shipment, which helps with internal quality control and auditing.

Partner with HAGRIEN for High-Performance Dissolvable Magnesium Alloy Square Bar Solutions

When new materials are combined with excellent manufacturing, the project's costs and completion rate both get better. HAGRIEN has a lot of experience with metals and can make a lot of them. They can make Dissolvable Magnesium Alloy Square Bars that are exactly what you need for your operations. Our all-around approach, which includes making the alloy, carefully extruding it, and testing it thoroughly, guarantees consistent quality, predictable dissolution performance, and supply reliability that keeps projects on schedule. Our technical team is here to help you through the whole process of sourcing and qualifying, whether you need standard profiles that can be used right away or custom specifications that fit the specifics of the downhole conditions. Get in touch with cyrus@us-hagrien.com right away to talk about your needs with skilled engineers, get detailed technical specifications, or get competitive prices for your next completion program. We are a reliable company that makes Dissolvable Magnesium Alloy Square Bar, and we want to help you cut down on management costs while also making your business more environmentally friendly.
