Dissolvable Magnesium Plug for Multistage Fracturing Operations

When you're managing multistage fracturing operations in unconventional shale or deepwater environments, every decision about downhole isolation technology directly affects your bottom line. The dissolvable magnesium plug represents a fundamental shift in how we approach zonal isolation—eliminating the need for costly mill-out operations while maintaining structural integrity under extreme downhole conditions. Engineered from advanced magnesium alloy systems, these tools dissolve predictably in wellbore fluids after stimulation, clearing the wellbore without mechanical intervention. This technology addresses critical operational pain points: extended intervention time, mechanical risks during coiled tubing runs, and debris management challenges that plague conventional composite or cast-iron bridge plugs.

Understanding Dissolvable Magnesium Plugs in Multistage Fracturing Operations

Controlled Degradation Through Electrochemical Engineering

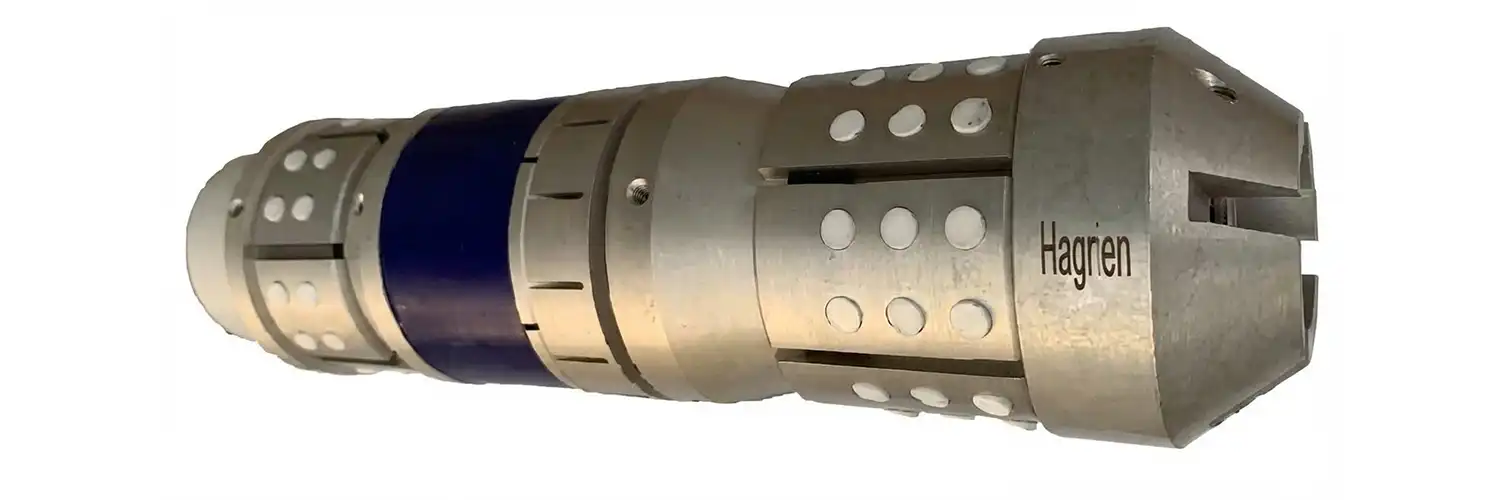

A dissolvable magnesium plug is basically a temporary barrier made of specially engineered magnesium alloys that can handle differential pressures of up to 105 MPa (15,000 psi) during hydraulic fracturing. Unlike regular mechanical plugs that need to be drilled out, these tools break down chemically in wellbore fluids, usually formation brine or produced water, over a controlled period of 24 hours to 14 days.

Electrochemical processes happen between the magnesium alloy structure and fluids that are high in chloride. Manufacturers can fine-tune the rate of corrosion by changing the alloy's composition, grain structure, and the distribution of cathodic elements. This planned breakdown makes sure that the plug keeps closing during the fracturing process and then disappears completely, leaving a wellbore that is fully developed and ready for production.

Material Composition and Mechanical Properties

The magnesium metal that is used in these tools usually has a tensile strength of more than 400 MPa and a yield strength that is high enough to hold the tool against the walls of the wellbore while high pumping pressures are applied. Its density is about 1.8 g/cm³, which makes it much lighter than steel or composite alternatives. This makes it easier to use in horizontal wells with a long reach, where controlling friction is important.

The following materials should be used to make a high-performance dissolvable magnesium plug:

• Temperature capability: Withstands temperatures between 40°C and 180°C
• Salinity tolerance: Designed to work best with field brine chemicals ranging from 50,000 to 250,000 ppm TDS
• Pressure rating: Up to 15,000 psi difference across the plug face
• Dissolution timeline: Depends on the type of alloy and the test conditions; confirmed by ASTM G31 immersion testing

How Chemical Dissolution Works Downhole

Galvanic corrosion happens to the magnesium metal once the breaking is done and the plug is exposed to wellbore fluids. The electrochemical process is sped up by chloride ions in the formation brine. This turns metallic magnesium into magnesium hydroxide and other fine salts that rise to the surface with the fluids that are created. The rate of decline depends on the temperature of the bottomhole. Higher temperatures speed up the process, while acid soaks may help cooler wells start or speed up the process.

This zero-debris shape gets rid of the problems that come with normal mill-out operations, like tools getting stuck, casings getting broken, and having to move metal shavings around. The wellbore goes back to its original internal diameter without any blockages. This keeps the flow rate the same and lets someone step in again if necessary.

Comparing Dissolvable Magnesium Plugs with Traditional and Composite Plugs

Operational Efficiency and Downtime Reduction

When traditional mechanical plugs break, they need snubbing units or coiled tubes to be milled out. This action can add three to five days to the finishing time of a 50-stage horizontal well. With offshore day rates above $500,000, the cost effect is felt right away. Even though composite plugs are lighter and easier to drill, they still need to be taken out mechanically and produce debris that needs to be moved around.

With dissolvable technology, this step is no longer needed at all. After setting up the plug and finishing the stimulation, you go straight to flowback. You can get to first output faster and with lower running costs because the plug disappears on time.

Performance Under Extreme Conditions

In high-temperature, high-pressure (HPHT) settings, where elastomer seals break down or structural integrity weakens over time, composite plugs often can't be used. Cast-iron plugs work well with pressure, but they are very hard to mill out, especially in long-reach laterals where controlling the weight of the bit becomes difficult.

Engineered magnesium alloy plugs, such as the dissolvable magnesium plug, keep their mechanical strength during the pumping phase. They only break down when they come into contact with the fluid chemistry that is present after the fracture. This controlled behaviour makes the process reliable in HPHT reservoirs, offshore completions, and re-fracturing, all of which need to keep the wellbore width the same for future output optimisation.

Cost Analysis and ROI Considerations

A dissolvable magnesium plug might cost more per unit than a standard composite plug, but the total cost of ownership is lower for dissolvable technology when you look at:

• Getting rid of the time needed to move and set up coiled tubes
• Having fewer people and things on site
• Less HSE risk because there are fewer rescue operations
• Faster time to first gas, which makes the well's net present value better.

To get a full picture of the value offer, procurement teams that are looking at these tools should model the whole well economics, not just the price of the plug.

Procurement Insights: Sourcing Dissolvable Magnesium Plugs for Your Projects

Supplier Qualification and Certification Requirements

Some of the most important businesses have ISO 9001, ISO 14001, ISO 45001, and API recognition as licenses. They run high-temperature, high-pressure laboratories that are accredited by the CNAS. They also offer traceable documentation packages, which include Certificates of Analysis (COA), Certificates of Conformance (COC), and Safety Data Sheets (SDS), to help your internal qualification workflows and regulatory compliance.

When looking at suppliers, make sure they can handle the whole production process, including making the alloy, melting it, extruding it, heating it, CNC milling it, and checking it for quality. Vertical integration reduces variation and guarantees consistent quality, which is very important when going from testing prototypes to deploying the whole system.

Customization Capabilities and Engineering Support

Not every well has the same elements. A company that does OEM/ODM work can change the alloy's composition, how long the dissolvable magnesium plug takes to dissolve, and its mechanical properties to fit your operating window, whether it's a 90°C shale well with low-salinity produced water or a 150°C deepwater completion with high-chloride brine.

Look for companies that offer:

• Design of an alloy and a structure together based on the conditions downhole
• Quick sampling and making prototypes
• Process improvement and the ability to go from small test projects to campaigns with many wells
• Help with application building, troubleshooting from afar, and on-site advice

Trial-and-error costs are cut down with these services, and new finishing designs can be on the market faster.

Lead Times, Inventory Models, and Delivery Reliability

Standard sizes and alloy systems usually ship in two to four weeks. However, special specs that need alloy matching, process approval, and HTHP testing can take up to eight weeks. Reliable sellers keep extras of popular types of dissolvable magnesium plugs on hand in case they need to be restocked quickly or in case of an emergency.

Make sure you understand the trade terms (EXW, FOB, CIF), how the shipping will work, and if the seller has regional storage or North American support groups to cut down on cross-border delays. When your completion plan rests on materials being available on time, you can't go without predictable supply.

Installation and Maintenance Best Practices for Dissolvable Magnesium Plugs

Pre-Installation Preparation and Quality Checks

Before putting plugs downhole, check the dimensions to make sure they will work with the weight and diameter of your casing. Look for flaws on the surface, signs of premature corrosion that could affect the sealing's effectiveness, and the integrity of any coatings that were used.

Compare the plug's recommended pressure and temperature limits with the treatment settings you want to use. To get the right anchor engagement and seal compression, make sure your setting tool is calibrated and works with the plug design.

Deployment Techniques for Multistage Operations

Standard completion fluids are usually used to pump dissolvable magnesium plugs into place. High-drag slips and shear-pin systems stop pre-setting during high-speed pump-down. This lets the plug fall precisely at the goal depth without going around fluid forces.

The steps for setting these plugs are the same as for regular composite plugs: use differential pressure to start the slip system, check that the anchors are engaged by looking at the surface pressure reaction, and make sure the seal is intact before going ahead with opening and stimulation. Following the setting pressures and hold times suggested by the maker will get the best performance from the plug during the fracturing process.

Monitoring Dissolution and Optimizing Flowback Timing

After the fractures are made, keep an eye on the well data analytics to see how the dissolvable magnesium plug is breaking down. Rates of decay are affected by time, temperature, and the nature of the fluid. If the temperatures or salt in a well are lower than expected, you might want to use diluted HCl to start or speed up the dissolving process.

Do not try to flowback too soon, as this could damage plugs that are only partially broken down or leave material in the wellbore. Delaying flowback past the plug's dissolution window, on the other hand, loses important production time. Your flowback plan should be adjusted based on dissolution curves that have been tested in a lab and, if possible, real-time downhole tracking.

Troubleshooting Common Issues

If a plug doesn't dissolve in the time that was supposed to, the following things could be the cause:

• Low wellbore fluid levels cause not enough fluid contact.
• Lower than expected temperature in the bottom of the hole
• Fluid chemistry that wasn't expected (for example, low chloride concentration)

To fix the problem, wellbore fluids may need to be pumped around to renew chemical contact, acid treatments may need to be added, or future plug choices may need to be changed to better match the conditions downhole. Stay in touch with the application engineering team at your material supplier to quickly figure out what's wrong and fix it.

Future Trends and Innovations in Dissolvable Magnesium Plug Technology

Advanced Alloy Systems and Performance Enhancements

Researchers are still working on making magnesium alloys more useful by making them more stable at temperatures above 180°C, making them stronger, and making it easier to keep them from dissolving by using micro-alloying and grain boundary engineering. These improvements make it possible for ultra-HPHT tanks to work reliably, as well as new uses like geothermal energy and carbon capture, utilisation, and storage (CCUS) projects.

Material makers are also working on protective layers that slow down the start of dissolution. This way, the plug can survive long pumping operations or staged finishing processes before it starts to break down. This gives you more scheduling options and lowers the chance of failing too soon.

Digital Wellbore Monitoring and Real-Time Tracking

Integration with fiber-optic tracking systems and downhole sensor networks makes it possible to see the state of plugs in real time, both during and after fracturing. Operators can find early signs of dissolution, make sure that the plug has completely broken down before flowback, and change finishing methods on the fly based on how the plug is actually acting instead of guessing when it will happen.

This approach based on data lowers uncertainty, speeds up production, and gives useful feedback for improving future dissolvable magnesium plug choice and operational planning.

Sustainability and Regulatory Compliance

Environmental laws are favouring low-impact finishing methods more and more. This trend is in line with dissolvable magnesium plugs, which eliminate the need for mechanical assistance, lower diesel use, lower emissions, and leave less of a surface footprint during finishing operations.

Biodegradable dissolution products, mostly magnesium hydroxide and fine salts, don't pose much of a threat to the environment and follow strict rules for both onshore and offshore use. Environmental, social, and governance (ESG) factors are becoming more important in purchasing decisions. Dissolvable technology gives companies a competitive edge in meeting sustainability goals and government rules.

Conclusion

Dissolvable magnesium plugs have been used successfully and are an excellent value for money in unconventional shale, offshore, and HPHT settings for multiple stage fracturing operations. These tools give finishing service providers, E&P operators, and procurement teams real value by getting rid of expensive mill-out operations, lowering operating risk, and speeding up the time it takes to make something. To get the most out of this technology and make sure you have a reliable supply chain in the long term, you need to choose a manufacturing partner with strong quality control, scalable production capacity, and full engineering support.

FAQ

1. What factors influence the dissolution rate of a dissolvable magnesium plug?

The main factors that affect this are temperature, salt, and pH of the fluid. The electrochemical reaction happens faster when the temperature in the bottomhole is higher and the concentration of chloride is higher. In cold wells or places with low salt levels, dissolving is slower. Acid soaks can start or speed up the breakdown process.

2. Can dissolvable magnesium plugs withstand 15,000 psi differential pressure?

High-quality plugs made from magnesium metal systems that have been optimised and precision-machined parts can handle pressures of up to 105 MPa (15,000 psi) and temperatures of up to 120°C. Manufacturer approval through HTHP testing and batch tracking makes sure that all production lots work the same way.

3. Are there solids left in the wellbore after dissolution?

The plug breaks down into magnesium hydroxide and small metallic salts that are easily carried to the surface by the fluids used in production. This profile with no debris means that cleaning operations are not needed, and full-bore wellbore access will be kept for future treatments.
