Everything you need to know about Magnesium Alloy Cast Ingots

When looking into new materials for use in deep wells, it's important to know about magnesium alloy cast ingots, especially those that can dissolve. A Dissolvable Magnesium Alloy Cast Ingot is a special kind of metalworked half-finished item made from magnesium mixed with alloying elements like nickel, aluminum, zinc, and rare earth elements. Unlike most magnesium alloys that are made to resist corrosion, these ingots break down in a predictable way when they come into contact with completion fluids or brine. This means that temporary downhole tools don't have to be removed mechanically, which can be expensive. This controlled dissolving feature solves a major problem in hydraulic fracturing operations by cutting down on intervention time and costs while maintaining the integrity of the wellbore during multiple stages of completions.

What Are Magnesium Alloy Cast Ingots? Understanding the Basics

Defining the Core Material

Magnesium alloy cast ingots are engineered metal blocks made of pure magnesium and carefully chosen alloying elements. A Dissolvable Magnesium Alloy Cast Ingot incorporates certain amounts of aluminum, zinc, nickel, and rare earth metals mixed together to make a strong material that can be controlled to dissolve. These blocks are the raw materials used to make downhole tools that dissolve, such as bridge plugs, packers, and stage separation components used in oil and gas completions.

Precision casting is used in controlled atmospheric conditions to stop oxidation during the manufacturing process. The ingots that are made have a fine-grain microstructure that ensures they have consistent mechanical properties and will break down in a predictable way when they come into contact with electrolytic fluids underground.

Key Material Properties

The technical brilliance of these cast ingots lies in how well they balance their performance. Tensile strength is usually between 280 MPa and 450 MPa, and elongation rates are between 5% and 18%, based on the metal. Because of this mechanical strength, parts that have been manufactured can handle differential pressures of more than 70 to 100 MPa during fracturing operations.

The Controlled Dissolution Rate (CDR) is the most important factor. It can be changed from 10 mg/cm²/h to over 150 mg/cm²/h at 93°C in normal brine solutions. This flexible dissolution window lets tool makers fit the time of degradation with specific completion sequences. This way, tools can keep their structural integrity during fracturing but dissolve completely afterward without any mechanical help.

Due to magnesium's low density (about 1.74 g/cm³), the bars keep a good strength-to-weight ratio. This makes them easier to handle and move and puts less stress on the setting tools during deployment. Good machinability properties make it easy to turn cast ingots into precisely engineered downhole parts with very close tolerances on size.

How Controlled Dissolution Works

When the material comes into contact with ionic fluids, electrochemical processes start to happen. The alloying elements make micro-galvanic cells inside the structure of the material, which speed up the rate of corrosion in a controlled way. Manufacturers can fine-tune how quickly a material breaks down at a certain temperature, saltiness, and pH level by changing its chemical makeup and grain structure during casting.

This engineered way of breaking down materials is a big step forward from using traditional metal or composite tools that need to be removed by milling. Understanding this dissolution science is helpful for procurement workers because it has a direct effect on practical planning, such as when to do follow-up well interventions and when to start production.

Comparing Dissolvable Magnesium Alloy Cast Ingots With Other Metal Ingots

Performance Differentiation

When looking at different types of materials for short-term use downhole, Dissolvable Magnesium Alloy Cast Ingots are clearly better than regular metals. Traditional tools made of steel or aluminum need expensive retrieval or milling operations, which add days to the completion time and increase the risk of tool failure or casing damage during removal.

When compared to zinc alloys, which are another type of material that can dissolve, magnesium-based ingots show better mechanical strength under compressive loads while still dissolving at about the same rate. This extra strength directly means that the tool will work better during high-pressure fracturing sequences, lowering the chance that it will break before the planned dissolution phase.

Aluminum alloys are very good at resisting corrosion for long-term uses, but they don't have the controlled dissolution properties that are needed for short-term isolation tools. Because these materials can't degrade in a predictable way, they can't be used in situations where wellbore cleaning after operation is needed.

Cost-Effectiveness Analysis

The total cost of ownership is more than just the price of the materials. Even though dissolvable magnesium alloys may cost more up front than other materials, they save a lot of money because they don't need to be milled. Milling can add 24-72 hours of non-productive time and cost $50,000 to $150,000 per well, depending on the depth and complexity of the job.

The economic benefit is especially strong in multi-well pad developments, where the cost of finishing the project depends on how quickly it can be done. Operators can move between wells faster by using dissolvable tools made from these specialized ingots. This lowers the overall cost of the rig and speeds up the start of production.

Environmental and Operational Impact

When it comes to the earth, dissolvable magnesium metals are better because they are easier to get rid of. Magnesium hydroxide is the main byproduct of dissolution. It is a harmless chemical that doesn't pose much of a threat to the fluids in the formation or the reservoir. Composite materials, on the other hand, may leave behind debris or need chemical treatments to get rid of them.

In terms of operation, getting rid of mechanical intervention lowers the amount of traffic in the wellbore, which lowers the risk of damaging the formation or wearing down the casing without meaning to. Completion service providers like this lower risk, especially in offshore or long-reach wells that are worth a lot of money and where the costs and risks of intervention are higher.

Manufacturing and Quality Assurance of Dissolvable Magnesium Alloy Cast Ingots

Raw Material Selection and Alloy Design

The first step in making Dissolvable Magnesium Alloy Cast Ingots is carefully choosing high-purity magnesium and alloying elements. Reputable makers get materials that can be tracked and use ICP-OES (Inductively Coupled Plasma Optical Emission Spectroscopy) to check that the chemicals in the materials they receive meet engineering standards.

As part of the important engineering step of alloy design, manufacturers change the ratios of elements to get the desired dissolution window while keeping the necessary mechanical properties. To do this, the amount of aluminum needed for strength, zinc needed to stop rust, and rare earth elements needed to smooth out the grains must all be balanced. Each manufacturer keeps the exact recipe secret, but the formulation must work the same way in every production batch.

Casting Process and Quality Control

Protective atmospheres are used during the casting process to stop oxidation and make sure the metal is clean. At controlled temperatures, molten alloy is poured into precise moulds. The rate of cooling is carefully controlled to get the grain structure that is wanted. If you want higher ductility, you can use slower cooling, which makes the grains smaller and helps them dissolve evenly.

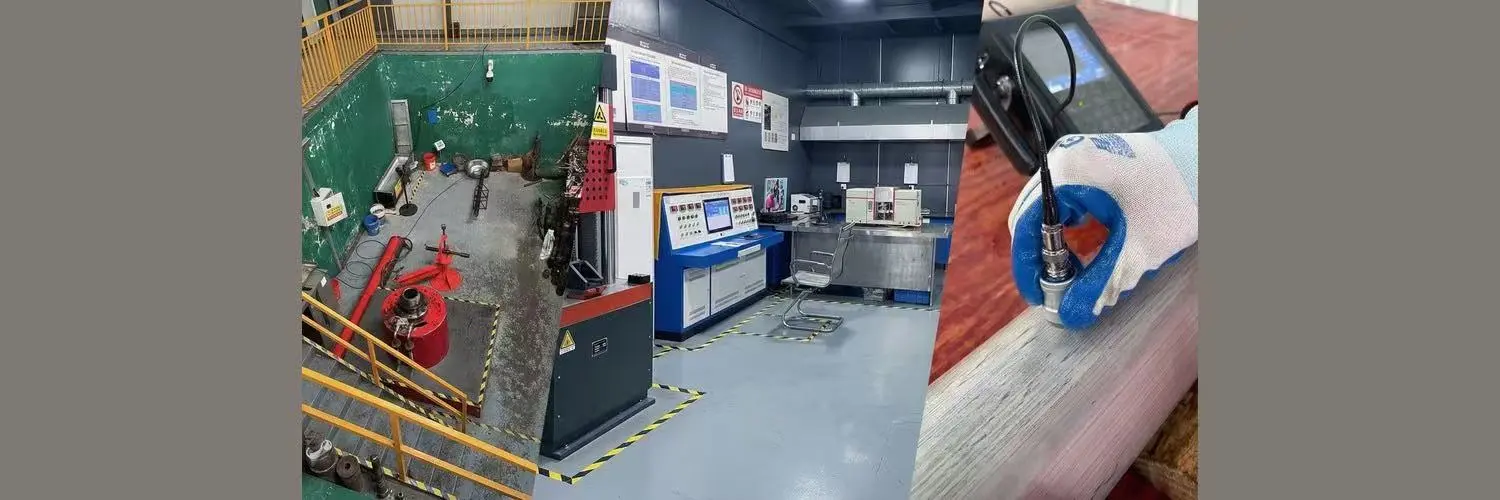

Quality control starts when the mould is being made and goes on until the final review. Important checkpoints are:

1. Ultrasonic Testing (UT) checks each ingot for flaws inside, such as gas porosity or shrinking holes, according to ASTM E114 standards. Any flaws that might weaken the structure or make the dissolution patterns unpredictable lead to the material being rejected.

2. Metallographic Examination checks that the grains are all the same size and that there is no secondary phase segregation, which could lead to localized pitting instead of uniform surface degradation. Microstructural uniformity is checked by looking at samples from each production lot under a microscope.

3. Static Dissolution Testing involves putting standard samples into brine solutions that are kept at a temperature that matches what will happen downhole. Measurements of weight loss taken at regular times show that the real dissolution curve fits the technical datasheet specifications.

4. Mechanical Load Testing ensures tensile strength, yield strength, and elongation properties meet design requirements. Stress-strain analysis makes sure that the material can handle the loads that will be put on it during the setting up of tools and the breaking up of pieces without breaking too soon.

Certifications and Compliance

Leading producers keep their ISO 9001:2015 certification for quality management, their ISO 14001:2015 certification for environmental management, and their ISO 45001:2018 certification for health and safety at work. These licenses show that you can control processes and keep making them better in a planned way.

Top-tier suppliers also have credentials like API (American Petroleum Institute) recognition, which shows they understand the needs of the oil and gas industry, and CNAS (China National Accreditation Service) laboratory accreditation, which shows they can do tests. Accreditation by CNAS ensures that measurements of mechanical properties and dissolution are done according to standards that are known all over the world.

Safety and Handling Procedures

Because magnesium alloys are reactive, special care must be taken when handling them. Storing things in places with controlled humidity and vacuum packing stops the surface from oxidizing and preserves the materials' properties. When stored properly, they usually last longer than 24 months.

Manufacturers use controls to keep small particles under control and avoid the risk of fire during machining operations. Processing is safe as long as there is enough air flow, the right cutting speed, and the right coolant. Finished parts get surface treatments or coats as needed to keep them from rusting too quickly while they're being shipped and stored before they are used.

Applications and Environmental Impact of Dissolvable Magnesium Alloy Cast Ingots

Primary Industrial Applications

Dissolvable Magnesium Alloy Cast Ingots are still mostly used in the oil and gas industry, where they are the main ingredient used to make temporary isolation tools. Frac and completion service companies turn these ingots into bridge plugs that dissolve, which lets them do multiple stages of fracturing in unconventional reservoirs. To guide the fracturing fluids into specific formation intervals, each stage needs to be temporarily isolated. Dissolvable plugs get rid of the need for post-frac milling processes.

Exploration and Production (E&P) companies that work in unconventional plays like the Eagle Ford, the Permian Basin, and the Marcellus Shale depend on tools made from these special ingots to get the job done faster and better. Offshore operations benefit the most from the technology because it gets rid of the need for milling operations, saving money on vessel time and delays caused by bad weather.

Expanding into Emerging Energy Sectors

Dissolvable magnesium materials are being used in new energy fields in addition to their usual use in oil and gas. Carbon Capture, Utilization, and Storage (CCUS) projects use these materials in injection wells that are temporarily closed off so that testing and tracking can be done in stages. Because they dissolve, you don't have to worry about leaving tools in wells for a long time when you might need to reach them again in the future.

Developing geothermal energy is another way to help the economy grow. For high-temperature geothermal wells, separation tools that can handle high temperatures during stimulation treatments are needed. Specialized high-temperature mixes of dissolvable magnesium alloys make temporary zone isolation possible in these tough environments, with rates adjusted to match geothermal fluid chemistry.

Environmental Benefits and Sustainability

There are many ways that dissolvable magnesium alloys are good for the Earth. Getting rid of mechanical cutting processes cuts down on diesel fuel use and the carbon emissions that come with longer rig times. Studies from the oil and gas industry show that skipping one milling operation can cut CO2 emissions by 5 to 10 metric tonnes, depending on the depth of the well and how well the rig works.

Being able to recycle materials is an important part of the global economy. Manufacturing trash and rejected bars can be melted down and used again, which cuts down on waste. The byproducts of dissolution, which are mostly magnesium hydroxide, are safe for the environment and don't build up as long-lasting pollutants in formation fluids or produced water.

Getting rid of waste happens on many levels. Traditional milling makes metal shavings that need to be moved and thrown away, often requiring special treatment. Dissolvable tools change into ionic species that stay in the fluids in the wellbore, getting rid of this waste stream completely.

Procuring Dissolvable Magnesium Alloy Cast Ingots: What You Need to Know

Supplier Evaluation Criteria

A structured review method is needed to find the right source for Dissolvable Magnesium Alloy Cast Ingots. Procurement managers should give more weight to manufacturers with production experience that spans more than one year and technical skills that can be seen.

Manufacturing capacity is an important thing to think about, especially for big projects. Suppliers with high-tonnage extrusion presses (3,600-ton to 5,600-ton capacity) can make ingots with larger diameters (up to Ø300 mm) that are more uniform in size and structure. Certifications like ISO 9001, ISO 14001, or ISO 45001 mean that you take a systematic approach to quality, safety, and protecting the environment.

Technical Specifications and Documentation

When buying teams send out requests for quotes, they should include important details like:

•  Required range of metal makeup and dissolution rate
•  Sizes of ingots and requirements for tolerances
•  Specifications for mechanical properties (tensile strength, yield strength, and elongation)
•  Conditions of the working environment (temperature, salinity, and fluid chemistry)
•  Documentation needs for quality (COA, COC, SDS, batch tracking)

Leading suppliers send complete technical packages with datasheets for materials, documentation on how the process works, and case studies of past projects. Top-tier sources are different because they can offer engineering help during the standard creation phase.

Delivery Timelines and Inventory Models

It's easier to make sure that procurement strategies and project schedules work together when you know about suppliers' inventory and production models. Some manufacturers keep a safety stock of commonly ordered alloys and sizes. This lets them make samples quickly and restock in case of an emergency, with standard sizes taking two to four weeks to deliver.

Custom specs that call for specific metal formulations or non-standard measurements usually take 4 to 8 weeks to produce. This includes developing the alloy, casting it, checking its quality, and preparing the paperwork. Suppliers who can speed up production can shorten deadlines for important projects, but they may charge more.

Pricing Structures and Value Considerations

The cost of dissolvable magnesium alloys depends on the complexity of the alloy, the size of the order, the required certifications, and the tolerances for the specifications. Value-added services that justify higher prices include:

•  Application engineering helps to choose the best materials for certain working conditions
•  The ability to make rapid prototypes of new tool designs
•  Minimum order quantities that can be changed for development projects
•  Full tracking documents to back up vendor qualification
•  Technical service and help with fixing problems after the sale

Customization and OEM/ODM Capabilities

Downhole tool makers and completion service providers are looking for suppliers that can work with them to develop new products. OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) partnerships let materials and finished parts be co-designed to meet particular problems during production. Suppliers with these skills offer engineering help to improve the structure of the material, test it for specific uses, and increase the quantity from prototypes to full production runs.

Establishing Long-Term Supply Relationships

Setting up a framework that deals with qualified providers makes the supply chain more resilient for operators and service companies that have ongoing completion programs. Long-term partnerships let suppliers keep dedicated stock, set priorities for production capacity, and keep prices stable throughout the project lifecycle. Regular performance reviews and open communication about issues like limited capacity are all parts of good supplier relationships.

Conclusion

In oil and gas completions, temporary separation tools have been changed to magnesium alloy cast ingots, especially Dissolvable Magnesium Alloy Cast Ingot products. Their engineered ability to dissolve, mixed with their strong mechanical qualities, gives them practical and cost benefits that other materials can't match. Knowing about the science behind the material, the quality controls used in production, and the benefits of using it helps buyers make decisions that balance performance needs with cost concerns. As more new energy sectors use these technologies, it becomes more important than ever to choose suppliers who are both skilled and reliable for the success of projects and the resilience of the supply chain.

FAQ

1. How does temperature affect dissolution rates?

The rate of dissolution is affected by temperature in an exponential way. Dissolvable magnesium alloy ingots are made to dissolve at certain temperatures, usually 60°C, 90°C, or 120°C+. Higher temperatures downhole speed up the electrical processes that break down materials, which cuts down on the time it takes for them to dissolve. Manufacturers do a lot of tests at the expected temperature range to ensure the product works well and give completion engineers dissolution curve data that helps them correctly predict how the tool will behave.

2. Can these materials dissolve in pure oil environments?

For electrochemical dissolution to work, magnesium alloys that can dissolve need an aqueous phase. Dissolution doesn't happen in environments with only oil and no water contact, which actually gives extra safety while moving and handling tools. But the alloys are designed to work in high-oil-cut completion fluids typical of unconventional reservoirs. In these fluids, even small amounts of water start the dissolution process. The chemistry of the material guarantees reliable degradation even when the water-to-oil ratio changes.

3. What documentation supports supplier qualification processes?

Reliable suppliers offer complete documentation packages that include Certificates of Analysis (COA) that show the chemical makeup and mechanical properties of each production batch, Certificates of Conformance (COC) that show the product meets requirements, and Safety Data Sheets (SDS). Full batch traceability connects finished ingots to where the raw materials came from and the production parameters, helping find the root cause of performance problems if they happen.

Partner with HAGRIEN for Reliable Dissolvable Magnesium Alloy Solutions

Choosing the right supplier for your Dissolvable Magnesium Alloy Cast Ingot is important for the success of your whole completion program. Since 2019, HAGRIEN has been producing continuously for seven years, developing alloys in-house and being able to extrude materials up to 300 mm in diameter. Our ISO 9001, 14001, and 45001 certifications, API recognition, and CNAS-accredited labs make sure that every batch meets strict quality standards and has full paperwork for tracking back to its source.

Our closed-loop approach helps with everything from making prototypes to full-scale production, from making the alloy to making sure the process works well and is safe. With safety stock for standard sizes (delivery in 2–4 weeks) and fast choices for custom specs, we work with your project schedule instead of making you fit ours. Write to HAGRIEN at cyrus@us-hagrien.com to talk about how our solutions can help your tools work better, and your supply chain be more reliable.

​​​​​​​

References

1. American Society for Testing and Materials. (2020). ASTM B94: Standard Specification for Magnesium-Alloy Die Castings. West Conshohocken, PA: ASTM International.

2. Smith, J.R., & Anderson, K.L. (2021). Dissolvable Materials Technology in Unconventional Completions: Performance and Economic Analysis. Journal of Petroleum Technology, 73(4), 45-58.

3. International Organization for Standardization. (2018). ISO 9001:2015 Quality Management Systems — Requirements. Geneva: ISO.

4. Chen, W., & Morrison, T. (2022). Electrochemical Behavior of Magnesium Alloys in High-Salinity Environments. Corrosion Science and Materials Engineering, 18(2), 112-128.

5. National Association of Corrosion Engineers. (2019). NACE SP0775: Preparation, Installation, Analysis, and Interpretation of Corrosion Coupons in Oilfield Operations. Houston, TX: NACE International.

6. Roberts, M.D., Garcia, P., & Liu, H. (2023). Advances in Dissolvable Alloy Systems for Temporary Downhole Isolation. SPE Production & Operations Journal, 38(1), 89-104.
