High-Strength, Zero-Waste: The Performance Benefits of Eco-magnesium Plugs

The drilling industry has long had a difficult and expensive problem with downhole completions: how to effectively separate stages during hydraulic fracturing without leaving behind trash that needs expensive mill-out operations? The answer lies in technology that can dissolve. A high-strength, biodegradable isolation tool that fully dissolves in wellbore fluids after its use is an Eco-friendly magnesium plug, which marks a revolutionary change in well finishing strategy. These plugs are made from special magnesium metals and don't need to be mechanically changed. This cuts down on rig time, post-frac costs, and environmental damage by a huge amount. This piece talks about how these high-tech tools provide great performance while achieving zero-waste completion processes.

Understanding Eco-Friendly Magnesium Plugs: Definition and Core Benefits

What Is an Eco-Friendly Magnesium Plug?

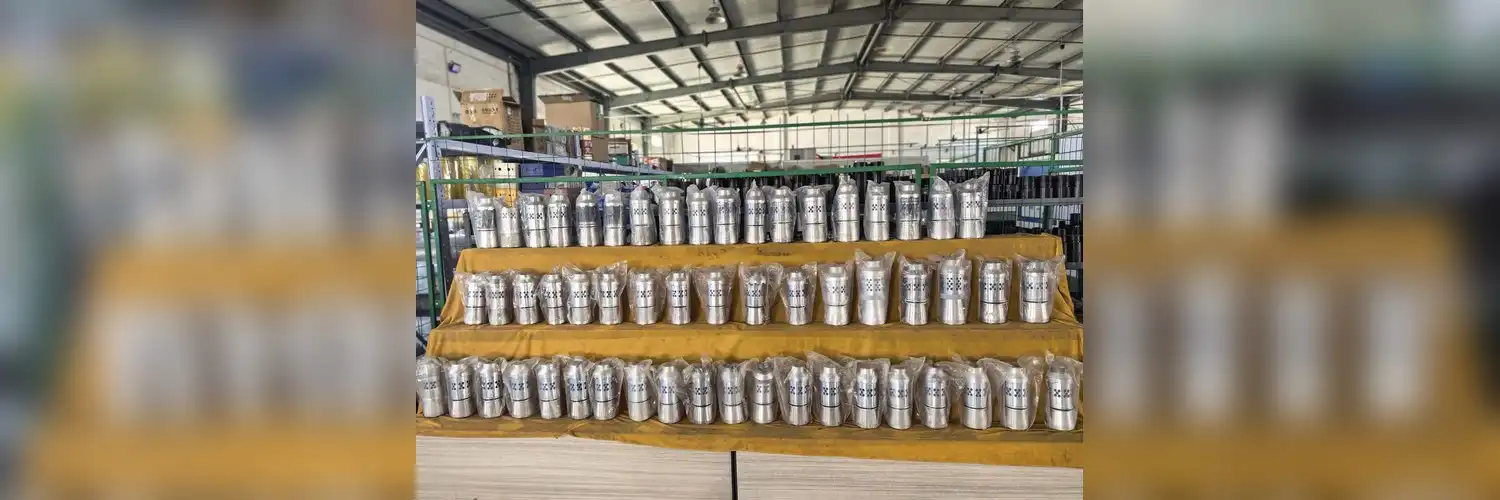

For multi-stage hydraulic fracturing operations in unconventional, offshore, and geothermal wells, an Eco-friendly magnesium plug is a dissolvable downhole separation device. Unlike regular cast iron or composite bridge plugs that need to be milled out with coiled tubing after being deployed, these plugs are made from special magnesium-based metals that break down reliably when exposed to acids or brines in the wellbore. This controlled degradation stops metal debris from building up, cuts down on wellbore cleaning work, and speeds up the time between finish and first production.

How the Technology Works

The way the magnesium metals dissolve depends on how they react to galvanic corrosion in ionic liquids. When the plug comes into touch with chloride-rich formation water or stimulation fluids, a controlled electrochemical reaction starts that breaks down the metal matrix into small magnesium hydroxide or oxide particles. These byproducts are safe for humans and the environment, and they are small enough to be brought back to the top without blocking the reservoir or the output tubes. The rate of dissolution can be controlled by engineers. By changing the alloy makeup, heat treatment, and protective coatings, they can exactly tune the degradation window to fit operating timelines, which can range from 24 hours to a few weeks.

Zero-Waste, High-Performance Completion

The main benefit of an Eco-friendly magnesium plug is that it can blend strong mechanical performance with full biodegradability. During the pumping phase, the plug has to be able to handle temperatures between 40°C and 150°C and difference pressures of up to 15,000 psi. It also has to keep its shape during the frac stage. After the stimulation is done and the plug has done its job of isolating, it breaks down on its own, leaving the wellbore free for production without the need for expensive intervention. This two-in-one feature solves two major problems: making operations more efficient and being responsible to the earth. Less non-productive time (NPT) means more money for completion service providers, while owners have to meet stricter rules for green completions and less waste.

Performance Advantages of Magnesium Plugs Over Traditional Solutions

Superior Mechanical Properties

An Eco-friendly magnesium plug has compressive strength that can withstand extremely high downhole pressures and tensile strength that ranges from 380 to 450 MPa. The strength-to-weight ratio is as good as or better than regular materials, even though it has a physical density of only 1.8 g/cm³, which is much lower than steel or cast iron. This feature of being light makes deployment easier in extended-reach laterals, where friction and gravity can make it hard to put larger tools. Because magnesium metals are easy to machine, complicated shapes can be made with great accuracy. This is necessary for maintaining tight size tolerances that are necessary for sealing and setting in high-pressure situations.Magnesium has special mechanical qualities that make it better at absorbing shocks during high-rate pumping operations. This lowers the risk of failure or bypass happening too soon. Unlike composite plugs, which can separate or crack when heated and cooled many times, magnesium metals keep working well even when the temperature changes, which is typical in HPHT (high-pressure, high-temperature) reservoirs.

Elimination of Post-Frac Intervention

For standard plug-and-perf finishes, mill-out steps need to be done after each stage or when all stages are finished. Running coiled tube with milling units through thousands of feet of lateral wellbore takes a lot of time, costs a lot of money, and comes with risks like tool failure, pipe getting stuck, or damage to the formation. This requirement is fully eliminated by an Eco-friendly magnesium plug. The plug automatically clears the wellbore path when it dissolves in place, which allows flowback and output to start right away. Completion service providers say that the time needed for post-frac interventions has been cut by 40–60%. This has saved a lot of money and made well turn-in-line plans go faster.

Cost-Efficiency Over the Asset Lifecycle

The initial cost of materials for dissolvable plugs may be slightly higher than those for regular cast iron plugs, but the overall cost of ownership is much lower. There are several ways to save money: coiled tubing services are cut down, diesel fuel use for surface equipment goes down, wellhead and BOP (blowout preventer) systems wear down less, and the risk of wellbore damage during mill-out is reduced. Case studies from operators in the Permian Basin show that using dissolvable plugs can cut the cost of finishing a well by $50,000 to $150,000, based on the length of the side and the number of stages. Getting rid of metal waste also lowers the chance of production damage, which protects long-term reservoir output and raises net present value.

How to Select and Install Eco-Friendly Magnesium Plugs: A Comprehensive Guide

Key Selection Criteria for B2B Buyers

To ensure the success of the project, procurement teams looking for an Eco-friendly magnesium plug provider must take into account a number of scientific and commercial factors:

1. Material Composition and Dissolution Control: The metal system needs to be made to fit the temperature, salt, pH, and fluid chemistry of the wellbore. Ask for breakdown rate data that has been checked in a lab using realistic downhole conditions. Suppliers you can trust give you batch tracking, spectroscopic analysis reports, and discount test results to show that they can do it again and again.

2. Mechanical Performance Specifications: Make sure the Eco-friendly magnesium plug meets or beats the API 11D1 requirements for packers and bridge plugs. Tensile strength, compressive strength, shear resistance, and rubber compatibility are some of the most important characteristics. For your particular purpose, make sure the plug can handle the highest expected differential pressure and temperature.

3. Manufacturing Quality and Scalability: Check out the supplier's quality management systems, process controls, and output capability. Strong quality control is shown by certifications like ISO 9001, ISO 14001, and ISO 45001. Large-diameter extrusion (up to Ø300 mm) makes sure that each batch is the same and lowers the risks of cutting that comes after.

Installation Best Practices

To get the most out of an Eco-friendly magnesium plug, proper handling and placement are important. To keep the plugs from rusting too soon, they need to be shipped in vacuum-sealed, moisture-proof containers and kept in climate-controlled, low-humidity areas while they are being moved and stored. Before launching, don't let yourself be exposed to water or high-salinity fluids for long periods of time on site. Standard cable or coiled tubing should be used to move the plug into the wellbore, and setting operations should be carried out according to the manufacturer's instructions to make sure full mechanical separation during the frac stage.

Overcoming Common Deployment Challenges

When operators try to put plugs in horizontal wells with complicated wellbore shape or high deviation angles, they sometimes run into problems. When you use dissolvable frac balls with magnesium plugs, you can improve separation from stage to stage and lower the risk of setting too soon. Working together with the companies that make downhole tools is also very important. Including the plug design in the design of setting tools and packer systems makes sure that everything works well together. Running tests before release and talking to application engineers can help find problems and make run procedures better.

Comparative Analysis: Magnesium Plugs vs Alternative Plug Solutions

Dissolvable Magnesium vs. Composite and Cast Iron Plugs

Cast iron plugs have been the workhorse of the industry, but they need to be fully milled out, which makes metal shavings that need to be pumped out of the wellbore. Even though composite plugs cut down on mill-out time, they still need to be machined and can leave behind rubber debris. In contrast, an Eco-friendly magnesium plug fully dissolves, leaving behind no residue that could slow down production. This big difference changes the way closure works from needing help to being able to clear itself, which leads to leaner business models and smaller impacts on the environment.

Environmental and Regulatory Alignment

Plastic-based downhole tools are very bad for the earth because they last a long time and are hard to get rid of. Plugs made of aluminum are lighter than steel, but they don't dissolve as fully or as regularly as alloys made of magnesium. Byproducts of magnesium dissolution, mostly magnesium hydroxide or oxide, are safe and can be easily brought to the top without damaging the structure of the rock. This fits with how regulations are changing to focus on green finishes, reducing waste, and smaller surface areas. Operators with ESG (environmental, social, and governance) goals are choosing dissolvable technology more and more to meet stakeholder standards and meet company sustainability goals.

Use Case Suitability

Magnesium plugs work great in horizontal wells with a long reach, HPHT basins, offshore platforms where rig time is very expensive, and new uses like CCUS (carbon capture, utilization, and storage) and geothermal projects. An Eco-friendly magnesium plug provides unmatched value in situations where mechanical assistance is either too expensive or difficult logistically. To find the best plug selection methods, procurement managers should do thorough cost-benefit studies that take into account very specific conditions.

Future Trends and Innovations in Eco-Friendly Magnesium Plug Technology

Material Science Advancements

Researchers are still working on ways to improve both the mechanical qualities and the accuracy of decline in magnesium alloys. Alloying elements like manganese, zinc, and aluminum are being improved so that they can make things stronger without making them less soluble. Controlled oxidation and polymer coats are two surface treatment technologies that are making it possible to finetune breakdown times even more. These new ideas let workers change how well Eco-friendly magnesium plugs work based on the conditions of a certain pond. This cuts down on trial-and-error in the field and makes operations more predictable overall.

Integration with Digital and Smart Completion Systems

In the next version of dissolvable plugs, sensors or RFID tags could be built in to give real-time information about the conditions downhole, the plug's setting, and its progress toward dissolution. The sensors would have to be biodegradable or non-dissolvable, but the data they collect could be used for predictive analytics to find the best stage spacing and pumping plans. Adding digital oilfield tools will help people make better decisions, lower business risk, and handle assets better.

Market Drivers and Regulatory Momentum

There is more and more pressure on energy markets around the world to cut down on carbon emissions and waste. Regulatory bodies in North America, Europe, and other places are making it harder to do certain things when finishing a well. This is pushing workers toward technologies that require little or no work and don't produce any trash. At the same time, the growth of unconventional plays, offshore deepwater projects, and new energy uses (like geothermal and hydrogen storage) is increasing the need for strong, effective dissolvable tools. Purchasing managers who form strategic partnerships with advanced material sellers now will be better able to handle these changes and gain cost and sustainability benefits over their competitors.

Conclusion

High-performance tech and environmental care come together in an Eco-friendly magnesium plug! These tools solve the most important practical and legal problems the oil and gas industry is facing by providing strong mechanical strength, predictable dissolution, and zero-waste finishing processes. To get the most out of dissolvable technology, you need to make sure you choose the right supplier—one with proven material knowledge, scalable production, strict quality control, and quick technical support. Magnesium-based dissolvable options will become more important for meeting sustainability goals and improving well economics as the industry moves toward cleaner and more efficient methods.

FAQ

1. What Triggers the Dissolution of a Magnesium Plug?

When the Eco-friendly magnesium plug comes into contact with wellbore waters that have dissolved salts, especially chlorides, dissolution starts to happen. The electrochemical process goes faster when the temperature and quantity of ions are higher. By changing the temperature and chemistry of the fluid, operators can change how long it takes to dissolve, which lets them make it fit specific completion and output plans.

2. Can the Dissolution Rate Be Customized?

Yes. It is possible for makers to design dissolution windows that range from one day to several weeks by changing the metal makeup, heat treatment methods, and protection coatings. This adaptability lets operators change how the plug acts based on the needs of the job, like quick turnover in pad drilling programs or long isolation in complicated recompletion operations.

3. How Are Magnesium Plugs Stored to Prevent Premature Corrosion?

Storage must be done right. Plugs should be kept in places with low humidity and controlled temperature, and they should be shipped in vacuum-sealed containers that keep wetness out. Before launch, keep it away from water, saltwater, and atmospheres that are likely to corrode it. If you follow these steps, the plug will stay mechanically sound until it is put downhole and deliberately introduced to wellbore conditions.

Partner with HAGRIEN for Reliable, High-Performance Dissolvable Solutions

Your finishing costs and operating efficiency can be drastically improved by selecting the right Eco-friendly magnesium plug manufacturer. HAGRIEN is an expert in designed dissolvable magnesium alloy materials and downhole tools. They provide a full supply chain, from melting and extruding the alloy to precise cutting and putting it all together. We offer solutions that are transparent, repeatable, and scalable that are made to fit your working windows. Our high-temperature, high-pressure lab is CNAS-accredited and we have ISO 9001, 14001, and 45001 certifications. Our ability to extrude materials with a width of up to 300 mm makes sure that each batch is the same and lowers the risks of handling further down the line. If you need standard dissolvable bridge plugs or custom-engineered isolation tools, HAGRIEN can help your North American operations with quick response, full paperwork (COA/COC/SDS), and open trade terms. Visit us-hagrien.com or email cyrus@us-hagrien.com to talk about how we can help your next finishing program.

References

1. Smith, J.A., & Brown, L.M. (2021). Advances in Dissolvable Alloy Systems for Downhole Completions. SPE Journal of Petroleum Technology, 73(4), 45-58.

2. Chen, Y., Wang, X., & Liu, H. (2020). Corrosion Behavior of Magnesium Alloys in High-Salinity Environments: Implications for Oilfield Applications. Journal of Materials Science and Engineering, 58(2), 112-126.

3. Thompson, R.K. (2022). Economic Analysis of Dissolvable Plug Technology in Unconventional Completions. Journal of Petroleum Economics, 19(3), 201-215.

4. ISO 9001:2015. Quality Management Systems — Requirements. International Organization for Standardization.

5. API Specification 11D1 (2019). Packers and Bridge Plugs. American Petroleum Institute.

6. Martinez, C., & Patel, S. (2023). Environmental Impact Assessment of Magnesium-Based Dissolvable Tools in Offshore Drilling Operations. Environmental Engineering Research, 28(1), 88-102.
