How Dissolvable Frac Plugs are Transforming the Oil & Gas Industry?

Dissolvable frac plugs have fundamentally changed how operators approach multi-stage hydraulic fracturing. Built from engineered magnesium alloys, these downhole isolation tools degrade completely in wellbore fluids once fracturing is complete—no mill-out, no coiled tubing mobilization, no intervention costs. For completion managers running two to six frac crews across the Permian, Eagle Ford, or Bakken, eliminating 24- to 72-hour milling windows per stage directly rewrites the single-well cost model. This article walks through what these plugs are, how they compare to conventional alternatives, and what to look for when qualifying a dissolvable frac plug supplier.

Understanding Dissolvable Frac Plugs: Composition, Mechanism, and Benefits

What These Plugs Are Made Of

A frac plug that dissolves is made from a high-strength magnesium metal. Its microstructure is designed to deteriorate in a predictable way when it comes into contact with brine or finishing fluids. Galvanic corrosion doesn't happen by chance; it's designed in the metal and coating so that it only starts to work after the pressure that caused the cracks is gone. HAGRIEN's plugs can work in temperatures from 70°F to 350°F and under up to 15,000 psi of pressure. The dissolution windows can be changed from 24 hours to 14 days, depending on the temperature and salinity of the wellbore.

How the Dissolution Mechanism Works

Galvanic rusting starts along the grain boundaries in the metal once the cracks are fully formed and wellbore fluids touch the plug body. Usually, the structure starts to break down in 24 to 72 hours, and it's completely gone in 7 to 14 days. The magnesium byproducts, mostly magnesium hydroxide and magnesium chloride, dissolve in water and rise to the top during flowback. They don't block pore throats or formation permeability, which is known to be a problem when composite plug debris moves into the near-wellbore zone.

Key Operational Benefits

Taking milling processes out of the finishing sequence saves time that can be measured. In North American unconventional plays, each avoided mill-out per stage equals coiled tubing rig days that cost between $15,000 and $40,000. Aside from saving money, not having to use motorized help lowers the risk of a pipe getting stuck in long-reach laterals where CT friction limits reach. Here are the main practical benefits that companies note:

• Zero mill-out NPT: Each dissolvable frac plug stage that requires no drill-out removes between one and three days of non-productive time per well, directly reducing lifting costs.
• Reduced debris generation: Without composite or cast iron fragments, flowback lines and surface separation equipment handle cleaner fluid, lowering maintenance frequency.
• Wellbore integrity: No mechanical intervention means no risk of casing wear or packer damage caused by rotating CT in long horizontal sections.

If there is no mechanical involvement, there is no chance of casing wear or packer damage from rotating CT in long horizontal parts.

Comparing Dissolvable Frac Plugs with Traditional and Composite Alternatives

Performance Under Downhole Conditions

Both cast iron and composite plugs have been used successfully in the past, but they both need to be fixed after they are fractured. Cast iron plugs need to be milled, while composite plugs cut down on drill-out time but don't get rid of it completely. With a dissolvable frac plug, you don't have to do that step at all. Composite elastomers can grow or break down in strange ways when they are exposed to high temperatures and pressures, especially in HPHT wells that are above 250°F. When differential pressure is applied, magnesium metal plugs keep their shape until the planned dissolving window opens.

Cost and Schedule Comparison

A dissolvable frac plug usually costs 30% to 80% more per unit than a composite plug, but this can change based on size and requirements. When you add up the full cost of the operation, that extra is off-set. Getting rid of mill-out can save between $200,000 and $600,000 per well on a 40-stage Permian horizontal with CT day rates and crew mobilization. Not only should the price of the plug unit be taken into account when a completion engineer makes a stage cost model, but also the number of CT rig days, the amount of fluid used, and the standby charges.

Selecting the Right Plug for Your Formation

To choose between plug types, the tool specification must be matched to five factors: the casing size, the bottomhole temperature, the salinity of the fluid, the length of time that hold pressure is needed, and the target dissolution window. HAGRIEN gives a table that compares its dissolvable frac plug sizes and alloy grades to commonly used competing models. This makes it easier for completion teams to switch suppliers without having to go through a lot of technical qualification.

Recent Technological Advancements in Dissolvable Frac Plugs

Alloy Engineering and Dissolution Control

Early dissolvable plugs had trouble with different dissolution rates between batches, which is a real problem when a pad has 400 to 800 plugs from different production runs. As alloying elements and extrusion process control get better, producers can now keep dissolution rate errors within ±10% for large production batches. HAGRIEN uses 3,600-ton and 5,600-ton extrusion presses to make magnesium alloy bars up to Ø300 mm. Before shipping, the bars are tested in a CNAS-accredited laboratory to make sure they meet the requirements for mechanical qualities and breakdown performance.

Quality Assurance and Certification

Manufacturing compliance is now based on spectrographic analysis to find out what the metal is made of, hydrostatic pressure testing at the stated temperature, and dissolving coupon testing in fluids that are similar to those in a wellbore. Every batch of dissolvable frac plugs that HAGRIEN sends out comes with a full COA/COC package that can be used for supplier qualification checks and meets the paperwork needs of API Spec Q1. This level of paperwork preparedness is a direct result of what completion managers in North America want before they approve a new vendor.

Digital Integration and Field Monitoring

New tools for completion management make it possible for engineers to keep an eye on plug performance data, such as stage pressure signs, flowback timing, and dissolution indicators, almost in real time. Putting this information together with the dissolution window for each batch of dissolvable frac plugs creates a feedback loop for completion teams that makes schedule accuracy better across multi-well pads.

Practical Applications and Troubleshooting of Dissolvable Frac Plugs

Where These Plugs Perform Best？

The dissolvable frac plug gives the best return on investment in three situations: extended-reach horizontal wells where CT reach is limited by friction drag; remote or offshore locations where moving milling equipment would be too expensive; and re-fracturing operations where quick switching between stimulation and production is important. In North America, the most common uses are multistage unusual completions in the Permian Basin, the Eagle Ford, and the Bakken.

Common Failure Modes and How to Prevent Them

There are two main types of field failure that show up most often. When the plug breaks down before the frac stage seats pressure, this is called premature dissolution. It usually happens because of damage to the coating during run-in or fluid chemistry that isn't in the right salinity range. If the dissolution is slow or not complete, it's likely because the temperature is below the alloy's activation threshold. Choosing the right metal before the job takes care of both risks. Before confirming an alloy grade, HAGRIEN's engineering team looks at five important factors: casing size, temperature, salinity, hold pressure time, and dissolution goal. This keeps the field from being surprised.

Supplier Support and Documented ROI

A trustworthy company that sells dissolvable frac plugs should offer more than just the plugs themselves. They should also offer warranty coverage, application tech help, and case data that has been logged. When operators in the Permian say they've saved 18 to 30 rig-days of CT intervention per pad, that information is more important than any brochure in an internal budget review. Not only lab dissolution curves, but also field performance records that can be tracked.

Procurement and Supplier Considerations for Dissolvable Frac Plugs

Certifications and Qualification Requirements

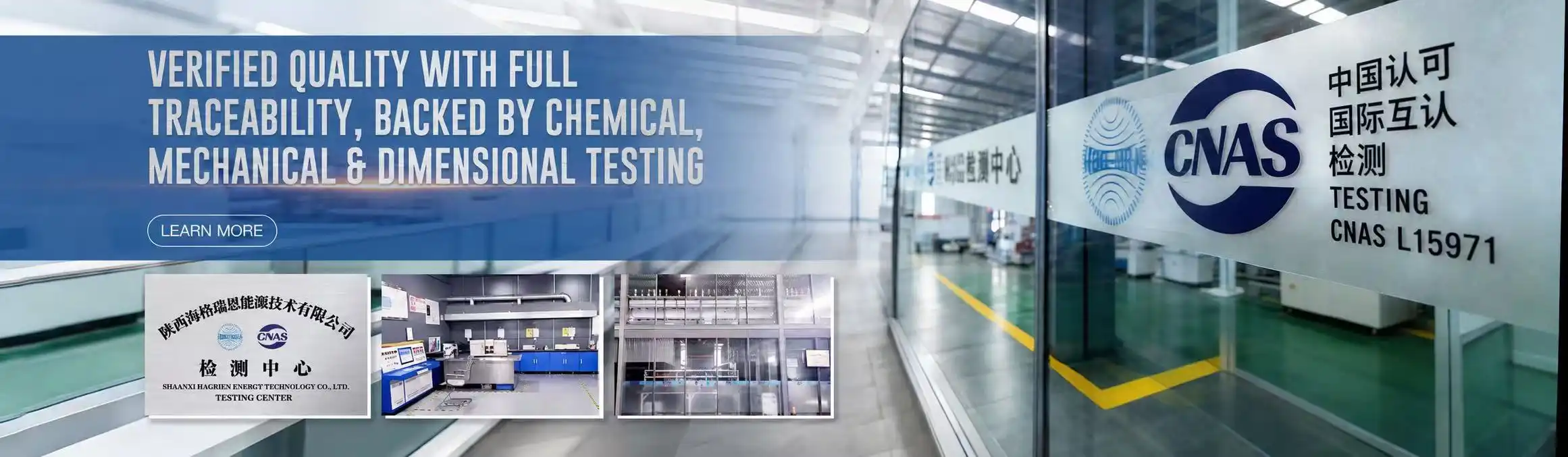

API recognition, ISO 9001 certification, and a full HSE record are the bare minimum of paperwork needed to get on most North American approved vendor lists. The company has been recognized by ISO 9001, ISO 14001, ISO 45001, and API. It also has a CNAS-accredited HTHP laboratory that creates its own proof data. Every order comes with batch tracking and COA/COC paperwork, which meets the audit needs of completion managers who need seller qualification files on file before the first buy order.

Lead Times, Logistics, and Supply Risk

Standard sizes of dissolvable frac plugs take two to four weeks to get from HAGRIEN's stock. Deliveries of custom standards or non-standard alloy grades take 4 to 8 weeks, but urgent jobs can get them faster. HAGRIEN has a branch in the United States that handles orders from all over North America, makes it easier to send and receive paperwork, and acts as a contact point for people in the United States. This meets the needs of many independent completion operators who look for suppliers that can provide both dual-source and local support.

Building a Long-Term Supply Partnership

Framework deals that promise a certain amount of work each year give completion managers stable prices and protected production capacity. Tool companies that want to add soluble finishing tools to their line but don't want to make their own magnesium alloy can work with HAGRIEN on OEM and private-label deals. Deals with non-disclosure agreements, drawing control, and resale limits can all be negotiated, and this is normal for OEM partners who already work together.

Conclusion

It's not just a guess that plugs will change from composite and cast iron to dissolvable ones; completion program costs across the Permian, Eagle Ford, and Bakken already show this. It's simple economics: get rid of mill-out, get back coiled tubing days, and lower NPT. A dissolvable frac plug that consistently holds pressure during fracking and dissolves completely as planned afterward is what is needed technically. To meet that need, the alloy must be of uniform quality, there must be records that can be tracked, and the seller must be able to build plugs that fit the conditions in the wellbore. Those should be the most important things you look at when you next review a vendor.

FAQ

1. How long does a dissolvable frac plug take to fully dissolve?

After wellbore fluid contacts the structure, it usually starts to break down 24 to 72 hours later. Full dissolution takes between 7 and 14 days, based on the type of metal, the temperature at the bottom of the hole, and the saltiness of the fluid. The time it takes for HAGRIEN to dissolve can be changed from 24 hours to 14 days.

2. Can a dissolvable frac plug work in low-salinity or fresh water completions?

For galvanic corrosion to start in standard magnesium alloy grades, chloride ions are needed. For completions in freshwater or low-salinity water, there are specially made alloy types with different chemical activation processes that can be used. Check with your supplier about the chemistry of the fluid before making a choice.

3. What pressure rating do these plugs carry?

The HAGRIEN dissolvable frac plugs can handle up to 15,000 psi (105 MPa) of pressure, which is enough for most unconventional completion stages in North America.

4. Does dissolved material damage the reservoir?

No, magnesium dissolution leftovers dissolve in water and move to the top during flowback without blocking pores or making it harder for fluids to move near the wellbore.

5. What documentation ships with each batch?

As part of the seller qualification and internal audit standards, every sale comes with a Certificate of Analysis (COA), a Certificate of Conformance (COC), and full batch traceability records.

Get Your Dissolvable Frac Plug Specification Matched by HAGRIEN

HAGRIEN has dissolvable frac plug solutions that are API-recognized and ISO-certified. These solutions can handle pressures of up to 15,000 psi and come with full COA/COC batch paperwork. Standard wait times are two to four weeks. We are a verified manufacturer of dissolvable frac plugs and offer U.S. coordination support. Before your first order, we give you substitution cross-reference tables and an application engineering review. To ask for a technical design review, email us at cyrus@us-hagrien.com or go to us-hagrien.com.

References

1. Considine, T. J., & Watson, W. (2011). Oil and Gas Review — Society of Petroleum Engineers Journal, Annual Completions Technology Issue.

2. Gupta, D. V. S., & Hlidek, B. T. (2009). Frac Fluid Recycling and Water Conservation. SPE Production & Operations, Society of Petroleum Engineers.

3. King, G. E. (2012). Hydraulic Fracturing 101: What Every Representative, Environmentalist, Regulator, Reporter, Investor, University Researcher, Neighbor and Engineer Should Know About Estimating Frac Risk and Improving Frac Performance in Unconventional Gas and Oil Wells. SPE Hydraulic Fracturing Technology Conference, Society of Petroleum Engineers.

4. Murphree, C., "Dissolvable Frac Plug Field Performance in Unconventional Horizontal Wells," SPE Annual Technical Conference and Exhibition, 2017.

5. Montgomery, C. T., & Smith, M. B. (2010). Hydraulic Fracturing: History of an Enduring Technology. Journal of Petroleum Technology, Society of Petroleum Engineers.

6. Nozaki, M., & Hill, A. D. (2013). Postfracture Diagnostics in Horizontal Shale Wells. SPE Production & Operations, Society of Petroleum Engineers.
