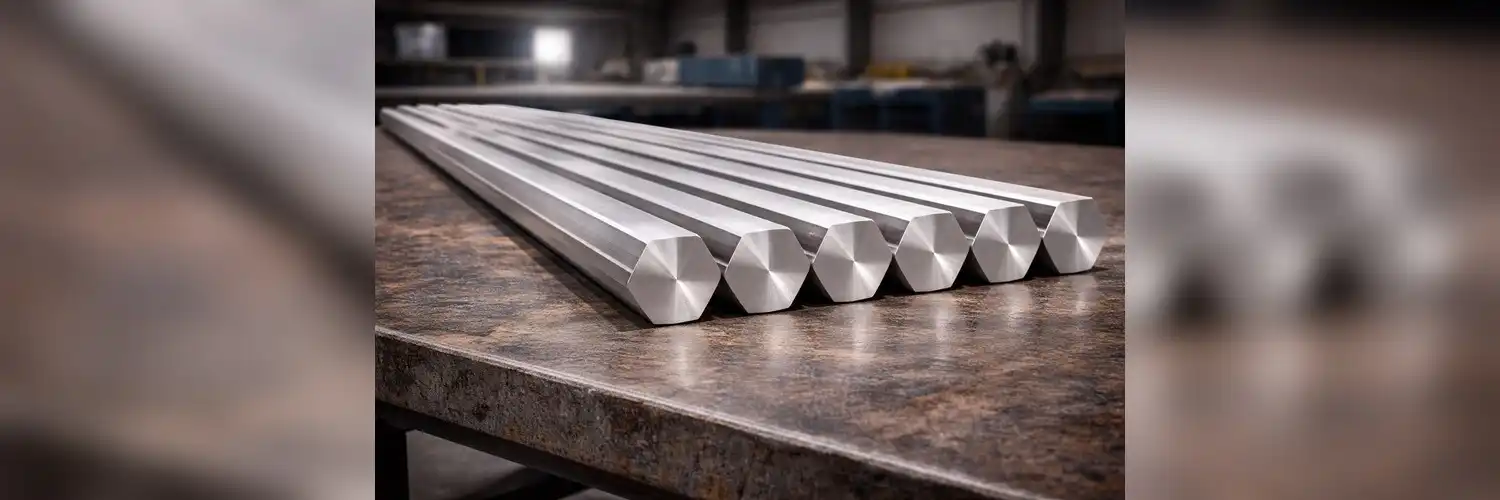

Magnesium Alloy Hexagonal Bar: Complete Guide for Oilfield Applications

When you're searching for reliable materials to support high-stakes downhole operations, the oil magnesium alloy hexagonal bar stands out as a precision-engineered solution designed specifically for the rigors of oilfield environments. Combining a unique six-sided geometry with advanced magnesium alloy metallurgy, these bars deliver controllable dissolution rates, superior machinability, and exceptional mechanical properties. Whether you're developing dissolvable completion tools or manufacturing lightweight offshore components, understanding the capabilities and specifications of these hexagonal profiles can transform your operational efficiency and reduce intervention costs across unconventional, offshore, and conventional well completions.

Introduction to Magnesium Alloy Hexagonal Bars in Oilfield Applications

Materials that work reliably in harsh conditions are needed for oil and gas operations. The oil magnesium alloy hexagonal bar is a state-of-the-art material option made just for downhole performance. This bar is made from high-performance magnesium metals and has a cross-section with six sides. It is very strong for its weight, doesn't rust, and transfers heat well, all of which are important in tough oilfield settings.

Why Hexagonal Geometry Matters in Oilfield Operations

That hexagonal shape isn't just a choice for looks; it's also necessary for functionality. When putting tools thousands of feet underground, where torque transfer is very important, the six-sided geometry keeps them from slipping during high-torque activities. This shape has built-in wrenching surfaces that round bars just can't match, especially in places that are slippery or small, where round profiles would normally be able to turn easily. The shape easily fits into small mechanical parts and provides better power transfer in hydraulic manifolds and setting mechanisms.

Material Properties That Define Performance

Knowing what these hex bars are made of chemically helps you see why they work better than other metals. Magnesium metal bars are about 33% lighter than aluminium and 75% lighter than steel. They have a density of 1.78 to 1.83 g/cm³ and a tensile strength of 240 to 310 MPa. This ratio of strength to weight is especially useful for offshore platforms, where each kilogram changes the estimates for stability and load limits. Extreme temperatures of up to 250°C with special rare earth formulations and corrosive chloride-rich brine conditions common in completion operations are both things that the metals can handle well.

The Oil Coating Advantage

This process involves covering each bar with a special protective oil film that does more than just stop rust. This covering protects against oxidation while in storage and transportation, so your materials don't get corroded or damaged on the way to the machine shop. The light protective oil actually helps with the initial lubrication while machining, but it should be taken off before welding or advanced coating processes are done. This treatment on the surface is especially useful when moving across oceans or storing things for a long time in humid warehouses in the fields or at sea.

Comparing Magnesium Alloy Hex Bars with Other Materials for Oilfield Applications

Procurement and engineering teams need clear performance standards when they look at materials for important downhole uses. The next comparison shows why oil magnesium alloy hexagonal bars are replacing traditional materials more and more in tough oilfield conditions.

Strength-to-Weight Ratio Analysis

Steel has been used to make oilfield tools for a long time because it is easy to work with and has well-established supply lines. However, when you look at real performance measures, magnesium metals have the same mechanical strength but are much lighter. A regular steel hex bar has a density of about 7.85 g/cm³, while magnesium alloy bars have a density of 1.78 to 1.83 g/cm³. This decrease in weight directly leads to easier handling, lower shipping costs, and lighter structural loads on offshore platforms. At 2.7 g/cm³, aluminium is in the middle, but magnesium metals are better at being machined and at calming vibrations, which is very important for sensitive electronics and instruments used deep underground.

Corrosion Resistance in Harsh Environments

How long downhole parts work is based on how resistant they are to corrosion. Titanium alloys are very good at resisting corrosion, but they are very expensive and hard to work with. When anodised properly, aluminium alloys don't rust very easily, but they don't dissolve slowly like some magnesium alloys do, which makes them great for temporary finishing tools. The oil magnesium alloy hexagonal bar can be designed to dissolve at certain rates depending on the temperature ranges, salinity levels, and fluid chemistry. This makes it possible for materials to break down reliably in chloride-rich environments once their purpose is over. This managed dissolution gets rid of the need for expensive grinding and recovery teams.

Cost-Efficiency and Lifecycle Considerations

The initial cost of magnesium alloys may be higher than that of regular steel, but lifecycle cost analysis shows that this is not the case. The total cost of ownership often favours magnesium solutions when you consider the weight savings in transportation, the shorter time spent on the rig because of dissolvable tool applications, and the lack of post-frac intervention operations. While aerospace-grade magnesium metals like WE43 and WE54 are more expensive, they work better than any other material in very high-temperature situations. Industrial grades like AZ31B and AZ61A are easy to machine and don't cost too much for standard completion scenarios. This gives procurement professionals a range of options that meet both performance and cost needs.

Machining and Processing of Magnesium Alloy Hexagonal Bars

These new materials can reach their full potential when they are machined efficiently. By learning about best practices, safety rules, and quality control measures, you can be sure that the parts you make will be accurate and meet the strict requirements of the downhole environment.

Recommended Tooling and Cutting Parameters

To get the best surface quality and part integrity when machining oil magnesium alloy hexagonal bars, you need to use certain tool geometries and cutting speeds. The best results come from carbide tools with very sharp cutting edges. Cutting speeds range from 200 to 600 meters per minute, based on the type of metal and operation. The hexagonal shape makes it easier to set up fixtures and gives cutting processes stable surfaces. Choosing the right coolant is important. Light mineral oil or magnesium-based cutting fluids can help stop chips from forming and keep the machine from getting too hot. Never use coolants that are based on water on magnesium because they can cause corrosion and make the situation dangerous.

Safety Measures and Fire Prevention

Because magnesium is easily caught on fire, strict safety rules must be followed when cutting it. If fine chips and dust are allowed to build up, they can start fires. Using the right chip evacuation systems, keeping work areas clean, and putting chips in metal cases that are allowed and filled with oil can help lower the risks. There should always be Class D fire extinguishers on hand, since water-based systems can make magnesium fires worse. Training employees on safety measures that are special to magnesium protects both workers and facilities and makes sure that OSHA and industry safety standards are met.

Quality Assurance and Dimensional Control

Systematic testing methods are needed to make sure that quality is the same from one production run to the next. "Across Flats" measurements are used for dimensional tolerance testing to make sure that the parts can be used with standard industrial wrenches and tools. Optical Emission Spectroscopy checks the exact chemical make-up and limits on impurities, especially the amounts of iron, nickel, and copper that can change how resistant something is to corrosion. Ultrasonic flaw detection finds internal holes or inclusions that are common in large-scale extrusions. Testing the material's mechanical properties, such as its Brinell hardness and stretch, shows that it performs as specified.

Customization Capabilities for Complex Projects

You can order in bulk and make changes to fit both standard and unique project needs. Specifications for diameters up to Ø300 mm allow for the production of large tools, and custom alloy formulations can be used for specific operating windows. Engineering teams can work together on drawing-based production, which makes the change from making prototypes to mass production go more smoothly. Factory Acceptance Test support gives you verification plans that are in line with your quality standards. This makes sure that parts meet performance standards before they are shipped.

Applications of Magnesium Alloy Hexagonal Bars in Oilfield Industry

Hexagonal magnesium alloy bars can be used with a wide range of energy tools and in a variety of operating situations.

Dissolvable Downhole Completion Tools

Dissolvable technology is being used more and more in completion processes to make them more efficient and cut costs. The oil magnesium alloy hexagonal bar is used as the main material for bridge plugs that dissolve, frac balls, setting parts and stage isolation tools. The hexagonal shape makes it possible for a safe mechanical setting by engaging with positive force. After the fracturing is done, the material breaks down at designed rates in chloride-rich brine settings. You get rid of grinding runs, cut down on rig time, and make post-frac assistance as simple as possible. This method of controlled dissolving also has less of an effect on the environment because there is no mechanical waste left in the wellbore.

Offshore Lightweight Structural Components

Calculating the weight of a platform has a direct effect on the costs of installing it abroad and the safety gaps for operations. When designing topside modules and subsea equipment, every kilogram counts. Hex bars made of magnesium have the mechanical strength needed for high-stress situations and also save weight, which makes the platform more stable. High-strength fasteners, special nuts, structural connections, and load-bearing frames are all common uses. The protective oil layer keeps the materials clean while they are stored and shipped in humid marine environments. When they get to remote sites, they are ready to be used right away.

Hydraulic Manifolds and Precision Assemblies

The hexagonal shape makes it easier to group hydraulic systems together in drilling and completion equipment. It's easy for machinists to do port drilling and cross-hole work. Before the final passivation or anodising steps, the treated surface stays clean. This shape fits easily into small mechanical parts that need creative engineering solutions because of lack of room. Better wrenching surfaces make it possible to apply the right force even in places that are hard to get to, like BOP stacks and underwater control systems.

Emerging Applications in New Energy Sectors

Geothermal energy growth, carbon capture and storage projects, and other new energy plans use materials that dissolve in hot, pressurised conditions deep underground. The things that make magnesium hex bars useful in traditional oil and gas also make them useful in these new areas: they don't dissolve easily, they're light, and they work well mechanically even in harsh conditions. As the energy shift speeds up, materials that have been used successfully in the past to make hydrocarbons are being used in new ways in sustainable energy systems.

Procurement Guide for Magnesium Alloy Hexagonal Bars

In order to make sure you get quality materials on time, you need to understand supply chains, pricing structures, and supplier evaluation criteria that are used for strategic procurement.

Supplier Selection and Certification Verification

There's more to finding good manufacturers than just comparing prices. Find suppliers that have quality management systems that have been around for a while and have certifications like ISO 9001, ISO 14001, and ISO 45001 for example. API recognition for applications in the petroleum industry shows that you understand the needs of the oilfield. The powers of a CNAS-accredited laboratory allow for the verification of material qualities under conditions that are similar to those found underground. Ask for paperwork packages that include Safety Data Sheets, Certificate of Analysis, and Certificate of Conformance to help with the process of qualifying suppliers and internal checks.

Understanding Pricing Factors and Market Dynamics

The price of oil magnesium alloy hexagonal bar products depends on a number of factors. Choosing the right alloy grade affects the price. For example, general-purpose AZ31B is easy to machine and doesn't cost too much, but high-temperature WE43 and WE54 rare earth alloys cost a lot more. Engineering costs go up when specific dissolution rates, dimensional tolerances, and surface treatments need to be met. The number of items ordered has a big effect on the price per unit, and buying in bulk can save you money. Market conditions for magnesium raw materials change based on changes in world availability. To keep budgets stable, long-term supply agreements are useful.

Lead Times and Delivery Scheduling

Setting realistic deadlines for output helps you make good plans for projects. Standard sizes from well-known manufacturers usually ship in two to four weeks, but this depends on the amount, the scope of the check, and the paperwork that needs to be sent. Lead times are extended to four to eight weeks for custom specifications that need changes to the alloy formulation or engineered dissolution windows. This includes process development and validation testing. Keeping safety stock of common sizes by suppliers lowers the risk of buying things during key project phases. For urgent needs, there may be expedited production services available, but the supply of capacity and raw materials will decide if it is possible.

International Logistics and Packaging Considerations

When moving goods across borders, export packing and paperwork need to be carefully coordinated. Proper packaging with oil-soaked paper wrapping and wooden crates keeps things in good shape during ocean freight. Full sets of documents make it easier to clear customs and follow the rules. Trade terms like EXW, FOB, and CIF are flexible, so you can choose a shipping method that works with your logistics. Suppliers with operating presence or coordination support in North America make it easier for people in different time zones to talk to each other and offer quick technical help in their own language.

Conclusion

The oil magnesium alloy hexagonal bar represents more than just a different kind of material; it's also a way to think about how to solve problems that keep coming up in oilfield operations. Its hexagonal shape, designed dissolution abilities, and high strength-to-weight performance make it the only material that can meet the needs of finishing services, remote operations, and tool making. In order to be more cost-effective and run more efficiently, the energy industry is looking for materials that don't need any extra steps to be used and are still mechanically reliable. This guide tells procurement workers, completion engineers, and tool makers everything they need to know to properly evaluate, select, and use these high-tech materials in tough downhole conditions where performance must not be compromised.

FAQ

1. What advantages do magnesium alloy hex bars offer over round bars in oilfield equipment?

The hexagonal shape has built-in torque-transfer surfaces that keep the profile from slipping during high-torque setting operations that are common in deploying downhole tools. Hex geometry makes positive mechanical engagement, while round bars can rotate within fixtures. This shape makes fixing things easier while they're being machined and lets oil magnesium alloy hexagonal bars be grouped together tightly in hydraulic lines with limited room.

2. How does corrosion resistance compare between magnesium alloys and aluminum or titanium?

When coated with the right oil, magnesium alloys can resist corrosion in oilfield applications. Titanium is much more resistant to corrosion than steel, but it is much more expensive and hard to work with. Anodising is the best way to protect aluminium. One great thing about some types of magnesium is that they can be engineered to dissolve. This means that materials can be destroyed after they've done their job, so there's no need for mechanical recovery.

3. What are typical lead times for bulk custom orders of oil magnesium alloy hexagonal bar materials?

Standard sizes are usually delivered within two to four weeks from qualified manufacturers who keep stock on hand. Custom specs that need metal engineering or specific dissolution rates add four to eight weeks to the time frame, which includes developing the recipe and trying it to make sure it works. To work with your business plan, suppliers should give you weekly project updates and clear tracking of milestones.

Partner with HAGRIEN for Reliable Oil Magnesium Alloy Hexagonal Bar Supply

If you need to buy magnesium alloy materials, HAGRIEN can help. They have been in continuous production for seven years and have a wide range of manufacturing capabilities. Our closed-loop system manages the whole process, from melting the alloy to carefully extruding it and inspecting it at the end. This makes sure that the oil magnesium alloy hexagonal bars we make are consistently high-quality and can be tracked back to specific batches. We keep a safety stock of standard sizes, which lowers the risk of buying things during key project phases. Our HTHP laboratory is accredited by CNAS and checks performance in conditions that are similar to those found underground. ISO 9001, 14001, and 45001 certifications and API recognition show that the process is controlled in a planned way. Our technical team answers to RFQs within 24 hours and sends official quotes within 1–3 business days. This is true whether you need general-purpose AZ31B, high-strength ZK60, or special dissolvable grades designed to your working parameters. Contact our U.S. operations at cyrus@us-hagrien.com to talk about your needs with an oil magnesium alloy hexagonal bar provider with a track record of providing technical support, on-time delivery, and long-term partnerships.

References

1. Davis, J.R. (2003). "Aluminum and Aluminum Alloys: ASM Specialty Handbook." ASM International, Materials Park, Ohio.

2. Friedrich, H.E. and Mordike, B.L. (2006). "Magnesium Technology: Metallurgy, Design Data, Applications." Springer-Verlag, Berlin Heidelberg.

3. King, J.F. (2007). "Advanced Magnesium Technology for Aerospace and Specialty Applications." Journal of Light Metals and Alloys, Vol. 2, pp. 23-38.

4. Luo, A.A. (2013). "Magnesium Casting Technology for Structural Applications." Journal of Magnesium and Alloys, Vol. 1, No. 1, pp. 2-22.

5. Polmear, I.J. (2006). "Light Alloys: From Traditional Alloys to Nanocrystals, Fourth Edition." Butterworth-Heinemann, Oxford.

6. Staiger, M.P., Pietak, A.M., Huadmai, J., and Dias, G. (2006). "Magnesium and Its Alloys as Orthopedic Biomaterials: A Review." Biomaterials, Vol. 27, No. 9, pp. 1728-1734.
