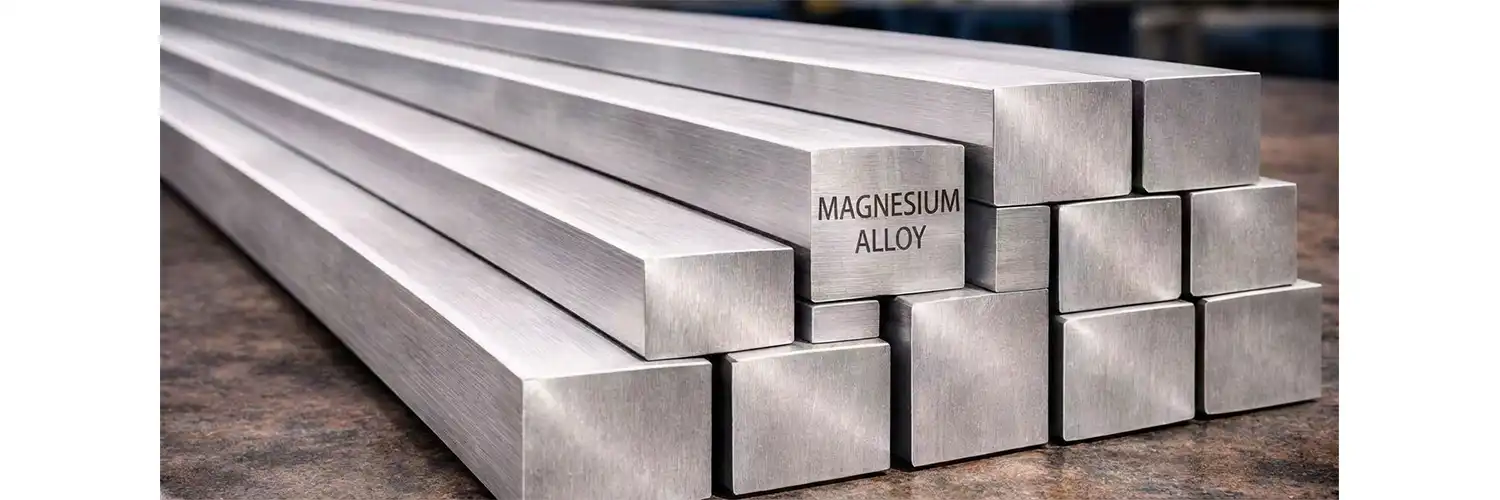

Magnesium alloys square bar: Key Properties and Applications

When you're sourcing materials for oil and gas completion operations, the properties of your downhole tools can make or break a project. Magnesium alloys square bar represents a specialized class of lightweight structural components engineered to deliver exceptional strength-to-weight ratios, controlled dissolvability, and reliable performance in extreme subsurface conditions. These precision-extruded bars—manufactured from alloy systems including AZ31B, AZ61A, and AZ91D—combine magnesium with aluminum, zinc, and manganese to optimize mechanical performance and functional characteristics. For completion service providers, operators, and tool manufacturers, understanding the key properties and applications of these materials directly impacts operational efficiency, intervention costs, and overall project economics.

Understanding Magnesium Alloys Square Bar: Composition and Key Properties

Material science is the first step in making any dissolvable tool work well. The main component of a Magnesium alloys square bar is magnesium, with the alloying elements carefully chosen to strike a balance between strength, ease of machining, and controlled dissolution. The most popular systems are AZ31B, AZ61A, and AZ91D. Each has its own set of properties that make it ideal for a different set of operating needs.

Alloy Composition and Density Advantages

Aluminum (3–9%), zinc (0.5–1.5%), and manganese (0.2–0.5%) are added to magnesium alloys to make them stronger and less likely to rust. The final density is between 1.77 and 1.81 g/cm³, which is about 35% lighter than aluminum and 78% lighter than steel. This edge in weight directly turns into easier handling, lower logistics costs, and better deployment efficiency in deep wells where every pound counts. This weight decrease can have a big effect on rig time and operating complexity when tools are being used in extended-reach horizontal wells or offshore operations.

Mechanical Performance Characteristics

Different types of metal have different tensile strengths. The AZ31B delivers 255-290 MPa, the AZ61A 290-315 MPa, and the AZ91D 230-250 MPa. The yield strength can be anywhere from 150 to 220 MPa, depending on the alloy and how it is heated. The range of elongation, which is a measure of flexibility, is 3 to 21%, with AZ31B being the most flexible. The elastic modulus stays the same across popular metals at about 45 GPa, so you can predict how the structure will behave when it's loaded. Because of these mechanical properties, engineers can make bridge plugs, packers, and stage isolation tools that dissolve in wellbore fluids and can withstand high downhole pressures during fracturing operations.

Thermal and Physical Properties

The thermal conductivity is between 50 and 70 W/(m·K), which makes it easy for heat to escape during high-rate splitting. The thermal expansion coefficient is 26 × 10⁻⁶/°C, which means that temperature cycling needs to be taken into account when the product is designed. Depending on the metal, melting points range from 470°C to 632°C. The range of Brinell hardness, from 56 to 90 HB, strikes a balance between ease of machining and structural strength. Knowing these thermal properties helps people who make tools guess how materials will behave in high-temperature wells, geothermal uses, and CCUS settings where temperatures may be higher than in normal oil basins.

Controlled Dissolution Engineering

Specialty magnesium alloys are different in finishing uses because they are designed to dissolve. Manufacturers can change the dissolution rates to fit the temperature, salinity, pH, and exposure time in a wellbore by changing the alloy's chemistry and microstructure. This feature lets you make completion designs that get rid of expensive interventions, cut down on well reentry time, and make the project more cost-effective. The dissolution window stops being an uncontrollable variable and turns into a design parameter. This lets operators confidently plan production schedules.

Advantages and Applications of Magnesium Alloys Square Bar in Industry

Lightweight Magnesium alloys square bars are being used in energy operations because they are better for business and operations. These benefits cover the whole process of finishing, from making the tools to putting them in the ground and cleaning up after the frac.

Weight Reduction and Handling Efficiency

Magnesium's low density directly lowers the weight of tools, making them easier to move and store. Lighter bridge plugs and packers make them easier to move on-site, require less of a crane, and make rig activities safer. When moving things offshore, where helicopters can only carry a certain amount of weight, losing weight means lower costs and more operating freedom. Completion crews like tools that are easier to place and use, especially in wells with multiple levels or long horizontal reach, where it can be hard to control the tools.

Superior Strength-to-Weight Ratio

Even tho magnesium is very light, its specific strength (strength per unit weight) is higher than that of many common elements. This lets tool designers keep the structure's strength and pressure ratings while lowering the overall weight of the tool. Bridge plugs made from high-strength magnesium metal bars can withstand differential pressures of more than 10,000 psi during fracturing operations. However, they break down totally in days or weeks after being exposed to fluids in the wellbore. Using traditional materials, it was not possible to get this mix of efficiency before.

Machinability and Manufacturing Efficiency

It is easier to work with magnesium than steel or titanium because it cuts smoothly, faster, and with less tool wear. When CNC workers make dissolvable tool parts from precision-extruded square bars, cycle times are faster and there is less waste. The better machinability lowers the cost of production, speeds up lead times, and makes it possible to use complex geometries that are needed for more advanced completion tool designs. Predictable material behavior during fabrication lowers quality risks and improves batch consistency, which is good for tool manufacturers.

Applications in Completion Operations

Frac and finishing service companies use tools that dissolve to separate steps of multistage hydraulic fracturing. Bridge plugs made of magnesium metal are placed between groups of holes. They can withstand breaking pressures before melting to allow full bore access. This gets rid of the need for drill-outs or coiled tube fixes, which saves days of rig time per well. Engineered magnesium alloys are used to make stage isolation packers that separate zones temporarily. These packers dissolve on schedule to allow production to continue in all zones. The controlled dissolution window of the material lets operators plan flowback and production startup at a time that they can count on.

Offshore companies like the benefits in transportation and money saved on intervention costs. In offshore areas where rig dayrates are more than $500,000, getting rid of just one rescue trip saves a lot of money. Conventional field operators use dissolvable magnesium tools to make workovers and recompletions easier. This lowers the complexity of operations and raises the project's economics. New uses in CCUS and geothermal projects take advantage of magnesium's ability to work in harsh conditions with high temperatures, high pressures, and corrosion, where other materials can't.

Comparative Analysis: Magnesium Alloys Square Bar vs Other Square Bar Materials

When choosing materials, it's important to find a balance between performance needs, practical limitations, and cost concerns. When you compare Magnesium alloys square bar to aluminum, steel, and titanium, you can see where magnesium metals work best and where other materials might be better.

Magnesium vs Aluminum

Aluminum has a density of about 50% higher than magnesium (2.7 g/cm³), so magnesium is better for uses that need to be light. Both aluminum and magnesium are easy to make, but magnesium usually works faster and with less tool wear. In some situations, aluminum is better at resisting corrosion than engineered magnesium alloys, which can control how easily they dissolve. Aluminum can't do that. In terms of price, magnesium square bars are more expensive than regular aluminum, but their usefulness makes them worth the extra money in finishing tool uses where dissolvability saves time and money.

Magnesium vs Steel

Steel is much heavier than magnesium—nearly 4.5 times as heavy. Its density is 7.85 g/cm³. Steel is stronger and harder than any other material, but it is heavier and harder to work with. When a structure needs to be temporarily supported and then completely removed, magnesium's ability to dissolve away removes the costs of assistance that come with steel tool removal. It is more cost-effective to use magnesium in multistage completions because it doesn't need mill-out operations, which saves a lot of time and money on the rig.

Magnesium vs Titanium

Titanium is extremely strong and doesn't rust. Its density (4.5 g/cm³) is in the middle of that of aluminum and steel. Titanium is often 5–10 times more expensive than magnesium, tho, and it's hard to machine. This means it can't be used in disposable downhole tools. For dissolvable finishing tools where the material is meant to be thrown away after one use, magnesium alloys are the most cost-effective option because they work just as well as titanium alloys but don't cost nearly as much.

Material Selection Framework

Material should be judged by purchasing teams using factors that are specific to the application. When losing weight is important, magnesium is at the top of the list. If you need to control how easily something dissolves, magnesium metals can do things that other materials can't. When total strength or resistance to rust is very important in long-term installations, steel or titanium may be the best choice. To maximize the value of the whole project rather than just lowering the cost of the materials, it's important to make sure that the properties of the materials match the needs of the project and the budget.

Procurement Guide: How to Select and Buy Magnesium Alloys Square Bars

Magnesium alloys square bar can only be sourced with care and clarity in the specifications. The following framework helps procurement professionals make good decisions during the buying and selection process.

Supplier Qualification Criteria

Give more weight to manufacturers whose skills include developing alloys, precision extrusion, quality control, and tracking. Suppliers should show that they are certified to ISO 9001, 14001, or 45001, that they have an HSE system in place, and that they have a CNAS-accredited laboratory that can test materials. Licenses for API recognition and processing standardization show that you can provide quality services to the oil and gas industry with the right paperwork. Maintaining HTHP (high-temperature, high-pressure) testing sites lets suppliers check how well materials work in conditions that are similar to those found underground, which lowers the risk of deployment.

Manufacturing Capacity and Scale

It is necessary to be able to extrude bars with a width of up to 300 mm so that the substructure and dimensions stay the same. When it comes to batch consistency and traceability, manufacturers who handle the whole process chain—from melting the alloy to extrusion, heat treatment, and machining—are better than suppliers who outsource key process steps. output experience is important. Suppliers who have been in business continuously since 2019 or earlier have shown that their processes are mature and that they can safely scale output.

Customization and Engineering Support

Good providers offer customized solutions instead of basic materials. The best tool performance is achieved by being able to change the alloy makeup and process parameters to fit particular working windows, such as temperature, salinity, fluid chemistry, and the goal dissolution timeline. Look for suppliers that can help you choose the right materials, help with production based on drawings, and let you work together on designs. OEM/ODM services that combine supplying materials with manufacturing parts make supply lines easier to manage and lower the risk of quality issues when parts are handed off.

Documentation and Traceability Requirements

Each batch should come with full paperwork packages that include a Certificate of Analysis (COA) that confirms the chemical makeup and mechanical properties, a Certificate of Conformance (COC) that confirms the product meets the specifications, and Safety Data Sheets (SDS) that explain how to handle the product. Linking delivered material to its original melt composition and extrusion parameters thru batch traceability makes it possible to look into quality issues and meets audit requirements. Suppliers with 24-hour access to tracking show that their quality systems are stable and that they care about their customers.

Lead Time and Delivery Considerations

Standard sizes usually ship between 2 and 4 weeks after the order is confirmed. Lead times may be extended to 4–8 weeks for custom specifications that need engineering review and process optimization. When suppliers keep safety stock of popular sizes, they can help with quick sampling and emergency restocking. choices for faster production give you choices for important jobs. Make sure you understand the delivery terms (EXW, FOB, CIF) and that you can coordinate logistics. This is especially important for North American deliveries, where having a local operational presence makes customs clearance and transportation easier.

Pricing and Commercial Terms

Magnesium alloys square bar prices depend on the grade of the metal, its size, the number of bars ordered, and the state of the market. Most of the time, bulk orders get discounts. Engineering and setup costs may be involved in making alloys to specific needs. Instead of just looking at the price per unit, you should look at the total landed cost, which includes transportation, duties, and handling. When lead times, quality risks, and technical help are taken into account, the lowest cost of materials isn't always the best deal for the whole job.

Conclusion

In conclusion, Magnesium alloys square bar is a tried-and-true material for oil and gas finishing jobs that need to reduce weight, have solid mechanical performance, and control how easily they dissolve. Knowing what the material is made of, its main properties, and its benefits for certain uses helps you choose one that meets your needs and your budget. When compared to aluminum, steel, and titanium, magnesium's unique value in dissolvable tool uses becomes clear. To do effective buying, you need to work with approved makers who can show that they have integrated skills, process maturity, and a commitment to quality paperwork and traceability. Engineered magnesium materials will continue to play a bigger role in traditional, unconventional, offshore, and new energy uses as finishing designs get better at being efficient and requiring less work.

FAQ

1.How does the strength of magnesium alloys square bar compare to steel in downhole applications?

In downhole uses, how does the strength of Magnesium alloys square bar compare to steel? Absolute tensile strength is higher in steel (usually 400–800 MPa), but specific strength (strength per unit weight) is higher in magnesium alloys. With a tensile strength of 290 to 315 MPa and a density of 1.80 g/cm³, AZ61A is similar to low-carbon steel in terms of how well it holds together but is much lighter. In finishing tool uses where the material only works briefly before melting, magnesium provides enough strength during service and then dissolves completely without any further action.

2.What corrosion resistance do magnesium alloys provide in wellbore environments?

How well do magnesium metals protect against rust in wellbore environments? Magnesium's ability to corrode in wellbore fluids is controlled by engineering and not a limitation. Manufacturers change the chemistry and microstructure of alloys to get dissolution rates that meet operational needs. Dissolution rates can range from days to months, depending on temperature, salinity, and pH. This controlled dissolution is what makes dissolvable tools useful. Protective coatings can be used to give something longer-lasting corrosion resistance before it is meant to dissolve.

3.Can magnesium alloys square bar be customized to specific dimensions?

Magnesium alloys square bar can they be made to order? Precision extrusion lets you make cross-sections and lengths that are exactly what the tool design needs. Suppliers who can extrude in large formats (up to Ø300 mm) can make bars that meet specific requirements for straightness and size tolerances. Custom formulas of alloys make dissolution windows work best in certain working situations. Working together as engineers on the specifications makes sure that the material's properties match the needs of the application. This helps with everything from making prototypes to mass production.

Partner with HAGRIEN for Precision Magnesium Alloys Square Bar Solutions

For energy users and tool makers who need engineered Magnesium alloys square bar with dependable performance and traceable quality, HAGRIEN provides manufacturing-driven dependability. Our Xi'an plant manages the whole process, including alloy research, large-format extrusion up to Ø300 mm, CNAS-accredited validation, and precise machining. This makes sure that each batch is consistent and has the right dimensions for important completion uses. We've been making things continuously since 2019 and are certified to ISO 9001, 14001, and 45001, so you can be sure of the quality of our work and that it can be tracked for an audit. Standard sizes ship in two to four weeks, while custom alloy specifications take four to eight weeks, with options for faster delivery for projects that need to be done quickly. Our engineering team works together to make sure that your tools work the way they were meant to by choosing the right materials, optimizing the dissolution window, and producing them based on drawings. Get in touch with HAGRIEN right away at cyrus@us-hagrien.com or visit us-hagrien.com to talk about your needs with a reliable Magnesium alloys square bar maker who wants your project to succeed.

References

1. Davis, J.R. (2018). Lightweight Materials: Understanding the Basics. ASM International, Materials Park, Ohio.

2. Mordike, B.L. and Ebert, T. (2001). "Magnesium: Properties—Applications—Potential," Materials Science and Engineering: A, Vol. 302, No. 1, pp. 37-45.

3. Polmear, I.J., StJohn, D., Nie, J.F., and Qian, M. (2017). Light Alloys: Metallurgy of the Light Metals, Fifth Edition. Butterworth-Heinemann, Oxford.

4. American Society for Testing and Materials (2021). ASTM B107/B107M-13: Standard Specification for Magnesium-Alloy Extruded Bars, Rods, Profiles, Tubes, and Wire. ASTM International, West Conshohocken, Pennsylvania.

5. Avedesian, M.M. and Baker, H. (1999). ASM Specialty Handbook: Magnesium and Magnesium Alloys. ASM International, Materials Park, Ohio.

6. Friedrich, H.E. and Mordike, B.L. (2006). Magnesium Technology: Metallurgy, Design Data, Applications. Springer-Verlag, Berlin Heidelberg.
