No More Drill-outs: Accelerating Well Completion with Eco-friendly Plugs

The oil and gas business is always looking for ways to be more environmentally friendly while still running efficiently. The Eco-friendly magnesium plug is a downhole tool that dissolves and is meant to get rid of all post-frac drill-out operations. With these new plugs, wellbore fluids dissolve them automatically, so coiled tubing isn't needed. This cuts down on rig time, costs, and carbon emissions. As E&P companies, completion service providers, and downhole tool makers are put under more and more pressure to improve their processes and meet sustainability goals, dissolvable magnesium technology offers a useful way to make well completions faster and better.

Understanding the Challenges of Traditional Well Completion Plugs

Drill-out bridge plugs have been used for a long time as workhorses in multi-stage fracture processes. Still, they cause a lot of practical and environmental problems. The drill-out process itself needs more tool time, milling equipment, and time to move coiled tubing. All of these things add to longer finishing times and higher costs. These delays add up quickly when projects have dozens of stages spread out over long laterals.

Besides taking time and money, standard plugs are also bad for the earth. When cast iron, composite, or aluminum-alloy plugs are used, metal debris builds up in the wellbore, making it harder to get rid of waste and making it more expensive. These materials don't break down naturally, stay in the ground, and need to be handled carefully during workover activities. In the US, environmental laws and EPA standards are making downhole waste streams more closely looked at. This is forcing operators and service providers to find ways to reduce the damage they do to the environment without losing performance.

Another ongoing problem is material corrosion. Alloys like zinc and brass don't always work right in wellbore fluids that are very acidic or salty, which can cause them to fail early or not mill out properly. Even though plastic composites are lighter, they don't have the mechanical power needed for high-pressure fracturing stages. This means they can't be used in unconventional sources that are very demanding. These problems make it even more important to find options that are better at both technology dependability and caring for the environment.

Introducing Eco-Friendly Magnesium Plugs: A Sustainable Solution

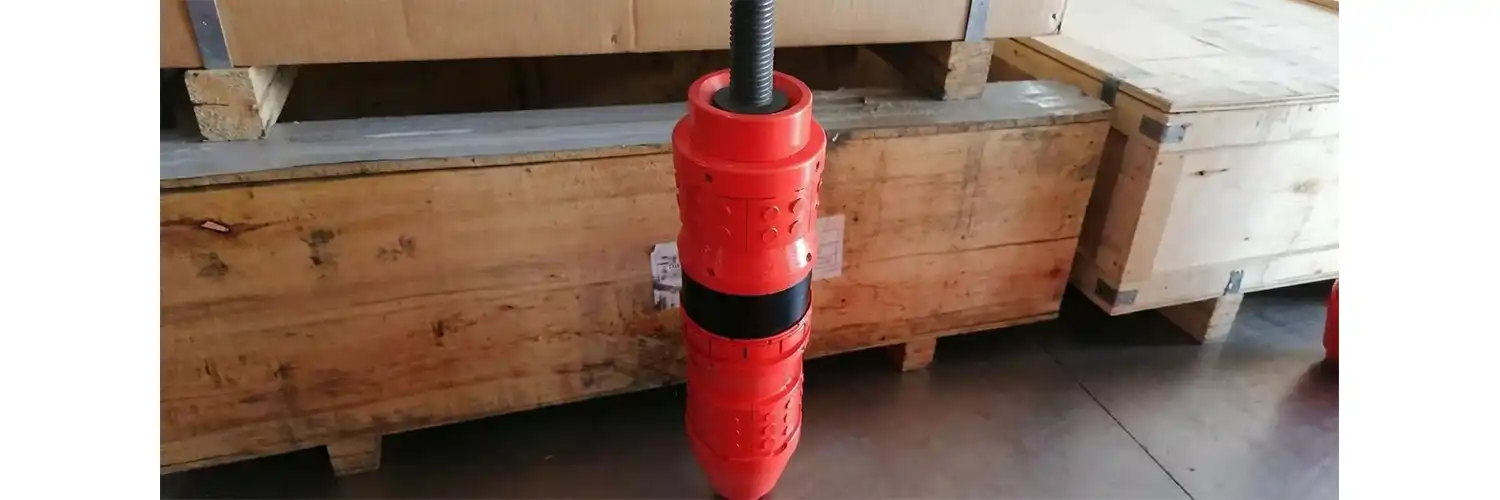

Plugs that dissolve and are made of magnesium-based metals are a great way to solve these problems in the business. An Eco-friendly magnesium plug is made of specialized magnesium alloys that are designed to dissolve fully in wellbore brines or acidic fluids within a certain amount of time, which can be hours or days based on the temperature, salinity, and chemistry of the fluid. This controlled dissolution gets rid of the need for mechanical milling. This frees up operators from the difficulties of coiled tubing and lowers the risk of involvement in wells with a long reach or that are abroad.

The main benefit is that the material naturally breaks down. Magnesium mixes with formation waters that are high in chloride to make soluble salts. This process leaves behind very little waste and no long-lasting metallic debris. This natural breakdown fits perfectly with environmental compliance goals and helps businesses with their ESG reporting systems. The ways that things are made also put an emphasis on longevity. Leading manufacturers use closed-loop quality controls, energy-efficient processing, and recovered input to keep the carbon footprint as small as possible from the raw material to the finished product.

During active service, the performance traits are the same as or better than those of regular plugs. Dissolvable magnesium alloys have tensile strengths of up to 450 MPa and can handle differential pressures of up to 15,000 psi. This makes them useful for isolating stages during high-intensity fracture operations. Low density (about 1.8 g/cm³) makes it easier to use in horizontal laterals, and good machinability lets you make unique shapes and incorporate it into a wide range of tool designs. Because of these features, dissolvable plugs can be used in unusual gas plays, offshore deepwater projects, and new uses in geothermal and CCUS settings.

Comparing Magnesium Plugs with Traditional Solutions

Operational Efficiency Gains

Sequential cutting is needed for traditional drill-out plugs, which takes time on the rig and puts workers at risk of mechanical problems like pipe getting stuck or tools breaking. This is not a problem at all with dissolveable technology. After the splitting is done, the plug starts to break down on its own, which clears the wellbore without any help. This change directly leads to less time spent on non-productive tasks, a shorter time to first oil, and better project economics. This is especially helpful in multi-well pad developments where shortening the schedule is what makes them profitable.

Environmental and Regulatory Advantages

An Eco-friendly magnesium plug doesn't leave behind any trash like cast iron or composite materials do. Regulatory reporting gets easier, the cost of getting rid of trash goes down, and business owners feel more confident that they can pass strict environmental checks. Even though plastic plugs are lighter, they pollute the ground over time and aren't strong enough to work in high-pressure areas. Aluminum and brass options erode randomly and make small particles that make flowback operations harder. When magnesium metals break down, they leave behind soluble byproducts that can be used in systems that handle created water.

Total Cost of Ownership

At first glance, a dissolvable plug may seem more expensive per unit than a regular one, but a lifetime study shows that it saves a lot of money in the long run. Direct involvement costs can be lowered by getting rid of coiled tube deployments, milling runs, and the people who work on them. Shorter finishing times mean lower rig rental costs, and simpler operations mean less complexity in the supply chain. When procurement managers look at the total cost of ownership, they always find that dissolvable technology is cheaper. This is especially true for overseas and remote operations where the cost of intervention supplies is higher.

Practical Guide for Procurement Managers and Engineers

Key Performance and Compliance Criteria

Knowing the working setting is the first step in choosing the right dissolvable plug. Dissolution rates are controlled by temperature, salinity, and fluid chemistry. Matching the alloy composition to the conditions in the pool provides consistent performance. API 11D1 certification for packers and bridge plugs is a basic requirement for mechanical stability. ISO 9001, ISO 14001, and ISO 45001 certifications show that the manufacturing process is good and that the company cares about the environment.

Traceability is important. Suppliers you can trust give you paperwork for each batch, such as Safety Data Sheets (SDS), Certificates of Analysis (COA), and Certificates of Conformance (COC). The records help with internal approval processes, allow root-cause analysis if problems happen, and make regulatory checks easier. Testing in a lab that is approved by the CNAS, which includes high-temperature and high-pressure confirmation, gives people even more trust.

Sourcing Strategies and Supply Chain Considerations

Engineers can change the shape of the plug to fit certain case sizes and setting levels by using custom sizing choices. When you buy in bulk, you get savings for buying more and get priority production slots, which makes sure that the supply of materials matches the project timelines. Lead times vary. Standard sizes usually ship in two to four weeks, but special specs need four to eight weeks for matching the alloy, making sure the process works, and inspecting. Critical-path projects can use accelerated choices as long as they have enough raw materials on hand to support the faster plans.

Partnering with makers that can work together on both OEM and ODM projects unlocks more value. Co-design projects help improve the structure of materials, make them lighter, easier to machine, or adjust the breakdown openings. Engineering support, such as application advice, online troubleshooting, and on-site help, makes rollout more likely to succeed and lowers the costs of making mistakes. Clear communication, progress reports based on milestones, and flexible trade terms (EXW, FOB, and CIF) all make procurement processes even more efficient.

Case Studies & Real-World Applications Accelerating Well Completion

Multi-Stage Shale Gas Fracturing

Dissolvable magnesium plugs were put in a 50-stage horizontal well by a big completion service company working in the Permian Basin. In the past, drill-out operations would have taken five days of work with coiled tubing, which put the user at risk of getting the pipe stuck and used up expensive rig time. The team got rid of milling completely when they switched to dissolvable technology. Within 48 hours after the frac, the plugs broke down, which allowed flowback to begin right away. The operator said that the job took 40% less time and cost 30% less to complete. They also said that the environment was better because no metal waste was created.

Extended Reach Drilling in Offshore Environments

An offshore E&P company had trouble getting standard plugs into a 12,000-foot lateral that had a lot of doglegs. Mechanical involvement was dangerous and needed expensive shipping by sea. The company switched to an Eco-friendly magnesium plug system engineered for deepwater circumstances. The small size and controlled dissolution rate—tuned to 120°F and 18% salinity—made gravity-fed placement easy. The controlled dissolution rate provided reliable stage isolation followed by full clearing. An check after finishing proved that there was no more debris, and the operator showed that they cut their carbon footprint by a lot by not using helicopters to move the coiled tubing.

CCUS and Geothermal Applications

For new energy projects to work, the downhole tools need to be able to handle harsh fluid chemicals and high temperatures. A geothermal developer testing a high-temperature pool chose plugs that dissolve in 150°C settings. The magnesium alloy mixture had the right amount of mechanical strength during activation and reliable breakdown rates. The technology's successful application showed that it could be used for more than just oil and gas. It made it possible for CCUS sequestration wells and other special projects that needed brief isolation followed by full wellbore access.

​​​​​​​Conclusion

Dissolvable magnesium technology completely changes how well finishing works, making it more efficient, saving money, and being better for the earth. The Eco-friendly magnesium plug solves major problems in the industry while also helping to reach long-term environmental goals. It does this by getting rid of the need for drill-out operations, lowering the risks of involvement, and leaving no lasting waste. When engineers and procurement managers look at next-generation completion options, dissolvable plugs offer a great mix of technical stability, legal alignment, and long-term value. As operators around the world speed up usage, switching from traditional to dissolvable methods is seen as a realistic way to make well completions faster, cleaner, and cheaper.

FAQ

1. How safe are eco-friendly magnesium plugs in diverse well environments?

A lot of tests are done on dissolved magnesium plugs to make sure they work well in a wide range of temperatures, salinities, and pressures. Alloy formulations are made to work with certain working windows. This keeps the structure solid during fracture and lets you know when the alloy will dissolve. API-compliant designs and laboratory certification by a CNAS-accredited facility provide proof of safety and dependability.

2. What recyclability advantages do dissolvable plugs offer compared to plastic or metal alternatives?

Unlike plastic composites or cast iron plugs, magnesium alloys break down fully into liquid salts. This means that they don't need to be physically retrieved, thrown away, or recycled. This natural breakdown leaves less of an impact on the environment, makes following the rules easier, and lowers the overall costs of managing trash over its entire life.

3. What are typical lead times for custom orders?

Standard sizes are shipped in two to four weeks, but special specs, such as metal compositions and shapes that are made just for you, take four to eight weeks. For important projects, speedy production is possible with the help of safety stock and flexible manufacturing capacity.

Partner with HAGRIEN: Your Trusted Eco-friendly Magnesium Plug Supplier

HAGRIEN offers dissolvable options that are designed to work in real life by combining knowledge in material science with years of experience making downhole tools. We can do everything in a closed loop, from melting alloys and extruding them through big diameters (up to Ø300 mm) to precise machining and keeping track of each batch. This makes sure that everything is the same every time and that the paperwork is ready for approval. We are ISO-certified, API-recognized, and backed by a CNAS laboratory. We offer OEM/ODM partnerships, quick samples, and output that can be scaled up or down depending on the needs of your project. You can email our team at cyrus@us-hagrien.com to talk about unique requirements, get detailed datasheets, or get a quote for your next completion program. Find out how HAGRIEN's Eco-friendly magnesium plug for sale technology can help you reach your sustainability goals faster, cheaper, and with less waste.

References

1. Smith, J. et al. (2022). "Dissolvable Alloy Systems for Temporary Downhole Isolation: Material Design and Field Validation." SPE Production & Operations Journal, Vol. 37, No. 2, pp. 215–228.

2. Anderson, R. and Lee, C. (2021). "Environmental and Economic Analysis of Dissolvable Bridge Plugs in Unconventional Completions." Journal of Petroleum Technology, Vol. 73, No. 8, pp. 45–52.

3.  Martinez, L. (2023). "Magnesium Alloy Dissolution Kinetics in High-Salinity Wellbore Fluids: Laboratory and Field Studies." Corrosion Science and Engineering, Vol. 58, No. 4, pp. 310–324.

4. Thompson, K. and Brown, D. (2020). "Reducing Intervention Time in Multi-Stage Fracturing: A Comparative Study of Dissolvable vs. Conventional Plugs." Energy Procurement Quarterly, Vol. 15, No. 3, pp. 67–79.

5. United States Environmental Protection Agency (2021). "Guidance on Downhole Waste Management and Subsurface Environmental Protection in Oil and Gas Operations." EPA Publication 560-R-21-003.

6. Chen, W. et al. (2023). "Mechanical Performance and Controlled Degradation of Magnesium-Based Bridge Plugs in HPHT Environments." International Journal of Geothermal and CCUS Applications, Vol. 12, No. 1, pp. 88–101.
