No Retrieval Required Magnesium Alloy Hexagonal Bar: The Future of Efficient Completions

When completion service providers and E&P operators search for dissolvable downhole materials that eliminate costly intervention steps, they consistently encounter the same challenge: finding engineered magnesium alloy profiles that actually perform as specified under real well conditions. The no retrieval required magnesium alloy hexagonal bar represents a transformative solution for this industry pain point, combining controlled dissolution kinetics with superior mechanical integrity. Unlike generic extruded profiles, these hexagonal bars feature six-sided geometry optimized for torque transfer in frac plugs, setting tools, and isolation systems, while their customizable dissolution rates adapt to formation temperatures ranging from 80°C to beyond 150°C. Backed by CNAS-certified laboratory validation and complete batch traceability documentation, this material enables operators to reduce rig time, lower completion costs, and eliminate milling operations across unconventional, offshore, and CCUS applications.

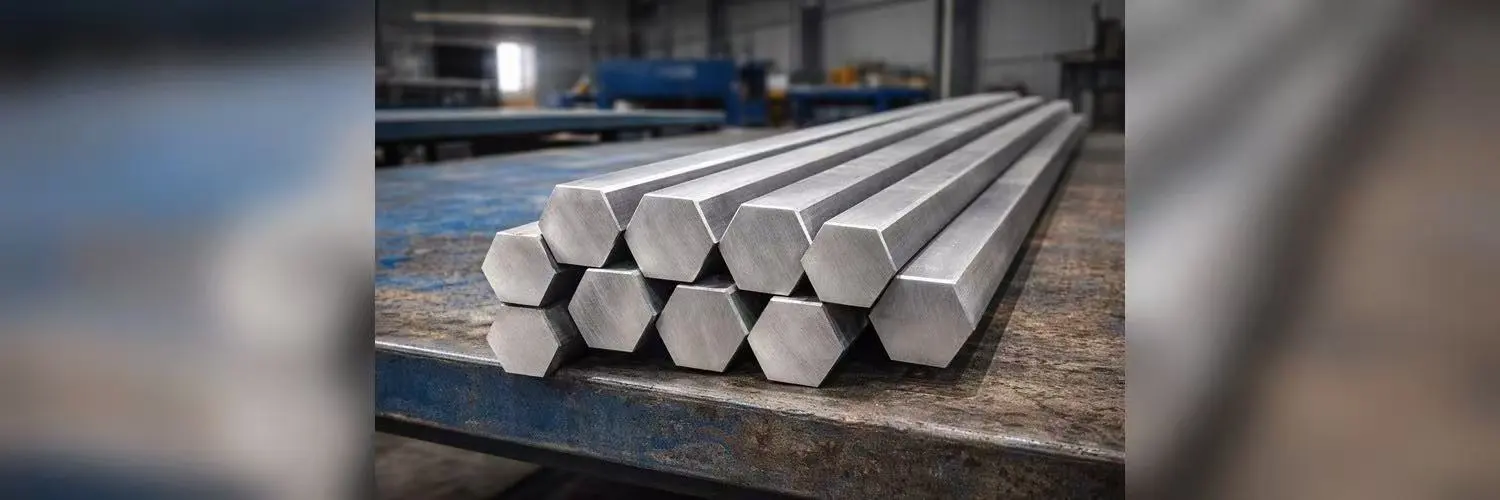

Understanding Magnesium Alloy Hexagonal Bars: Properties and Composition

Core Material Properties Driving Downhole Performance

Dissolvable magnesium metals have unique physical properties that have a direct effect on how well they work. With a density of about 1.78 g/cm³, these materials are 33% lighter than aluminium and 75% lighter than steel. This makes the tools easier to deploy because they are lighter overall. The tensile strength is usually between 240 and 310 MPa, but it depends on the metal. This is strong enough to keep the structure together under installation loads and breaking pressures. What makes these profiles unique is their engineered dissolution behaviour. The rate at which the material breaks down can be precisely controlled by alloy design and heat treatment methods to fit specific operating timelines.

When compared to round or rectangular profiles, hexagonal cross-sections have clear advantages. This six-sided shape allows for better torque transfer during tool installation, making sure that the setting mechanisms will engage reliably. Stability in terms of dimensions is still very important. Our manufacturing process keeps tight tolerances on measurements from flat to flat and makes sure that the microstructure is the same across the whole cross-section. This level of consistency gets rid of any weak spots that might cause something to fail too soon or dissolve in a way that is hard to predict.

Alloy Composition and Environmental Adaptability

Instead of using standard magnesium grades, we design metal systems that work well in downhole conditions. The composition strikes a balance between a number of performance factors, including mechanical strength during operation, the ability to be machined for quick production, and controlled corrosion rates that are right for the well conditions. Temperature, the salinity of the fluid, the pH level, and the length of exposure all affect how the material acts. We produce no retrieval required magnesium alloy Hexagonal Bar profiles that dissolve on schedule, neither too quickly to damage the structure nor too slowly to delay subsequent operations, by adjusting elemental ratios and using targeted heat treatment cycles.

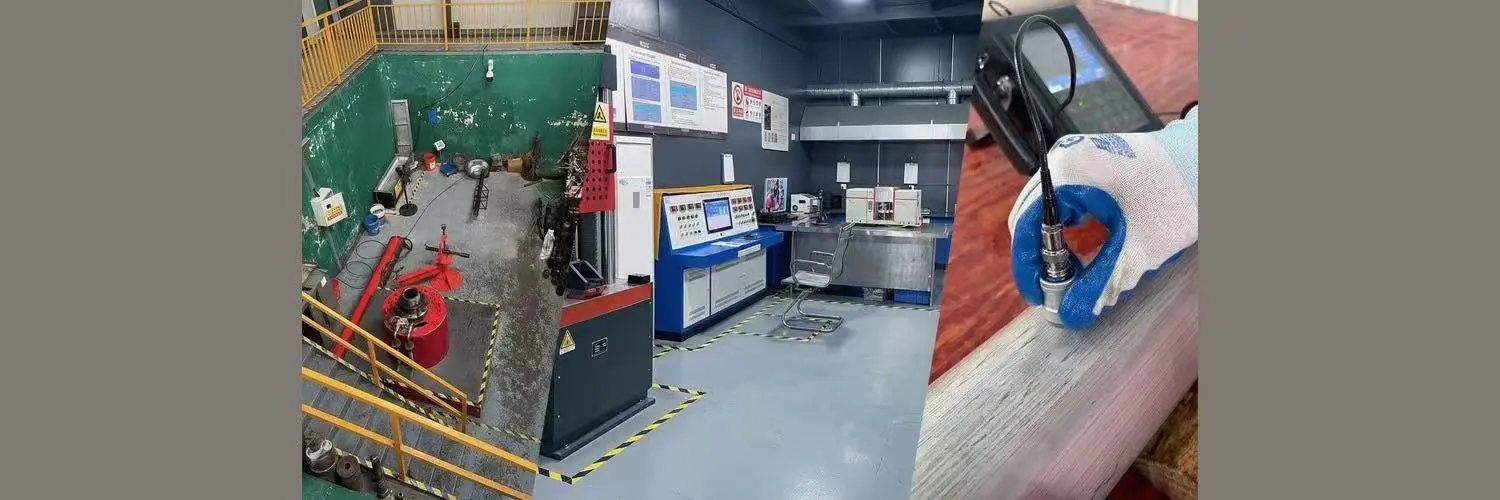

ICP-OES standard chemical makeup analysis makes sure that every batch meets the requirements. Ultrasonic testing finds holes or other things inside that could affect performance. Mechanical properties are confirmed by tension testing that follows ASTM E8. This tests the yield strength and elongation features. This strict quality control method, which is done in our CNAS-accredited lab, makes sure that the materials are the same from one production run to the next. As part of the supplier qualification and audit requirements, procurement teams are sent complete documentation packages that include Safety Data Sheets (SDS), Certificates of Analysis (COA), and Certificates of Conformance (COC).

Advantages and Applications of Magnesium Alloy Hexagonal Bars

Operational Benefits That Reduce Completion Costs

The business case for dissolvable magnesium components is based on getting rid of the need for intervention after the fracture. Traditional composite or cast iron bridge plugs need to be milled, which takes several days per well, wears out tools faster, and raises operating risks. After performing their isolation function, our no retrieval required magnesium alloy Hexagonal Bar materials fully dissolve, enabling instant flow-back without the need for mechanical assistance. Operators regularly say that they save two to four days of work on each well stage, which means that multi-well pad projects cost a lot less.

Hexagonal shape makes making more efficient and increases the dependability of tools. The six numbered surfaces make it easy to set up CNC machines quickly, which cuts down on cycle times compared to custom profiles. When used with mineral oil-based coolants, sharp carbide tools can cut these alloys cleanly at higher feed rates than aluminium tools. The tools will also wear out less quickly. Because they are so light—about one-third the weight of similar steel parts—they are easier to handle and cheaper to ship, but they still do their job when operating loads are put on them.

Real-World Applications Across Completion Workflows

Completion service providers put these materials into a number of different types of tools, including the no retrieval required magnesium alloy Hexagonal Bar. The main use is for frac plugs that dissolve. Hexagonal bars make up the structural mandrel that holds sealing elements and slip systems during fracturing operations. The hexagonal surfaces' positive contact with setting tools ensures reliable installation force, and the predictable breakdown profile guarantees full cleanup within certain time frames.

Engineered material properties help dissolveable packers and sealing elements stay intact under differential pressure but break down slowly when exposed to formation fluids. Hexagonal shapes are used in setting tools and actuators to transfer rotational power while keeping the total weight of the tool low. In workover and intervention situations, these metals can be used to make temporary isolation walls that let the zone be treated without putting lasting limits in place. CCUS activities and geothermal developments are using dissolvable materials more and more in high-pressure, high-temperature settings where regular recovery methods don't work.

For each use, the right material must be carefully chosen based on its operational requirements. Formation temperatures have a direct effect on dissolution kinetics; breakdown rates speed up in hotter places. Corrosion processes are changed by fluid chemistry, especially the amount of chloride and the pH. Minimum mechanical strength requirements are set by the length of time that must be held during fracture processes. We offer application engineering help to help customers choose the right metal types and confirm performance through HTHP lab tests that mimic real-life conditions downhole.

Comparison and Selection Guide: Magnesium Alloy Hexagonal Bars vs Other Metals

Material Performance Trade-offs and Selection Criteria

When purchasing professionals look at dissolvable materials, they need to think about more than just the initial cost. Steel is stronger than other materials, but it doesn't dissolve, so it needs expensive milling processes to be made. Aluminium alloys can be machined pretty well, but they don't rust quickly enough to dissolve in most well environments. The strength-to-weight ratio of titanium is very high, but it is very expensive and doesn't dissolve easily.

Dissolvable magnesium alloys are one of a kind because they have enough mechanical strength during operation but break down completely in weeks or months when exposed to fluids. When it comes to transmitting torque, the hexagonal bar format meets specific needs that round profiles can't meet. When compared to cast magnesium parts, extruded profiles have better microstructural regularity and dimensional consistency, which lowers the number of parts that fail during precise machining.

Cost factors for the no retrieval required magnesium alloy Hexagonal Bar include more than just the price per kilogram of the item. The total cost of acquisition includes shipping (magnesium is lightweight, which is an advantage), machine labour (faster feed rates cut cycle times), and paperwork for quality assurance. The biggest economic gain comes from getting rid of milling processes, which usually cost between $30,000 and $50,000 per well. Choosing the right materials can have a big effect on the budget over the course of a multi-well development program.

Matching Alloy Grades to Operational Requirements

In different finishing cases, different types of materials are needed. In shallow wells with mild temperatures and long production times, alloy mixtures that dissolve more slowly help keep the structure strong for months. In deep, hot wells with salty brine, faster breakdown rates are needed to get rid of limits before production can start. For multi-stage fracture to work, the materials used must be able to handle installation loads across dozens of steps and then dissolve evenly so as not to block the flow.

Our engineering team works with customers to set operating windows, which include expected temperature ranges, fluid salinity levels, holding times, and acceptable dissolution times. Then, we suggest specific metal grades and heat treatment methods that meet all of these needs. Validation testing can be done on prototype quantities before committing to volume production. This consultative approach cuts down on the costs of trying things out and making mistakes, and it speeds up the time it takes for new tool designs to be sold.

Procurement Insights: How to Buy Magnesium Alloy Hexagonal Bars Efficiently

Supplier Evaluation and Quality Assurance

If you want to find trusted magnesium alloy providers, you need to look at more than just price quotes. The manufacturing ability of a seller tells you if they can go from making a few prototypes to making a lot of them without losing quality. Our facility can handle profiles up to Ø300 mm, which means that large-bore completion tools can be used. However, the maximum diameters and shapes that can be used are limited by extrusion. Instead of relying on outside alloy sources, in-house metallurgy control makes sure that each batch is the same.

Quality certifications give you a basic level of confidence, but they need to be checked out. Getting ISO 9001 approval shows that you have a written quality management system. The fact that a lab is accredited by the CNAS means that its testing methods and tools meet world standards. API knowledge shows that you know about the rules and requirements for paperwork in the oilfield. Implementing an HSE system and getting a safety production licence show that you are dedicated to working success and following the rules. During the supplier evaluation process, ask for sample documentation packages to check the level of traceability and the clarity of the reports.

Optimizing Lead Times and Order Structures

Standard sizes of the no retrieval required magnesium alloy Hexagonal Bar from well-known sources usually ship within two to four weeks, as long as there is enough safety stock. Custom specifications, such as unique flat-to-flat dimensions, special alloy formulations, or longer length needs, increase lead times to 4–8 weeks to allow for the creation of the extrusion die and process validation. Important projects may be able to get faster output, but there are usually extra costs.

The minimum order quantities show how many units can be made economically. Due to the costs of setting up and testing, small sample sales may have higher per-unit costs. Price cuts and priority scheduling are possible with volume commitments. When suppliers use blanket buy orders with planned releases, they can better plan their production and give customers more reliable access. Talk about setting up barter agreements for high-volume projects to lower the amount of working capital needed while keeping supplies steady.

Shipping logistics have a big effect on both the total cost of the purchase and the reliability of delivery. With EXW terms, buyers are responsible for shipping. This gives buyers the most control, but they need to know a lot about importing. In FOB terms, duties are split at the port of sale, while in CIF terms, goods and insurance are sent to the final port. For customers in North America, working with our U.S. branch makes clearing customs easier and lowers the risk of delays in transit. Instead of just looking at material prices, compare the total landed costs that include duties, goods, and handling fees.

Machining and Maintenance: Best Practices for Magnesium Alloy Hexagonal Bars

Optimized Machining Protocols for Hexagonal Profiles

When machining magnesium metals, they react differently than steel or aluminium, so special methods are needed to get the best results. Sharp carbide cutting tools keep edges clean and reduce the amount of heat they produce. Aggressive feed rates, which are often higher than aluminium, stop built-up edges from forming and lower chip welding. Mineral oil-based coolants keep things moving smoothly. Water-based fluids, on the other hand, can make hydrogen gas, which raises the risk of a fire.

The hexagonal shape makes holding and indexing work easier. Clamping is safe on six flat surfaces without the need for special fasteners. Indexed positioning makes it easier to machine parts on multiple sides while keeping the reference areas the same. When compared to round profiles, which need precision collet systems or special soft jaws, this physical benefit cuts setup time by 20 to 30 percent. When working with dissolvable alloys, keep the area where you're working clean so that contaminants don't change how the alloy dissolves.

Surface Treatment and Corrosion Management

Dissolvable magnesium metals like the no retrieval required magnesium alloy Hexagonal Bar are meant to dissolve when they are being used, but if they break down too quickly while being stored or handled, it can affect the quality. The right surface treatments make things last longer on the shelf without changing how they are supposed to dissolve. Light oil coatings keep out moisture from the air while things are being stored or shipped. Low humidity environments are kept up by sealed packaging that contains desiccants. Stay away from seaside or industrial air for long periods of time because chlorides and sulphur compounds speed up rusting.

When parts are machined to be dissolvable, they usually don't need permanent coatings because those coatings would slow down the dissolution process. Cleanliness of the part is important; get rid of any machining grease, chips, or other pollution that could cause the dissolution patterns to be uneven. When magnesium alloys are used for structural purposes that don't dissolve, like in completion tools, protective finishes like Micro-Arc Oxidation or electroless nickel plating make them more resistant to corrosion. However, these don't meet the usual requirements for downhole dissolvable tools.

The quality of a component is affected by the environment during cutting. If you let magnesium chips pile up, they can start a fire. Use approved metal collection bins and follow regular cleaning rules. Do not grind things because they make fine particles and heat concentrate. When welding is needed, TIG or MIG methods with argon shielding and the right filler rods (AZ61 or AZ92) make good joints. However, welded parts in dissolvable uses may have uneven dissolution at the weld zones.

Conclusion

By removing post-fracturing milling processes while keeping the mechanical integrity needed during the installation and isolation phases, the no retrieval required magnesium alloy Hexagonal Bar radically changes finishing economics. These materials help completion service providers and operators cut down on rig time, lower intervention costs, and raise operational safety through engineered alloy compositions, controlled manufacturing processes, and detailed quality documentation. The hexagonal shape provides better power transfer than other designs, and the dissolution rates can be changed to fit a wide range of well conditions, from traditional plays to new CCUS uses. As the industry continues to focus on efficiency and cutting costs, dissolvable magnesium technologies offer not only an alternative material option but also a strategic operating benefit backed by proven performance and quality guarantee that can be tracked.

FAQ

1. Why choose hexagonal bars over round profiles for dissolvable tools?

When it comes to fitting force, hexagonal profiles are more reliable than round parts because they have positive engagement surfaces. The six-sided shape keeps the part from rotating while it is being set up, and the different indexed areas make the setup process easier. This shape lets engineers make tools that are smaller while still keeping the structure strong when differential pressure is applied during fracturing operations.

2. Can dissolution rates be customized for specific well conditions?

The composition of the alloy and the way it is heated directly affect how quickly it dissolves. We design the right mixtures of materials based on the temperatures, chemicals, salt, and hold times that are expected during formation. Before bulk production starts, performance is confirmed in the lab under HTHP settings that are similar to those found in real downhole environments. This customisation makes sure that tools stay intact while they're being used but disappear totally after a certain amount of time.

3. What documentation supports supplier qualification and audit requirements?

Certificates of Analysis (COA) confirm the chemical composition of each production batch. Certificates of Conformance (COC) confirm that the batch meets the specifications, and Safety Data Sheets (SDS) give instructions on how to handle the batch. Batch tracking records link final goods to the ingots that were used to make them, as well as the extrusion settings and heat treatment cycles. Our CNAS-accredited lab's dimensional inspection reports and mechanical property test results are high-quality proof that supports both internal and external audits of procurement.

Partner with HAGRIEN for Proven Dissolvable Magnesium Solutions

Delivering consistent no retrieval required magnesium alloy Hexagonal Bar materials that lower your completion costs and intervention risks, HAGRIEN combines seven years of continuous production experience with integrated manufacturing capabilities ranging from alloy melting to precise machining. Our closed-loop system guarantees lead times of two to four weeks for standard profiles and full batch tracking, backed by testing that is CNAS-certified. Our engineering team can help you choose the right materials for your projects, make prototypes, and produce large quantities. This is true whether you're making new dissolvable tool designs or looking for a reliable magnesium alloy hexagonal bar provider for ongoing projects. Get in touch with cyrus@us-hagrien.com to talk about your specific well conditions, ask for samples of the material, or look into OEM relationship options that take advantage of our Ø300 mm extrusion capacity and qualification-ready paperwork packages.
