The Features of No Retrieval Required Magnesium Plug Technology

The no retrieval required magnesium plug is a huge step forward in technology for finishing holes in the ground. This dissolvable bridge plug is made from high-performance degradable magnesium alloys, so it doesn't need to be milled or pulled out by hand after the fracture. In multi-stage hydraulic fracturing, operators can now go straight from stimulation to production. This cuts down on rig time, intervention costs, and the problems that come with managing extended-reach horizontal wells. The way finishing service providers and E&P companies handle wellbore separation is changing because of this technology.

Understanding No Retrieval Required Magnesium Plug Technology

What Makes This Technology Unique?

The no retrieval required magnesium plug is different from other composite or cast iron bridge plugs because it is intended to dissolve itself in wellbore fluids, eliminating the need for expensive drill-out operations. The plug is made of carefully designed magnesium alloys that break down in acidic or formation brine conditions through controlled galvanic corrosion. This designed dissolution process happens within a set amount of time, usually 24 to 72 hours. This lets the plug provide strong temporary separation during the fracturing stages and then disappear fully, leaving no waste or needing mechanical intervention.

The Science Behind Degradable Alloys

The microstructure and makeup of the metal are designed to combine mechanical strength during placement with known dissolution rates after the job is done. Customization is possible based on temperature, salt, and fluid chemistry downhole, as well as heat treatment methods and alloying elements that can be changed. Because it is flexible, the plug can withstand difference pressures of up to 10,000 or even 15,000 psi during the frac process and still break down properly afterward.Dissolvable magnesium technology is also good for the earth. The leftovers of dissolution, which are mostly magnesium oxide and hydroxide, are safe for the environment and can be easily taken to the surface with the fluids that are created. This is in line with strict safety and environmental standards in offshore and unconventional operations.

Comparison with Traditional Plug Technologies

Mechanical Limitations of Conventional Plugs

Traditional bridge bolts made of composite materials or cast iron have been the standard for a long time, but they are very hard to use. After hydraulic fracturing, these plugs need to be machine cut out with drill pipe or coiled tubing. This process takes a long time, costs a lot of money, and has risks like broken tools, stuck pipes, and garbage getting into the wellbore and blocking it up. Friction and power limits can make milling difficult or even impossible in extended-reach laterals longer than 3,000 meters.

Advantages of Dissolvable Magnesium Plugs

These pain points go away completely when you switch to a no retrieval required magnesium plug. This method has the following main benefits:

1. Reduced Non-Productive Time (NPT): Getting rid of the mill-out phase can save 48 to 72 hours per well, which can save a lot of money, especially in remote areas with high day rates.

2. Lower Chance of Wellbore Problems: Since motorized milling isn't used, there isn't any chance of dirt building up, coiled tubing getting stuck, or tools breaking. This makes the wellbore cleaner and the production process more efficient.

3. Extended Reach Compatibility: Dissolvable plugs allow full-bore access in very long lateral parts that can't be machined with standard tools.

4. Environmental and Safety Benefits: The plug breaks down into harmless byproducts, which is better for the earth and makes it easier to handle trash.

These advantages collectively enhance operational efficiency and lower the total cost of ownership, making dissolvable magnesium plugs a good option to older technologies because they improve operating efficiency and lower the total cost of ownership.

Applications and Industry Use Cases

Multi-Stage Hydraulic Fracturing

The no retrieval required magnesium plug is mostly used for fracturing unconventional shale gas and tight oil reserves more than once. During the different steps of sequential fracturing, each plug creates a brief zone of isolation that lets the pressure be precisely controlled and the stimulation of each perforated interval is optimized. All plugs dissolve once the fracturing program is over, letting fluid move freely from the reserve to the wellhead.

Horizontal Well Completion and Extended Reach Drilling

The low density and good machinability of the plug make it easy to pump down quickly and place precisely in horizontal wells with lateral lengths of more than 2,000 to 4,000 meters. Completion processes are made easier for operators, and mechanical complexity is lowered. This is especially helpful in high-pressure, high-temperature (HPHT) settings, where standard retrieval methods pose more risks.

Offshore and Subsea Operations

Due to high daily rig rates, offshore platforms and underwater completions are under a lot of cost pressure. The no retrieval required magnesium plug is worth its weight in gold because it cuts down on crew exposure, prevents the need for extra intervention runs, and speeds up the time it takes to get oil in the well. The plug works well in high-salinity saltwater, which makes it even better for use in offshore.

Workover and Re-Completion Projects

Dissolvable plugs make it easier for service providers who do well intervention and workover to do things like re-fracturing or zone failure. The plug can be put in place, do its job of isolating, and then be broken down without the need for special tools. This cuts down on the time needed to complete the project and the cost of involvement.

Emerging Energy Applications

In addition to oil and gas, carbon capture, utilization, and storage (CCUS) projects, geothermal wells, and other underground energy projects use dissolvable magnesium technology. The plug's ability to provide brief isolation in harsh settings while minimizing long-term wellbore obstruction is useful for these uses.

Procurement Considerations for B2B Clients

Selecting the Right Supplier

Technical buyers and buying teams must evaluate providers on a number of important factors when they are looking for dissolvable magnesium plugs. Quality, tracking, and paperwork are very important. Suppliers you can trust offer full certification packages that include Material Safety Data Sheets (SDS), Certificates of Analysis (COA), and Certificates of Conformance (COC). Following the rules for ISO 9001, ISO 14001, and ISO 45001 makes sure that everything is the same and helps with internal checks and approval processes.

Customization and Engineering Support

OEM and ODM makers should look for providers who can change the makeup and rate of dissolution of alloys to fit their unique needs. Having engineering help is very important during the planning and prototyping stages, especially when the sizes or wellbore settings are not standard. Having access to a high-temperature, high-pressure laboratory that is approved by CNAS for validation testing makes the provider even more trustworthy.

Lead Times and Inventory Management

Standard-sized dissolvable magnesium plugs can usually be sent within two to four weeks, including No retrieval required magnesium plug. However, projects that are made to order or are engineered to specification may take four to eight weeks. Suppliers who keep safety stock and offer fast production choices help keep projects on schedule and avoid problems in the supply chain. A trustworthy partner will be open and honest about wait times and provide proactive milestone reports.

Total Cost of Ownership

Dissolvable plugs may cost more per unit than other options, but they have a lower total cost of ownership because they don't need to be milled, have less NPT, and are less likely to cause problems in the wellbore. Prices for buying in bulk and a choice of trade terms (EXW, FOB, and CIF) make the economic case for adoption even stronger.

Future Trends and Innovations in Magnesium Plug Technology

Advances in Alloy Metallurgy

The performance range of dissolvable plugs is growing thanks to ongoing study in the science of magnesium alloys. New versions make the compressive strength higher, the temperature range where they can be used bigger, and the dissolving rates more precisely controlled. These changes make it possible to use the technology in places that are getting harder to work in, like ultra-deep HPHT wells and wells with fluids that have different chemicals in them.

Integration with Digital Monitoring

A new trend is for dissolvable plug technology and digital energy systems to work together. Real-time downhole devices and IoT-enabled tracking systems can keep track of how the dissolution is going, make sure the integrity of the plug during fracturing, and improve the processes for finishing. Predictive analytics and machine learning algorithms will help people make better decisions and make it less unclear how well plugs will work.

Regulatory and Environmental Drivers

Environmental rules that are getting stricter and ESG pledges are speeding up the use of dissolvable plugs. Getting rid of mechanical milling cuts down on the trash and carbon pollution that come from running more rigs. Dissolvable magnesium technology will be very important for meeting government and company environmental goals as the industry moves toward lower-carbon completions.

Expansion into Adjacent Markets

Dissolvable plugs are about to be used in geothermal energy, CCUS, and hydrogen storage projects, in addition to oil and gas. Because the technology can work in high-pressure, high-temperature, and corrosive conditions, it is a flexible answer to the changing energy situation.

Conclusion

The no retrieval required magnesium plug is changing the way downhole finishing works by blending strong mechanical performance with self-dissolution. Its ability to get rid of post-frac milling lowers costs, lowers operating risks, and raises asset efficiency in offshore, unconventional, and new energy uses. As alloy science improves and digital integration gets stronger, this technology will continue to provide real benefits to users, service providers, and makers looking for quick, easy, and error-free ways to finish jobs.

FAQ

1. How long does the plug take to dissolve completely?

The temperature, acidity, and chemistry of the fluid in the wellbore affect how long it takes to dissolve. In most cases, the no retrieval required magnesium plug breaks down 24 to 72 hours after the fracturing process is over. This makes it easy to get back to production quickly.

2. Can the plug be used in low-salinity environments?

Yes. There are special magnesium alloys that keep their dissolving rates the same even in fluids with low chlorine or freshwater, so they can be used with a wide range of wellbore chemicals.

3. What is the maximum pressure rating?

Standard models can handle difference pressures of up to 10,000 psi, while heavy-duty models can handle up to 15,000 psi, which is what HPHT tanks need.

Partner with HAGRIEN for Reliable Dissolvable Magnesium Solutions

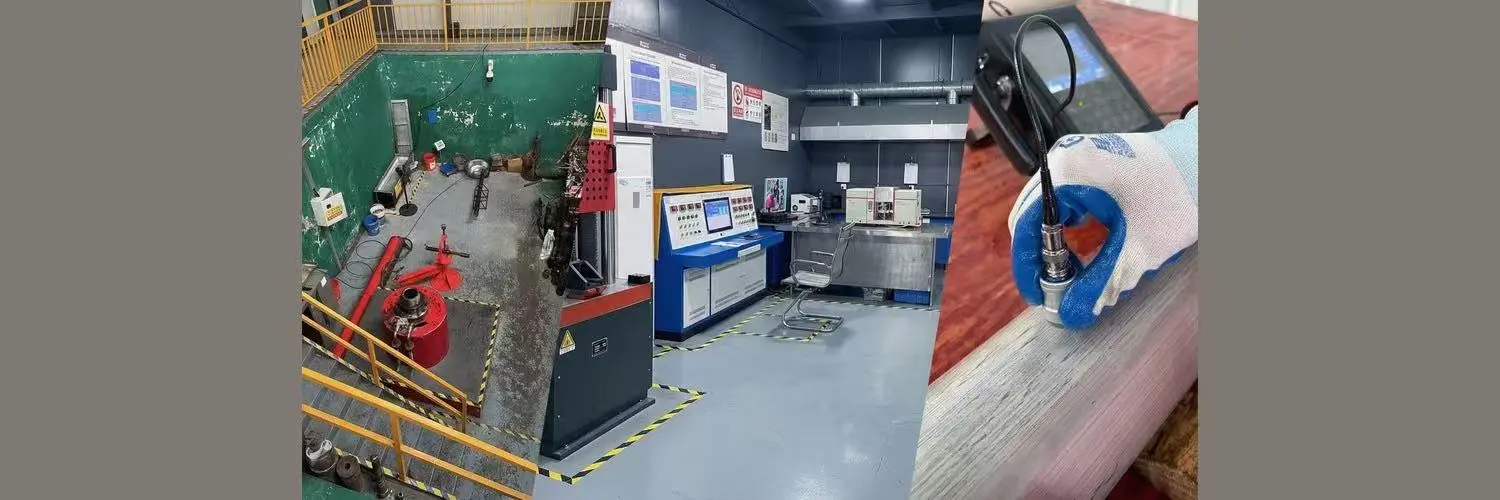

HAGRIEN is unique because it is a vertically integrated no retrieval required magnesium plug manufacturer that can do a lot of different things, such as alloy research, extrusion, precision machining, and downhole tool assembly. Our closed-loop process makes sure that quality is always the same, wait times are always known, and you get engineering help that is specific to your project needs. With ISO 9001, 14001, and 45001 certifications, API recognition, and a CNAS-accredited HTHP laboratory, we provide paperwork that is ready for approval and traceability that is ready for audit. You can email our team at cyrus@us-hagrien.com or go to us-hagrien.com to get examples, technical specs, or a special quote package for your dissolvable plug needs.
