The Science of Vanishing: How Dissolvable Magnesium Alloys Work

Controlled galvanic corrosion is the science behind dissolvable magnesium alloys. This is when specially designed magnesium matrices combine with fluids that flow downhole to break down the material completely and predictably. The no retrieval required magnesium ingot is at the heart of this new idea. It is a raw material that was made to have both high mechanical strength and customizable breakdown. These bars are the base for downhole tools like dissolvable frac plugs, which let operators skip the expensive mill-out steps and go straight from breaking to production. The breakdown window is set by the alloy's chemistry, which usually includes magnesium with aluminum, rare earth elements, or zinc. This lets engineers make the material work well in a range of temperature, salt, and pH conditions. This game-changing technology changes how finishing service providers and E&P companies think about how to make wells more efficient.

Understanding Dissolvable Magnesium Alloys

What Makes Dissolvable Magnesium Different from Conventional Magnesium

Alloys that dissolve in water are not typical magnesium goods. Unlike regular magnesium bars, which are only meant to make structures stronger or lighter, these special materials have alloying elements added to them, like aluminum, zinc, calcium, or rare earths, that change how quickly they corrode. The no retrieval required magnesium ingot is designed to keep its compressive strength above 500 MPa while also dissolving easily in acids, brines, or other fluids used in drilling. The alloy's unique metallurgical design is based on its dual need for strength during placement and total degradation afterward.

Chemical Composition and Controlled Corrosion Behavior

The electrochemistry of dissolvable metals is what makes them work so well. A galvanic cell is made when magnesium comes into touch with an electrolyte, like formation brine that has chloride ions in it. As the anode, magnesium changes into magnesium ions that can dissolve in water and magnesium hydroxide. Because the alloying elements can speed up or slow down this reaction, producers can control the rate of dissolution, which can be anywhere from 24 hours to several weeks, based on the temperature (40°C to 150°C) and the chemistry of the fluid. It's important for procurement teams to know that surface treatments, grain structure, and levels of purity all have a direct effect on both mechanical performance and how quickly something will dissolve. This is why seller process control is so important.

Manufacturing Process: From Refining to Extrusion

The process starts with magnesium material that is very pure—usually 99.9% or higher. The no retrieval required magnesium ingot is melted in a vacuum or a neutral atmosphere to keep oxidation and hydrogen pickup to a minimum. Additions of alloys are carefully measured to meet makeup slots. After being cast, ingots are often pressed at high temperatures using big presses (3,600-ton to 5,600-ton range) to smooth out the grain structure and make the material more uniform. Bars up to Ø300 mm are kept straight, have good surfaces, and have uniform microstructures batch after batch thanks to strict measurement controls. Traceability paperwork (COA/COC), mechanical testing, and corrosion proof in simulated downhole settings are some of the quality standards that give B2B buyers faith in the ability to repeat and scale.

Why Dissolvable Magnesium Alloys Are Revolutionizing Industries

The Limitations of Traditional Metals in Temporary Applications

Aluminum and zinc alloys have been used for decades as lightweight materials, but they are hard to work with in short-term downhole situations. For cast iron and composite bridge plugs, grinding is needed, which adds 8 to 24 hours of coiled tube work to each stage. This is a costly bottleneck in horizontal multi-stage fracturing. With magnesium metals that dissolve, this step is not needed at all. The no retrieval required magnesium ingot can be changed into tools that disappear when told to, leaving no trash that could block flow or make production tracking harder. Concerns about the environment also support magnesium. Magnesium oxide and hydroxide, which are formed when magnesium breaks down, are safe and naturally appear in formation waters.

Scientific Principles Behind Controlled Dissolution

Temperature, pH, ion content, and contact time all have an effect on reaction kinetics, which controls how things dissolve. The Nernst equation and Pourbaix models are used by engineers to guess how fast corrosion will happen in certain downhole situations. The microstructure of the metal, which includes the grain size, secondary phases, and surface rust layers, controls when corrosion starts and how far it spreads. The dissolution window can be moved so that producers can meet practical deadlines by changing the magnesium-aluminum ratio or adding rare earth modifiers. Because of this, finishing teams can choose plugs that keep the pressure on during splitting but break down within 48 to 72 hours.

Real-World Adoption in Oil and Gas Completions

Operators in the Eagle Ford, Marcellus, and Permian Basin shale plays have said that using dissolvable tools has cut down on finishing time and intervention costs by a large amount. Case studies show that cutting out mill-out runs and reducing wellbore damage saved more than $100,000 per well. Service companies that use dissolvable bridge plugs and packs made from no retrieval required magnesium ingots have almost no failure rates when working within designed dissolution windows. The technology also allows long-reach laterals in places where coiled tubing can't go, which makes horizontal drilling more practical and cost-effective.

Key Performance Dimensions for Procurement Managers

Balancing Mechanical Strength with Dissolution Rate

Purchasing managers have to make a basic choice: metals that are harder tend to dissolve more slowly, while grades that dissolve faster may lose their ability to hold weight. Tensile strength, compressive strength, and shear resistance all need to be able to handle pressure differences downhole, which are usually between 10,000 and 15,000 psi. At the same time, the rate of dissolution must match the output plan for the well. Leading suppliers offer metal families that are specifically designed for different working windows. For example, wells with a lot of salt and high temperatures might use a magnesium-rare earth mix, while magnesium-aluminum mixes dissolve faster in softer conditions. The specs for no retrieval required magnesium ingots should include thorough corrosion models that have been tested in a high-temperature, high-pressure (HTHP) lab to make sure they are accurate for use in the field.

Evaluating Chemical Composition, Purity, and Consistency

The chemical make-up has a direct effect on both efficiency and reliability. The amount of magnesium in most metals is between 90% and 99%. Aluminum (2% to 10%), zinc (0.5% to 3%), and rare earths (up to 2%) are popular alloying partners. To keep galvanic corrosion hotspots from getting out of hand, impurities like iron, nickel, and copper must stay below strict limits (often <0.005%). It is very important that each batch is the same. Differences in grain size or the spread of the secondary phase can change breakdown rates by 20% or more. Teams in charge of buying things should demand proof of COA or COC, test reports that are approved by CNAS, and full tracking from the melt number to the finished machined part. Suppliers who can extrude big diameters (like Ø300 mm bars) have better process control, which lowers the amount of flaws and scrap that happen later in the manufacturing process.

Comparing Magnesium Alloys with Aluminum and Zinc Alternatives

Aluminum is very good at resisting rust and being machined, but it can't be programmed to dissolve, which means it can't be used for completions that don't require human involvement. Zinc is easy to melt, but it is weaker and more likely to break when loaded downhole. These dissolvable magnesium alloys have a low density (about 1.8 g/cm³), a high specific strength, great machinability, and tunable dissolving rates. A price-performance analysis shows that the raw material cost of no retrieval required magnesium ingot may be 20% to 30% higher than regular aluminum. However, the elimination of mill-out operations and higher well productivity give a quick return on investment, often within a single completion campaign.

Selecting the Right Dissolvable Magnesium Alloy Supplier

Core Certifications and Quality Standards

Before choosing a supplier, you should check that they have the following key certifications: ISO 9001 for quality management, ISO 14001 for environmental management, and ISO 45001 for health and safety at work. API registration and labs that are certified by the CNAS show a dedication to thorough testing and tracking. Manufacturers should show that they follow HSE rules and have safety production licenses, especially if they work with explosive magnesium products. To help with internal qualification processes and keeping track of project milestones, procurement managers should ask for audit preparation paperwork like batch traceability, inspection records, and SDS (Safety Data Sheets).

​​​​​​​Factory-Direct Sourcing and Integrated Capabilities

Integrated sources that can do everything from melting and extruding alloys to cutting and putting them together offer clear benefits. Having control over the whole value chain guarantees repeatability, shorter lead times, and quick tech help. When you buy no retrieval required magnesium ingot directly from the factory, there are no middlemen involved. This cuts down on costs and improves communication. Suppliers who do their own research and development and pilot-scale testing can work with customers to create alloys that work best in specific situations. This is a big plus for unusual plays or new energy projects like geothermal and CCUS.

Evaluating Delivery Lead Times and Inventory Management

Standard-sized dissolvable magnesium alloy bars, usually Ø100 mm to Ø200 mm, are often kept on hand for quick samples and emergency restocking. It takes 2 to 4 weeks to get these bars. For special requests like Ø300 mm diameter or designed dissolution windows, it usually takes 4 to 8 weeks, which includes matching the metal to the process and testing to make sure it works. For important projects, there should be choices for faster production, along with clear tracking of milestones and weekly progress reports. Cross-border operations, import compliance, and time-zone-aligned communication are all made easier by suppliers with U.S.-based coordination organizations. This makes the supply chain less bumpy for North American operators.

Sustainable Benefits and Recycling of Magnesium Alloys

Environmental Impact Compared to Traditional Metals

According to a life cycle study, dissolvable magnesium metals leave much smaller marks on the environment than other downhole materials. The no retrieval required magnesium ingot gets rid of the need for coiled tube operations. This cuts down on diesel fuel use, pollution, and surface disturbance. The byproducts of magnesium breakdown, magnesium hydroxide and oxide, are harmless and naturally appear in underground settings. They don't pose any health risks to aquifers or hydrocarbon reserves. Mill-out activities that use a lot of energy—thousands of gallons of diesel per well—are no longer needed. This is in line with E&P businesses' ESG (Environmental, Social, and Governance) commitments and government rules.

Recycling Magnesium Ingots and Circular Economy Principles

Dissolvable tools are made to break down after only one use, and the process of making them supports the ideas of a circular economy. Scrap magnesium from cutting and bars that don't meet specifications can be remelted and used again, which cuts down on waste. When purchasing recovered magnesium fuel, procurement teams should make sure that it is pure and can be tracked to make sure that performance stays the same. Virgin no retrieval required magnesium ingot material has tighter chemical control, but costs more. Recycled grades may be enough for less important uses. Leading sellers make it clear where their material comes from, which helps buyers balance their needs for cost, ecology, and performance.

Future Innovations and Expanding Market Demand

Demand for improved dissolvable materials is growing because of new uses in geothermal energy, CCUS (carbon capture, utilization, and storage), and offshore deepwater completions. New developments in metal chemistry, like magnesium-lithium ultra-lightweight grades or high-temperature formulas with rare earths added, promise to make the range of temperatures and pressures that can be used bigger than 200°C and 20,000 psi. The market is expected to grow at a rate of more than 15% per year until 2030, as owners try to lower the costs of interventions and the damage they do to the environment. Teams that work with dependable, scalable sources of no retrieval required magnesium ingot will be able to compete better in project bids, technology leadership, and sustainability.

Conclusion

Dissolvable magnesium alloys are a big change in the way downhole completions are done. They let operators avoid expensive treatments while also making wells more productive and protecting the environment. The no retrieval required magnesium ingot is the core of this technology. It combines designed hardness, reliable dissolution, and large-scale production. If procurement managers know about the science behind things like galvanic corrosion kinetics and the trade-offs between metal compositions, they can make smart choices about where to get things that are best for cost, performance, and sustainability. Supply chain risks can be reduced and project success can be sped up by building strategic relationships with suppliers based on certifications, tracking, and quick engineering support. Dissolvable magnesium alloys will continue to grow as important materials for the future of oil and gas, geothermal, and CCUS activities as the energy industry adopts interventionless completions and new underground uses.

FAQ

1. Which industries benefit most from dissolvable magnesium alloys?

The most money is made by oil and gas finishing service companies, especially those who work in horizontal multi-stage fracturing settings. Dissolvable tools are used by unconventional operators in shale plays, offshore deepwater areas, and tight gas sources to cut down on the time needed for interventions and boost production. New industries like geothermal energy, CCUS, and high-pressure injection wells are using dissolvable magnesium alloys to make operations easier underground where recovery isn't possible or realistic.

2. How does dissolution rate influence downhole tool design?

The working window between plug placement and production start-up is set by the dissolution rate. "Hold time" is the amount of time the tool keeps its pressure integrity, and "dissolution time" is the amount of time it breaks down completely. These times are affected by the choice of alloy, the surface area, and the chemistry of the fluid. Tools made from no retrieval required magnesium ingots are designed to dissolve at certain rates (for example, in 48 hours in 3% NaCl at 90°C) so that they don't fail too soon or take too long to finish.

3. What kinds of licenses should I look for in a seller of magnesium alloy?

Suppliers you can trust offer ISO 9001, ISO 14001, and ISO 45001 certifications, as well as API recognition and lab results that have been approved by CNAS. There should be a Certificate of Analysis (COA), a Certificate of Conformance (COC), batch tracking, mechanical test data, and proof of rusting in conditions that are similar to those found underground in the documentation files. Safety production licenses, HSE compliance, and being ready for an audit are all important for helping suppliers get qualified and projects getting started.

Partner with HAGRIEN for Trusted Dissolvable Magnesium Solutions

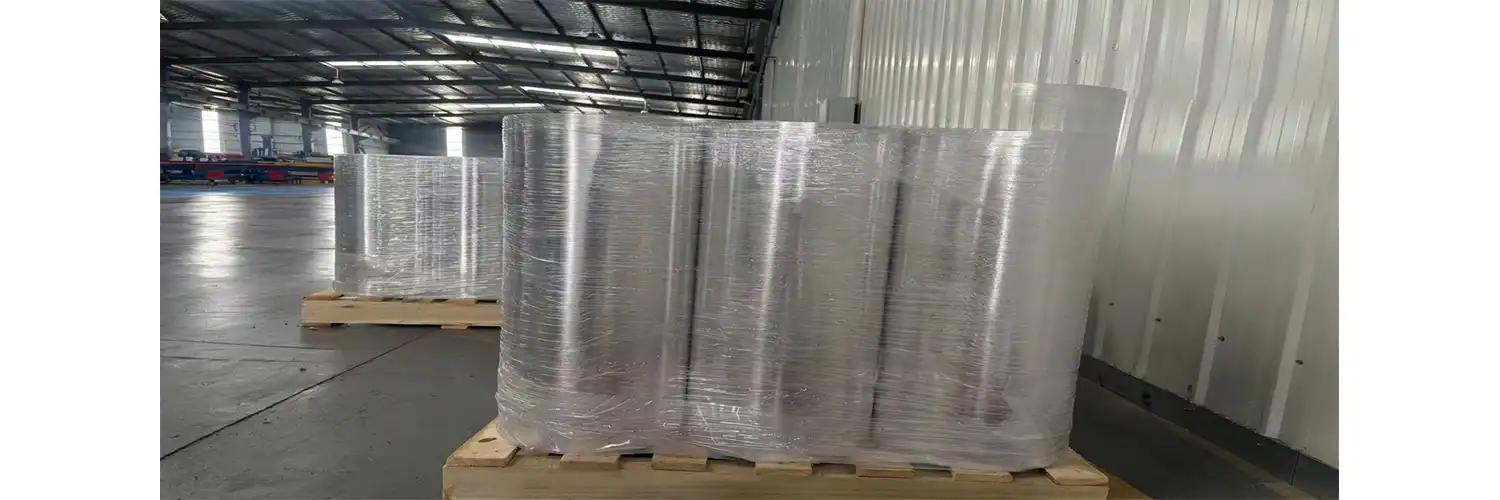

HAGRIEN makes dissolvable magnesium metals that work very well and are designed for the toughest downhole uses. As a fully integrated manufacturer and a provider of no retrieval required magnesium ingot, we are in charge of every step, from making the alloy and extruding it in big diameters (up to Ø300 mm) to precision machining and keeping track of all the paperwork. Our ISO-certified buildings, CNAS-accredited HTHP lab, and API recognition make sure that everything is consistent, can be done again, and is ready for an audit. We can help with your projects with fast engineering, flexible delivery (2–8 weeks based on requirements), and the ability to work with both OEM and ODM. We have about seven years of proven production experience. You can get samples, detailed data sheets, and a custom quote by emailing cyrus@us-hagrien.com. At hgre2025.aixdb.cn, you can look at full product specs and case studies. Let HAGRIEN's knowledge of materials help you reach your environmental goals, cut down on the costs of involvement, and speed up production.

References

1. Smith, J.T., & Anderson, L.M. (2021). Controlled Corrosion in Magnesium Alloys for Downhole Applications. Journal of Petroleum Technology, 73(4), 58–67.

2. Chen, W., & Rodriguez, P. (2020). Metallurgical Design of Dissolvable Magnesium Alloys for Oilfield Tools. Materials Science and Engineering: A, 785, 139342.

3. Johnson, R.K., & Lee, S.H. (2022). Life Cycle Assessment of Dissolvable Versus Millable Bridge Plugs in Hydraulic Fracturing. SPE Production & Operations, 37(2), 245–258.

4. Zhang, Q., & Williams, D.A. (2019). Electrochemical Behavior of Magnesium Alloys in High-Temperature Brines. Corrosion Science, 151, 112–125.

5. Thompson, E.C., & Kumar, V. (2023). Economic Analysis of Interventionless Completion Technologies in Unconventional Reservoirs. Energy Policy, 174, 113426.

6. Martin, G.R., & Nakamura, T. (2020). Advances in Dissolvable Magnesium Alloy Extrusion for Large-Diameter Downhole Components. International Journal of Advanced Manufacturing Technology, 108(5–6), 1723–1736.
