What Specifications Should Buyers Request for Dissolvable Magnesium Alloy Bars?

When purchasing dissolvable magnesium alloy bars for downhole tool manufacturing, buyers must prioritize specifications that ensure reliable field performance. Critical parameters include tensile strength (240–380 MPa), yield strength (180–300 MPa), and precisely calibrated dissolution rates (10–200 mg/cm²/h in 3% KCl at 25–150°C). Chemical composition traceability, dimensional accuracy (especially for large-diameter bars up to Ø300 mm), heat treatment protocols (T4/T6), surface finish standards, and full compliance documentation (ISO 9001, ASTM B107, COA/COC) represent non-negotiable requirements for completion service providers, operators, and OEM manufacturers seeking consistent, verifiable material performance in high-pressure, high-temperature well environments.

Understanding Dissolvable Magnesium Alloy Bars: Key Properties and Benefits

Dissolvable Magnesium Alloy bars are a special type of manufactured material that is made to break down correctly in downhole fluids, so expensive cutting operations after fractures don't have to be done. In contrast to regular steel or composite bridge plug parts, these metals offer both brief structural stability and programmable dissolution. This makes them essential for multistage hydraulic fracturing, geothermal completions, and CCUS uses.

Composition and Degradation Mechanisms

The material structure contains precise amounts of aluminum, zinc, manganese, and rare earth elements to control electrochemical behavior. Dissolvable Magnesium Alloy bars corrode uniformly rather than pitting when exposed to chloride-rich brines at high temperatures. This ensures structural integrity during fracturing followed by complete degradation according to planned timelines ranging from hours to weeks based on fluid chemistry, temperature, and alloy formulation.

Mechanical Performance Under Downhole Conditions

Tensile strength ranges 240-380 MPa with yield strength 180-300 MPa depending on heat treatment. Dissolvable Magnesium Alloy bars enable bridge plugs and packers to handle differential pressures exceeding 10,000 psi during stimulation. Low density of 1.8 g/cm³ reduces handling weights. High machinability allows complex shapes including slips, mandrels, and sealing components. These mechanical properties ensure reliable performance throughout fracturing operations.

Operational and Environmental Benefits

Completion service providers save time and money on rigs because they don't have to do coiled tube mill-out operations when they use dissolvable tools. Operators get faster time-to-production, and OEM makers get more design freedom because dissolving windows can be changed. The technology helps protect the environment because it doesn't leave any waste in the wellbore and reduces the amount of carbon dioxide that is released when machines are used.

Essential Specifications Buyers Must Request

To reduce performance risks and make sure they follow the rules, procurement teams that are looking for Dissolvable Magnesium Alloy bars must come up with detailed material specs. Specifications that aren't clear or full can lead to batch differences, early tool failure, or delayed dissolution, all of which can delay production plans.

Chemical Composition and Alloy Grade Requirements

Buyers must request complete chemical analysis including aluminum, zinc, manganese, rare earths, and impurity limits. Dissolvable Magnesium Alloy bars require target ranges and tolerances for each alloying element. ICP-OES certificates should demonstrate consistent composition across production batches. Traceability directly affects dissolution rate and mechanical strength, which vary significantly with even minor changes in material composition. This documentation enables quality verification.

Dissolution Rate Calibration and Testing Protocols

Specify desired degradation ranges (e.g., 50-100 mg/cm²/h in 3% KCl at 90°C) that match operational schedule and fluid chemistry. Request Dissolvable Magnesium Alloy bars dissolution test results under wellbore-like conditions including temperature profiles, salinity levels, and pH ranges. Suppliers should provide dissolution curves demonstrating uniform corrosion morphology. Localized attack can cause unpredictable structural failure during fracturing operations, making this testing essential.

Mechanical Property Verification

It is important to test the tensile strength, yield strength, stretch, and toughness at both room temperature and high temperatures. These qualities are directly affected by the type of heat treatment (T4 or T6 tempers), so buyers should set acceptance standards for each mechanical parameter. Ultrasonic inspection (UT) records that say there are no internal holes or inclusions are necessary. This is especially important for large-diameter bars where casting flaws are more likely to happen.

Dimensional Accuracy and Surface Quality

Give details about the bar's thickness, length, required surface finish, and straightness limits. When working with large diameters (Ø150–300 mm), tighter controls are needed because differences in size make grinding waste more common and make putting together tools more difficult. Surface flaws, oxide films, or contamination can speed up corrosion that isn't under control, so ask for specs on surface roughness (Ra values) and standards for eye inspection.

Certification and Documentation Packages

Each shipment must include Safety Data Sheets, Certificates of Analysis, and Certificates of Conformance. ISO 9001, ISO 14001, and ISO 45001 certifications demonstrate HSE compliance. ASTM B107/B107M provides quality baseline, but many applications require downhole-specific criteria. Dissolvable Magnesium Alloy bars need batch traceability linking material lots to production records and test results. This documentation supports internal quality control and regulatory audits while reducing supplier qualification time.

How to Evaluate and Compare Dissolvable Magnesium Alloy Suppliers?

There's more to choosing a skilled seller than just looking at prices. To keep project risks to a minimum, procurement managers need to look at technical skills, production size, quality processes, and the reliability of long-term supplies for Dissolvable Magnesium Alloy.

Manufacturing Capabilities and Production Scale

Verify extrusion capacity for large-diameter Dissolvable Magnesium Alloy bars. Facilities with 3,600-5,600 ton presses produce Ø300 mm bars with consistent microstructure. Ask about maximum production rates, lead times for standard and custom orders, and expedite capacity during project acceleration. Suppliers maintaining safety stock for popular sizes enable faster sampling and emergency restocking, reducing schedule vulnerabilities for completion operations.

Quality Control Infrastructure

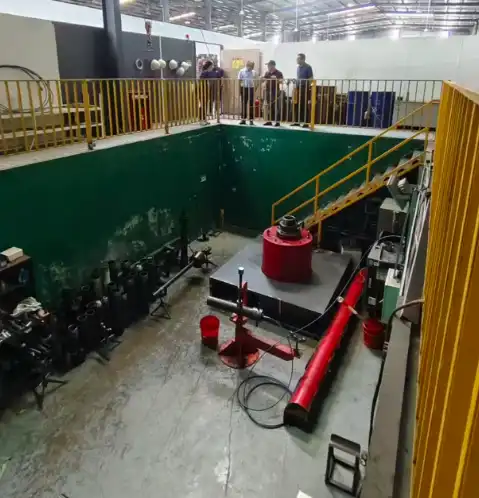

Visit supplier testing labs or request third-party audit records. CNAS-accredited HTHP labs provide traceable dissolution behavior proof under simulated downhole conditions for Dissolvable Magnesium Alloy bars. Verify availability of ICP-OES for chemical analysis, mechanical testing for high-temperature evaluation, and ultrasonic NDT equipment. Strong statistical process control methods ensure batch-to-batch stability, reducing variability that causes field failures and non-productive time.

Engineering and Customization Support

A lot of the time, material performance needs to be tuned to specific working times. Suppliers who offer changing the alloy's makeup, improving its heat treatment, and creating its dissolution window give users more options for using it in unusual ways. Before committing to large orders, find out how quickly they respond to technical questions, how long it takes to get samples, and whether they are ready to help with prototype development. Working together with providers cuts down on the costs of trial and error and speeds up the qualification process.

Delivery Reliability and Lead Time Management

Standard sizes usually ship in two to four weeks, but special specs take four to eight weeks, which includes process qualification and testing. Check to see how often the provider delivers on time, how they keep you updated on progress, and what their plans are for what to do if there are shortages of raw materials or production delays. For rig plans and multistage completion operations to work, supply schedules must be able to be predicted.

Industry Reputation and Client References

Request case studies from completion service providers, operators, or OEMs who have used supplier materials in field applications. Oil and gas industry certifications like API recognition demonstrate commitment to standards for Dissolvable Magnesium Alloy bars. Technical conference participation, published research, or joint development projects with major operators indicate technical depth and market trustworthiness. Supplier evaluation should prioritize long-term partnership potential over lowest unit cost. Tool failure or supply disruption financial impact far exceeds marginal material savings.

Matching Specifications to Your Procurement Needs – A Decision Support Approach

For different uses, different material requirements are needed. To get the best performance and value for money, procurement managers need to make sure that the properties of the Dissolvable Magnesium Alloy match the needs of the business.

Defining Application-Specific Performance Criteria

For hydraulic fracturing to work in horizontal HPHT wells, the rock needs to be very strong and dissolve slowly, so that the pumping processes can last for 48 to 72 hours before it starts to break down. In geothermal uses, better temperature resistance is needed. Offshore settings, on the other hand, may need faster breakdown to reduce environmental persistence. First, write down the conditions downhole, including the temperature range, fluid acidity, pressure difference, and length of time that the structure must remain intact. These factors help choose the right metal and set the rules for heat treatment.

Balancing Mechanical Strength and Dissolution Rate

Because different alloying elements affect the rust potential in different ways, stronger alloys tend to dissolve more slowly. Applications that put load-bearing ability first during long stages of splitting may be able to handle longer dissolution windows. On the other hand, versions that dissolve faster and give full-bore access within hours are better for shallow well completions or intervention operations. Ask your providers for test data that matches your operational range so that you can model the strength-dissolution tradeoff for your particular use case.

Dimensional Specifications for OEM Compatibility

Manufacturers of bridge plugs need bars that are the same size and shape as their cutting centers and tools. Make sure the diameter ranges, length needs, and straightness standards are in line with what your production tools can do. Large-diameter bars (Ø200–300 mm) cut down on waste when making bulky mandrel parts, but they require larger minimum orders and longer wait times. Smaller diameters (Ø50–100 mm) give you more inventory options and faster turn-around times, but they may make it harder to machine big units.

Cost-Compliance-Risk Trade-offs

Premium-grade metals with stricter requirements and more detailed paperwork cost more per kilogram, but they take less time to qualify, are rejected less often, and are less likely to fail in the field. People who are trying to save money on buying should compare the money they could save up front with the costs that could come up later, such as milling operations when tools don't dissolve, lost output during delays in intervention, and damage to their image from service interruptions. Materials that are ISO-certified and can be fully tracked help with internal checks and building customer trust, especially when bidding on projects with big companies that need strict supply chain openness.

By systematically mapping performance requirements to material specifications, procurement teams avoid over-specifying or under-specifying. This decision framework ensures alignment between technical needs and commercial constraints.

Future Trends and Innovations in Dissolvable Magnesium Alloy Bars

The market for Dissolvable Magnesium Alloy products is always changing because operations need deeper wells, harsher conditions, and rules about being environmentally friendly.

Advanced Alloy Formulations for Extreme Conditions

The main goal of research is to push the boundaries of mechanical efficiency. Next-generation metals aim to have tensile strengths higher than 400 MPa while still allowing controlled breakdown. This will allow them to be used in ultra-HPHT wells (200°C+, 20,000 psi). Micro-alloying with rare earths and fine-tuning the grains are two methods that improve both strength and corrosion consistency. This makes failure modes less unexpected. These new ideas make it possible for dissolvable tools to work in types of reservoirs that they couldn't reach before.

Smart Dissolution Triggering Mechanisms

New technologies look into how to start dissolution through outside factors like temperature limits, pH changes, or chemical additions, instead of decay that happens over time. These kinds of systems would let tools keep their structural integrity forever until operators start dissolving them on purpose. This would give operators more options and lower the risks that come with premature degradation.

Sustainability and Circular Economy Integration

As energy companies make their ESG promises stronger, dissolvable materials fit in with their goals to reduce waste and care for the earth. In the future, scientists will probably focus on making dissolution leftovers that are biocompatible, using less carbon in the production of alloys, and recycling industrial waste. As sustainable factors become more important in purchasing choices, suppliers who show clear environmental measures and lifecycle assessments will have an edge over others.

Digital Integration and Predictive Modeling

Computer programs that simulate how breakdown works in a variety of downhole situations help engineers choose the right materials before they are put into action. Training machine learning models on field performance data could make more accurate predictions about how long tools will last and when they will break down, which would make planning for finishing easier. Suppliers who offer digital twins or help with simulations will stand out because their technical relationship value will be higher.

These trends underscore the strategic importance of choosing forward-looking suppliers capable of continuous innovation. Material technology advances directly translate to operational improvements, cost reductions, and competitive advantages for service providers and operators adopting next-generation solutions.

Conclusion

When looking for Dissolvable Magnesium Alloy bars, you need to pay close attention to the performance requirements for the application, the supplier's skills, and the material's specs. Buyers must ask for specific information on the chemicals used, the rates at which the substances dissolve, the mechanical properties to be checked, standards for measuring accuracy, and full certification paperwork. When evaluating a supplier, the size of the factory, the infrastructure for quality control, the technical support, and the dependability of delivery should be given more weight than price alone. When you match specs to practical needs, you get the best performance while keeping cost and risk in check. As the energy industry moves toward harsher conditions and more stringent rules on sustainability, buying teams can take advantage of new technologies and keep their competitive edge in markets that are always changing.

FAQ

1. What dissolution rate should I specify for multistage fracturing applications?

Dissolution rates of 50 to 100 mg/cm²/h in a 3% KCl solution at 90°C are usually good for multistage fracture operations. This gives the structure 48 to 72 hours of strength while it is being pumped, and then it breaks down completely in 5 to 10 days. Change the specs based on the chemistry of your fluid, the temperature profile, and the time frame for production with your Dissolvable Magnesium Alloy.

2. How do I verify batch consistency across multiple shipments?

Ask for batch traceability paperwork that connects each shipment to a specific production run, as well as ICP-OES data for chemical composition analysis and mechanical tests. Set acceptance standards for key parameters and make sure they are tested again if the specs are not within the acceptable ranges.

3. Can suppliers customize alloy formulations for unique operating conditions?

Reliable sellers offer alloy engineering services that change the amounts of aluminum, zinc, manganese, and rare earths to get the best balance of strength and breakdown for a given temperature, salt level, and time frame. This change needs to be tested and qualified on a prototype, but it aligns efficiency better.

Partner with HAGRIEN for Reliable Dissolvable Magnesium Alloy Supply

To get Dissolvable Magnesium Alloy, you need a supplier with a large production scale, technical know-how, and quality processes that can be checked. HAGRIEN has HTHP labs that are approved by CNAS, production facilities that are ISO 9001/14001/45001-certified, and 3,600-ton and 5,600-ton extrusion presses that can make bars up to 300 mm in diameter. Our engineerable alloy formulas combine strength, machinability, and dissolution kinetics based on your working windows. We have been making these alloys continuously since 2019 and have seven years of experience. We offer full paperwork packages (COA/COC/SDS), the ability to track each batch, and reliable delivery times (2–4 weeks for normal sizes and 4–8 weeks for custom specs). Our application engineering support, faster production choices, and OEM/ODM skills cut down on qualification times and supply chain risks for everyone, whether you're a finishing service provider, operator, OEM maker, or procurement team. Get in touch with our team at cyrus@us-hagrien.com to talk about the materials you need and to get a full quote package with technical details and delivery dates.

References

1. American Society for Testing and Materials. "ASTM B107/B107M-13: Standard Specification for Magnesium-Alloy Extruded Bars, Rods, Profiles, Tubes, and Wire." ASTM International, 2013.

2. Kirkland, N.T., and Birbilis, N. "Magnesium Biomaterials: Design, Testing, and Best Practice." Springer Series in Biomaterials Science and Engineering, 2014.

3. Society of Petroleum Engineers. "Dissolvable Materials for Wellbore Applications: A Technical Review." SPE Production & Operations Journal, vol. 33, no. 2, 2018, pp. 289-301.

4. Xu, W., et al. "Corrosion Behavior and Mechanical Properties of Magnesium Alloys in Oilfield Environments." Journal of Materials Engineering and Performance, vol. 28, no. 6, 2019, pp. 3421-3435.

5. International Organization for Standardization. "ISO 9001:2015 Quality Management Systems—Requirements." ISO Standards Catalogue, 2015.

6. Staiger, M.P., et al. "Magnesium and Its Alloys as Orthopedic Biomaterials: A Review." Biomaterials, vol. 27, no. 9, 2006, pp. 1728-1734.
