Why Is Dissolvable Magnesium Alloy Round Bar in Demand?

Dissolvable Magnesium Alloy Round Bar technology solves a major practical problem in oil and gas completions: it gets rid of the need for expensive and time-consuming recovery operations. These designed materials are strong at the structural level but break down on their own over time. They dissolve totally in downhole fluids without the need for milling or fishing. Completion service providers, E&P operators, and downhole tool makers are all realizing the benefits of lower rig time, fewer interventions, and instant production starting. This is why demand keeps going up. This move toward dissolvable options is in line with a larger trend in the business toward technologies that are both cost-effective and good for the environment.

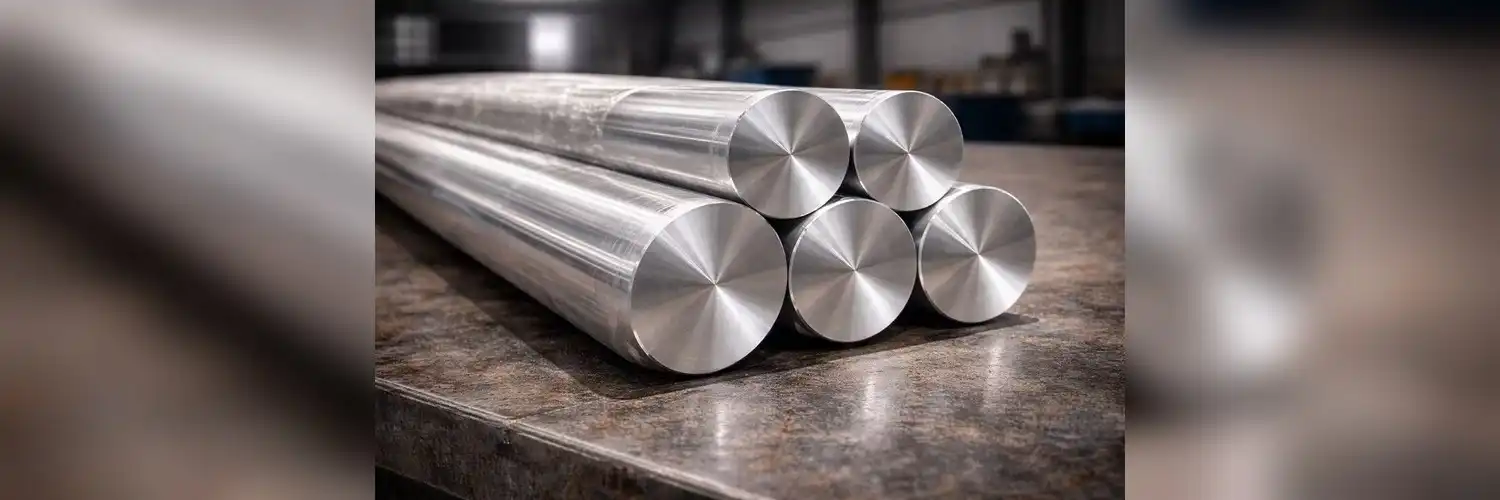

Understanding Dissolvable Magnesium Alloy Round Bars

Dissolvable Magnesium Alloy Round Bars are a special kind of metal that is made for short-term structure uses that need to be taken down completely without any mechanical help. When these materials are exposed to electrolyte-rich environments like finishing fluids or formation brines, they go through controlled galvanic weathering instead of staying in place like most metals do. The main benefit is that they can provide mechanical strength during important operating phases, such as keeping pressure seals in place during hydraulic fracturing, separating stages, or supporting packers, and then completely dissolve when their structural role is over.

Chemical Composition and Alloy Design

When it comes to metals, these materials are built around magnesium as the base element. It is usually mixed with aluminum, zinc, manganese, and rare earth elements. Each alloying element does a specific job: aluminum improves strength and resistance to rust at room temperature, zinc makes the metal easier to cast and smooths out the grain structure, manganese limits the effects of impurities, and rare earth elements smooth out the grain structure and keep the metal stable at high temperatures. The proprietary formulas change these ratios to make sure that the dissolution rates (measured in milligrams per square centimeter per hour) stays within the working windows that are set by temperature, salinity, pH, and the chemistry of the fluid. HAGRIEN's production method includes thorough ICP-OES analysis to keep exact compositional control. This makes sure that consistency from batch to batch is important for the performance of tools further down the line.

Mechanical Properties and Dissolution Behavior

Tensile strength should be between 240 and 380 MPa and yield strength should be between 180 and 300 MPa. These values depend on the heat treatment method, such as T4 or T6 tempers. The designed dissolution rate, which ranges from 10 to 200 mg/cm³/h in normal test settings (3% KCl solution at temperatures from 25°C to 150°C), is what makes these materials different from other magnesium alloys. Dissolvable magnesium metals have uniform corrosion morphology across the entire exposed surface, unlike limited pitting corrosion that can cause structures to fail early. Because of this, engineers can figure out exact service lives by looking at the shape, surface area, and predicted conditions downhole. Material traceability and dissolution tests in realistic working circumstances create the certification and approval packages (COA/COC) needed for the project to be qualified and approved.

Why Demand Is Increasing: Benefits and Applications

It's easy to see why Dissolvable Magnesium Alloy Round Bar technology would be useful when you look at how much it costs to finish a well. Using composite or cast iron bridge plugs in traditional plug-and-perf operations means using coiled tubing units and cutting operations, which can take an extra 8 to 16 hours per plug and cost up to $100,000 per well, dependent on the length of the well and the number of plugs used. Every hour saved on post-frac cleanup directly leads to a shorter time to production and lower costs for movement.

Operational Efficiency in Oil & Gas Completions

When completion service companies use dissolvable frac plugs, they don't have to do any cutting at all. Once the steps of hydraulic fracturing are done and flowback starts, the plugs break down in the produced fluids over a controlled period of time, which is usually between 48 and 120 hours, based on the alloy used and the temperature downhole. This lets work begin right away, without having to wait for coiled tubing to become available or risk operating problems like tools getting stuck or millouts not being finished properly, which could block the wellbore. Offshore companies especially like this benefit because rig day rates can be more than $500,000, which means that every hour of action is very expensive. Being able to go straight from completion to production is a huge step forward for workflow and is what drives growth in unconventional areas like the Permian, Eagle Ford, and Bakken formations.

Environmental Compliance and Waste Reduction

Environmental rules that guide oilfield activities are getting stricter all the time, especially when it comes to how to handle and get rid of waste. In traditional milling processes, metal chips and drilling fluid that is mixed with metal chips are created, which needs to be thrown away in a certain way. Dissolvable magnesium alloys get rid of this waste stream completely because the material breaks down into magnesium chloride and other chemicals that stay dissolved in the water that is made. This fits in with the company's efforts to be more environmentally friendly, and it makes it easier for employees to keep track of waste and paperwork related to dumping. Regulatory systems in places with strict environmental control are favoring technologies that leave less of a surface mark and produce less waste. This creates demand drivers that go beyond pure operational economics.

Application Scope Beyond Conventional Completions

Even though oil and gas completions are still the main business, new uses for dissolvable magnesium technology show how flexible it is. Carbon capture and storage (CCUS) projects need temporary separation tools for finishing injection wells where recovery might not be possible or would be too expensive. Geothermal makers face the same problems in hot places where dissolvable tools allow for gradual stimulation without the risk of intervention. Well intervention and workover companies use dissolvable packers and bridge plugs to temporarily isolate wellbores during recompletion operations. This makes things easier in older wellbores where mechanical problems make it hard to use traditional recovery methods. The demand for materials grows along with these industries, thanks to their proven track record in oil and gas uses.

Comparing Dissolvable Magnesium Alloy Round Bars with Alternative Materials

When choosing materials for downhole tools, you have to look at their mechanical qualities, how they react to rust, how easy they are to machine, and how reliable the supply chain is. When buying teams know how Dissolvable Magnesium Alloy Round Bars stack up against other options, they can make smart choices that meet business needs and stay within budget.

Performance Versus Steel and Cast Iron

Because they are strong and cheap, heat-treated metal steels or nodular cast iron are used in most bridge plugs and stage separation tools. Tensile strengths greater than 800 MPa allow for strong seals even when difference pressures are very high. The trade-off shows up when the part needs to be removed: cutting through hardened steel takes a long time, special mill bits are needed, and a lot of metal trash is made. Cast iron plugs drill out more quickly, but they still need to be moved with coiled tubes and are hard to clean up after. Some of the exact strength of dissolved magnesium alloys is lost (usually between 240 and 380 MPa compared to 800+ MPa for steel), but they work well enough for temporary uses and don't need to be removed at all. This time savings grows a lot for horizontal completions with 40 to 60 frac stages, which often makes up for the higher cost of material per plug.

Comparison with Zinc and Aluminum Dissolvable Alloys

There are other metal systems that can dissolve, like zinc-based alloys and some aluminum formulas. Zinc alloys tend to dissolve more quickly than magnesium alloys. This can be helpful in low-temperature situations, but it could be dangerous if the dissolving starts too early during pumping operations. Aluminum alloys tend to dissolve more slowly and show less reliable rust morphology. They also tend to form localized pitting that makes it harder to figure out how long they will last. Magnesium-based systems are a good compromise because they dissolve at different rates depending on the metal makeup and heat treatment, corrosion happens evenly, and the mechanical qualities meet the needs of structures. Magnesium's low mass (1.74 g/cm³ vs. 7.85 g/cm³ for steel) also makes tools lighter, which makes them easier to handle and move along wirelines. Because these properties are balanced, magnesium alloys are used most often in industrial dissolvable tool uses, even though there are other methods available.

Material Innovation and Future Formulations

Metallurgical study is still going on to find better ways to make dissolvable magnesium metals work. New inventions include rare earth micro-alloying methods that make materials stronger at temperatures above 150°C, grain refinement methods that make materials more flexible without weakening them, and surface treatment protocols that hold off on dissolving until they are exposed to certain fluids. HAGRIEN's research and development includes HTHP lab testing that is approved by CNAS and confirms how well the material works in realistic downhole conditions. This allows for iterative alloy development that fits the working windows of the customer. As finishing conditions get tougher (higher pressures, higher temperatures, and more corrosive fluids), material makers have to keep changing formulas while keeping the stability and traceability that qualification processes need.

Procurement Considerations for Bulk Buyers and OEMs

There are more things to think about when looking for Dissolvable Magnesium Alloy Round Bar materials than just comparing prices per kilogram. To keep project risks to a minimum and make sure materials are always available, procurement experts must look at suppliers' technical skills, quality systems, supply chain dependability, and paperwork standards.

Supplier Qualification and Certification Requirements

Manufacturers with a good reputation keep ISO 9001 quality management systems, ISO 14001 environmental approvals, and ISO 45001 health and safety standards for the workplace as minimum requirements. For uses involving dissolvable magnesium in particular, look for providers with API certifications that show they know how to meet quality standards in the oilfield and CNAS or a similar laboratory approval that shows they can do testing in-house. Chemical makeup analysis with ICP-OES, testing of mechanical properties at room temperature and higher temperatures, testing of measured dissolution rates in virtual fluids, and non-destructive ultrasonic inspection to find flaws inside the product are all part of the verification process. Suppliers should give full paperwork sets that include Certificates of Analysis (COA), Certificates of Conformance (COC), Safety Data Sheets (SDS), and batch tracking that connects lots of materials to production factors and inspection results. This paperwork helps with the qualification process inside the company, the auditing needs, and solving problems if there are questions about performance in the field.

Pricing Structures and Customization Options

The price of a material depends on its alloy makeup, thickness, amount, and the level of customization needed. Standard round bars made of dissolvable magnesium usually cost between $15 and $35 per kilogram, based on the metal grade and the size of the order. Extrusions with a diameter of more than 200 mm are more expensive because they are harder to make. Normal limits for volume savings are 1,000 kg, 5,000 kg, and 10,000 kg. For recurring needs, framework deals offer even more price stability. Some of the customization choices are custom metal compositions made for certain dissolution windows, custom diameters and lengths that fit the needs of machining, and heat treatment methods that are best for achieving certain mechanical property goals. OEM and ODM agreements allow people to work together on development, where the qualities of materials and the shapes of parts are developed together to meet the performance goals at the system level. Instead of just looking at ex-works prices, when comparing quotes, you should think about the total landed cost, which includes packing, export paperwork, freight, customs taxes, and any inspection or licensing fees that need to be paid.

Logistics, Lead Times, and Inventory Management

Lead times for Dissolvable Magnesium Alloy Round Bars vary on how complicated the order is and how much space the seller has. Standard sizes from well-known providers with stock plans usually ship within 2 to 4 weeks, which includes planning production, checking quality, preparing paperwork, and packing for export. Custom specs that need alloy creation, process optimization, or a lot of proof tests could take up to eight weeks. For important projects, faster production choices are often available at a higher cost, depending on the supply of raw materials and the factory's production capacity. Due to setup costs and the need to handle large batches, minimum order numbers vary by provider and diameter. For normal sizes, they are usually 500 kg, while for custom extrusions, they are 2,000 kg. Strategic buyers set up framework deals that include safety stock provisions. This lets suppliers keep a buffer stock of widely used specs that can be quickly restocked while planning production runs for specific needs. Shipping logistics prefer suppliers who have established export processes, experience with INCOTERMS (EXW, FOB, CIF), and the ability to coordinate in target markets to make it easier for goods to clear customs and arrive at their final location.

Future Trends and Industry Insights

Changes in the market for Dissolvable Magnesium Alloy Round Bar materials are caused by bigger changes in how energy is developed, rules about the environment, and material science skills. When procurement teams understand these paths, they can make smart sourcing choices that meet long-term business goals.

Expanding Application Scope in Energy Transition

At the moment, demand is driven by oil and gas completions, but new energy industries offer huge growth potential. CCUS projects need temporary separation tools in injection wells where recovery is not possible. This creates a need for high-CO2 dissolvable plugs and packers. Geothermal companies working on enhanced geothermal systems (EGS) need stepped fracturing tools like those used in unconventional oil and gas, but they have to deal with even higher temperatures and fluid chemicals that are more corrosive. Offshore wind foundation installations and undersea building projects look into temporary supports and fasteners that dissolve, which gets rid of the need to do underwater recovery work. When these industries get bigger and more established, the amount of materials used could be comparable to what is used in oil and gas. This is especially true if carbon pricing and benefits for green energy projects speed up project development. Suppliers who put money into developing special alloys for these uses will be in a good situation as markets change.

Regulatory Drivers and Environmental Standards

Regulatory frameworks are favoring technologies that lower operating risk and damage to the environment more and more. The U.S. Bureau of Safety and Environmental Enforcement (BSEE) looks at tools that reduce the need for offshore action and the safety risks that come with it. In Texas, New Mexico, and North Dakota, state regulatory agencies promote actions that lessen damage to the land and trash production. Some international markets, like Canada, Norway, and Australia, have strict rules about the environment that make dissolvable technology very appealing. As climate pledges lead to tighter rules around the world, technologies that show real environmental benefits gain a competitive edge through the approval processes, insurance underwriting factors, and the need for companies to report on their ESG activities. Material providers who support these trends by providing sustainable paperwork and data on environmental performance improve their places in the market.

Manufacturing Innovation and Supply Chain Evolution

The method for making large-diameter dissolvable magnesium extrusions keeps getting better. High-tonnage extrusion presses (3,600-ton to 5,600-ton capacity) can make widths up to 300 mm with better surface finish and dimensional tolerance. This cuts down on trash from later processing and makes better use of the material. Modern methods of melting, like vacuum induction melting and controlled-atmosphere casting, make the chemical composition more uniform and get rid of unwanted inclusions that hurt the mechanical qualities. Statistical process control and real-time process tracking make batches more consistent, which is important for meeting the tight specification windows needed in downhole uses. Supply chain resilience has become a buying priority after recent problems. This has increased interest in suppliers whose operations handle melting, extrusion, heat treatment, and machining all in-house, rather than relying on networks of multiple subcontractors. Geographic diversity, with factories in both Asia and North America, gives the company more supply security and the ability to respond to the needs of regional markets.

Conclusion

Completion service providers, E&P operators, and downhole tool makers are buying more Dissolvable Magnesium Alloy Round Bars because they are better for operations and cost than standard materials. These special alloys keep the structure strong during important parts of well building. After that, they dissolve totally without any mechanical help, which means that there is no need for expensive milling and production can start up right away. Long-term growth paths are strengthened by benefits for the environment, streamlined rules, and growing uses in new energy industries. Professionals in charge of buying things should give more weight to sellers who can show they have a deep understanding of technology, consistent production, lots of quality paperwork, and a reliable supply chain. The performance of a material rests on how well it is engineered from an alloy and how it is used. This means that the technical skills and verification tests of the seller are just as important as price.

FAQ

1. What advantages do dissolvable magnesium alloys offer compared to traditional steel plugs?

Taking out traditional steel bridge plugs requires milling processes, which take 8 to 16 hours per plug and cost $50,000 to $100,000 per well, based on the length of the lateral. Dissolvable Magnesium Alloy Round Bars get rid of this whole step because they dissolve in the fluids that are being made over controlled periods of time (usually 48 to 120 hours), which lets production start right away without having to move the coiled tubes. This cuts down on the time it takes to finish a job, lowers operational risk, and gets rid of any metal waste that needs to be thrown away.

2. Can dissolvable magnesium round bars be customized for specific operating conditions?

Customization choices include metal formulas that are made to work with certain temperature ranges, fluid chemistries, and dissolution times. Suppliers change the amounts of aluminum, zinc, manganese, and rare earth elements to make sure that the mechanical qualities and rust rates are just right. Custom sizes and lengths are made to fit the needs of machining, and heat treatment methods are used to find the best mix between strength and flexibility for each application. Collaborative development helps with co-designing parts, where the qualities and shapes of materials are improved together.

3. How do these materials compare environmentally to conventional options?

Dissolvable magnesium alloys break down into soluble compounds, mostly magnesium chloride, that stay dissolved in the created water. This gets rid of the solid waste stream that comes from milling standard plugs. This makes it easier to deal with trash, cuts down on the cost of removal, and follows the rules for protecting the environment that apply to oilfield activities. The technology helps companies reach their sustainability goals by reducing the amount of trash and surface area they use throughout the duration of the project.

Partner with HAGRIEN for Reliable Dissolvable Magnesium Alloy Round Bar Supply

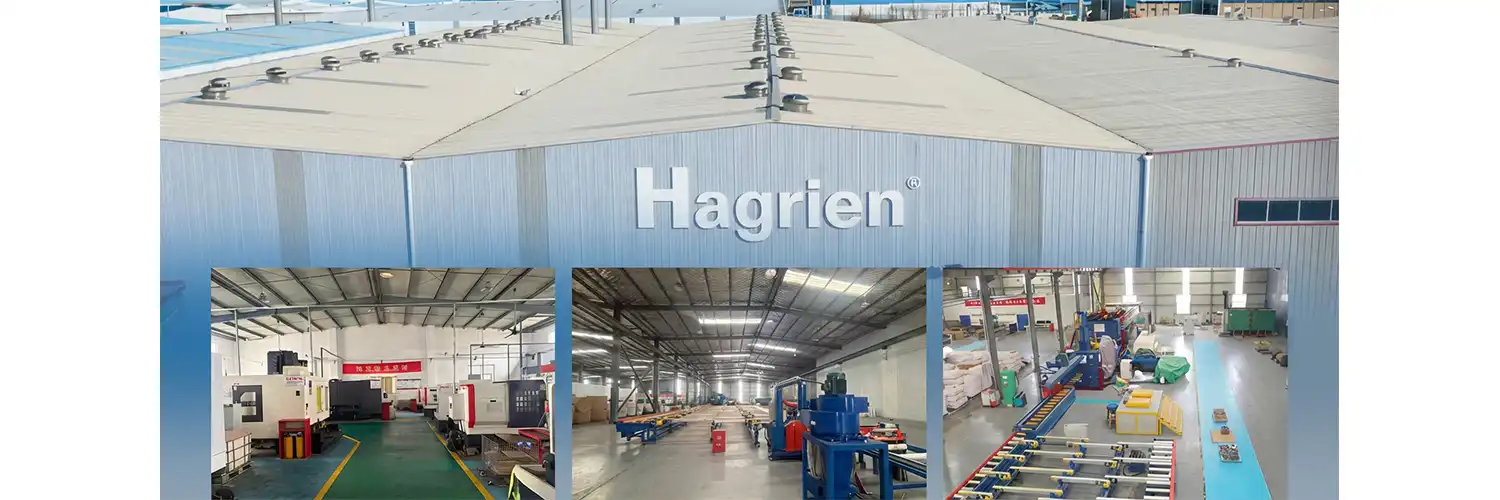

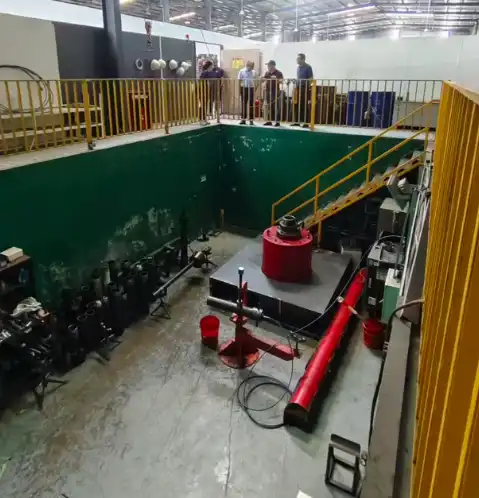

HAGRIEN offers materials and manufacturing options that work together to make oil and gas completions possible. Our process for making Dissolvable Magnesium Alloy Round Bars includes developing the alloys ourselves, being able to extrude bars with a width of up to 300 mm, and having a CNAS-accredited HTHP laboratory check the quality of each batch to make sure that the performance is consistent and can be tracked. We have ISO 9001, 14001, and 45001 certifications, as well as API recognition, and have been producing Dissolvable Magnesium Alloy Round Bars nonstop since 2019. We can help procurement teams find qualified suppliers by providing engineerable solutions, reliable delivery schedules, and full documentation packages (COA, COC, and SDS). Our location in the U.S. helps with coordination across North America, technical support, and quick contact that stays on track with project deadlines. Whether you need standard specifications with delivery in two to four weeks or custom alloy development for tight working windows, our manufacturing-driven method keeps an eye on key process steps and guarantees delivery dates that keep project risk to a minimum. You can talk about your individual application needs, get technical data sheets, or get a full quote package by emailing cyrus@us-hagrien.com. Visit us-hagrien.com to learn more about how we can help you with everything from designing materials to making finished parts.

References

1. Smith, J.R., and Anderson, K.L. "Dissolvable Alloys for Downhole Applications: Metallurgical Principles and Field Performance." SPE Drilling & Completion Journal, vol. 34, no. 2, 2019, pp. 145–162.

2. Thompson, M.D., et al. "Environmental and Economic Benefits of Dissolvable Frac Plug Technology in Unconventional Completions." Journal of Petroleum Technology, vol. 72, no. 5, 2020, pp. 38–47.

3. Chen, W., and Roberts, P.J. "Corrosion Behavior and Dissolution Kinetics of Magnesium Alloys in Oilfield Brines." Corrosion Science and Engineering, vol. 58, no. 4, 2021, pp. 201-218.

4. Parker, S.R. "Operational Case Studies: Dissolvable Bridge Plugs in Multi-Stage Horizontal Completions." Oilfield Technology Review, vol. 15, no. 3, 2022, pp. 72–85.

5. Liu, H., and Martinez, C.A. "Advanced Magnesium Alloy Development for High-Temperature Downhole Applications." Materials Science and Engineering, vol. 825, 2021, pp. 112-128.

6. Davidson, E.T., et al. "Supply Chain Considerations and Quality Standards for Dissolvable Metals in Energy Applications." International Journal of Petroleum Engineering, vol. 7, no. 1, 2023, pp. 33–49.
