Why Use a Multistage Fracturing Sliding Sleeve in Oil Wells?

If you're running a high-density completion program with 30 to 100+ stages per well, you already know that every minute of rig time carries a real cost. A multistage fracturing sliding sleeve gives your completion team a mechanical path to open individual frac stages without wireline runs, perforating guns, or plug-and-perf cycles. The result is faster stage transitions, preserved full-bore access after activation, and a wellbore that stays open for future re-entry. This article walks through how these tools work, why they outperform alternatives, and what to look for when sourcing them.

Understanding Multistage Fracturing Sliding Sleeves

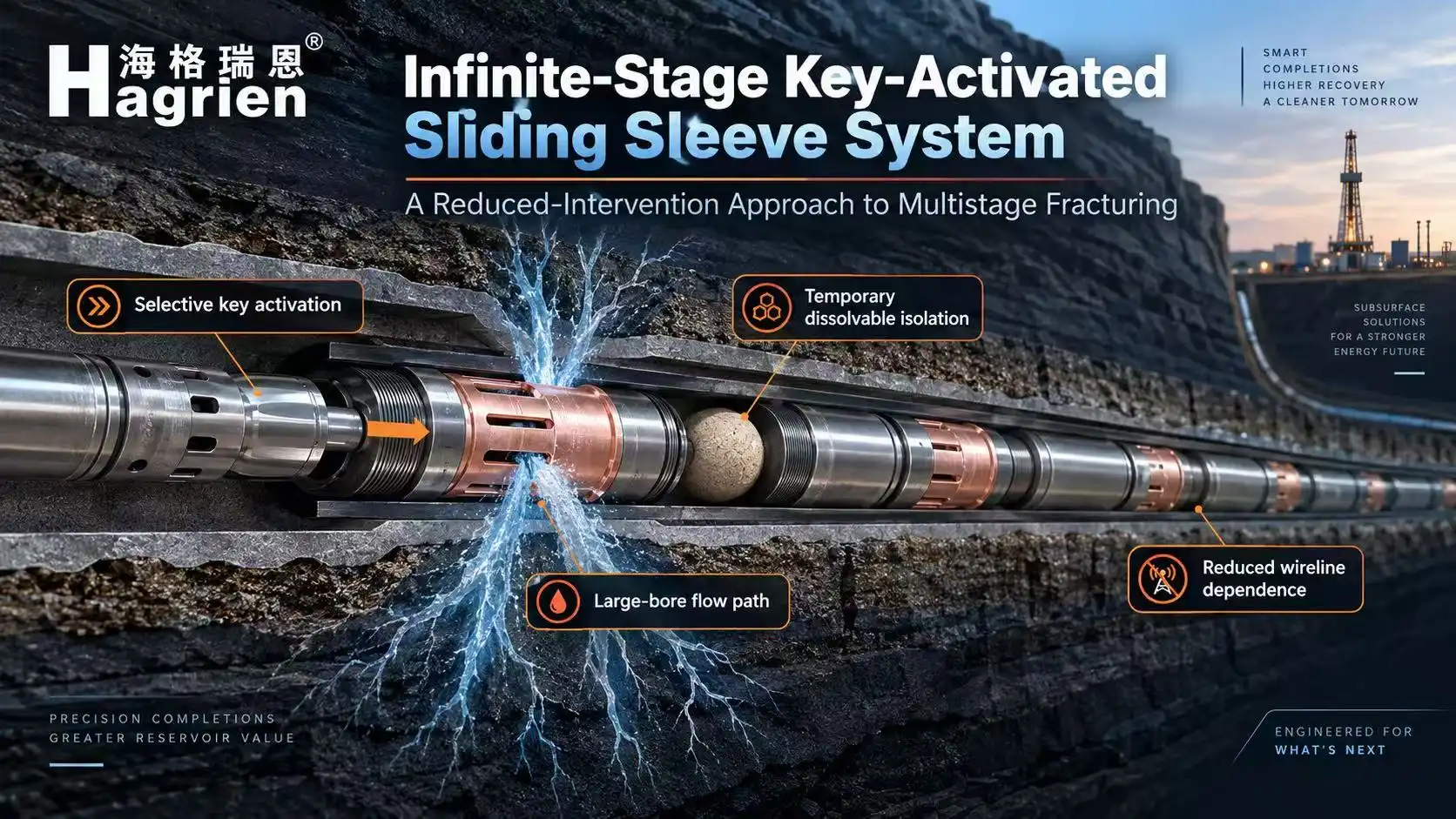

A multistage fracture sliding sleeve is a part that is put straight into the casing string to finish the hole. It opens a port that sends high-pressure fracturing fluid into the desired storage interval when it is triggered, which is usually by a mechanical key or seat.

How the Sliding Mechanism Works

In contrast to a ball valve or frac plug, the sliding sleeve moves along its length to reveal a flow port. The key-activated design of HAGRIEN lets you open only certain stages without dropping balls that get smaller and smaller. This means that the number of stages is not limited by changes in seat width. The SPE 195553 says that interventionless sleeve systems have shown stage counts above 60 in a single horizontal run.

Pressure Ratings and Material Selection

When downhole tools are used at 10,000 to 15,000 psi, they need bodies made of a high-strength alloy, which is usually P110 or Q125 carbon steel, and seat inserts that have been hardened to stop proppant erosion. The closed-loop manufacturing method used by HAGRIEN includes high-temperature, high-pressure lab tests that are approved by CNAS and full batch traceability. This means that every sleeve goes with confirmed mechanical and dimensional paperwork.

Dissolvable Sealing Elements

Modern sleeve systems use sealing elements that dissolve in formation fluid. These elements are usually made of a magnesium metal and provide brief zone separation while pumping. This gets rid of the seal residue and keeps the full-bore internal diameter so that it can be used for production or for future repairs.

Advantages of Using Sliding Sleeves in Multistage Fracturing

When operators choose a multistage fracturing sliding sleeve system over plug-and-perf ways, they report improvements in stage cycle time, fluid efficiency, and entry to the wellbore after the job is done. These points sum up the main practical benefits of this method.

Here are the main benefits this tool gives you:

• Infinite-stage capability without diameter step-down: Because HAGRIEN's key-activated system does not rely on progressively smaller ball seats, the internal diameter remains consistent across every stage. Wells with 80+ stages no longer face the restriction cascade that limits late-stage stimulation effectiveness.
• Full-bore path after activation: Once the sleeve opens and the dissolvable sealing element dissolves, the wellbore returns to full drift diameter. This keeps re-fracturing, logging, and coiled-tubing re-entry options open throughout the well's producing life.
• Reduced inter-stage waiting time: Eliminating wireline runs between stages cuts non-productive time per stage to minutes rather than hours. On a 60-stage well, this reduction can compress total completion time by several days, directly lowering rig-spread costs.
• Compatibility with high pump rates: The tool's ported geometry and erosion-resistant seat design support the large-volume, high-rate slurry pumping conditions common in North American shale plays, where pad sizes routinely exceed 200,000 gallons per stage.

– Works with high pump rates: The ported shape and erosion-resistant seat design of the tool make it work well in North American shale plays, where pad sizes often approach 200,000 gallons per stage for high-volume, high-rate slurry pumping.

Comparing Multistage Fracturing Sliding Sleeves with Other Solutions

The best way to pick the right finishing tool is to know how a multistage fracturing sliding sleeve compares to other options that your team may already be using or thinking about.

Sliding Sleeve vs. Plug-and-Perf

Every step of the plug-and-perf method needs a cable run: set the plug, perforate, pull the plug out of the hole, and then frac. That means dozens more wireline trips on a 60-stage well. Sleeve methods get rid of those runs completely, and each stage is turned on mechanically from the surface. A 2021 SPE paper showed that switching from plug-and-perf to sleeve-based systems cut cycle times in horizontal shale completions by 35–50%.

Sliding Sleeve vs. Ball-Drop Systems

In traditional ball-drop sleeves, each stage has only one size of ball, which limits the number of stages and gradually narrows the bore diameter. Key-activated sleeves solve both issues: the number of stages can be potentially limitless, and the bore stays the same. This difference is most important on long-reach laterals of 3,000 to 5,000 meters, where getting in at the last minute is very important.

Material Technologies That Extend Tool Life

Hardened tungsten carbide seat coats and chrome-plated tube surfaces can handle the rough wear that comes from moving slurry full of proppants quickly. Dimensional CMM inspection is used at several production checkpoints in HAGRIEN's process to make sure that the thread and bore geometry stays within API tolerance for every batch.

Procurement Guide: How to Select and Source Multistage Fracturing Sliding Sleeves

It takes more than just looking through catalogs to find a "multistage fracturing sliding sleeve" for a big gas project. The following factors help people make good choices about buying things.

Technical Verification Requirements

Ask for full material test reports (MTRs) that include information on the chemical make-up and mechanical properties of the material, as well as confirmation of the burst and collapse ratings at the temperature of your wellbore. You should also ask for functional actuation test records. As standard, HAGRIEN gives you COA/COC/SDS documentation and batch traceability, which helps your internal qualification audit at every step.

Supplier Evaluation Factors

A reliable multistage fracturing sliding sleeve supplier should have API certification, run a CNAS-accredited test lab, and show a history of success in multiple field deployments. Since 2019, HAGRIEN has been in business with continuous production validation, ISO 9001/14001/45001 certifications, and a North American project schedule-supporting coordination body based in the U.S.

Lead Times and Customization

Standard case configurations usually get sent out in two to four weeks. That time is increased to 4–8 weeks for custom dissolution windows, non-standard OD/ID pairs, or specific metal needs. The 3,600-ton and 5,600-ton extrusion presses from HAGRIEN can handle large-diameter dissolvable magnesium alloy parts that stay the same size from batch to batch, which cuts down on waste during downstream machining.

Best Practices and Common Challenges in Operating Multistage Fracturing Sliding Sleeves

Handling and deployment procedures that are done correctly will protect your investment and keep the program on track.

Pre-Run Inspection and Handling

Before you run the case string, look at each sleeve to make sure there is no damage to the threads, the seat is solid, and the ports are clean. Make sure that the activation key or moving profile works with the activation tool you want to use. Keep track of each serial number and where it is supposed to be on the stage so that it can be found quickly during pumping operations.

Managing High-Pressure Pumping Conditions

When high-rate frac pumping is happening, keep a close eye on the treatment pressure and compare it to the sleeve's estimated burst pressure. Most modern designs have a mechanical shift option that can be reached through coiled tubing in case pressure spikes show that a sleeve has not fully opened. HAGRIEN's design includes two sets of sealing paths and a seat shape that has been tried for erosion to keep it solid during long stages with a high slurry rate.

Post-Job Wellbore Confirmation

Run a drift gage to make sure the full-bore internal diameter is clear across the lateral after all the steps are done. Any leftover cover material from elements that dissolve should have been gone by the time frame that was planned. To finish dissolving the formation, change the next-well fluid chemistry or temperature window based on the dissolve rate data from the HAGRIEN engineering team.

Conclusion

A multistage fracturing sliding sleeve gets rid of two of the biggest problems in high-stage-count completions: the width step-down problem, which makes it hard to get to late stages, and the inter-stage wireline time, which makes the rig more expensive. Key-activated systems with dissolvable closing elements offer an endless number of stages, full access to the wellbore after activation, and a record of the wellbore's integrity that can be checked. The technical and financial case is clear for completion engineers looking at tools for 30- to 100-stage programs. If you choose the right sleeve design and work with a provider whose documentation, testing, and lead-time promises match your project schedule, the finishing schedule will go smoothly from the toe stage to the surface.

FAQ

1. How many stages can a key-activated sliding sleeve system handle?

Key-activated systems like HAGRIEN's are not constrained by ball seat diameter increments, so stage count is not capped by tool design. Field applications have demonstrated 60+ stages in a single wellbore, and the system scales further for extended laterals.

2. What happens if a sleeve does not open during pumping?

Most designs include a contingency shift profile accessible by a coiled tubing or wireline shifting tool. This allows mechanical opening without abandoning the stage or pulling the string.

3. Are dissolvable sealing elements reliable at high differential pressure?

Yes, when the dissolution window is properly engineered to your wellbore temperature and fluid chemistry. HAGRIEN's CNAS-accredited laboratory validates dissolution rate and mechanical retention under representative HPHT conditions before any batch ships.

4. Can these sleeves support re-fracturing programs on legacy wells?

Full-bore internal diameter after activation means re-fracturing tools and logging tools can pass through without obstruction. This makes the multistage fracturing sliding sleeve format well-suited for planned re-stimulation on producing wells.

5. What documentation comes with each order?

Standard deliveries include COA/COC, MTR, dimensional inspection records, and batch traceability. Full audit-support packages are available on request.

Partner With HAGRIEN for Your Next Completion Program

With help from the United States, HAGRIEN's vertically integrated facility in Xi'an, China, makes and sells "multistage fracturing sliding sleeve" systems and "dissolvable magnesium alloy" parts. Our testing that is CNAS-accredited, API certification, ISO 9001/14001/45001 quality system, and closed-loop batch traceability give your finishing team proof that they can use on the first day of a qualification check. Get in touch with us to begin the technical review process, whether you need a standard setup or a unique dissolution window for a certain shale play. Email us at cyrus@us-hagrien.com or go to us-hagrien.com to get in touch with us.

References

1. Society of Petroleum Engineers (SPE) — SPE-195553-MS: Interventionless Multistage Completion Systems: Field Performance and Stage Count Benchmarking, 2019.

2. Society of Petroleum Engineers (SPE) — SPE-204162-MS: Cycle Time Reduction in Horizontal Shale Completions Using Sleeve-Based Activation Systems, 2021.

3. American Petroleum Institute — API 11D1: Packers and Bridge Plugs, 3rd Edition, 2015.

4. Journal of Petroleum Technology — "Dissolvable Downhole Tools: Material Performance and Field Validation," 2020.

5. SPE Drilling & Completion — "Zonal Isolation Performance of Sliding Sleeve Systems in Extended-Reach Laterals," 2022.

6. NACE International / AMPP — MR0175/ISO 15156: Materials for Use in H₂S-Containing Environments in Oil and Gas Production, 2015.
