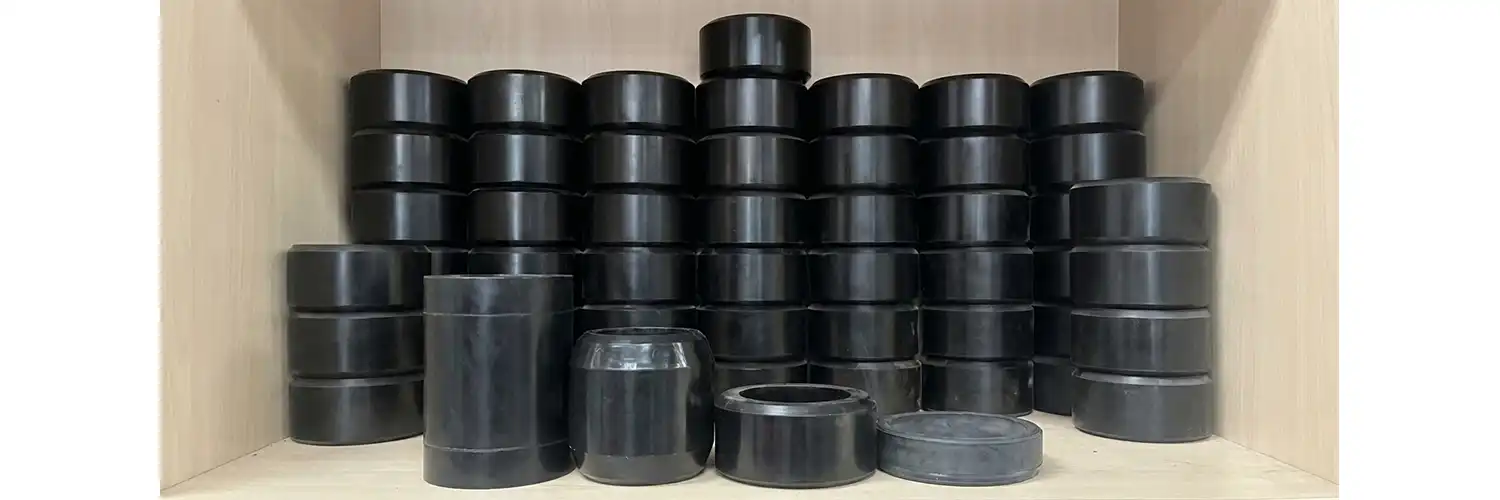

Why Wellbore sealing Rubber Element Suits Harsh Downhole Use

Downhole sealing success depends on choosing elastomeric components built to withstand extreme pressure differentials, corrosive wellbore fluids, and temperature swings that would destroy conventional materials. The wellbore sealing rubber element stands out because it combines flexibility with chemical resilience—two qualities metal seals cannot deliver in high-pressure, high-temperature environments. These precision-molded components adapt to irregular casing surfaces, maintain seal integrity under rapid decompression, and resist degradation from sour gas exposure. The result? Fewer intervention runs, lower NPT costs, and reliable zonal isolation across unconventional completions, offshore operations, and geothermal projects where tool performance directly impacts project economics.

Understanding Wellbore Sealing Rubber Elements

A Wellbore sealing Rubber Element is a special kind of rubber part that is designed to keep downhole tool bodies from touching the wellbore tube or formation face while still letting fluids pass through. These parts are built into packers to permanently separate zones, bridge plugs to control short-term gaps, and blowout preventers for situations where surface safety rests on quick closing.

How These Elements Function

Controlled radial growth is what makes the sealing device work. During the setting of the tool, mechanical or hydraulic force is used to push the rubber element outward to fill the space between the tube and case. This growth makes a constant contact zone that stops fluid from moving from one zone to another. Because the material is naturally flexible, it can work with surface flaws like micro-scratches, scale deposits, or a slightly oval casing that would make rigid metal-to-metal seals less effective.

Material Composition and Selection Logic

Performance is driven by advanced polymer chemistry. Nitrile rubber (NBR) is a cheap way to seal wells that are exposed to hydrocarbons and are kept at moderate temperatures. Hydrogenated nitrile (HNBR) increases its resistance to heat and chemicals. It can also be used in sour gas settings where high levels of hydrogen sulfide would break down regular compounds. Fluoroelastomers (FKM) keep their flexibility and ability to seal at temperatures above 200°C, while EPDM compounds can't be damaged by steam or alkaline fluids used in improved oil recovery. Finding the right polymer means matching the chemistry in your wellbore, the pressure profile, and the length of time you will be isolated with the material's qualities, which can be proven by age tests done in a lab.

Key Performance Specifications

The way these Wellbore sealing Rubber Element parts work under working stress is determined by technical factors. Shore A hardness between 70 and 95 strikes a balance between how well it compresses and how well it extrudes. Softer compounds fit irregular surfaces better, but they could flow into gaps when differential pressure is high. When tensile strength is higher than 15 MPa, breaking doesn't happen during growth and setting. Setting the compression below 25% after 70 hours of service at the service temperature makes sure that the element keeps its sealing force for the whole time it is working. Temperature stability from -50°C to +260°C, depending on the compound used, covers a wide range of applications, from wells in Arctic permafrost to deep geothermal reservoirs.

Why Rubber Elements Outperform Alternative Sealing Solutions in Harsh Downhole Environments

When the wellbore is moving, traditional metal covers can't always work. When metals are exposed to salt water and acidic gasses, corrosion starts to form on their surfaces. Also, when temperatures change, differences in how different metals expand and contract create leak paths. When formation shifts or pressure-induced stress cause the casing to change shape, rigid metal parts can't adapt. This causes the seal to gradually break down.

Flexibility as a Fundamental Advantage

Elastomeric closing elements can mold to the shape of a wellbore in a way that metal can't. When the casing has small ovalities or deformations in one place, which happens a lot during high-pressure fracture, the rubber element changes to keep continuous touch. This flexibility is very important in horizontal wells where the casing may move a little while the proppant is being put in place, or in offshore wells where the bottom moves.

Chemical and Thermal Resilience

Recent progress in material science has led to the creation of elastomers that can work in chemical conditions that were once thought to be incompatible with rubber covers. Hydrogen sulfide levels that are common in sour gas wells don't cause HNBR formulations to swell or harden. Even though they are constantly exposed to organic acids and high-temperature brines, FKM materials keep their mechanical qualities. EPDM-based parts can withstand multiple cycles of steam injection without losing their flexibility, which is necessary for thermal EOR projects where regular seals fail within months.

Pressure Integrity and Extrusion Control

Differential pressures of up to 15,000 psi call for materials that don't easily extrude into circular gaps. High-durometer rubber parts, which are often strengthened with PEEK or composite material anti-extrusion backup rings, keep the rubber from moving into the spaces between the tool body and casing. This design solves a common problem where too much differential pressure pushes softer materials into gaps, which can damage the seal and even cause the tool to break.

Rapid Gas Decompression Resistance

Rapid drops in pressure can make dissolved gasses in the elastomer matrix grow faster than they can flow out, which can lead to interior blisters or cracks. This is a problem that only happens in subsea and HPHT wells. Rubber mixtures made to meet ISO 23936-2 and NORSOK M-710 standards have changed polymer chains and better fix systems that let gas pass through without hurting the structure. This RGD resistance keeps the seal's integrity during controlled pressure reduction or emergency depressurization.

Design Principles and Failure Modes of Wellbore Sealing Rubber Elements

To make seals that work, you have to balance a lot of different performance factors. Chemical compatibility and thermal limits are taken into account when choosing a material, and geometric design is used to get the best compression ratios and contact stress distribution. Knowing why these parts break down helps procurement teams come up with solutions that lower operational risks.

Critical Design Parameters

Compression ratio, which is the percentage drop in element height during setting, has a direct effect on how well the seal works. If there isn't enough tension, there isn't enough contact pressure, and there could be leak routes. When something is compressed too much, it creates high internal forces that speed up creep and lasting deformation. Target compression ratios are usually between 15% and 25%, but they can be different depending on the durometer and the needs of the product. The contact width, which is the horizontal length of the sealing surface, needs to be big enough to spread the stress evenly without making the tool setting process too difficult.

Common Failure Mechanisms and Prevention

Abrasive wear happens when fluids containing proppants flow past the sealing contact while the rock is being fractured. This risk can be reduced by specifying high-durometer compounds that are more resistant to wear. Chemical breakdown can show up as growth, softening, or breaking down, based on the type of fluid and the length of time it is exposed to the chemicals. Fluid compatibility testing for each batch confirms the choice of materials before they are used in the field. Cross-link density changes due to thermal aging make materials less flexible over time. Protocols that speed up the aging process can predict how well they will work in high-temperature environments for a long time. When there is cyclic loading, explosive decompression produces internal voids that spread into cracks. In deepwater and high-pressure settings, RGD-resistant formulations stop this failure mode.

Maintenance and Inspection Protocols

Wellbore sealing Rubber Element components are usually one-time use parts because they permanently change shape when they are set, but pre-deployment inspection is still very important. A visual inspection shows that there are no surface flaws, damage from storage, or contamination. Dimensional verification makes sure that parts fit the shape of the case and the tool specs. Reviewing the documentation makes sure that the materials are certified, that the cure date can be found, and that the project's requirements are met. These quality checkpoints cut down on failures in the field and the costs that come with them.

Procurement Guidelines for Selecting Wellbore Sealing Rubber Elements

Decisions about where to get things affect how reliable they are and how much they cost to own overall. When choosing sealing elements for important downhole uses, procurement professionals need to look at technical compliance, supplier capabilities, and the dependability of the supply chain.

Matching Components to Well Conditions

Start by making a detailed profile of the environment, including the temperature at the bottom of the hole, the required differential pressure, the fluid chemistry (including the amounts of H2S and CO2), and how long you expect the service to last. This information helps with choosing the material and setting up the durometer. High-durometer HNBR elements can handle rough proppant flow and sudden changes in pressure during multi-stage fracturing in unconventional plays. Permanent packers in offshore HPHT gas wells need FKM materials that have been shown to work well over a long period of time. For steam injection applications, you need EPDM or Aflas-based materials that stay flexible even after being heated and cooled many times.

Evaluating Supplier Qualifications

Quality certifications give you some peace of mind, but they need to be checked against more than just reviewing the paperwork. ISO 9001 certification proves that the process is followed, and ISO 14001 and ISO 45001 certifications show that the management is committed to protecting the environment and people. Because the lab is CNAS-accredited, it can do validation tests that are specific to each batch instead of using general material datasheets. Manufacturing consistency is ensured by API recognition and following standard processing specifications. Ask for batch traceability paperwork, such as records of the compounds that were used, how they cured, and inspection data packages (COA, COC, SDS) that help with internal qualification processes.

Standard Versus Custom Solutions

When it comes to popular tool setups, off-the-shelf profiles have faster lead times (usually 2 to 4 weeks) and lower unit costs. Custom parts are used to deal with non-standard shapes, unique weather conditions, or unique tool designs. Custom development takes 4 to 8 weeks and includes things like formulating better, testing prototypes, and increasing output. The choice depends on how much is needed, how important the performance margins are, and whether there are suitable standard options available. Custom engineering costs are justified by larger orders because they improve performance and lower the chance of failure in the field.

Lead Time and Supply Assurance

Project schedules are directly affected by the availability of materials. When suppliers keep extras of common profiles on hand, they can quickly sample and restock Wellbore sealing Rubber Element in case of an emergency. For project-based production models to work, it's important to coordinate forecasting so that the dates of material purchases, molding schedules, and curing cycles are all in sync with the dates of field deployment. Expedited production options offer backup capacity for important projects, but they come at a higher cost. Set up framework agreements for multi-well programs that spell out delivery schedules, buffer inventory levels, and change order protocols to keep schedules as smooth as possible.

Real-World Applications Across Downhole Environments

Performance in the field backs up engineering theory. By looking at how sealing elements work in different operational settings, we can see how useful they are for a variety of completion strategies and reservoir types.

Multi-Stage Hydraulic Fracturing

Unusual shale growth depends on separating different stages of fracture with bridge plugs that dissolve or are made of hybrid materials. When pumping at a fast rate—often more than 80 barrels per minute—differential pressures across the plug can reach 10,000 psi, and slurry containing proppants wears away at the areas that are visible. When high-durometer rubber elements are used, they create brief but complete zonal separation. This stops fluid bypass, which would make stimulation less effective. The plug either breaks down in the wellbore fluids after treatment or is milled out during finish cleanup. One operator in the Permian Basin reported 98.7% sealing success across 450 plug deployments using HNBR elements rated to 175°C. This meant that expensive squeeze operations to fix the leaks were not needed.

HPHT Deepwater Gas Fields

Extreme pressures, high temperatures, aggressive storage fluids, and fast decompression during controlled shutdowns are just some of the problems that come up with subsea wells. Permanent production packers in these settings have to be able to seal effectively for more than 20 years without having to be hacked. An operator in the Gulf of Mexico asked for FKM sealing elements that had been tested and found to be resistant to RGD for wells that were producing at 15,000 psi and 180°C. During seven years of tracking output, steady casing pressure incidents—a key sign of seal failure—happened in less than 2% of completions. This is compared to 12% failure rates with older metallic seal systems.

Geothermal and Steam Injection Projects

During thermal recovery operations, downhole equipment is constantly exposed to high temperatures and is stressed by these temperatures. As steam cycles and cooling times happen, the temperature of the seals on steam injection packers must stay intact even though the temperature can change from room temperature to 300°C. Specialized EPDM formulations don't break down in water and keep their flexibility even after being heated and cooled many times. A heavy oil project in California that used steam-rated sealing elements had an average seal life of more than 1,800 days. This cut the number of workovers by 40% compared to older seal designs and cut the cost of running each barrel by $1.80.

Blowout Preventer Systems

When there is an emergency, surface safety equipment needs to be sealed right away. BOP ram rubbers need to work in seconds, be able to handle the highest wellhead pressure, and stay flexible in a wide range of temperatures, from digging in the Arctic to working offshore in the tropics. When you combine softer sealing faces with harder structural backing in dual-compound elements, you get the best of both sealing performance and mechanical durability. Protocols for testing play out the worst-case situations, such as sudden closure on a pressurized pipe, long-term pressure holding, and multiple activation cycles. These parts are the last line of defense against well flow that can't be controlled, so reliability is a must.

Conclusion

The quality of the sealing decides how well it works, how much it costs to fix problems, and how safe it is to do operations in all types of completions and reservoir conditions. Wellbore sealing Rubber Element parts are more flexible, resistant to chemicals, and able to withstand high pressures than metal plugs in changing downhole conditions. New discoveries in material science keep pushing the limits of performance to higher temperatures, harsher chemicals, and longer service intervals. At the same time, improvements in manufacturing make sure that dimensions stay the same and that the same thing can be made over and over again. Buying things based on choosing the right materials for the job, making sure the supplier meets strict requirements, and looking at the total cost of everything helps both the project succeed right away and the assets last for a long time.

FAQ

1.How long do sealing elements last in harsh downhole conditions?

Service life depends on how harsh the climate is and how the part is designed. Temporary isolation tools, such as frac plugs, work for a few days to a few weeks before the planned mill-out or dissolution. Permanent output packers in conventional wells with low temperatures usually last longer than 15 years. Because of faster thermal aging, HPHT uses shorten the projected life to 5–10 years. However, new FKM materials make this window longer. Instead of waiting for the seal to fail, operators usually plan to change the packers during planned workovers.

2.Can rubber elements handle extreme temperature variations?

Thermal capability depends on the choice of compound. Between -20°C and 100°C, standard NBR works consistently. The upper limit is raised to 150°C by HNBR. Some high-performance FKM types can keep their properties up to 230°C, and some special formulas can go up to 260°C. EPDM can handle the temperatures of steam input while still being flexible at low temperatures. Repeatedly heating and cooling, or thermal cycling, is more difficult than keeping a temperature high all the time. Materials go through qualification tests that simulate field thermal profiles.

3.What advantages do custom elements offer over standard options?

Custom designs make the shape work best for specific tool setups, choose compounds that work best with certain fluids, or include features that deal with certain types of failure. In slim-hole uses, a completion services provider might ask for different contact profiles to lower the setting force. For wells with high proppant loads, they might ask for better abrasion resistance. Custom development takes more time and requires testing prototypes more often, but it provides performance gaps that standard products can't reach in demanding situations.

Partner with HAGRIEN for Enterprise-Grade Sealing Solutions

HAGRIEN makes Wellbore sealing Rubber Element parts that are designed to withstand real-life downhole stress, not just what's written on the specs. Our HTHP laboratory is accredited by the CNAS and checks the performance of the products before they are made. We also integrate dissolvable bridge plugs, packers, and magnesium alloy parts in-house, which makes your supply chain run more smoothly. As a well-known Wellbore sealing Rubber Element provider, we keep a safety stock of standard profiles that can be delivered in two to four weeks. We can also support custom formulations in four to eight weeks, and all of our products come with full batch tracking and COA paperwork. Whether you're in charge of geothermal projects, HPHT developments, or multi-stage fracturing programs, our engineering team can help you choose the right materials and make sure they meet the requirements for the job. This will lower your downstream risk. You can talk about your needs and speed up your next finishing program by emailing cyrus@us-hagrien.com.

References

1. Smith, J. R., and Thompson, K. L. (2021). Elastomeric Seal Performance in High-Pressure High-Temperature Well Completions. SPE Production & Operations Journal, 36(3), 487-502.

2. Nguyen, P. D., and Williams, R. A. (2020). Material Selection Criteria for Downhole Sealing Elements in Sour Gas Environments. Journal of Petroleum Technology, 72(8), 54-67.

3. Anderson, M. E., et al. (2022). Rapid Gas Decompression Resistance of Elastomers: Testing Protocols and Field Validation. Offshore Technology Conference Proceedings, Houston, TX.

4. Chen, H., and Martinez, L. F. (2019). Thermal Aging Effects on Fluoroelastomer Seal Performance in Geothermal Applications. Geothermics, 81, 145-158.

5. ISO 23936-2:2011. Petroleum, petrochemical and natural gas industries — Non-metallic materials in contact with media related to oil and gas production — Part 2: Elastomers.

6. Patel, S. K., and O'Brien, T. M. (2023). Advances in Downhole Sealing Technology for Unconventional Completions. Journal of Canadian Petroleum Technology, 62(1), 22-35.
