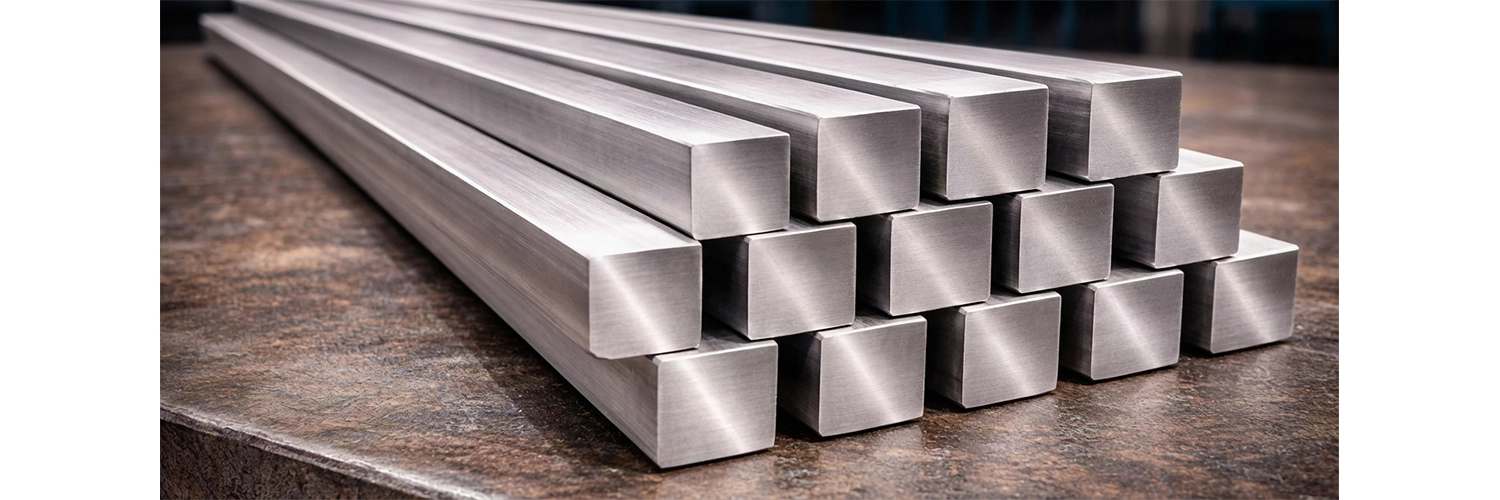

High-Temperature Dissolvable Magnesium Alloy Square Bar

High-Temperature Dissolvable Magnesium Alloy Square Bar

Shaanxi Hagrien Energy Technology delivers the High-Temperature Dissolvable Magnesium Alloy Square Bar, a precision-engineered material combining high mechanical strength with controlled dissolution. Our closed-loop manufacturing system produces square bars with tensile strength ranging from 320 to 450 MPa and yield strength exceeding 280 MPa. With extruded profiles up to Ø300 mm and a controllable dissolution rate of 10–100 mg/cm²·h, these bars maintain structural integrity at temperatures up to 180°C while dissolving completely in wellbore fluids. Backed by our CNAS-accredited laboratory and full traceability documentation, we ensure repeatable performance for your critical downhole applications.

What Makes This Material Essential for Your Operations

You confront critical challenges in offbeat oil and gas recuperation. Conventional completion devices require expensive drill-out operations. They include days to your plan and increment operational risks.

Our square bar fathoms this issue. It gives the quality you require amid water powered breaking. At that point it vanishes on its own.

The square profile offers you a one of a kind advantage. When you machine non-cylindrical locking components, this shape optimizes fabric abdicate. You decrease squander and lower generation costs.

The fabric keeps up its execution in unforgiving situations. Profound wells with temperatures surpassing 150°C? No issue. High-salinity brines? It handles them efficiently.

After serving its reason, the bar breaks down consistently. No processing required. No flotsam and jetsam cleared out behind. Fair a clear wellbore prepared for generation.

Key Performance Specifications

Where You Can Apply This Solution?

1. Multi-Stage Fracturing Operations

You need reliable isolation between frac stages. Our square bars are machined into mandrels and slips for dissolvable bridge plugs. They seal at pressures up to 70 MPa during stimulation. After your job completes, they dissolve into fine particles. Your production path stays clear.

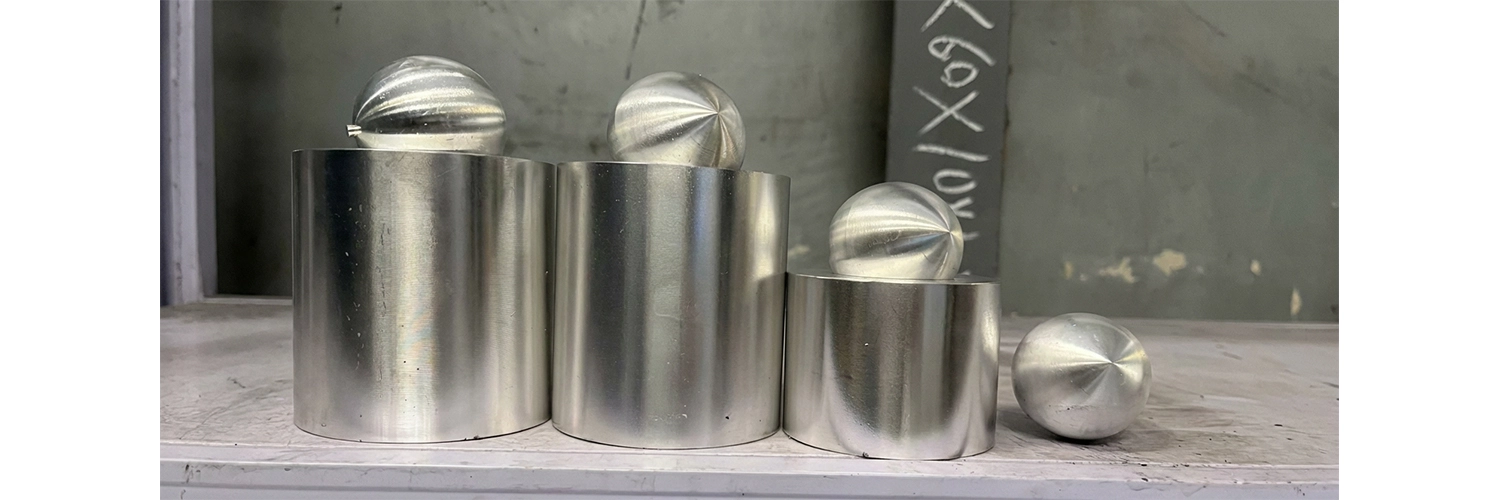

2. Dissolvable Ball Seats and Drop Balls

In horizontal wells with multiple zones, you require precise hydraulic isolation. Components machined from our alloy act as temporary seats. They perform flawlessly in high-salinity environments. Once dissolution begins, they disappear completely.

3. Geothermal Energy Extraction

Standard polymers fail in geothermal reservoirs. You need something stronger. Our High-Temperature Dissolvable Magnesium Alloy Square Bar maintains integrity during thermal stimulation. It provides temporary flow diversion exactly when you need it. Then it degrades in the geothermal fluid, leaving zero residual debris.

4. Offshore Subsea Applications

Subsea trees require temporary internal blocking during installation. Traditional solutions need ROV intervention for removal. Our material offers a better approach. It remains closed until production fluids reach specific temperature and salinity levels. Then it dissolves automatically, reducing your intervention costs.

Why Choose Hagrien's Square Bars?

Engineered for Real-World Conditions

We do not plan in a vacuum. Our combination definitions consider your genuine working parameters. Temperature ranges. Saltiness levels. Liquid chemistry. Anticipated disintegration timeline.

This approach conveys ideal adjust. You get the quality and durability required. Also the controlled disintegration rate you need.

Manufacturing Brilliance You Can Trust

Our closed-loop framework controls each step. From amalgam softening to exactness expulsion. We keep up strict prepare discipline.

The result? Uniform microstructure. Dimensional soundness. Tall surface quality.

These variables essentially decrease your machining dangers. They minimize scrap rates. They guarantee steady instrument performance.

Verification and Full Traceability

Every group comes with total documentation. Certificate of Examination. Certificate of Conformance. Security Information Sheets.

Our CNAS-accredited research facility approves each generation run. You get clump traceability and assessment records. This guarantees smooth provider capability and review readiness.

Responsive Worldwide Service

We get it your venture timelines matter. You get RFQ reactions inside 24 hours. Citations arrive in 1–3 trade days.

Standard items transport in 2–4 weeks. Custom arrangements take 4–8 weeks. Require quicker conveyance? We offer assisted options.

Our U.S. substance gives coordination adjusted with North American plans. You get week after week extend upgrades. Communication is clear and timely.

Technical Focal points That Ensure Your Investment

Controlled Disintegration Chemistry

Dissolution takes after exact electrochemical standards. We design the combination composition to coordinate your environment.

The item won't break down rashly. It won't wait after its valuable life. You get unsurprising timing calibrated to your particular temperature and saltiness windows.

Stress Erosion Splitting Resistance

High-pressure situations make stretch. Combined with destructive liquids, this can cause untimely failure.

Our specialized warm treatment anticipates this. Alloying with uncommon soil components upgrades resistance. Your instruments won't snap beneath stack some time recently they're implied to dissolve.

Superior Machinability

You can handle our square bars utilizing standard CNC hardware. Fair take after magnesium-compatible conventions. Utilize suitable coolants. Keep up sharp tooling. Take after fire security guidelines.

The square geometry decreases fabric squander amid machining. You accomplish superior yields on complex geometries.

Exhibition

Frequently Asked Questions

How does temperature affect dissolution rate?

Temperature significantly influences dissolution speed. The reaction follows Arrhenius principles—higher temperatures accelerate the process.

We calibrate our bars for stable performance within specific windows, typically 90°C–150°C. This prevents "flash dissolution" while ensuring timely degradation. If your well runs hotter or cooler, we can adjust the alloy composition accordingly.

What if my well salinity differs from standard conditions?

We offer multiple alloy grades. For high-salinity environments, we use standard compositions. For low-salinity conditions, we employ more reactive formulations.

This flexibility ensures the material dissolves within your target timeframe, regardless of fluid chemistry variations.

Can I store these bars long-term?

Absolutely. When stored in original vacuum-sealed packaging with desiccant, shelf life exceeds 24 months.

You won't experience any degradation in mechanical properties. Dissolution rates remain unchanged. This gives you inventory flexibility without performance concerns.

Will the material corrode prematurely during transport or handling?

No. Our bars feature protective surface treatments. Proper packaging prevents atmospheric moisture exposure.

Once installed downhole, dissolution only begins when exposed to specific fluid chemistries at elevated temperatures. Surface handling at ambient conditions poses no risk.

Do you provide material certifications?

Yes. Every shipment includes comprehensive documentation. ISO 9001, ISO 14001, and ISO 45001 compliance. CNAS-accredited test reports.

Full batch traceability ensures you can track material from melting through final inspection. This supports your quality management and regulatory requirements.

How do I select the right grade for my application?

Contact our engineering team. We'll discuss your specific parameters: well depth, expected temperature, fluid composition, required tool life, and desired dissolution timeline.

Based on these factors, we recommend the optimal alloy grade. We can also support prototype development if you're designing new tools.

Your Partner in Completion Innovation

We've manufactured dissolvable alloys continuously since 2019. Seven years of production experience. Hundreds of successful applications.

Our engineering-driven approach reduces your trial-and-error costs. We help you move from concept to commercial production faster.

Whether you need standard square bars or custom profiles, we deliver solutions that work. Predictably. Repeatedly. Reliably.

Contact Us Today

Ready to specify the right material for your next project with High-Temperature Dissolvable Magnesium Alloy Square Bar? Reach out to our team: cyrus@us-hagrien.com. We'll respond within 24 hours.​​​​​​​
