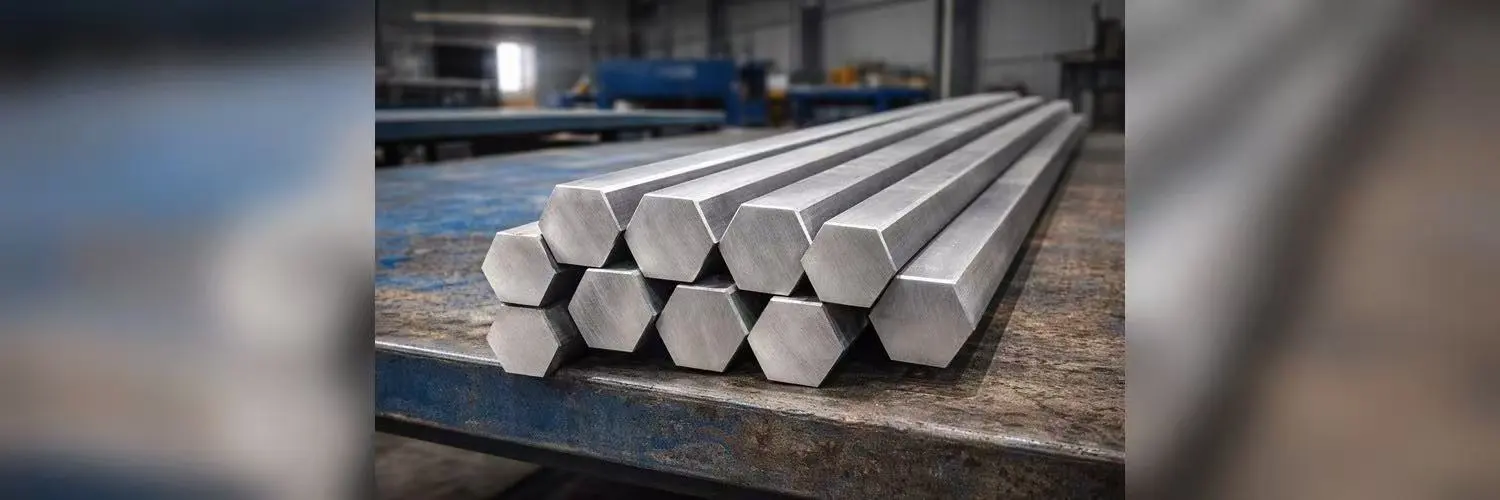

3C electronic Magnesium alloy hex bar for Precision Components

When you're sourcing structural materials for modern consumer electronics, the 3C electronic Magnesium alloy hex bar represents a transformative solution. These precision-extruded hexagonal profiles deliver a rare combination: 33% weight reduction compared to aluminum, thermal conductivity reaching 140 W/(m·K), and electromagnetic interference shielding exceeding 60 dB. Manufactured through controlled alloy melting and extrusion processes adhering to ASTM B107/B107M standards, these hex bars offer dimensional tolerances within h9-h11 grade, uniform grain structure, and complete batch traceability. They're ideal for smartphone internal frames, laptop structural reinforcements, and 5G component housings where performance cannot be compromised.

Understanding Magnesium Alloy Hex Bars in 3C Electronics

For the computer, phone, and consumer goods businesses, 3C electronic Magnesium alloy hex bars are important raw materials. The hexagonal cross-section isn't just a coincidence; it gives better force resistance during automatic assembly. When your production line is putting together dozens of parts every minute, geometric stability keeps things from moving out of place or slipping, which could stop the line from working.

Material Properties That Matter

3C electronic Magnesium alloy hex bars have a density between 1.74 and 1.81 g/cm³, which means that your finished product will feel high-end without losing its strength. That's much less than steel (7.8 g/cm³) or aluminum (2.7 g/cm³). This difference has a direct effect on how comfortable users are and how well batteries work in tablets, drones, and ultraportable laptops. A lighter device can be used for longer periods of time without being charged, which is an immediate selling point for your customers.

Modern processors produce a lot of strong localized heat, so thermal control is very important. Our hexagonal 3C electronic Magnesium alloy hex bars move heat at a speed of 70–140 W/(m·K), which is fast enough to keep heat away from sensitive circuits before they slow down. The hexagonal shape makes more surface contact, which moves heat thru the structure to heat sinks or frame walls on the outside.

Chemical Composition and Mechanical Strength

AZ31B, AZ61A, and AZ91D are all common metal types. AZ31B has a tensile strength of 255-290 MPa and an elongation of 12–21%, which means it can be used for parts that need to be somewhat flexible. AZ61A has a higher strength range of 290 to 315 MPa and a balanced range of 10 to 16 percent elongation for uses that need stiffness. AZ91D works well in die-cast parts, but it can't be used in highly stressed structure uses because it only stretches 3–5%.

Adding manganese and zinc makes the grain smoother and more resistant to rust. These alloying elements make a microstructure that behaves consistently during CNC machining, which cuts down on tool wear and cycle times. When purchasing workers look at basic materials, knowing these small details about their make-up helps them match the materials' properties to the needs of the application.

Machining and Application of Magnesium Alloy Hex Bars in 3C Electronics

To get the best results when machining 3C electronic Magnesium alloy hex bars and keep surface flaws and burrs to a minimum, you need to know how to do certain things. When 3C electronic Magnesium alloy hex bars are processed properly, CNC workers like dealing with them. Strict extrusion control makes sure that the grain is regular. This means that chips form consistently, tools wear less, and cycle times are faster. Fewer parts will be rejected, and the overall cost of machining will go down.

Practical Machining Techniques

Controlled feed rates and sharp cutting tools keep work from stiffening. Mineral oil-based coolants help chips get rid of themselves and lower the risk of fire, which isn't as big of a deal as some people make it out to be as long as you follow standard safety procedures. The hexagonal shape gives you more than one reference surface for fixing things, which lets you do accurate multi-axis operations without making mistakes when moving things around.

If you use the right tool geometry and cutting parameters, you can get surface finishes with Ra values below 1.6 μm. This surface quality gets rid of the need for extra finishing steps in many situations, which speeds up production and lowers the cost per unit.

Real-World Applications

Smartphone frames need strong bases that don't add weight that makes your pockets bigger. High-torque connection points are made from 3C electronic Magnesium alloy hex bars that have been machined into structural links. They keep camera modules stable, stop the motherboard from bending, and can take a hit without breaking. By moving from aluminum to 3C electronic Magnesium alloy hex bars, one company that makes mobile devices cut the frame's weight by 28% and made it better at drop tests.

Ultra-thin computers need ribs on the inside to keep the keyboard deck from bending. Under the palmrest and along the hinge mounts, 3C electronic Magnesium alloy hex bars spread the weight and protect fragile parts while they're being moved. The material can stop vibrations 10 times better than aluminum. It also lowers resonance, which can cause fasteners to come loose or solder joints to crack over time.

5G base station parts that are put on utility poles in cities can't add too much load. Lightweight clips and brackets made from 3C electronic Magnesium alloy hex bars that dissipate heat lower the stress on the tower and control the heat output from high-frequency signal processing. The material's natural EMI protection keeps signals safe without the need for extra, heavy shielding layers.

Materials that aren't magnetic and won't get in the way of compass or optical image stabilization magnets are needed for the frames of drones and camera gimbals. Hexagonal 3C electronic Magnesium alloy hex bars have the right amount of strength to weight and magnetic balance to keep the video steady during violent moves. Professional imaging equipment makers like how the dimensions stay the same when the temperature changes—the thermal expansion rate stays the same for all AZ-series metals at 26 × 10°C.

Magnesium Alloy Hex Bar vs. Other Metal Hex Bars: A Comparative Analysis

To choose the right 3C electronic Magnesium alloy hex bars for precision parts, you need to know how 3C electronic Magnesium alloy hex bars stack up against steel, aluminum, and titanium. 3C electronic Magnesium alloy hex bars have higher specific strength, which means they are stiffer per gram. Internal laptop frames won't bend under the weight of the motherboard, and even after multiple drops, smartphone camera modules will stay in place.

Weight-to-Strength Performance

At 2.7 g/cm³ density, aluminum 6061-T6 has a tensile strength of about 310 MPa. At 290–315 MPa, AZ61A 3C electronic Magnesium alloy hex bar is about as strong as other 3C electronic Magnesium alloy hex bar types, but it is 33% lighter. This weight advantage builds up over assemblies—a laptop chassis with twenty 3C electronic Magnesium alloy hex bar parts saves 120–150 grams compared to aluminum equivalents. This lets bigger batteries or thinner profiles be used without affecting the structure's performance.

Steel is stronger in general, but at 7.8 g/cm³, it's too heavy for small gadgets. Titanium alloys are very strong for how heavy they are, but they cost 8–12 times more than magnesium. This means they can only be used in aerospace or medical settings where cost is an issue.

Thermal and Electrical Characteristics

The thermal conductivity of 3C electronic Magnesium alloy hex bars is between 70 and 140 W/(m·K), depending on the grade. This is lower than aluminum's 205 W/(m·K) and higher than steel's 50 W/(m·K). Aluminum moves heat around more quickly, but 3C electronic Magnesium alloy hex bars have a lower specific heat capacity, which lets active cooling systems respond to changes in temperature more quickly. Once thermal paths are set up thru frame design, heat leaves the system quickly.

Electrical resistivity in AZ metals runs from 92-170 μohm/cm, which means they naturally block 60–80 dB of EMI. High-frequency signals in 5G devices need to be shielded, which 3C electronic Magnesium alloy hex bars do naturally. Aluminum and steel, on the other hand, need extra surface processes or coats to work as well.

Corrosion Resistance and Surface Treatments

3C electronic Magnesium alloy hex bars that haven't been treated are less resistant to corrosion than aluminum. Micro-Arc Oxidation (MAO) or chromate-free conversion coats, on the other hand, make protective layers that are better at resisting wear and rust. These treatments add very little weight while allowing 3C electronic Magnesium alloy hex bar parts to pass salt spray testing according to ASTM B117. This proves that they will last in wet or salty environments.

Aluminum's natural oxide layer provides basic protection, but 3C electronic Magnesium alloy hex bars can do the same or better with the right surface treatment. The important thing is to talk about the right post-extrusion processes when buying the materials.

Procurement Insights: Sourcing Magnesium Alloy Hex Bars for 3C Electronics

To be successful at procurement, you need to buy from sellers who meet strict quality and safety standards. When you evaluate a manufacturer, you need to look at their certifications, production capabilities, and the reliability of their supply chain. These things determine if your material will arrive on time and have the same properties from batch to batch.

Supplier Evaluation Criteria

Certifications like ISO 9001, ISO 14001, and ISO 45001 show that a company takes care of quality management, the environment, and workers' health in a planned way. API recognition and CNAS-accredited lab skills show technical proficiency in validation and testing. Manufacturers who have their own extrusion lines with a capacity of up to Ø300 mm can keep the microstructure, structural stability, and surface quality of each batch the same. This lowers the risks of cutting that comes after. Production knowledge is important. Suppliers who have been in production nonstop since 2019 have had to go thru learning curves in alloy formulation, process optimization, and defect prevention. They know how to adjust process settings for different working windows so that strength, toughness, machinability, and controlled properties are all balanced.

Ordering Considerations and Lead Times

Depending on the quantity, the scope of the inspection, and the documentation needs, standard 3C electronic Magnesium alloy hex bar sizes usually ship within two to four weeks. It takes 4 to 8 weeks for custom standards or engineering conditions to be met, which includes matching the alloy, making process specs, and testing to make sure they are correct. There are faster choices for important projects when capacity and raw material supply match up. For standard grades, the minimum order quantity starts at 500 to 1,000 kg, but it varies from manufacturer to manufacturer. For custom metals or sizes that aren't standard, the MOQ may need to be higher to cover the costs of setting up the tools and the process. When buying in bulk for large-scale electronics production, framework deals should be negotiated that spell out shipping schedules, stable prices, and emergency replenishment procedures.

Documentation and Traceability

A Safety Data Sheet (SDS), a Certificate of Analysis (COA), and a Certificate of Conformance (COC) should be in every batch. Having paperwork that is ready for an audit speeds up the process of qualifying suppliers and meets the needs of an internal review. The Optical Emission Spectroscopy (OES) method confirms the exact alloying elements while limiting impurities like iron, nickel, and copper that make corrosion faster. Coordinate Measuring Machines (CMM) check the 'Width Across Flats' to a h9–h11 tolerance. This makes sure that your automatic production lines won't get stuck or out of place. The ASTM E112 metallographic test makes sure that the grains are fine and regular. This consistency means that the behavior of the machine and its mechanical performance can be predicted. Ultrasonic and Eddy Current non-destructive tests find cracks or holes inside materials before they get to the shop floor. This keeps expensive fails from happening in the middle of production.

Why Choose HAGRIEN's Magnesium Alloy Hex Bars for Your 3C Precision Components

Picking the right supplier is what makes the difference between your production going smoothly and having to deal with costly problems. HAGRIEN has uniform chemical and mechanical qualities that are made for use in high-precision electronics. Our closed-loop manufacturing system includes precision machining, extrusion, metallurgy control, and melting alloys. This means that there are no risks when the work is passed from one supplier to another.

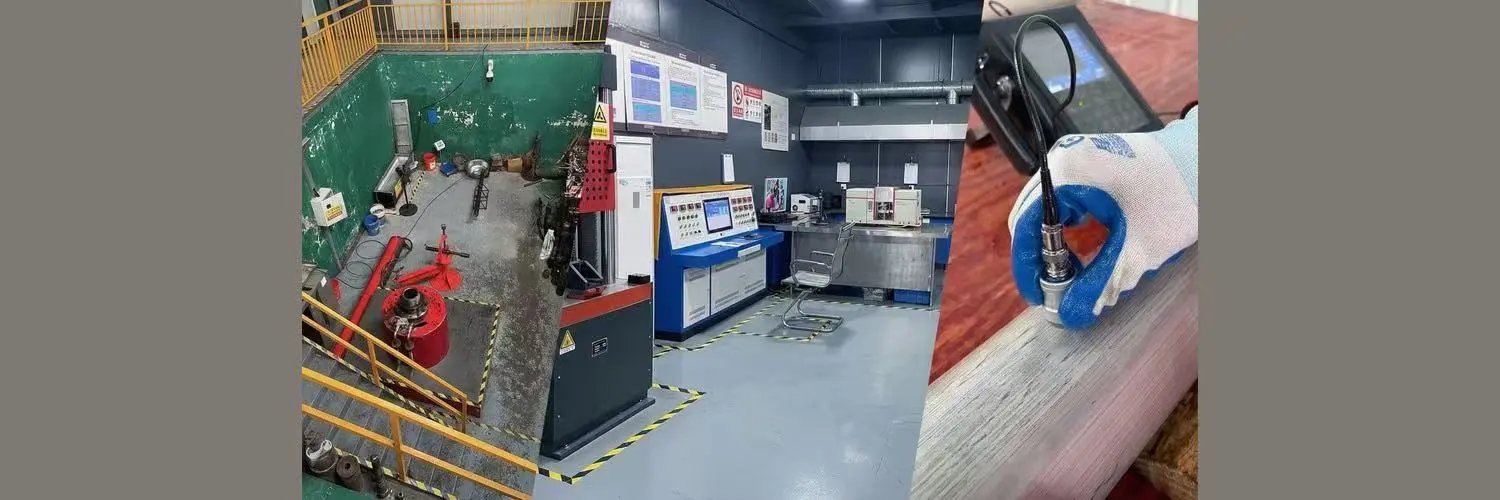

Quality Assurance Through Integrated Production

We have extrusion presses that can make 3C electronic Magnesium alloy hex bars up to Ø300 mm and 3,600 tons and 5,600 tons, respectively. With this large-diameter feature, batch consistency is maintained even for large orders. Strict process controls keep the dimensions stable, the microstructure uniformity, the surface quality, and the straightness. This lowers the risks of scrap and rework in later steps. Our high-temperature, high-pressure laboratory is approved by the CNAS and tests materials to make sure they work well in situations that are similar to those in your application. Anti-corrosion pretreatments are tested with salt spray, and material specs are confirmed with tension and fatigue tests. Before you commit to full-scale production, you get proof that the product will last.

Engineering Support and Customization

We change the process parameters and alloy systems based on what you need for your operating window. Our metallurgy team can improve recipes to meet your needs, whether you need better thermal conductivity for heat-sensitive parts or better EMI shielding for RF-sensitive components. This engineer-friendliness goes from making prototypes to mass production, with process windows that can be repeated and that grow regularly. The ability to choose custom dimensions lets you meet specific design needs without having to give up math. We help you choose materials based on their use, balancing weight, strength, heat performance, and cost within the limits of your product.

Supply Chain Reliability

Having a safety store of widely used 3C electronic Magnesium alloy hex bar sizes allows for quick sampling and quick restocking in case of an emergency. When you use dynamic inventory management based on size and alloy system, you don't have to wait for production lines to clear when project deadlines get squished. Our U.S. branch handles logistics in North America and offers flexible trade terms (EXW/FOB/CIF) and weekly progress reports that are timed to match your project's milestones. Material changes can't throw off schedules as much when shipping times are known and supply capacity is stable. We stick to delivery dates because we're in charge of important parts of the production process. If you need to speed things up because of sudden demand spikes or a rushed start plan, you can do so.

Conclusion

The 3C electronic Magnesium alloy hex bar solves the hardest problem in modern electronics: making structures that are light, good at managing heat, and protected from electromagnetic fields without sacrificing strength or ease of production. Choices about materials have effects on every part of a product's lifecycle, from how well it works on the assembly line to how happy the end user is with it. Compared to aluminum, steel, or titanium options, 3C electronic Magnesium alloy hex bars are better at reducing weight, managing heat, and blocking electromagnetic interference (EMI). To do good procurement, you need to work with suppliers who can give you more than just materials. You also need engineering help, quality documentation, and a reliable supply chain. In the fast-paced consumer goods market, your choice of raw material supplier has a direct effect on your production prices, time to market, and ability to compete.

FAQ

1.How does magnesium alloy hex bar compare to 6061 aluminum in thermal management?

In active cooling systems, 3C electronic Magnesium alloy hex bars' lower specific heat capacity lets heat escape faster than aluminum's higher raw thermal conductivity. Because 3C electronic Magnesium alloy hex bars are hexagonal, they have more surface area for heat transfer. This makes them especially useful in small assemblies where heat has to travel thru structural members to reach external sinks.

2.What fire risks exist during CNC machining of magnesium hex bars?

Fire risk is almost nonexistent when chip management is done right, cutting tools are sharp, and coolants are made from mineral oil. Safety rules for working with 3C electronic Magnesium alloy hex bars that are standard in the industry have been shown to work very well in thousands of electronics factories around the world. The key is to keep the cutting speeds right and stop chips from building up.

3.Can magnesium hex bars receive anodized finishes like aluminum?

3C electronic Magnesium alloy hex bars are hard to anodize in the usual way. Micro-Arc Oxidation (MAO) or Plasma Electrolytic Oxidation (PEO) makes ceramic layers that are better at resisting wear and rust. These treatments work better than metal anodizing on the outside of gadgets, and they give you more choices for how they look.

4.Why choose AZ61A over AZ91D for structural smartphone components?

AZ61A is better for structural parts that will be hit or dropped because it is tougher and stretches more (10–16% vs. 3–5%). The less flexible AZ91D is good for die-cast housings but could break in high-stress situations. The choice of material depends on how it will be loaded and how safe it needs to be in your design.

Partner with HAGRIEN for Your Magnesium Alloy Hex Bar Requirements

HAGRIEN offers precise 3C electronic Magnesium alloy hex bar solutions that are backed by ISO 9001, 14001, 45001, and CNAS laboratory validation, as well as API recognition. Our combined production, which includes melting the alloy, extruding it, and cutting it, gives us a level of uniformity that independent wholesalers can't match. With the ability to extrude up to 300 mm, 7 years of continuous production experience, and U.S. logistics coordination, we can help with both making prototypes and making a lot of them. Each batch comes with full tracking paperwork (COA, COC, and SDS), measurements checked to within a range of h9 to h11, and metallographic proof of the grain structure. Get in touch with cyrus@us-hagrien.com to talk to our applications engineering team about your needs for 3C electronic components. We offer expert support, sample coordination, and framework agreements that are suited to the needs of the electronics industry. This is true whether you're looking for a trusted 3C electronic Magnesium alloy hex bar supplier for current production or looking at materials for developing the next generation of products.
