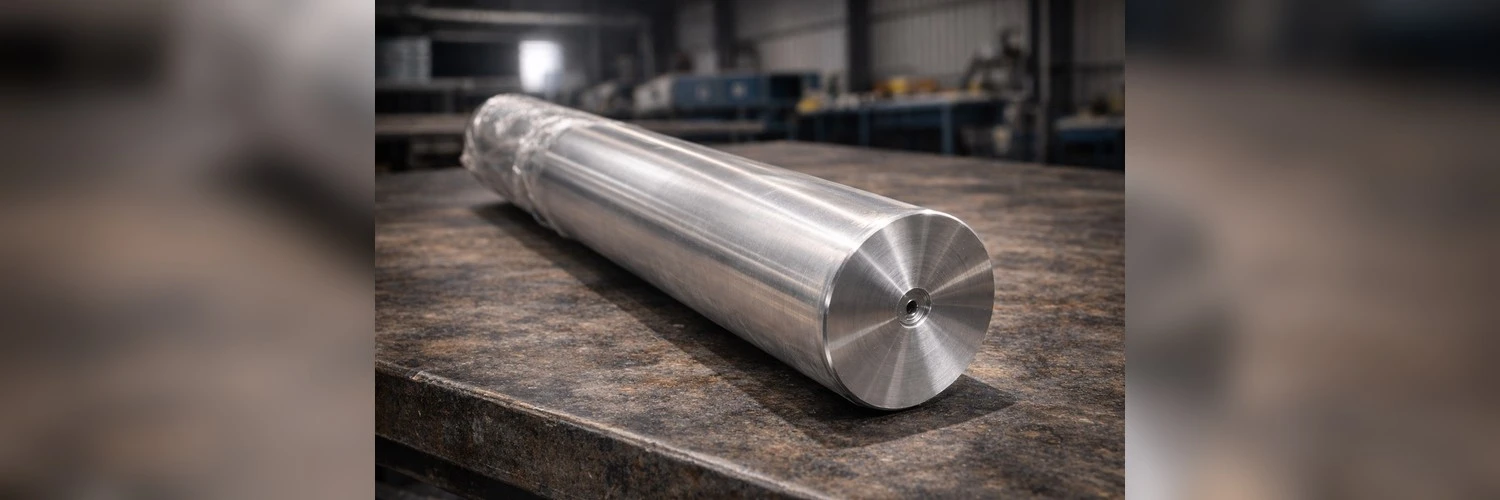

Magnesium Alloy Round Bar: Properties, Uses, and Buying Guide

It is important to know about the properties of magnesium alloy round bars when looking at new materials for making downhole tools and finishing off oil fields. A No retrieval required Magnesium Alloy Round Bar is a special product that can be extruded or forged and is made for uses that need strong-to-lightweight ratios, controlled dissolution, and reliable performance in hard subsurface conditions. These bars, which are made of magnesium mixed with aluminium, zinc, and rare earth metals, make the work of finishing service providers and tool makers easier by getting rid of the need for post-frac milling and intervention steps. This buying guide talks about the technical properties, industrial uses, buying factors, and supplier evaluation criteria that are important for finding high-performance magnesium alloy materials for oil and gas operations.

Understanding Magnesium Alloy Round Bars

Chemical Composition and Common Grades

The alloying components in round magnesium alloy bars make them stronger, less prone to rust, and more stable at high temperatures. Common grades include AZ31B, which has excellent weldability and moderate strength; ZK60A, which has higher tensile characteristics and toughness; and WE43, which is stable at high temperatures and doesn't rust. Special formulations are produced for dissolvable downhole usage to tailor composition and performance to temperature, salinity, fluid chemistry, and desired dissolving timescales.

Heat treatment and extrusion factors affect alloy systems differently. The grain structure, phase dispersion, and mechanical behaviour depend on alloying elements. Chemical certificates and batch traceability paperwork help buying teams ensure manufacturing lot consistency. When adding materials to safety-critical completion equipment like frac plugs, bridge plugs, and packers, this is crucial.

Key Mechanical Properties

The density of magnesium alloy round bars is 1.74-1.80 g/cm³, making them 33% lighter than aluminium and 75% lighter than steel. The lightness makes them simpler to handle and more efficient for assembling and storing equipment. Grade and processing affect tensile strength. Some designed alloys may exceed 250 MPa while being simple to process.

Both damping and hardness matter. Due to its vibration-absorbing properties, magnesium reduces mechanical stress during high-frequency activities like well intervention and hydraulic fracturing. In high-temperature downhole situations, thermal conductivity helps heat escape. Engineers may match material requirements to task requirements by understanding these qualities, guaranteeing the tool will perform dependably for its entire life.

Corrosion Resistance and Heat Treatment

Microstructure, surface state, and environment affect magnesium alloy corrosion. Solution annealing and ageing cycles finetune grain size and distribution to increase mechanical strength and control dissolving rates. New alloy compositions enable engineered dissolving windows. Makers may modify how rapidly objects break down depending on the well fluid, temperature profile, and project timetable.

Surface coatings and treatments may make items more rust-resistant during storage or usage. When introduced to target fluids, they disintegrate predictably. Magnesium alloys are ideal for temporary isolation applications where tools must maintain the structure during installation but break down without mechanical assistance.

Comparison With Aluminum, Steel, and Titanium

Compared to aluminium, magnesium offers higher damping and specific strength. Aluminium has superior general corrosion resistance in non-engineered conditions. Steel is stronger in every manner, but it's heavier, making logistics harder and deployment equipment wear out quicker. Titanium is strong and corrosion-resistant, but it's too costly to process and purchase in volume for disposable downhole equipment.

Because magnesium alloy round bars are simpler to manufacture, CNC cycle times and tool wear are reduced, lowering part costs. Magnesium alloys are often the most cost-effective choice for tool OEMs and completion service providers who want to reduce non-productive time and improve operational efficiency when considering the total cost of ownership, which includes material price, processing efficiency, deployment, and post-operational costs.

Applications of Magnesium Alloy Round Bars in Industry

Dissolvable Downhole Tools for Oil and Gas Completions

No retrieval required Magnesium Alloy Round Bars are mostly used to make dissolvable frac plugs, bridge plugs, and stage isolation tools. These pieces must withstand high temperatures and pressures downhole during hydraulic fracturing. They must dissolve entirely in wellbore fluids without costly grinding. This functionality immediately addresses operations' most bothersome issues, such as quicker rig times, no stuck tool dangers, and faster production starts.

Dissolvable magnesium allows completion service providers to pump continuously between stages in multi-stage fracturing. Controllable dissolution allows workers to adjust degradation time to match production goals. This protects the tool during critical operations and eliminates it before production begins. This makes it popular in the unique Permian Basin, Eagle Ford, and Bakken plays.

Bridge Plug Components and Packers

Bridge plug bodies, slip systems, and packer mandrels are precision-machined from magnesium alloy round bars. Mechanical anchoring and sealing during setting are possible because of the material's high strength-to-weight ratio. Its designed disintegration profile removes all tools within defined durations. OEM and ODM downhole tool producers need consistent material qualities and dimensions to keep tolerances low for sealing and pressure integrity.

Magnesium alloys are lighter and simpler to handle, which is useful for maritime activities when equipment selection is restricted by weight. Workovers and interventions improve safety and operational efficiency by simplifying logistics and reducing worker exposure during tool deployment.

Emerging Applications in CCUS and Geothermal

In addition to oil and gas completions, magnesium alloy round bars are utilised in geothermal energy development and carbon capture, usage, and storage operations. These emerging industries require materials that dissolve and operate in high-temperature, salty fluids to develop. Special alloys that don't rust and function in more temperatures allow for short zone separation during injection. This prevents well damage and eliminates abandonment hazards.

Geothermal developers regulate formation access during testing and stimulation using dissolvable instruments. This reduces deep, hot well intervention costs. Changing the rate of dissolving depending on geothermal brine composition enables operators to choose the optimum completion plans without compromising well productivity or requiring costly retrieval.

Machining and Fabrication Considerations

Cutting dissolvable magnesium alloy round bars requires careful consideration of cutting speeds, tool geometries, and coolant choice for optimal surface polish and dimensional accuracy. Due to its ease of machining, it may be utilised in high-speed CNC procedures with less tool wear than harder alloys. Heat accumulation may affect microstructure and dissolution, but sharp cutting edges and chip evacuation prevent it.

HAGRIEN's application engineering assistance advises component manufacturers on cutting settings depending on metal grade and part form. This technical partnership reduces prototype development waste and ensures manufacturing procedures can be scaled up to create many goods. Technology transfer and production ramp-up benefit from remote troubleshooting and on-site training.

Comparing Magnesium Alloy Round Bars With Alternatives

Performance Metrics and Operational Efficiency

When comparing magnesium alloy round bars to aluminium or composite materials for use in dissolvable tools, magnesium's value proposition is set apart by a number of performance factors. Predictable dissolution, mechanical strength retention under temperature cycling, and the ability to be machined all work together to provide better operational results. Aluminium alloys don't have the engineerable breakdown properties needed for temporary downhole tools, and hybrid materials make production more difficult and don't work well at high temperatures.

Cost-Effectiveness and Total Lifecycle Value

Steel is still the most frequent material for retrievable finishing tools, but its weight and mechanical removal make it costly and delay the schedule. Although corrosion-resistant, titanium cannot be prevented from dissolving, therefore it cannot be utilised for permanent or detachable parts. Dissolvable magnesium alloys meet a market requirement that other materials don't because of their unique features.

It's crucial to evaluate material prices based on processing quality and cost savings. Although no retrieval requiredmagnesium alloy round bars cost more per kilogram than aluminium, they cost less overall since they don't need to be milled after fracture. Completion service providers claim that reduced rig time and intervention complexity saves $50,000 to $150,000 per well, greater than the material cost difference.

Selecting the Appropriate Alloy Grade

Finding the optimal magnesium alloy grade requires matching material attributes to usage circumstances. Metals that dissolve slowly at high temperatures are needed for wells below 150°C. Alloys must be altered to preserve their form during deployment and dissolve entirely within time restrictions since high-salinity brines accelerate corrosion.

HAGRIEN's technical team helps clients determine working windows and recommend robust, machineable, and non-dispersive alloy compositions. This collaborative method reduces material testing costs and speeds up tool design development. Batch consistency and process documentation controls ensure quality in all production runs, helping with quality assurance and supplier certification.

Procurement Guide for Magnesium Alloy Round Bars

Supplier Evaluation and Certification Requirements

To locate a reliable magnesium alloy round bar supplier, evaluate their manufacturing, quality control, and technical support. Your ISO 9001, ISO 14001, or ISO 45001 certification indicates you care about quality, the environment, and workplace safety. API recognition and CNAS-accredited lab capabilities provide transparent, industry-standard testing and validation.

Purchasing teams should verify suppliers' capacity to extrude up to Ø300 mm, which impacts batch stability and regularity. Due to our own melting and metallurgical control, we can customise the alloy's composition to meet your demands better than wholesalers that utilise outside materials. Seven years of recorded production and process improvement demonstrate mature technology and consistent supply.

Minimum Order Quantities and Lead Times

Know the minimum order amount to align buying strategies with project schedules and inventory management. Dissolvable magnesium alloy round bars of conventional sizes take two to four weeks to produce. Safety stock is always available for sampling and emergency replenishment. Custom requirements, engineering dissolution windows, and particular operating circumstances might delay delivery by 4–8 weeks. Matching the alloy, creating process standards, and testing for accuracy are required.

Expedited manufacturing services use capacity and raw resources to reduce plans without compromising quality for key projects. Weekly milestone-based progress reports and communication mechanisms ensure compliance with North American project managers and the procurement cycle.

Custom Dimension Capabilities and Technical Support

Manufacturing-focused suppliers are different from commodity distributors because they can make custom cross-sections, lengths, and surface finishes. OEM and ODM services from HAGRIEN let people work together to create materials and structures, and they give you control over the drawings from development to mass production. Material-structural co-design improves the performance of parts while keeping them easy to make and low-cost.

Throughout the product development lifecycle, application engineering support helps with problems related to machining, improving dissolution rates, and fixing problems in the process. Remote help and on-site training (available in some areas) speed up the adoption of technology and shorten the time it takes to become qualified. This model of a thorough technical partnership is different from transactional supplier relationships. It provides real value by lowering development risks and speeding up commercialisation.

Pricing Strategies and Trade Terms

Clear price systems take into account the types of materials used, how hard they are to process, the number of orders, and the time frames for delivery. Different buyers and their transportation needs can be met by offering flexible trade terms, such as EXW, FOB, and CIF options. North American coordination through a U.S. company makes it easier for buyers who value local responsiveness to clear customs, handle payments, and make shipping plans within the U.S.

Framework agreements and volume commitments make it possible to get better prices and reserve capacity, which helps with long-term project planning and budget certainty. Regional distributors and service companies can use HAGRIEN's manufacturing scale and technical expertise to bring their own tool designs to market through private labelling.

Technical Specifications and Handling Tips

Standard Sizes and Dimensional Tolerances

No retrieval requiredmagnesium alloy round bars are offered in 25 mm to 300 mm diameters and various lengths for equipment and transportation. International standards like ASTM B107/B107M specify size tolerances. So they may be utilised for precision cutting and tight assembly gaps. Straightness specifications reduce CNC material waste and simplify setup.

The surface finish criteria balance cost and function. As-extruded surfaces are suitable for most machining, whereas completed surfaces are ideal for products that don't need stock removal or direct installation. Impurity and principal alloying element limitations are defined by chemical composition standards. This ensures all manufacturing batches have the same mechanical characteristics and dissolving behaviour.

Safe Machining and Cutting Practices

Small pieces and dust may cause fires while cutting magnesium metals. By correctly removing chips, selecting the suitable coolant (avoid water-based fluids that speed up corrosion), and eliminating ignition sources, accidents may be prevented. Sharp cutting tools and the optimum feed rates provide the finest surface finishes with little heat, which may modify the material's qualities.

Tool manufacturers should clean magnesium-machining regions by routinely removing chips and storing grinding waste. Metal-rated fire suppression systems provide safety. Machine specifications and processes for each alloy grade are recommended by HAGRIEN to ensure safe and efficient manufacture.

Heat Treatment and Performance Enhancement

Heat treatment rounds after extrusion increase microstructure and material characteristics for each application. Solution annealing reduces precipitates and evens composition, whereas ageing treatments regulate precipitation, improving strength and solubility. To achieve the appropriate property profiles, heat treatment factors including temperature, time, and cooling rates are carefully regulated.

Certificates of analysis, compliance, and safety data sheets accompany each output run. These aid customer quality monitoring and compliance. Full traceability from raw materials to final review provides root cause analysis and improvement activities, making the supply chain more dependable.

Conclusion

To find the best no retrieval requiredmagnesium alloy round bars provider, you need to look at their technical skills, quality systems, shipping reliability, and infrastructure for application support. Dissolvable magnesium alloys are a revolutionary technology for oil and gas completions. They help operators cut down on downtime, remove the risk of intervention, and boost economic performance in risky, offshore, and new energy applications. Modern alloy systems are engineerable, which means that their dissolution behaviour, mechanical properties, and processing characteristics can be changed to fit specific operational needs. As completion strategies keep changing to be more efficient and have less of an effect on the environment, materials that are both high-performing and slowly breaking down will become more important in designing and making downhole tools.

​​​​​​​FAQ

1. What advantages do magnesium alloys offer over aluminum for dissolvable tools?

Aluminium can't provide dissolving rates that can be engineered to fit specific downhole conditions, but magnesium metals can. The better strength-to-weight ratio makes deployment easier, and the ease of machine-making cuts down on costs. Controlled degradation gets rid of the need for milling, which saves a lot of time and money compared to alternatives that don't dissolve.

2. What certifications should I verify when sourcing magnesium alloy round bars?

Check that your company has the ISO 9001, ISO 14001, and ISO 45001 standards for managing quality, the environment, and safety. Testing can be tracked back to its source thanks to API recognition and CNAS-accredited lab features. Check the chemical make-up and mechanical properties by looking at certificates of analysis (COA) and certificates of compliance (COC). Documentation on supplier audit readiness and batch traceability helps with the qualification process.

3. How do I optimize machining processes for magnesium alloy components?

Sharp cutting tools with positive rake angles should be used, and chips should be able to escape properly to keep the area from getting too hot. Mineral oil-based fluids give better surface finish and corrosion protection than water-based ones. Set up cleaning rules for removing chips and put in place steps to avoid fires. Look at the machining parameters that the supplier gives you that are specific to the alloy grade.

Partner With HAGRIEN for Reliable Dissolvable Magnesium Alloy Solutions

HAGRIEN is a reliable company that makes No retrieval required Magnesium Alloy Round Bar. They offer integrated materials and downhole tool solutions to E&P operators, completion service providers, and tool manufacturers all over North America. Our closed-loop system includes melting alloys in-house, extruding large diameters (up to Ø300 mm), and precision machining. This makes sure that each batch is the same, the dimensions stay the same, and we can provide quality documentation (COA, COC, SDS). With seven years of continuous production experience, ISO certifications, API recognition, and a CNAS-accredited HTHP laboratory, we offer materials that are engineerable, scalable, and verifiable, which lowers the risks of program delivery. Our responsive engineering team works together to improve dissolution performance, machinability, and cost-effectiveness, whether you need standard sizes delivered in two to four weeks or custom alloy formulations for specific operating windows. Contact cyrus@us-hagrien.com right away to discuss your needs for dissolvable magnesium alloy round bars and find out how our OEM/ODM services, application engineering support, and North American coordination can help you speed up the development of your completion tool.

References

1. Davis, J.R. (2003). ASM Specialty Handbook: Aluminum and Aluminum Alloys. ASM International, Materials Park, Ohio.

2. Avedesian, M.M., and Baker, H. (1999). Magnesium and Magnesium Alloys. ASM International Specialty Handbook Series, Materials Park, Ohio.

3. Polmear, I.J. (2006). Light Alloys: From Traditional Alloys to Nanocrystals, 4th Edition. Butterworth-Heinemann, Oxford, United Kingdom.

4. Mordike, B.L., and Ebert, T. (2001). "Magnesium: Properties — Applications — Potential." Materials Science and Engineering: A, 302(1), 37-45.

5. Song, G., and Atrens, A. (2003). "Understanding Magnesium Corrosion: A Framework for Improved Alloy Performance." Advanced Engineering Materials, 5(12), 837-858.

6. Friedrich, H.E., and Mordike, B.L. (2006). Magnesium Technology: Metallurgy, Design Data, Applications. Springer-Verlag, Berlin, Germany.
