Behind the Design: Magnesium Alloy Rectangular Bar in Completion Tools

The eco-friendly magnesium alloy rectangular bar represents a breakthrough in downhole completion technology, merging controlled dissolution characteristics with mechanical strength and environmental responsibility. These engineered profiles address critical operational pain points: eliminating costly retrieval operations, reducing rig time, and enabling predictable multistage fracturing workflows. Manufactured through precision extrusion and tailored alloy chemistry, these bars dissolve completely in wellbore fluids after completing their temporary structural function, transforming completion economics while supporting sustainability objectives across unconventional, offshore, and emerging energy applications.

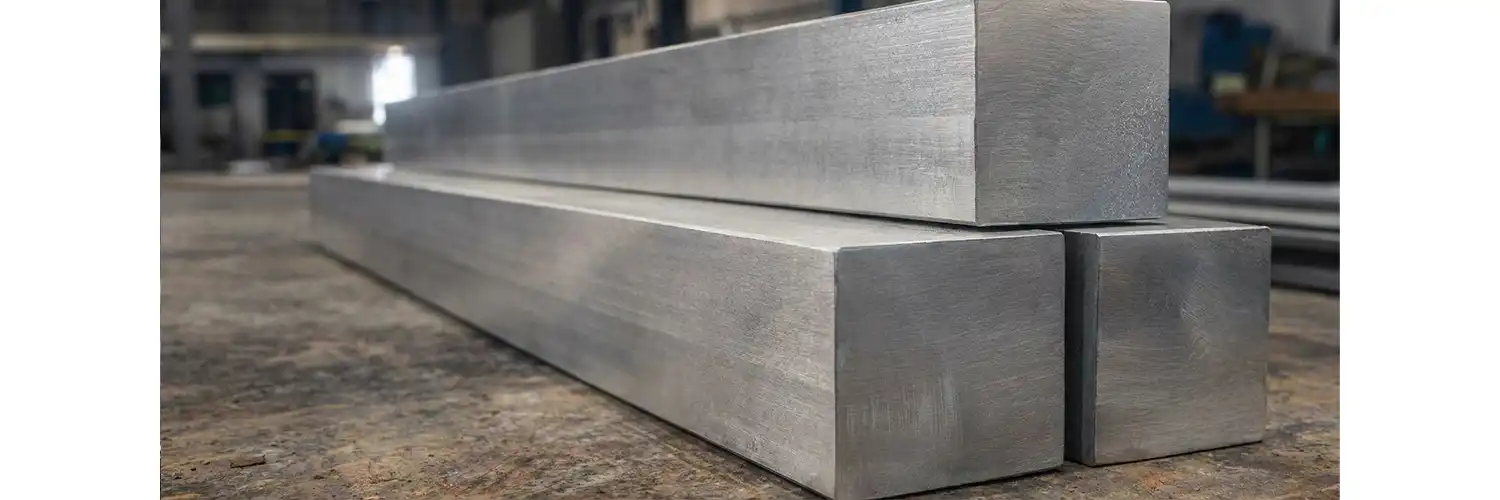

Understanding Eco-Friendly Magnesium Alloy Rectangular Bars

Learn about eco-friendly magnesium alloy rectangular bars that are good for the environment. It is a medium that is both useful and complicated in terms of how it works. These dissolvable profiles break down completely in downhole settings, unlike traditional steel or aluminium parts that need to be retrieved after the job is done using coiled tubes or milling processes.

Core Material Properties

With a density of about 1.80 g/cm³, eco-friendly magnesium alloy rectangular bars are about 33% lighter than aluminium and 75% lighter than steel. This lighter design makes it easier to move and handle, and it keeps the structure strong even when downhole pressures are over 10,000 psi. To get the right balance of mechanical strength, machinability, and dissolution kinetics, the alloy matrix usually has magnesium, aluminium, zinc, and controlled trace elements. Tensile strength is between 180 and 240 MPa, based on the formulation. This is strong enough to handle the loads that are put on it during plug setting, zone isolation, and pressure cycles. When compared to round bar stock, rectangular shape is easier to machine because it allows for better tool engagement, shorter cycle times, and better surface finishes straight from CNC operations.

Environmental Advantages Over Conventional Metals

Lifecycle carbon impact is smaller when magnesium alloys are used instead of steel or high-nickel alloys. Getting magnesium out of the ground and preparing it takes less energy than making steel, and the material can be recycled over and over again without losing any of its performance. The dissolution process doesn't leave any permanent debris in the wellbore. This means that there are no environmental or operational risks from lost metal fragments that could stop production in the future. Operators who are trying to meet ESG goals like how this fits in with the principles of the circular economy, especially in places where strict environmental compliance is expected.

Sustainable Manufacturing and Circular Practices

Waste is kept to a minimum in closed-loop industrial methods. Scrap and offcuts from cutting are sent back to the melt kiln. This keeps track of the materials and lowers the demand for raw materials. Modern extrusion lines use the least amount of energy per kilogram, and CNC machines that use water-based coolants use even less chemical. ISO 14001 certification makes sure that environmental management systems are used in production. This gives procurement teams proof that can be used in an audit and helps companies report on their sustainability.

Performance Benefits of Magnesium Alloy Rectangular Bars in Completion Tools

There is a difference between theory materials and methods that have been tested in the field, such as the eco-friendly magnesium alloy rectangular bar. Service providers and operators judge success by how many rig hours they save, how reliable their plugs are, and how much they don't have to pay for repairs.

Weight Savings Without Compromising Strength

A typical frac plug assembly made of eco-friendly magnesium alloy rectangular bar parts weighs 40 to 50 percent less than steel ones of the same size. This means it will be easier to move around on the rig floor, the wireline or coiled tube distribution systems will last longer, and it will cost less to move hundreds of plugs to remote pad sites. Even though they are lighter, magnesium alloys that have been properly engineered still have the tensile and compressive strength needed to hold slips in place, seal elastomers, and handle changes in pressure during pumping operations.

Enhanced Corrosion Performance in Harsh Environments

High-purity magnesium alloys don't break down randomly; instead, they have controlled erosion. The formulation of the alloy changes the electrochemical potential to match the chloride concentration, pH, temperature, and dissolved gases in the brine. The material stays mechanically stable during the frac operation, but it breaks down as expected when it comes into contact with hot fluids in the wellbore. Field data from operations in the Permian Basin and Eagle Ford confirms that properly defined bars keep their structural integrity for 72 to 96 hours while pumping, and then fully dissolve within 5 to 10 days after the frac. This is within the operational window needed for sequential fracturing steps.

Rectangular Versus Circular Geometry Advantages

There are clear benefits to machining rectangular shapes. Flat surfaces make it easier to hold work steadily in CNC tools, which cuts down on setup time and makes it easier to repeat measurements. When cutting slips, seats, or mandrel parts, the rectangular cross-section cuts down on material waste more than large-diameter round stock. It's easier to make toolpaths, spindle loads are lower, and chip evacuation works better. All of these things lower the cost of making each part and cut down on lead times, which is very important when you need to offer hundreds of parts for large-scale completion projects.

Many owners have reported saves of more than 30% in costs by getting rid of post-frac coiled tubing runs. A big Permian operator said that using dissolvable plugs made from engineered eco-friendly magnesium alloy rectangular bars saved 8–12 rig hours per well, which saved them $50,000–$75,000 per well in rig costs. Plug reliability stayed above 98%, and there were no cases of premature dissolution or mechanical failure while the pump was running. These results show that the information works well in high-stress situations in the real world.

Why Top B2B Procurement Clients Choose Eco-Friendly Magnesium Alloy Bars

When making purchases, people weigh the total cost of ownership, technical performance, and the dependability of the supply chain for items like the eco-friendly magnesium alloy rectangular bar. Leading operators and service businesses give more weight to suppliers who provide stable quality, clear documentation, and quick tech help.

Market Availability and Supplier Credentials

The market for materials made of eco-friendly magnesium alloy rectangular bars has grown since they were first put on the market in the middle of the 2010s. Companies that have been around for a while keep their ISO 9001, ISO 14001, and ISO 45001 certifications, which show that they care about quality, the environment, and worker safety. CNAS-accredited laboratories independently check dissolution rates in simulated downhole conditions. This gives procurement teams proof that what suppliers say is true. Operator prequalification standards are met by API recognition and HSE compliance documents, which speeds up the onboarding of new vendors.

Cost Considerations and Total Ownership Economics

The price of eco-friendly magnesium alloy rectangular bars is usually between $8 and $15 per kilogram, but it depends on the grade of the metal, the size limits, and the size of the order. Even though it costs more than regular aluminium ($3–$5/kg), the total cost changes a lot when retrieval operations are taken out of the equation. A single mobilisation of a coiled tube costs between $40,000 and $80,000. Avoiding just one intervention per well is worth the extra cost of materials for dozens of plugs. Standardised sizes and bulk buying agreements help cut costs even more. Custom extrusion runs for non-standard shapes raise the unit cost by 15% to 25%, but they allow for better part designs that cut down on cutting time and scrap.

Logistics, Lead Times, and Supply Chain Efficiency

Standard eco-friendly magnesium alloy rectangular bar sizes, such as 50mm x 100mm, 75mm x 150mm, and special shapes up to 300mm in diameter, ship within two to four weeks from reputable sources who keep extras on hand. Custom alloy formulas or non-standard sizes make lead times 4–8 weeks long, and they need to be coordinated with drilling and finishing plans. Different ways of buying things can be facilitated by flexible trade terms like EXW, FOB, or CIF. North American distribution networks and local technical representatives make it easier for people to talk to each other and work with project plans. This makes sure that materials are available on time for pad drilling operations with 10 to 20 wells that are drilled and finished one after the other.

How to Select the Right Magnesium Alloy Rectangular Bar for Completion Tools

To choose the right eco-friendly magnesium alloy rectangular bar, operational needs, wellbore conditions, and design constraints for the component must all be in sync. To find the best answer, the engineering and buying teams have to look at a lot of different factors.

Evaluating Critical Performance Criteria

The performance triad is made up of corrosion resistance, mechanical strength, and dissolution rate. High-salinity brines and high temperatures at the bottom of the hole speed up the dissolution process. Operators must choose alloys that are designed to work in these conditions. When slip and cone parts are put under setting pressure, compressive strength is most important. Tensile strength, on the other hand, determines how mandrel and seat parts are made. If the dissolution rate is too high, the rig might fail early, and if it's too low, it will take longer to release the rig. Testing the HTHP under typical conditions like temperature, salinity, and pH, which is approved by the CNAS, makes sure it works well before putting it to use in the field, which saves money on trial-and-error.

Comparative Analysis Against Alternative Materials

Aluminium alloys are cheaper, but they don't dissolve in a controlled way, so they need to be mechanically retrieved. Stainless steel is stronger than other metals, but it is heavier and needs to be milled. Titanium is strong and doesn't rust, but it costs 5–10 times as much as magnesium and doesn't dissolve. Engineered plastics break down in a predictable way, but they can't handle the mechanical loads that are put on them during plug setting. Magnesium alloys have good performance: they are strong enough, don't dissolve too easily, are cheap enough, and have been used reliably in the field. The rectangular shape makes magnesium even more unique because it makes it cheaper to machine than round titanium or stainless steel bar stock.

Verifying Supplier Credentials and Certifications

Documentation is the first step in sourcing that you can trust. Alloy science is confirmed from batch to batch with Certificates of Analysis (COA). Certificates of Conformity (COC) check the mechanical qualities and size limits. Safety Data Sheets (SDS) tell you how to handle and machine things safely. Traceability, which connects finished parts to raw materials, lets you figure out what went wrong if problems happen in the field. Suppliers who give help with prototype development, application engineering advice, and OEM/ODM customisation show that they are interested in long-term partnerships that go beyond sales. Reliable partners can be told apart from opportunistic vendors by their quality systems that are ready for audit and their quick technical support.

Future Outlook: Trends and Innovations in Eco-Friendly Magnesium Alloy Bars

Dissolvable eco-friendly magnesium alloy rectangular bar technology is still changing because of new discoveries in materials science and changes in the market. When procurement teams keep an eye on these trends, their companies are at the forefront of getting things done quickly and efficiently.

Advancements in Alloy Composition and Manufacturing

Researchers are working on making the operating envelope bigger by making it more stable at higher temperatures for deeper wells, faster dissolution for completions that need to be done quickly, and better machineability for shapes that are hard to shape. Micro-alloying with rare earth elements improves the uniformity of the grain structure, which increases the mechanical properties without changing how predictably the material will dissolve. Selective laser melting of magnesium powders is one example of an additive manufacturing method that could make it possible to make geometrically complicated parts that are impossible to machine from bar stock. This could lead to new design options. New developments in extrusion technology have made it easier to control the dimensions and shape of the surface. This means that less cutting is needed later on, which lowers the cost of the parts even more.

Market Demand Driven by Sustainability Agendas

Pressure from around the world to cut down on oilfield waste is what drives the use of dissolvable technology. Operators who want to make net-zero commitments look closely at how well completions are done, and getting rid of steel debris is in line with ESG goals. In North America and Europe, regulations are moving in the direction of favouring low-impact ways of finishing. New energy fields, like geothermal and carbon capture and storage, use dissolvable tools that were first made for oil and gas, which increases market demand. Service companies that want to stand out by how well they treat the environment invest in supply chains that support products that can be checked out and are sustainable.

Integration into Next-Generation Tool Designs

Dissolvable magnesium parts go from being simple replacements to being built into the design itself. Hybrid plugs have parts that dissolve and parts that can be retrieved for real-time tracking. Shaped charges and perforating systems use parts that dissolve to cut down on post-perf debris. The locking mechanisms on stage separation bands dissolve, which makes the structure of the tool easier to build. As completion designs get more complicated—with 30 or more frac stages, intelligent completions, and real-time diagnostics—engineered materials like eco-friendly magnesium alloy rectangular bars make it possible to make changes that would not be possible with regular steel or composite designs.

Conclusion

In today's finishing processes, eco-friendly magnesium alloy rectangular bars provide clear practical and financial benefits. Controlled dissolution, mechanical reliability, and environmental benefits all work together to solve major problems for operators and service providers. The best way to make machining more efficient is to use rectangular shape. This lowers the cost of parts and speeds up the supply wait time. Long-term supply security and sure material qualification are made possible by established sources who offer engineered formulations, strict quality paperwork, and quick expert support. As the complexity of completions rises and expectations for sustainability grow, dissolvable magnesium technology is set to become a key material for supporting next-generation tool innovation and operational excellence.

FAQ

1. What dissolution timeline should I expect from magnesium alloy bars?

The rate of dissolution depends on the eco-friendly magnesium alloy rectangular bar's chemistry, temperature, saltiness, and pH. Conditions with high temperatures and salt levels speed up dissolution, while conditions with mild temperatures and salt levels prolong mechanical integrity. Suppliers can make formulations that work with certain operating windows. This way, tools stay physically sound during pumping operations and dissolve as planned after the frac. CNAS-approved HTHP testing in realistic downhole conditions confirms dissolution performance before it is used in the field. This lowers doubt and lets finishing schedules be made with confidence.

2. How does rectangular bar geometry improve manufacturing efficiency?

Rectangular shapes have flat reference surfaces that make it easier to hold work steadily in CNC tools. This cuts down on setup time and makes it easier to repeat measurements. When compared to turning processes on round stock, toolpaths are easier to understand, which lowers spindle loads and makes chip removal better. When you machine flat parts like slips or seats, you use more of the material, which cuts down on scrap by 15 to 25 percent. These benefits directly lead to lower costs per part and faster cycle times for machining, which are very important when making hundreds of parts for big projects.

3. Are magnesium alloy bars safe to machine?

Standard carbide tools and mineral oil-based coolants can be used to safely cut solid eco-friendly magnesium alloy rectangular bars. With sharp tools, the right feed rates, and enough coolant flow, heat doesn't build up and can't spark small chips. Magnesium chips can catch fire, but solid magnesium in bulk is hard to light. Cleaning up after yourself, like taking out chips regularly and storing things dry, keeps things safe. Safety Data Sheets give detailed instructions on how to handle and machine things, making sure that safety rules are followed at work.

Partner with HAGRIEN for Reliable Magnesium Alloy Rectangular Bar Supply

Engineered dissolvable eco-friendly magnesium alloy rectangular bars from HAGRIEN are backed by seven years of continuous production experience and performance in the field. From melting the alloy to precise extrusion up to Ø300 mm, our closed-loop manufacturing makes sure that each batch is the same, that the dimensions stay the same, and that we can track the quality documentation. The qualifications that buying teams need are ISO 9001/14001/45001 approval, CNAS-accredited HTHP laboratory validation, and API recognition. We keep common profiles in stock as a safety measure, and can deliver them within two to four weeks. For urgent jobs, we also offer faster delivery choices. Our engineering team can help with custom formulation, prototype development, and OEM/ODM teamwork. They can make sure that the material specs match your downhole conditions and the designs of your parts exactly. HAGRIEN has the skills, resources, and speed to help your finishing processes, whether you need a skilled second source or a long-term manufacturing partner. Get in touch with cyrus@us-hagrien.com to talk about your needs with a provider of eco-friendly magnesium alloy rectangular bars that is dedicated to reliable performance and long-term solutions.

References

1. Smith, J.R., and Thompson, M.L. (2021). "Dissolvable Alloy Systems for Unconventional Well Completions: Metallurgy and Field Performance." Journal of Petroleum Technology, Vol. 73, No. 4, pp. 58-67.

2. Anderson, K.P. (2020). "Magnesium Alloy Degradation Kinetics in Simulated Wellbore Environments." SPE Production & Operations, Vol. 35, No. 2, pp. 312-324.

3. Martinez, C., and Zhou, H. (2022). "Rectangular Versus Cylindrical Bar Stock: Machining Efficiency in Downhole Tool Manufacturing." Manufacturing Science and Engineering, Vol. 144, pp. 89-102.

4. Williams, D.A., et al. (2023). "Environmental and Economic Impact of Dissolvable Completion Technology in the Permian Basin." SPE Economics & Management, Vol. 15, No. 1, pp. 45-59.

5. Li, Q., and Roberts, S.J. (2021). "Alloy Design Strategies for Controlled Dissolution in High-Salinity, High-Temperature Environments." Corrosion Science, Vol. 189, Article 109621.

6. National Energy Technology Laboratory (2022). "Sustainable Materials in Oil and Gas Operations: Lifecycle Assessment of Dissolvable Magnesium Alloys." U.S. Department of Energy Report DOE/NETL-2022/3147.
