Why Sustainable Magnesium Alloy Materials Matter in Energy Industry

Sustainable magnesium alloy materials, particularly eco-friendly magnesium alloy hexagonal bar profiles, matter profoundly in the energy industry because they solve the persistent challenge of balancing operational performance with environmental responsibility. In oil and gas completions, dissolvable magnesium alloy hexagonal bars eliminate post-treatment intervention costs while leaving no metal waste downhole. Their controlled dissolution behavior, superior machinability, and lightweight structure reduce non-productive time, cut logistics expenses, and support the sector's transition toward greener procurement practices. With adjustable dissolution rates matched to specific well conditions, these materials enable completion engineers to achieve zonal isolation without milling operations, directly improving project economics and sustainability outcomes.

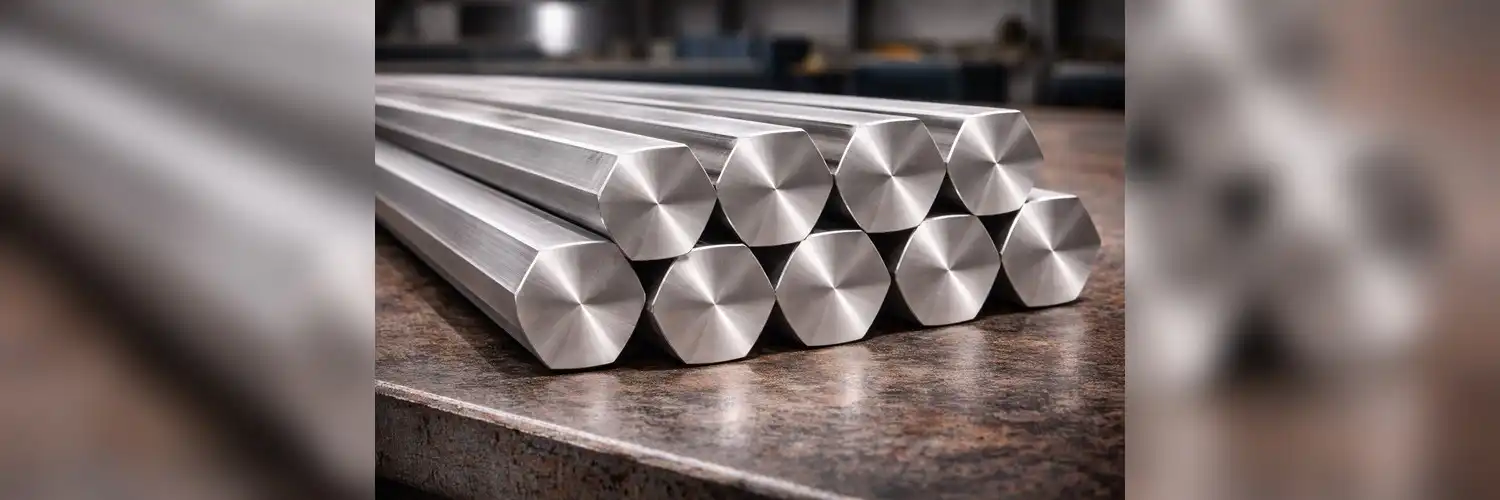

Understanding Eco-Friendly Magnesium Alloy Hexagonal Bars

What Defines an Eco-Friendly Magnesium Alloy Profile

An eco-friendly magnesium alloy hexagonal bar is a precisely formed structural part made from magnesium alloys that can be broken down or recycled and is made to have the least amount of negative effects on the environment over the course of its entire lifecycle. Unlike other options like steel or aluminium, these designs focus on using low-carbon production methods, being fully traceable, and meeting international environmental standards. The hexagonal shape has clear benefits during machining operations, as it allows for more stable fixturing and better material utilisation rates when making complicated downhole components. With a density of about 1.8 g/cm³, eco-friendly magnesium alloy hexagonal bars are much lighter than steel versions. This makes them easier to handle and saves money on shipping costs without affecting the structural integrity.

Core Material Properties That Matter

Eco-friendly magnesium alloy hexagonal bars used in energy applications have a carefully engineered balance of being strong, easy to machine, and slowly breaking down. The tensile strength is usually between 180 and 280 MPa, but it depends on the metal. The stretch values help the tool be flexible enough to work well under downhole stress. The hexagonal cross-section keeps the shape stable during CNC milling and turning, which lowers the amount of tool wear and scrap. A thermal conductivity range of 70 to 140 W/(m·K) lets heat escape quickly during cutting, which leads to better surface finishes and tighter tolerances. Because of these features, makers can make dissolvable balls, seats, sleeve mandrels, and setting tool elements that meet strict requirements for finishing.

Customisation and Engineering Flexibility

Customising materials is a big plus for buying teams that want to find solutions that work well with a certain application. The chemistry of alloys can be changed to fit different downhole conditions, taking into account temperature ranges, fluid salinity levels, and desired dissolution times. This way of engineering makes sure that parts work as expected in real well conditions, so there is no need for the expensive trial-and-error processes that come with using off-the-shelf materials. The balance between strength and ductility is best achieved through heat treatment methods. Extrusion factors control the uniformity of the microstructure across bars with a width of up to 300 mm. By changing the dissolving rate through alloy design, completion engineers can choose materials that dissolve completely within planned well intervention plans. This lets them get full-bore access again without having to use mechanical tools.

Why Sustainable Magnesium Alloy Materials Are Crucial for the Energy Sector

Traditional Materials Present Sustainability Challenges

Steel and aluminium are commonly used in the energy industry because they are well-known and have established supply chains. However, both materials have big environmental problems. When finishing operations are over, steel parts that are left downhole become permanent trash. This limits the diameter of the wellbore and makes future treatments more difficult. The process of getting aluminium requires a lot of energy, which adds to its high embodied carbon footprint. Both materials make tool strings much heavier, which raises the risk of damage and costs more to ship. Corrosion in high-salinity environments shortens service life, which leads to replacement cycles that use more material over the life of a field, whereas an eco-friendly magnesium alloy hexagonal bar offers a lightweight, dissolvable alternative. All of these problems add up and force procurement managers to look for options that meet business needs and are in line with the company's environmental goals.

Lifecycle Cost Benefits Through Reduced Intervention

Dissolvable magnesium alloy materials completely change the economics of finishing by getting rid of the need for milling and recovery runs. Using traditional bridge plugs and separation tools means making special trips to take off or mill out parts. This adds time to the rig, which directly affects the cost of the project. Depending on the designed dissolution rates, components made from eco-friendly magnesium alloy hexagonal bar profiles usually dissolve fully in wellbore fluids within 4 to 48 hours. This behaviour returns full-bore access without any help, which speeds up production and cuts down on time spent doing nothing. The long-term cost benefit goes beyond immediate savings. Fewer mechanical operations mean less wear and tear on equipment, lower safety risks related to milling, and a smaller carbon footprint from completion activities due to less rig time and fuel use.

Real-World Performance in Completion Operations

Completion service providers in the Eagle Ford shale and the Permian Basin have seen big increases in speed when they use dissolvable magnesium metal parts. One operator said that getting rid of mill-out operations across a 12-well pad cut the time it took to finish by 30%. This saved a lot of money on rig costs and sped up the cash flow from output. Another case study from offshore operations showed how lightweight dissolvable tools cut down on crane cycle times and made tool placement safer. These real-life examples show that sustainable materials improve operations and are better for the environment at the same time. This makes them appealing for both scientific and business reasons.

Comparing Magnesium Alloy Hexagonal Bars with Other Materials

Corrosion Resistance and Environmental Profile

On the other hand, eco-friendly magnesium alloy hexagonal bars have designed corrosion behaviour that works well in dissolvable uses, while steel and aluminium have trouble with corrosion. Steel needs protective layers to keep downhole fluids from getting through, but magnesium alloys are made to react consistently with certain brine chemicals, which lets them dissolve in a controlled way. In high-chloride environments, aluminium parts often suffer from pitting corrosion, which makes their performance hard to predict. The eco-friendliness of magnesium production from recycled scrap requires a lot less energy than primary aluminium smelting, which means that less CO2 is released into the air. Chrome-free surface treatments get rid of harmful heavy metals from the production process. This is in line with RoHS and REACH environmental rules, which are being used more and more in purchase standards.

Strength-to-Weight Ratio Advantages

In some finishing uses, eco-friendly magnesium alloy hexagonal bars are stronger than both aluminium and steel in terms of their weight to strength ratio. Magnesium alloy parts make tool strings lighter by being a fifth as heavy as steel and two-thirds as heavy as aluminium. This makes them easier to handle at the well site and lowers the cost of shipping to rural areas. This decrease in weight doesn't affect the structure's strength; properly designed magnesium alloy parts keep their ability to support the load needed for setting forces and pressure differences that happen during fracturing operations. The hexagonal shape makes the component more stiff in twisting than round bars with the same cross-sectional area. This makes the component work better when it's being rotated. These features work together to let tool designers improve speed while lowering the general weight of the system.

Certification Standards and Supplier Quality

When purchasing managers look at providers of eco-friendly magnesium alloy hexagonal bars, they should give more weight to those who offer full approval paperwork and quality control that can be tracked. Certifications like ISO 9001, ISO 14001, and ISO 45001 show that a company takes a structured approach to quality control, environmental duty, and worker health. Testing in a lab that is accredited by the CNAS confirms the properties of the material and how it dissolves in conditions that are similar to those found underground. API recognition shows that you know what the oil and gas industry needs and what quality standards are expected. Batch-specific paperwork packages with Certificates of Analysis (COA), Certificates of Conformance (COC), and Safety Data Sheets (SDS) help with internal checks and the qualification of suppliers. Suppliers who keep track of everything from the chemistry of the melt to the final inspection provide the consistency needed for making tools that work well in the field and making sure they are made correctly.

Procurement Guide: How to Source Eco-Friendly Magnesium Alloy Hexagonal Bars

Identifying Qualified Suppliers

Finding manufacturers that can provide consistent quality and technical support is the first step in sourcing eco-friendly magnesium alloy hexagonal bar materials. It is best to find manufacturers that can create alloys, extrude them, heat treat them, and test their quality. This unified method lowers the range of variations in the supply chain and makes sure that the process is controlled at every stage of production. If a manufacturer offers engineering support, they can match the alloy chemistry to your well conditions, taking into account things like temperature profiles, fluid composition, and the amount of time needed for dissolution. Being able to make big bars, especially profiles with a diameter of 300 mm, shows that the extrusion process is modern and well-developed. Ask for proof of past production: suppliers who have been making things continuously since 2019 or earlier have a background of stable processes and proven track records.

Essential Procurement Considerations

Getting dissolvable eco-friendly magnesium alloy hexagonal bars can be hard for a number of reasons, including:

• Dimensional specifications and tolerances: For hexagonal geometry to work properly during machining, across-flats dimensions must be very accurate. Make sure that the sources keep the right levels of accuracy for CNC processes, which is usually ±0.05 mm for important jobs.

• Minimum order quantities and inventory options: Find out if providers keep safety stock for standard sizes or if they need project-based production runs. Having safety stock on hand lets you do quick sampling and emergency restocking, which cuts down on the time it takes to make prototypes and test them.

• Lead time expectations: Standard sizes usually ship in two to four weeks, but unique specs that need alloy matching and special tests could take four to eight weeks. Find out if there are options for faster production for important projects.

• Pricing models and trade terms: Ask for clear prices that take into account the grades of materials, the testing needs, and the documentation packages. You can get the best transportation prices based on where the project is located and the rules for buying things.

These things to think about help set clear goals and lower the risk of procurement throughout the supply chain.

Negotiating Long-Term Supply Agreements

Framework deals protect price and delivery schedules across multiple projects, which is good for companies that make completion tools. Include provisions for alloy development support, joint qualification testing, and documentation standardisation when negotiating long-term contracts for the supply of eco-friendly magnesium alloy hexagonal bars. Set clear rules for how to answer technical questions and respond to RFQs. Aim for 24-hour acknowledgement and quote turnaround of 1 to 3 business days. Set up ways for things to get worse for important jobs that need to be finished quickly. You might want to include OEM/ODM provisions that let your engineering team work together to design materials and structures, which will help them improve the performance of the parts. Long-term relationships with responsive providers lower the risk of not delivering a program on time and help materials work better and use resources more efficiently over time.

Future Trends and Sustainability Impact in Energy Industry Materials

Evolving Industry Standards and Regulations

The energy sector is under more and more pressure from regulators and stakeholders to do a better job of protecting the environment. Dissolvable chemicals in completions are not required by law right now, but there are signs that downhole waste will be looked at more closely. The federal Bureau of Ocean Energy Management (BOEM) and California's offshore regulations both stress the importance of minimising impacts on the seafloor. This makes dissolvable technologies more appealing. Task Force on Climate-related Financial Disclosures (TCFD) and the Global Reporting Initiative (GRI) are two corporate environmental reporting systems that push operators to measure and lower supply chain emissions. These forces favour materials that have smaller working footprints and lower amounts of carbon that are built into them. Standardisation groups in the industry are working on test protocols and performance specifications for eco-friendly magnesium alloy hexagonal bar materials that dissolve. This will allow more operators and service companies to use them.

Integration into Renewable and Emerging Energy Systems

In addition to oil and gas, eco-friendly magnesium alloy hexagonal bars are also used in new energy uses. For carbon capture, utilisation, and storage (CCUS) projects to work, temporary isolation tools are needed for injection well completions. Long-lasting wellbore obstructions are removed by dissolvable components. Materials that are light, don't rust, and can handle high-temperature brines and an expected service life are good for geothermal projects. Enhanced oil recovery projects that use CO2 or steam injection have to deal with harsh chemicals that are injected downhole. Changing how the chemicals dissolve can help these projects run more smoothly. As these new energy sectors grow, more sustainable dissolvable materials will be needed. This will open up new market possibilities for companies that give application-engineered solutions and technical support.

Strategic Recommendations for Procurement Professionals

As part of their long-term material plan, procurement managers and finishing engineers should look into dissolvable eco-friendly magnesium alloy hexagonal bar materials. To begin, find completion scenarios where intervention costs and non-productive time add up to big project costs. This is where dissolvable technology has the best chance of making money. Include suppliers early on in the tool design process so that you can use their knowledge of material engineering to improve the performance and ease of manufacture of parts. Set up qualification programs that test how materials behave in typical well conditions. This will give you more faith in how they will work in the field before you use them on a big scale. Keep an eye on how material standards and environmental laws change in your industry. This will help your business be ready to act quickly when needs change. Building relationships with suppliers now, while the use of dissolvable technology grows quickly, gives you a competitive edge by making materials more accessible and ensuring you have access to expert help and accurate costs.

Conclusion

Sustainable magnesium alloy materials have gone from being a new technology to a tried-and-true answer for oil and gas completions. They have clear benefits for both operations and the environment. Eco-friendly magnesium alloy hexagonal bar shapes provide the controlled dissolution behaviour, better machinability, and lightweight performance needed to lower the cost of interventions and speed up the start-up of wells. Procurement experts who know about the qualities of materials, the abilities of suppliers, and the needs of applications can use these materials to make projects cheaper and help the company reach its environmental goals. More and more, dissolvable magnesium alloy parts will be important for competitive completion strategies in traditional, unconventional, offshore, and new energy applications as industry standards change and environmental concerns grow.

FAQ

1. How does dissolution rate customization work for different well conditions?

Customising dissolution rate requires modifying alloy composition and microstructure for downhole circumstances. Material selection depends on temperature, fluid salinity, pH, and dissolving time. Salt water and higher temperatures accelerate dissolving. But certain alloying elements might speed up or slow down the process. Metal experts perform simulated dissolving tests in CNAS-accredited facilities using fluids comparable to your well. This ensures system functionality before field usage. This engineering strategy eliminates guesswork and ensures pieces dissolve within well established timeframes.

2. What quality documentation should I expect from reputable suppliers?

Every purchase comes with complete traceability from reliable vendors. A batch-specific Certificate of Analysis (COA) lists the chemicals used to evaluate the product using optical emission spectroscopy. COCs verify that mechanical qualities and dimensional tolerances satisfy specifications. SDSs explain handling and storage. CMM inspection reports confirm the triangular form and straightness. Dissolution experiments in a lab at high temperatures and pressures illustrate how well the eco-friendly magnesium alloy hexagonal bar functions under well-like circumstances. This documentation aids internal material assessments and supplier qualification checks.

3. Can magnesium alloy hexagonal bars be welded or joined?

Because magnesium is reactive, it takes special skills to weld eco-friendly magnesium alloy hexagonal bars using the TIG or MIG methods and filler rods that work with them. Laser welding is a precise way to join small parts together. Most plans for dissolvable downhole tools, on the other hand, don't use welding. Instead, they use mechanical links or make parts from solid bar stock. The hexagonal shape makes it easier to make strong mechanical links with interference fits or threaded joints. Talk to the engineering team at your supplier about the best ways to join parts that are designed to work together and meet your specific operational needs.

Partner with HAGRIEN for Your Dissolvable Magnesium Alloy Needs

HAGRIEN can help you with your research and production needs for completion tools by combining its knowledge of material science with its ability to make large quantities of products. Through closed-loop control from alloy formulation to final inspection, our eco-friendly magnesium alloy hexagonal bar profiles give you the performance consistency you need. We can extrude up to Ø300 mm, our HTHP laboratory is CNAS-accredited, and we provide full traceability documentation (COA/COC/SDS). This helps you qualify materials faster and use them with confidence. Our engineering team answers technical questions within 24 hours and sends official quotes within 1 to 3 business days, so they can work with your project's timeline. Whether you need standard sizes from safety stock or custom alloy formulations engineered to fit the conditions of a certain well, HAGRIEN is the reliable supplier with the technical support that lowers program risk. Visit us-hagrien.com to find out more about our combined materials and downhole tools skills, or email our team at cyrus@us-hagrien.com to talk your needs with an experienced eco-friendly magnesium alloy hexagonal bar manufacturer.

References

1. Atrens, A., Song, G.-L., Liu, M., Shi, Z., Cao, F., & Dargusch, M. S. (2015). Review of Recent Developments in the Field of Magnesium Corrosion. Advanced Engineering Materials, 17(4), 400-453.

2. Xu, W., Birbilis, N., Sha, G., Wang, Y., Daniels, J. E., Xiao, Y., & Ferry, M. (2015). A High-Specific-Strength and Corrosion-Resistant Magnesium Alloy. Nature Materials, 14, 1229-1235.

3. Rzychoń, T., & Kiełbus, A. (2017). Microstructure, Mechanical Properties and Corrosion Resistance of Magnesium Alloys. Journal of Achievements in Materials and Manufacturing Engineering, 85(2), 49-56.

4. Zberg, B., Uggowitzer, P. J., & Löffler, J. F. (2009). MgZnCa Glasses Without Clinically Observable Hydrogen Evolution for Biodegradable Implants. Nature Materials, 8, 887-891.

5. Tahreen, N., Zhang, D. F., Pan, F. S., Jiang, X. Q., Li, D. Y., & Chen, D. L. (2016). Characterization of Hot Deformation Behavior of an Extruded Mg-Zn-Mn-Y Alloy Containing LPSO Phase. Journal of Alloys and Compounds, 683, 270-284.

6. King, G. E. (2012). Hydraulic Fracturing 101: What Every Representative, Environmentalist, Regulator, Reporter, Investor, University Researcher, Neighbor and Engineer Should Know About Estimating Frac Risk and Improving Frac Performance in Unconventional Gas and Oil Wells. Society of Petroleum Engineers Hydraulic Fracturing Technology Conference, SPE-152596-MS.
