Downhole Elastomer Element Selection: Key Factors Engineers Need

Choosing the right elastomer element for downhole applications directly impacts seal integrity, operational uptime, and cost efficiency. Engineers must evaluate material compatibility with wellbore fluids, temperature extremes, and pressure cycles to prevent premature failure. Modern sealing components balance chemical resistance, compression recovery, and dimensional stability—particularly critical in frac plugs, bridge plugs, and packer systems where even minor leaks compromise zone isolation. Understanding these selection criteria helps procurement teams source components that deliver reliable performance across conventional, unconventional, and emerging energy applications while meeting strict qualification standards.

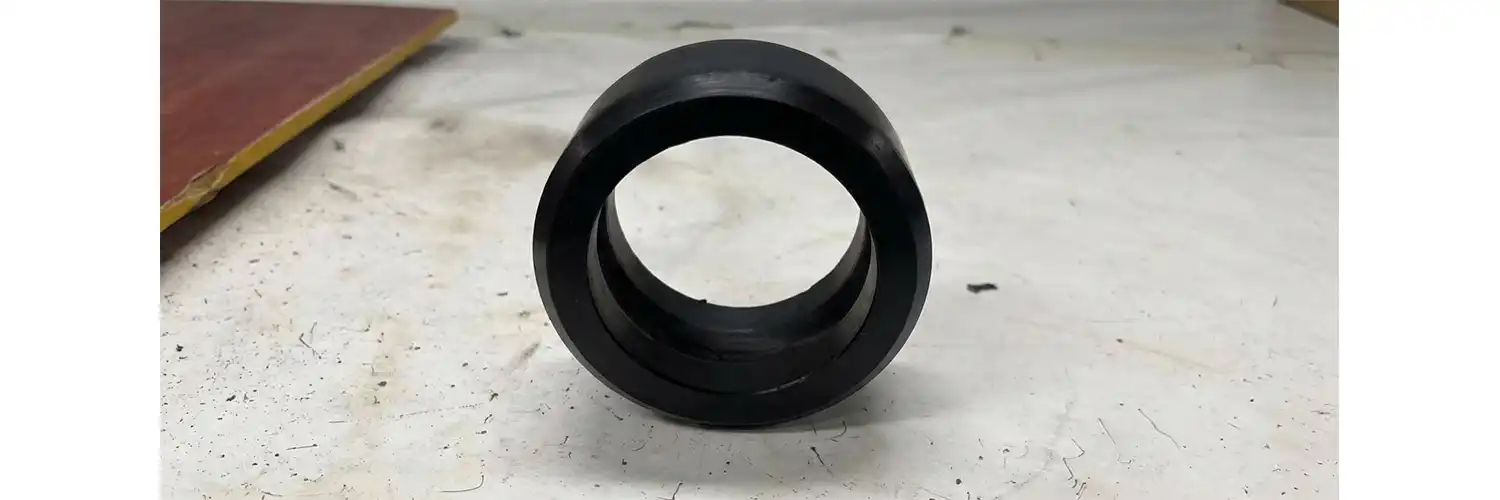

Understanding Downhole Elastomer Elements: Properties and Types

Natural vs. Synthetic Elastomers: Material Foundations

Natural rubber is flexible and tear-resistant at room temperature. This breaks down fast when exposed to crude oil or temperatures exceeding 80°C. Synthetic polymers with engineered molecular structures avoid these issues. HNBR is more wear-resistant and can withstand 150°C. Nitrile rubber (NBR) resists hydrocarbons and works with numerous drilling fluids. Viton and other fluoroelastomers can seal aromatic oils at 200°C, making them ideal for high-temperature wells. Silicone elastomers can function at many temperatures, but their dynamic power is minimal, thus they're only good for low-pressure static seals.

The difference is important when choosing materials. Natural elastomers are less expensive, but they need to be replaced more often in harsh settings. Synthetic compounds cost more to buy at first, but they save money in the long run because they last longer. When engineers have to balance the need for reliability with limited budgets, they need to look at the total cost of ownership, not just the purchase price.

Key Properties Defining Performance

An elastomer element's three physical qualities determine its downhole performance. Chemical resistance prevents growth and softness in finishing fluids, crude oil, and brine. Soaking in wellbore fluids makes a compound lose form. Fluids may push through backup rings and break the seal. Thermal stability preserves wellbore flexibility and mechanical strength throughout production and fracture. The permanent deformation after long-term pressure, compression set resistance, predicts long-term sealing ability. High compression materials lose contact force over time. Less effective zone isolation due to leak paths.

Lab tests assess these properties before field usage. ASTM D395 compression set testing simulates long-term downhole conditions by heat-pressing samples for 70 hours. Volume and hardness are assessed while samples are immersed in wellbore fluids at the proper temperature for fluid compatibility testing. Tensile testing according to ISO 37 ensures mechanical quality consistency across manufacturing batches. Engineers should request batch-specific test data instead of material datasheets during source approval.

Specialized Compounds for Extreme Conditions

Engineered formulations replace chemicals for more complicated purposes. Perfluoroelastomers (FFKM) can withstand steam, aromatic solvents, and temperatures above 250°C. This makes them suitable for geothermal and CCUS systems. HNBR mixes tailored for rapid gas decompression (RGD) resistance prevent the seal from bursting when high-pressure gases seep through and expand as pressure lowers. This is a key reason high-pressure gas wells collapse. For Arctic applications where ordinary elastomers harden and fracture after installation, low-temperature materials keep flexible below -40°C.

There are pros and cons to each speciality chemical. Because FFKM materials are so much more expensive than regular fluoroelastomers, they can only be used in situations where there are no other options. Compounds that are resistant to RGD may give up chemical resistance or their ability to withstand high temperatures. Knowing these limits helps engineers match materials to real-world conditions instead of over-specifying parts that make them more expensive without making them work better.

Critical Selection Criteria for Downhole Elastomer Elements (Decision Support Approach)

Temperature and Pressure Operating Windows

The first material screening is based on the temperature profiles of the wellbore. Wells with temperatures below 120°C can use NBR or HNBR compounds that are a good mix between cost and function. For uses between 120°C and 180°C, you need fluoroelastomer compounds. For temperatures above 180°C, you need high-temperature formulas or perfluoroelastomers. During fracturing, engineers should be aware of short-term thermal events in which temperatures may rise 30 to 50°C above the steady reservoir temperature.

Temperature limits and pressure rates work together because elastomers get softer as the temperature goes up, which makes extrusion risk higher at lower pressures. When used at 150°C and 7,000 PSI, a compound that can handle 10,000 PSI at 100°C might need anti-extrusion backup rings. Instead of looking at each element on its own, system designers need to think about the worst possible combos of temperature and pressure. The extrusion resistance is directly related to the size gaps between the sealing element and the housing bore. Tighter clearances lower the risk of extrusion, but they make fitting harder and raise the cost of production.

Chemical Compatibility Assessment

Workover fluids, completion fluids, and generated hydrocarbons include distinct compounds. Stimulus acids harm elastomers differently than production crude oil and brine. Instead of generic fluid groups, engineers should verify compatibility with local fluid samples utilising the wellbore's chemistry. Hardness variations indicate polymer breakdown, whereas volume swell measures chemical absorption by theelastomer element.

Shaanxi Hagrien Energy Technology uses fluid samples provided by customers to do fluid compatibility testing in our CNAS-accredited lab. We dip test examples at the temperature and time you give us, and then we measure changes in size and mechanical properties. This validation process finds any possible incompatibilities before they are used in the field. This lowers the risk of the seal failing too soon.

Balancing Performance with Economic Factors

Material costs are just portion of ownership costs. Unplanned workovers, lost output, and well control problems increase operating expenses when cheaper compounds fail early. However, using exotic materials for safe settings wastes money that might improve other system components. The procurement team should consider which elastomer pieces to utilise, how frequently to replace them, and maintenance schedules.

Standard compounds that have been used in the field for a long time are often a better value than new formulations that don't have long-term performance data. New materials might have better qualities in the lab, but if there are only a few sources, they can cause problems in the supply chain. Engineers have to weigh the scientific benefits against the supplier's dependability, wait times, and qualification standards.

Maintenance and Performance Optimization of Downhole Elastomer Elements

Storage and Handling Best Practices

Sealed parts should remain in their package until utilised. Storage must maintain a temperature between 10°C and 25°C and humidity below 70% to prevent spoilage. First-in, first-out stock rotation ensures that parts are utilised within their approved shelf life, generally five to ten years but potentially longer or shorter depending on compound type and storage circumstances. Stored near petroleum products might expand and alter size, affecting seal performance.

Inspection and Failure Detection

Before fitting, a visual check finds surface flaws like cracks, cuts, and contamination. Using a durometer to test the hardness of an object makes sure that it meets certain standards and finds changes that happen with age. If a part's hardness changes by more than five Shore A points from what was specified, it should be thrown away. Dimensional verification makes sure that the production tolerances meet the design standards. Elastomer elements that are too small may not seal properly, and parts that are too big can cause problems with the assembly.

Extending Service Life Through Proactive Measures

Controlled rollout reduces tool stress and wear during setup. Elastomer pieces fit the wellbore smoothly thanks to hydraulic setting mechanisms that steadily apply force. Mechanical setting mechanisms should be padded to prevent breakage. Limiting pressure cycles during seal energisation reduces compression sets, shortening seal life.

Elastomer elements may be retrieved and examined to get performance data. Chemical assault, thermal breakdown, or mechanical degradation are indicated by wear patterns. Swelling indicates chemical mismatch, whereas hardening indicates heat ageing or oxidation. Extrusion damage indicates insufficient space management and backup. Writing down mistakes improves future material selection and system design.

Comparison of Elastomer Elements: Materials, Applications, and Cost Considerations

Performance Trade-offs Across Compound Types

Nitrile compounds block aliphatic hydrocarbons well below 100°C. This makes them cost-effective for shallow wells and moderate-temperature usage. Their weaknesses are evident in aromatic crude oils or hot areas where swelling and weakening might destroy the seal. HNBR increases nitrile's temperature range to 150°C and wear resistance, but each component costs 40% more.

Fluoroelastomers are worth the extra cost because they last longer in harsh environments. Although Viton seals cost three times more than NBR seals, they survive five times longer in hot wells containing aromatic hydrocarbons. This decreases TCO by boosting operational uptime. Perfluoroelastomers are excellent for conditions where conventional fluoroelastomers don't operate, such as over 200°C, acidic climates, or geothermal steam exposure.

Application-Specific Material Matching

Frac plugs must resist extrusion and withstand harsh proppant flow. HNBR compounds with 85–95 Shore A hardness work well. Sealing and mechanical durability are balanced in these compounds. Low compression set fluoroelastomers maintain seal contact force after months in wellbore fluids, making them ideal for long-term isolation bridge plugs. Production packers face shifting closure circumstances, demands, and sand production. These materials must be durable yet flexible.

When used offshore or in deep water, there are extra things to think about. Rapid gas decompression resistance is very important in high-pressure gas tanks where the rate of pressure loss is higher than what a rubber can handle. When working below the surface of the water, where the water temperature stays around 4°C, cold-temperature flexibility is important. When choosing materials, these specific elastomer elements needs must be taken into account in addition to basic chemical and temperature ratings.

Procurement Strategies and Supply Chain Management

Lead times are very different for each type of chemical. Standard NBR and HNBR formulations usually ship between two and four weeks if sources keep stock of popular durometer ranges. It takes 4 to 6 weeks to compound, mould, and check the quality of custom formulations. For rare products like FFKM, it may take 8–10 weeks because there aren't many suppliers to choose from. Material selection should be in line with project schedules, and long-lead items should be found early in the design process by procurement teams.

Bulk buying strategies lower unit costs, but they also come with the chance of items becoming obsolete if specifications change. Framework deals with qualified sellers strike a mix between flexibility and low costs, setting prices while letting orders be changed as needed. Suppliers with consignment inventory programs lower carrying costs and make sure that parts are available for projects that need to be done quickly.

HAGRIEN keeps extras of standard elastomer element shapes for use in frac plugs, bridge plugs, and packer applications. When customers need combined tool assemblies, our production planning coordinates the shipping of elastomer with dissolvable magnesium alloy parts. This makes buying easier and cuts down on the cost of coordination.

Trusted Suppliers and Custom Solutions for Downhole Elastomer Elements

Qualification Criteria for Supplier Evaluation

Certification demonstrates planned quality and process control. ISO 9001 accreditation verifies documented methods for design, manufacturing, and inspection. Environmental management is becoming increasingly crucial as firms emphasise ESG compliance, according to ISO 14001. ISO 45001 accreditation demonstrates that suppliers care about worker safety and facility dependability. These certifications provide auditing mechanisms but don't guarantee product quality. Quality assurance requires testing real components.

Testing centers that are CNAS-accredited show they are qualified by having a third party evaluate them and giving them regular competency tests. Suppliers who offer compression set testing, fluid compatibility analysis, and mechanical property verification can back up quality claims with batch-specific paperwork. This elastomer elements traceability becomes very important when evaluating suppliers and looking into problems that happened after the installation.

Manufacturing consistency tells us if the performance of a prototype translates to stability in production. Batch-to-batch difference is stopped by process controls like checking the arriving material, keeping an eye on the cure cycle, and inspecting the dimensions. Statistical process control finds trends before they lead to parts that don't meet specifications. Sharing information about their process capabilities shows that suppliers are sure that their products will be made consistently and are willing to stand behind the quality of their products.

Custom Formulation Development Process

Standard compounds perform well in many instances, although customised solutions may be required. Custom development begins with a thorough operating environment description. This includes fluid chemistry, pressure cycles, mechanical stresses, and temperature profile. Suppliers with downhole expertise might offer first formulations based on successful deployments, speeding up product development.

Lab validation simulates real-life scenarios to test formulations. To forecast long-term sealing performance, test the compression set at its maximum temperature. Fluid performance with wellbore chemistry is measured by immersion at operating temperature and time. Mechanically checking tensile strength, stretch, and tear resistance ensures design compliance. Iterative refinement balances formulation properties until performance goals are met.

Prototype manufacturing occurs between lab testing and retail production. Production tools and processes are tested in 50–100-piece batches to match lab samples. Test wells are used for final confirmation before scale production. This step-by-step approach reduces development risk and ensures product readiness.

Geographic and Logistic Considerations

There are problems with lead times, minimum orders, and logistics costs that come up with global supply chains. Domestic providers can respond more quickly, but they may have smaller compound collections or charge more. International suppliers offer more material choices and might be cheaper, but they need more time to plan and require larger minimum orders. Instead of just comparing unit prices, engineers need to look at the total landed cost, which includes freight, duties, and the cost of keeping inventory.

HAGRIEN has a complete manufacturing platform that includes making materials and machining final parts. Our Xi'an center is in charge of developing alloys and extruding them, while our U.S. office handles customer service, expert advice, and logistics for clients in North America. This structure allows for communication that works across time zones and easier import processes while still keeping a direct link to manufacturing operations. We offer a range of trade terms, from EXW to CIF, so we can meet the needs of any customer or project.

Conclusion

To choose the right elastomer elements for downhole uses, you have to balance technical performance with practical conditions and the cost of getting them. Long-term success is affected by how well the material works with the wellbore conditions, how well the seller can make the product, and the total cost of ownership. Engineers who put time into structured evaluation processes—testing to make sure material properties are correct, auditing and verifying suppliers to make sure they're trustworthy, and keeping track of performance through field monitoring—get better reliability results than those who only use generic specifications. Modern finishing processes are very complicated, so sealing parts need to be specially designed for each situation instead of being generic. Partnering with providers who can help with application knowledge, unique formulation, and reliable quality delivery can give you a competitive edge by increasing uptime and lowering the cost of involvement.

FAQ

1. What typical lifespan can be expected from elastomer elements in high-temperature downhole environments?

In high-temperature downholes, how long will elastomer elements last? Weather, chemical interaction, and mechanical stress cycles affect service life. In static closure applications below 120°C with adequate fluids, elastomer elements may endure months to years. Above 150°C, service life plummets. High-temperature fluoroelastomers may last weeks to months, depending on circumstances. Static sealing lasts longer than dynamic sealing, which changes pressure or allows mechanical movement. Instead of using generic ratings, procurement teams should request case studies to demonstrate the candidate's performance in comparable scenarios.

2. How do you decide between natural and synthetic elastomers for specific applications?

Natural rubber is cheaper and has superior mechanical properties at ambient temperature, but it can't withstand chemicals or high temperatures for most downhole usage. Synthetic elastomers are mostly used in oil and gas because they work better with fuels, can handle more temperatures, and break down slower. Choose the proper manufacturing kind for the project. Fluoroelastomers perform best at high temperatures or aromatic exposure, nitrile compounds in mild temperatures and with aliphatic hydrocarbons, and particular chemicals in hard conditions. Natural rubber should only be used on surfaces or in non-critical circumstances where failure would not be significant to save money.

3. Can elastomer formulations be customized for unique downhole challenges?

Material suppliers who can compound can make formulations fit specific operating conditions. Custom development solves problems like fluids with strange chemistry, wide temperature ranges, or specific mechanical needs that standard compounds can't meet. Before mass production, the process needs to be fully tested on a sample, in the lab, and in the environment. Usually, the development process takes four to six weeks, and the first order must be at least fifty to one hundred pieces. When engineers are working with unusual conditions, they should involve suppliers early on in the planning process to give the project enough time to grow.

Partner with HAGRIEN: Your Trusted Elastomer Element Supplier for Critical Downhole Applications

When engineering teams need reliable sealing in tough subsurface settings, they need more than just catalogue parts. They also need expert help that is tailored to their needs and consistent manufacturing. HAGRIEN offers precisely engineered elastomer elements that have been tested to work in temperatures ranging from -40°C to +200°C and under pressures of more than 10,000 PSI. Our CNAS-accredited lab checks each production batch for quality by using a compression set, analysing fluid compatibility, and checking the mechanical properties. They then give you full traceability documentation to support your supplier qualification needs. Our "materials + downhole tools" platform makes it easy to work with multiple sources without having to deal with the problems that come up when you need standard configurations delivered in two to four weeks or special formulations made for specific well conditions. Email our engineering team at cyrus@us-hagrien.com to talk about your specific sealing problems, ask for test data that is specific to your batch, or look into custom formulation options. Check out our full catalogue of elastomer elements at us-hagrien.com. We'll show you how our seven years of experience making tools for global makers of finishing touches can help your operations get reliable quality and supply chain performance that's ready for audits.

References

1. American Petroleum Institute. (2018). Specification for Packers and Bridge Plugs (API Specification 11D1). Washington, DC: API Publishing Services.

2. Nagata, N., & Yoshida, T. (2020). "Elastomer Material Selection for High-Temperature High-Pressure Downhole Sealing Applications." Journal of Petroleum Technology, 72(4), 45-59.

3. Brown, R. P., & Forrest, M. J. (2019). Practical Guide to the Assessment of the Useful Life of Rubbers. Shawbury, UK: Rapra Technology Limited.

4. Society of Petroleum Engineers. (2021). "Completion Design and Practices for Unconventional Reservoirs." SPE Monograph Series, Volume 28.

5. Kallio, G. J. (2017). "Performance of Elastomer Seals in Extreme Environments: A Comprehensive Review." Sealing Technology, 2017(8), 7-14.

International Organization for Standardization. (2019). Rubber, Vulcanized or Thermoplastic — Determination of Compression Set (ISO 815-1:2019). Geneva: ISO Standards.
