Best Dissolvable Magnesium Alloy Plug for Fracturing Jobs

For service providers and users who want to cut down on expensive cutting operations and speed up time-to-production, the Dissolvable Magnesium Alloy Plug is the best way to get the most out of multistage fracturing operations. These plugs are made from advanced magnesium-based matrix composites. They provide solid zonal separation during stimulation and then break down totally in wellbore fluids, leaving a production path that doesn't need any mechanical help. This method solves the ongoing problems of high post-frac costs, grinding waste risks, and long downtimes, which makes dissolvable technology an important part of today's energy market.

Introduction

Even though hydraulic fracturing has changed the way unusual resources are developed, regular bridge plugs are still very hard to work with. To get full wellbore access again after stimulation, composite and cast iron plugs need coiled tube units, cutting bits, and more rig time. These recovery operations create technical risks, create downhole debris, and slow the start of production. These problems have a direct effect on the project's cost and safety.These problems are completely solved by Dissolvable Magnesium Alloy Plugs. By using magnesium's electrochemical corrosion qualities in chloride-rich settings, these plugs provide strong sealing during high-pressure pumping and then dissolve in a predictable amount of time, which can be hours or days, based on the parameters that were designed. This guide explains the basics of dissolvable plug technology, including its performance benefits, selection criteria, and sourcing strategies. It is meant to help procurement professionals, finishing engineers, and sourcing teams confidently add it to their fracturing processes.

Understanding Dissolvable Magnesium Alloy Plugs

What Makes Them Different from Traditional Plugs?

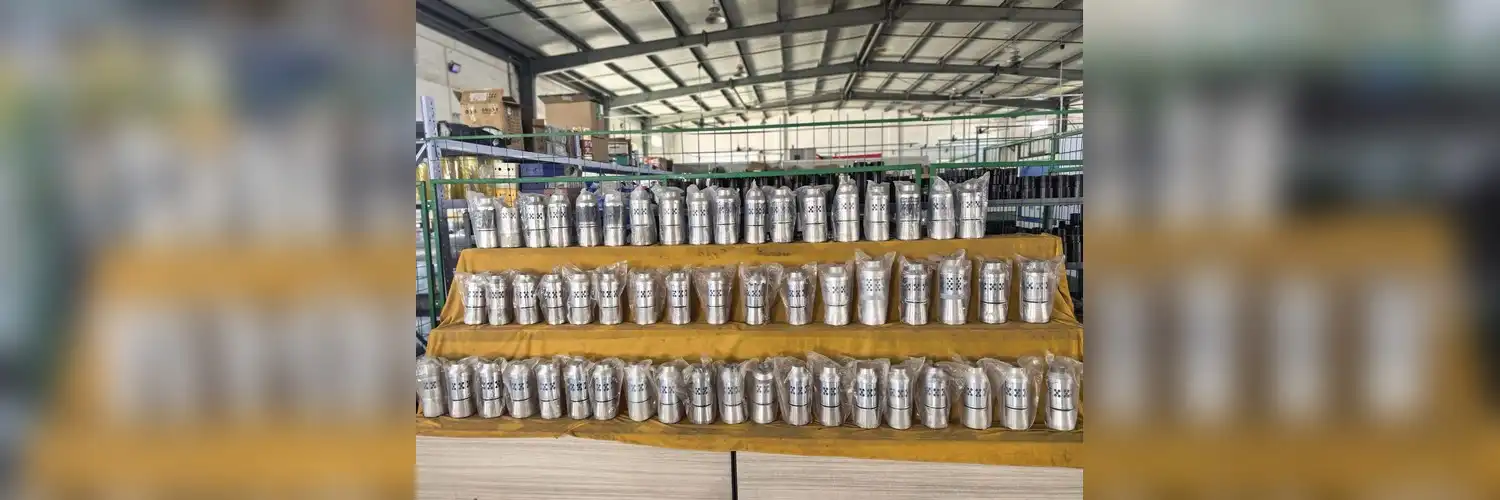

For multistage hydraulic fracturing, a Dissolvable Magnesium Alloy Plug is a temporary device used to keep fluids from flowing. While steel or composite plugs need to be dug out after each stage, magnesium alloy plugs are made to break down when they come into contact with wellbore brines or potassium chloride solutions. Micro-galvanic corrosion is what breaks down the material. This type of corrosion is affected by temperature, fluid salt, and the microstructure of the metal. This self-removing feature changes the way finishing works by getting rid of the need for any post-frac grinding runs.To make these plugs, precise casting of magnesium alloys containing aluminum, zinc, manganese, and rare earth elements is needed to achieve a balance between controlled reaction and mechanical strength. This makes a plug body that can withstand differential pressures of up to 10,000 to 15,000 psi and dissolve in a known amount of time, which can be anywhere from 24 hours to two weeks, based on the conditions of the reservoir and the alloy's composition.

Core Technical Properties

Performance dependability is based on the qualities of the material. Magnesium alloy plugs have a density of about 1.8 g/cm³, which is about 75% less than steel. Their tensile strength is between 280 MPa and 450 MPa, and their yield strength is more than 250 MPa. This low density makes it easier to deploy in long horizontal laterals and lowers the risk of settling too soon during run-in operations. Ultrasonic tests and controlling the grain size make sure that there are no holes inside the material, which is very important for keeping the pressure integrity in very harsh downhole circumstances.The rates of dissolution are controlled by carefully changing the alloy's makeup, and they can be made to fit specific working windows. Before being used, the degradation curve is checked in artificial wellbore fluids at target temperatures. This makes sure that the plugs disappear on time and don't leave behind any residues that could stop output flow.

Environmental and Safety Profile

Magnesium alloys break down naturally into harmless substances, so they don't have to be thrown away or dealt with in a way that doesn't harm the environment like steel or polymer waste does. This eco-friendly feature fits with stricter government rules and companies' promises to be more environmentally friendly. This makes dissolvable plugs a good choice for owners who care about both the environment and how well their business runs.

Key Benefits of Using Dissolvable Magnesium Alloy Plugs in Fracturing Jobs

Elimination of Milling Operations and Reduced Intervention Costs

The biggest benefit right away is that there are no more post-frac grinding runs. In horizontal wells with 50 or more steps, getting rid of the need to move coiled tubing, pay for grinding bits, and use the rig for several days can save more than one hundred thousand dollars per well. This cost drop is especially noticeable in offshore or remote areas where rig rates are higher than $500k per day and moving the equipment around is hard to plan.Mechanical risks are also cut down by Dissolvable Magnesium Alloy Plugs. Milling operations create debris that can block holes or hurt equipment that is used underground, necessitating more cleaning runs. By getting rid of all grinding, workers lower these risks and speed up the process of starting production.

Accelerated Time-to-Production

The time saved on cutting cuts straight into the time it takes to start production after the job is done. "Time-to-first-gas" can be cut by several days in real-world case studies from unusual shale plays. This means that money can be made faster and the return on investment is higher. This benefit is even stronger in multi-well pad developments, where the overall project costs depend on optimizing the timeline.

Reliable Performance Across Diverse Reservoir Conditions

Plugs made of magnesium metal are designed to work in a wide range of temperatures and pressures, from 40°C to 180°C. Their high compressive strength makes sure that they can be set and anchored against the walls of the case without breaking, even in the harshest HPHT (High Pressure, High Temperature) conditions. To make sure that the well works the same way whether it's in a shale gas play, a deepwater field, or a geothermal climate, the alloy formulas can be changed to meet the fluid chemistries and working windows.Testimonials from clients always talk about how reliable and consistent dissolvable plug technology is. When completion service providers switch from traditional to dissolvable systems, they see fewer NPT (non-productive time) events, better stage isolation quality, and higher total fracturing efficiency.

Comparing Dissolvable Magnesium Alloy Plugs with Other Plug Types

Magnesium Alloy vs. Polymer Plugs

Polymer dissolvable plugs are an option to magnesium alloys, but their dissolving rates are often slower and less consistent. Degradation of polymers depends a lot on heat exposure and can take weeks or months in pools with lower temperatures. This slows down production and makes it harder to plan operations. The breakdown of magnesium alloys is faster and easier to control; it takes hours to days instead of weeks. Magnesium plugs can also handle higher differential pressures without deforming because they have better mechanical strength.

Magnesium Alloy vs. Steel and Zinc Alloy Plugs

Steel plugs last a long time, but they need to be machined, which adds all the costs and risks that dissolvable technology is supposed to get rid of. Zinc metal plugs can dissolve in some situations, but they tend to rust more slowly than magnesium plugs and may leave behind residues that block flow routes. Magnesium is the best choice for workers who want fast, clean dissolution with little effect on the environment because it is more reactive and lighter.

Cost Considerations and Total Cost of Ownership

It's possible that a Dissolvable Magnesium Alloy Plug costs more per unit than a regular composite plug, but the total cost of ownership always comes out in favor of dissolvable technology. When you stop milling, you get rid of the costs of renting coiled tubing, milling bits, rig time, and the health and safety risks that come with them. When these things are taken into account, dissolvable plugs often have a lower total cost per stage and per well, especially in complicated multistage completions.Not only should procurement workers look at starting prices when evaluating suppliers, but they should also look at wait times, quality consistency, certification support, and service after the sale. These are all things that affect the long-term reliability of the supply chain and the success of the project.

How to Choose the Best Dissolvable Magnesium Alloy Plug for Your Fracturing Job

Assess Project-Specific Operating Parameters

Before you can choose the right Dissolvable Magnesium Alloy Plug, you need to know a lot about the well. Some important factors are:

• Well Depth and Lateral Length: To make deployment easier, longer laterals need solid plug setting devices and low-density materials.
• Reservoir Temperature: Higher temperatures speed up dissolution; alloy formulations must be matched to meet goal dissolving times.
• Fluid Salinity and Chemistry: The amount of chloride in the fluid and its chemistry affect the rate of rusting. Engineers must describe alloy formulas that match the fluids in the wellbore.
• Differential Pressure Requirements: Plugs must be able to handle the biggest difference in pressure that is expected to happen during pumps without breaking.

Knowing these factors lets you choose the right metal and makes sure that the plug works as it should during the fracture process.

Evaluate Material Properties and Quality Standards

In high-stakes downhole uses, you can't get around material certifications and tracking. Find companies that offer:

• Chemical Composition Analysis: Optical Emission Spectroscopy (OES) is used to check the metal ratios.
• Ultrasonic Flaw Detection: A full check to find any internal cracks or flaws.
• Grain Size and Microstructure Control: Metallographic analysis makes sure that everything is the same.
• Verification of Dissolution Rate: Testing of each batch in artificial wellbore fluids.
• Mechanical Tension Testing: Stress-strain research confirms safety factors.

Suppliers that follow the rules set by ISO 9001, ISO 14001, and ISO 45001, as well as those that are recognized by API and have laboratories that are certified by CNAS, provide the paperwork (COA, COC, and SDS) needed for supplier qualification and internal checks.

Supplier Credentials and Support Capabilities

Along with product quality, you should also look at how quick they are, how well they support tech, and how much they can customize. Can the seller give you an alloy formulation that fits your unique working window? Do they offer choices for making prototypes, making production more flexible, and getting things to you faster? Are they able to help you with technology issues and service after the sale?Suppliers who can do all of the processing themselves—melting the metal, extruding it, milling it, and putting it all together—give you more control over quality and wait times. Look for partners who have a history of production, ideally over a number of years and proven by field trials in a variety of reservoir settings.

Procurement Guide: Sourcing Dissolvable Magnesium Alloy Plugs

Identifying Reputable Global Suppliers

Finding makers with the right mix of technical know-how, output capacity, and supply chain security is the first step to effective sourcing. Some key signs for Dissolvable Magnesium Alloy Plugs are:

• Manufacturing Integration: Suppliers that can extrude and machine their own products offer better accuracy and faster lead times.
• Large-Diameter Capability: The ability to make extruded bars up to 300 mm in diameter ensures group stability and makes them suitable for plug designs with a lot of moving parts.
• Certification and Compliance: ISO certifications, API registration, CNAS-accredited labs, and HSE systems all show that a company cares about quality and safety.
• Production Experience: Track records that go back several years and include written field validations give faith in the predictability of performance.

This combined method is shown by HAGRIEN, which is based in Xi'an, China, but also has a company and service presence in the United States. Since 2019, HAGRIEN has been continuously producing and validating its products for about seven years. It uses large extrusion presses with capacities of 3,600 and 5,600 tons and keeps an HTHP laboratory that is approved by the CNAS for tracked validation. Their closed-loop capability includes materials, downhole tools, and precision cutting. This lets you choose materials, have them delivered, and keep track of them all in one place.

Evaluating Pricing, MOQ, Lead Times, and Logistics

For procurement to work well, prices must be clear, minimum orders must be fair, and wait times must be known ahead of time. Standard sizes usually ship in two to four weeks, but it could take four to eight weeks for special specs or designed dissolution frames. For important jobs, there should be fast choices available.International operations are made easier by trade terms like EXW, FOB, and CIF, as well as full export paperwork like COA, COC, and SDS. Coordinating in North America through a U.S. company can make delivery and contact even easier, and it can lower the risks that come with sourcing from across borders.

OEM/ODM Customization and Engineering-to-Spec Capabilities

Customized solutions are often needed for complex fracture jobs. Suppliers that offer OEM/ODM services can help with the creation of materials and structures, help with the development of prototypes, and adjust production to fit the needs of the project. With engineering-to-spec, you can match the alloy and process to your unique working window. This cuts down on the cost of trial-and-error and speeds up the approval process.Support for application engineers, online troubleshooting, and on-site help (if available) all add to the value and make sure that the rollout goes well and that the system works well for a long time.

Conclusion

Dissolvable Magnesium Alloy Plugs have been shown to be a reliable and affordable option to traditional fracturing separation tools. They can be used in unconventional, offshore, and new energy uses to speed up production startup and get rid of the need for milling. To choose the best plug, you need to carefully look at its working factors, material qualities, seller qualifications, and support options. Working with skilled manufacturers that offer integrated production, certification compliance, and quick technical support is the best way to make sure that a project is successful and that supplies will be reliable in the long run. In today's competitive energy market, buying teams and operators can cut costs, lower risks, and speed up the finishing process by using dissolvable technology.

FAQ

1. How long does it take for a Dissolvable Magnesium Alloy Plug to break down?

Dissolution times depend on temperature, the saltiness of the fluid, and the type of metal used. Everyday ranges are between 24 hours and 14 days. Corrosion happens faster when temperatures and salt levels are higher. By changing the alloy's makeup and microstructure, suppliers can design dissolution windows that work with your project plan. This makes sure that performance is always the same.

2. Are dissolvable magnesium alloy plugs environmentally safe?

Biodegradation breaks down magnesium metals into harmless chemicals that don't hurt the environment or slow down production. This eco-friendly shape gets rid of the problems that come with getting rid of steel or polymer waste, and it also fits with government and business goals for sustainability.

3. Can dissolvable plugs be customized for specific well conditions?

Of course. Leading providers offer OEM/ODM services that let you fit the alloy and process to your particular working window, which includes temperature, salinity, pressure, and the chemistry of the fluid. Customization includes making a pilot, making production scalable, and testing to make sure it works well in your specific storage setting.

Partner with HAGRIEN for Reliable Dissolvable Plug Solutions

To get the most out of fracturing and reduce operating risk, you need a reliable source of Dissolvable Magnesium Alloy Plugs with strong technical skills and quick customer service. HAGRIEN offers material solutions that can be engineered, scaled up, checked, and tracked. These solutions are backed by ISO 9001/14001/45001 licenses, API recognition, and a CNAS-accredited laboratory. From melting and extruding alloys to precise machining and final assembly, our fully integrated production platform makes sure that each batch is the same, that lead times are reliable, and that all parts can be tracked back to their source. Our team offers application engineering, fast shipping choices, and full documentation packages to help with qualification and rollout, whether you need standard dissolvable plugs or solutions that are specifically designed for your reservoir conditions. Get in touch with us at cyrus@us-hagrien.com right away to talk about your project needs and get a full price from a top Dissolvable Magnesium Alloy Plug manufacturer.
