Can 3C Electronic Magnesium Alloy Square Bar Improve Camera Frames?

Yes, a 3C electronic Magnesium alloy square bar can significantly improve camera frames by reducing weight by 33% compared to aluminum while delivering tensile strength of 250–320 MPa and exceptional damping capacity. This material provides superior electromagnetic interference shielding and thermal dissipation—critical for stabilizing imaging sensors and protecting delicate optical assemblies in professional cameras, smartphones, and drones. Its machinability allows complex geometries that enhance structural integrity without adding bulk, making it ideal for next-generation imaging devices where every gram and millimeter counts.

Understanding Magnesium Alloy Square Bars in 3C Electronics

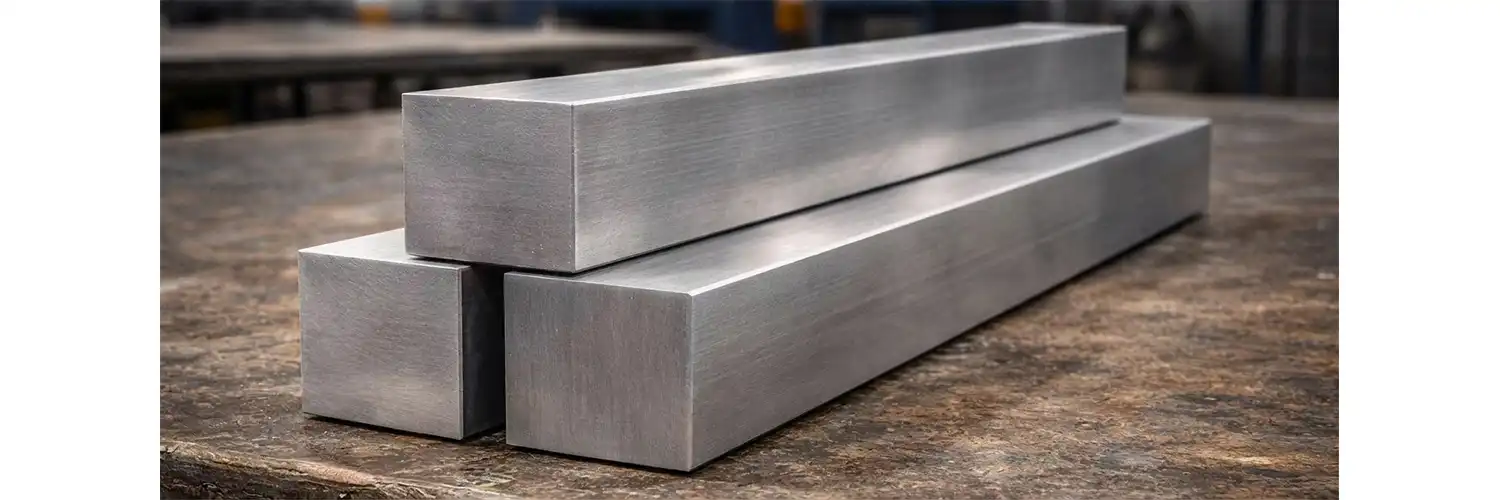

What Defines a Magnesium Alloy Square Bar for Electronics?

A magnesium alloy square bar is a structural material that is almost finished. It is made through advanced extrusion or continuous casting. When it comes to CNC machining, which is popular in the electronics industry, the square shape is better than round bars or uneven billets. Most of the time, metal systems like AZ31B, AZ61A, or ZK60 are used. These are made to balance strength, flexibility, resistance to corrosion, and ability to be machined.

These bars solve a specific engineering problem in modern electronics: to meet consumer needs, devices need to be thinner and lighter, but they also need to be able to handle drop tests, changing temperatures, and being handled every day. Magnesium has the highest strength-to-weight ratio of all structural metals. This makes it very useful for parts where weight savings are important but structural integrity cannot be compromised (Polmear et al., 2017).

Core Material Properties That Drive Camera Frame Performance

Knowing how a material functions might help you choose magnesium metals. The density of magnesium is 1.8 g/cm³, making it 33% lighter than aluminium and 75% lighter than steel. This reduces laptop and tablet weight and improves handheld camera mobility. With 250–320 MPa tensile strength, lenses, sensors, and display systems may be fixed without becoming thick.

Heat is effectively distributed when thermal conductivity is between 70 and 160 W/(m·K). Image processors and power management ICs in camera modules create heat buildup, making this crucial. Better damping may absorb vibrations that distort pictures during exposure or misalign multi-lens arrays. It is easy to machine and can handle complex shapes like mounting bosses, cable channels, and precisely placed mounting surfaces for current camera frames (ASM International, 2018).

Current Applications in Imaging Equipment

For years, professional movie cameras have employed magnesium alloy frames to safeguard delicate optics and prevent operators from tiring during extended productions. High-end DSLR and small camera frames are built of waterproof magnesium metal, which is lighter than stainless steel. Smartphone makers cut magnesium square bar material into mid-frames. These frames protect camera modules from electromagnetic radiation and offer thermal routes. Drone manufacturers employ magnesium alloy in gimbal systems and camera mounting clips to minimise weight, which improves flight duration and stability.

Comparing Magnesium Alloy Square Bars to Alternative Materials for Camera Frames

Magnesium Versus Aluminum: The Lightweight Champion

For structural purposes, 6061-T6 and 7075-T6 aluminium alloys have been used. When constructing camera frames, magnesium helps. Due of its 33% less weight than metal, gadgets may be thinner or have more functions. Because magnesium dampens vibrations ten times better than aluminium, cooling fans, motors, and external handling are less likely to reach sensitive picture sensors. Video and photo quality improves with vibration isolation.

Magnesium metals, such as 3C electronic Magnesium alloy square bar, block EMI better than other metals, protecting camera signal processing circuits from wireless communication modules. This becomes more crucial when devices incorporate 5G radios, WiFi 6E connectivity, and high-resolution picture systems. Magnesium requires precise cutting settings and chip management standards for safety, although the two materials are straightforward to manufacture.

Magnesium Versus Titanium: Balancing Cost and Performance

Titanium metals are costly and difficult to process while being robust and rust-resistant. Titanium is mainly exclusively utilised for professional camera frames in tough locations where performance trumps cost. For most consumer and professional camera usage, magnesium alloys are cheaper than titanium and stronger. The material's lower melting point and higher machinability reduce cycle times and equipment costs for mass manufacturing.

When camera modules must cram many sensors and CPUs into a tiny area, magnesium conducts heat better than titanium. Due to its 50% less weight than titanium, magnesium may make portable imaging systems lighter in dramatic ways. For most 3C electronics camera purposes, magnesium alloys are preferred due to performance and affordability. Titanium remains valuable for military, aircraft, and extreme sports imaging equipment.

Can Magnesium Alloy Square Bars Enhance the Performance and Durability of Camera Frames?

Impact Resistance and Structural Longevity

Mechanical shocks frequently damage pricey optical equipment and image sensors. A camera frame must shield these elements from shocks. Well-built magnesium metal frames diffuse impact pressures, preventing high stress regions that might misalign optical parts or destroy circuit boards in drop testing. Due to its ductility and yield strength (150–220 MPa depending on the alloy), the material can absorb regulated energy during collisions.

Frames with fatigue strengths between 80 and 120 MPa will withstand thousands of temperature cycles and mechanical stress events during a product's lifespan. Laptop manufactures utilising magnesium alloy bodies report that hinge fastening points and screen frame constructions remain the same size after years of opening and shutting. This durability reduces warranty costs and boosts the brand's reliability (Kulekci, 2008).

Corrosion Resistance and Surface Treatment Options

Raw magnesium alloys have moderate corrosion resistance, which is suitable for controlled interior situations but problematic in humid or salty environments. Surface treatments prolong life in severe settings. Micro-Arc Oxidation creates a ceramic-like coating that resists salt spray for 48–96 hours. The material is suitable for coastal and outdoor imaging equipment. Electrophoretic coating and anodising protect metal surfaces, and engineers may pick the optimal method for each application.

Professional video cameras face rain, dust, and harsh temperatures. Magnesium alloy frames prevent water from entering and fogging glasses or damage electronics when properly maintained. The treatments also provide a platform for creative finishes, allowing industrial designers to achieve their desired designs without harming the environment.

Machining Flexibility and Precision Customization

Modern camera modules need complicated internal constructions that can fit in tiny gaps for optical alignment and sensor placement. Standard CNC equipment can cleanly cut magnesium alloy square bars with the correct settings and coolant systems. The material may be utilised to manufacture thin-wall sections, intricate pocket geometries, and precisely placed mounting features since it is straightforward to work with. Instead of accepting designs that don't match material criteria, designers might improve structures for specific demands.

Dimensional stability before, during, and after machining keeps sensor orientation guides and lens-fixing sections in place. The material has a thermal expansion value of 26 × 10⁻⁶/°C, similar to optical glasses and metal lens barrels. This indicates temperature doesn't affect attention greatly. Professional film cameras and scientific imaging equipment that demands precise focus benefit from thermal compatibility.

Procurement Considerations for Magnesium Alloy Square Bars in 3C Electronics

Selecting the Right Alloy Grade for Your Application

Different combinations of magnesium alloys have different performance traits. AZ31B has the best mix of ductility and corrosion resistance, so it can be used in environments with moderate humidity and complicated shapes. With a tensile strength of 255–290 MPa and an elongation of 12–21%, it can be used to make patterns with thin parts and built-in features. AZ61A has a higher strength (290–315 MPa) but a slightly lower flexibility, making it a good choice for frames that need to be as hard as possible while still being as thin as possible.

The strongest common magnesium alloys are ZK60 alloy systems, but they need to be machined and surface treated with more care. When choosing alloy grades, procurement teams should think about the pros and cons of cost, machinability, and mechanical properties. Instead of just picking the strongest choice, you should carefully consider the load cases, environmental exposure, wall thickness limits, and output volume that are needed before choosing a material.

Supplier Qualification and Quality Assurance

Consistent material quality has a direct effect on the yield of making and the dependability of the finished product. When procurement teams look at possible suppliers, they should make sure they have a number of important skills. In-house alloy melting and mechanical control make sure that the qualities of the material are always the same and let them be changed to meet specific performance needs. Large-diameter extrusion capacity, especially Ø300 mm and above, shows advanced manufacturing skills and allows for consistent batch production for tough uses.

Getting certified to ISO 9001, ISO 14001, and ISO 45001 standards for 3C electronic Magnesium alloy square bar shows that you care about quality management, being good to the environment, and keeping your workers safe. High-temperature and high-pressure testing capabilities at CNAS-accredited labs provide independent confirmation of material properties. To help with the approval process and audit needs, suppliers should give full paperwork packages that include Safety Data Sheets, Certificates of Conformance, and Certificates of Analysis (Davis, 2021).

Batch traceability systems make it easy to find and fix problems quickly if they happen in the field. Suppliers with well-established health, safety, and environmental management systems and written process rules lower the risk in the supply chain compared to suppliers with poor quality infrastructure. Partners are different from commodity providers because they can provide technical help from the prototype stage to large-scale production. This is especially important when creating new camera frame designs.

Lead Times, Inventory Management, and Logistics

From idea to mass production, the camera development cycle usually lasts three to six months. This means that material suppliers need to be able to keep up with this speed. When suppliers keep extras of popular metal grades and cross-sections on hand, they can do fast prototyping and sampling without having to wait for longer lead times. Standard sizes usually ship in two to four weeks, but special sizes and requirements can take up to eight weeks, based on the alloy system and amount.

In the competitive consumer goods market, procurement teams should check with providers to see if they can speed up production for important projects. This is because delays in product launches cost a lot of money in lost opportunities. Finding out the supplier's production ability and loads helps you figure out if they can grow to handle high-volume production without breaking their delivery promises. Flexible trade terms (EXW, FOB, and CIF) and the ability to coordinate transportation make buying things internationally and keeping track of goods easier.

Future Outlook: Magnesium Alloy in 3C Electronic Camera Frame Applications

Industry Trends Driving Magnesium Adoption

There is constant push to make things lighter because people want thinner, lighter gadgets with longer battery lives. As manufacturers add more lenses, bigger sensors, and optical image stabilization systems, camera systems become a bigger part of the overall weight of the device. As this trend continues, lowering the frame weight becomes more important for keeping the general flexibility of the device. Computational photography and AI-enhanced images need processors that are faster and more powerful. This creates more heat that needs to be controlled by building parts that are good at transferring heat.

As we move toward screens with higher refresh rates and 5G connections, electromagnetic interference (EMI) becomes a bigger problem. This makes materials with better EMI shielding features more appealing. Materials that are easy to recycle and have low embodied energy are preferred by environmental laws and corporate sustainability goals. These conditions are met by magnesium alloys: the material can be recycled over and over again, and it takes less energy to make than aluminum when the strength is taken into account (Aghion & Bronfin, 2000).

Innovations in Alloy Development and Surface Treatment

Materials research keeps improving the performance of magnesium alloys. New metal mixes with rare earth elements make them stronger and less likely to creep at high temperatures. This means they can be used in places where battery packs or computers cause high temperatures. Nanoparticle strengthening methods make things stiffer without adding a lot of weight. These changes make it possible for camera frame designers to make frames with better performance.

Surface cleaning technologies have come a long way, easing worries about magnesium rust that were around in the past. Advanced plasma electrolytic oxidation makes ceramic layers that are thick and dense and are very resistant to rust and wear. Hybrid coating systems that use both conversion layers and organic topcoats protect the environment in more than one way. Because of these treatments, magnesium alloy camera frames can meet strict environmental qualification standards for professional and military imaging gear.

Real-World Adoption by Leading Manufacturers

Big names in consumer goods have quietly added more products that use magnesium metal. Premium laptop lines have display lids and palm rest structures made of magnesium alloy, which keeps the weight under 1 kg while keeping the structure rigid for large-screen formats. The middle frames of flagship smartphones are made of magnesium alloy and have mounting points for multiple camera modules, wireless charging coils, and antenna structures. Manufacturers of drones use magnesium metal parts in the camera gimbals and airframe structures. This reduces the drone's weight, which directly leads to longer flight times and more cargo space.

Professional movie camera makers are continuing to use magnesium metal for more than just chassis structures. They are now using it for interior component mounting frames and lens barrel components as well. This wider acceptance shows that people are becoming more sure about the supply of materials, the maturity of manufacturing, and the long-term dependability. As supply lines grow and engineers learn more, magnesium alloys are moving from being used in specialized equipment to being the main material used to build imaging equipment.

Conclusion

In current 3C electronics, camera frames have to do a lot of difficult things. They have to protect fragile optics and sensors while keeping weight down, controlling heat, and keeping electronics from interfering with each other. 3C electronic Magnesium alloy square bar has a great mix of properties that directly deal with these problems. The material is very strong for its weight, very good at damping vibrations, and very good at moving heat. These properties make it perfect for imaging tasks that need to be both effective and portable.formance, and Certificates of Analysis (Davis, 2021).

When you compare magnesium alloys to regular aluminum and high-end titanium options, it's easy to see that they are better in terms of weight reduction, vibration isolation, and electromagnetic compatibility. Corrosion resistance needs the right surface treatments, but modern coating technologies offer strong environmental protection that can handle tough jobs. Machining's adaptability lets you make complicated shapes that improve the performance of structures without sacrificing style.

Choosing the right alloy grades, making sure that suppliers are qualified and have strong quality systems, and managing logistics to fit in with fast-paced product development schedules are all important parts of procurement. As long as industry trends continue to support lightweight, high-performance materials and new alloy compositions and surface treatments are made, magnesium will likely be used more and more in camera frames for consumer, industrial, and specialized image equipment.

FAQ

1. What advantages do magnesium alloy square bars offer over aluminum for camera frames?

When compared to aluminum, magnesium alloy square bars have three main benefits. The material is 33% lighter, which means that gadget shapes can be thinner or more features can be added while keeping the same weight. It has ten times the damping capacity of aluminum, which means it doesn't let as much vibration get to image sensors and the quality of the images is better. The protection against electromagnetic interference is much more effective, keeping sensitive signal processing circuits safe from the RF interference that modern devices' wireless communication modules cause.

2. Does corrosion resistance affect the lifespan of magnesium alloy camera frames?

With the right surface processes, magnesium metal camera frames last a very long time in harsh environments. Plasma electrolytic oxidation or micro-arc oxidation makes layers of material that looks like ceramic and can withstand salt spray tests for 48 to 96 hours. The base material is protected from water, salt, and chemicals that are common in real life by these treatments. When properly handled, magnesium alloy frames show service reliability that is about the same as aluminum structures over the three to five years that most consumer gadgets are used.

3. Can magnesium alloy square bars be customized for specific camera frame designs?

Yes, magnesium alloy square bars are very easy to machine and can handle complicated shapes and close tolerances. The material cuts cleanly on normal CNC machines when the right cutting parameters are used. This lets thin-wall sections, complex pocket geometries, and mounting features that are exactly placed be made. Suppliers who give technical help can work together on choosing materials, improving structures, and creating new manufacturing processes from the prototype stage to mass production. This makes sure that designs meet performance standards and can be made on a large scale.

Source Precision Magnesium Alloy Square Bars from HAGRIEN

When the design of your camera frame needs the highest level of quality, Shaanxi Hagrien Energy Technology can provide engineered magnesium alloy solutions that can be checked for consistency. We are a 3C electronic Magnesium alloy square bar manufacturer with seven years of constant production experience, and we are in charge of all the important manufacturing processes, including melting the alloy in-house, extruding it through 300 mm holes, and precise milling. Our operations are ISO 9001, 14001, and 45001-certified, and our lab is CNAS-accredited. This means that you can track each batch and check its performance, which helps your supplier qualification processes.

We keep AZ31B, AZ61A, and ZK60 alloys in popular cross-sections in stock as a safety measure. Standard wait times are two to four weeks, but we can speed things up for important projects. Our engineering team helps with choosing materials, co-designing structures, and finding the best ways to run a process from the development of a pilot to mass production. Complete documentation packages (COA/COC/SDS) make it easier to keep procurement records that are ready for an audit.

HAGRIEN has the precise, lightweight materials you need to make your next-generation designs possible, whether you're making ultra-portable laptop webcam modules, multi-lens smartphone camera arrays, or professional imaging equipment. Visit us-hagrien.com or email our technical team at cyrus@us-hagrien.com to talk about your unique needs and get full quotes. Let's look at how our 3C electronic Magnesium alloy square bar for sale can help you make your product lighter, better handle heat, and get it to market faster with a steady supply.
