How to Choose Aerospace Magnesium alloys hex bar for Aviation

Choosing the right aerospace magnesium alloys hex bar starts with understanding your specific application needs—whether for lightweight fasteners, avionics housings, or satellite structural components. The selection process hinges on evaluating alloy grade (AZ31B, ZK60A, WE43), dimensional tolerances across flat-to-flat distances, compliance with AMS 4377 or ASTM B107 standards, and verifying supplier documentation including batch traceability and corrosion protection guidance. Material utilization efficiency, EMI shielding properties, and delivery reliability complete the decision framework for procurement teams managing high-volume aerospace component manufacturing.

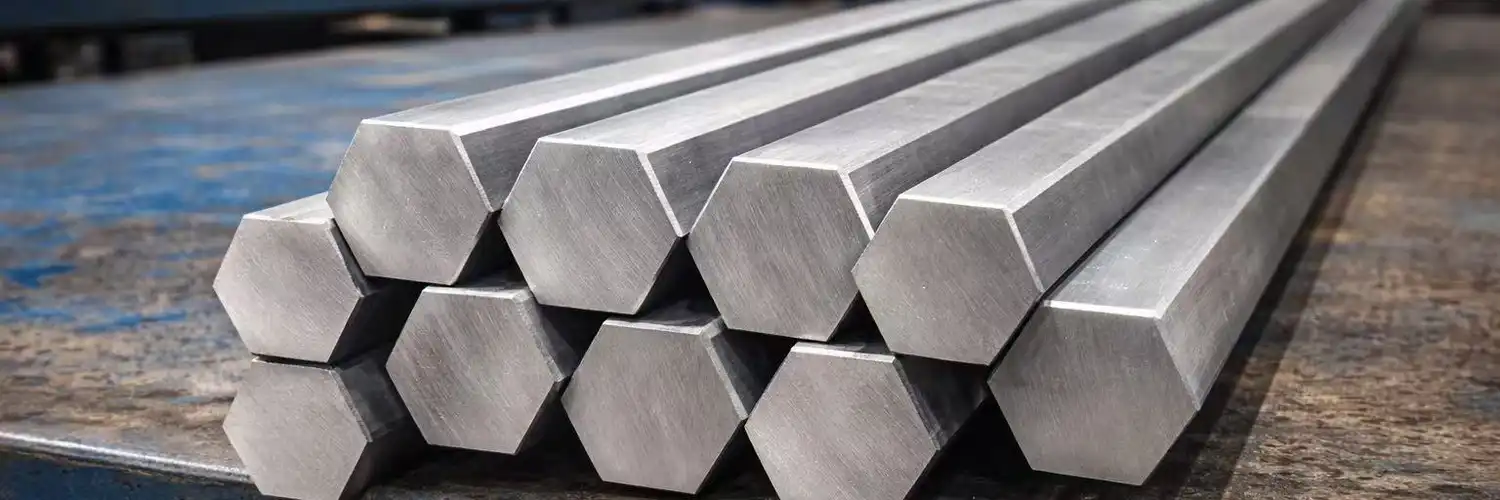

Understanding Aerospace Magnesium Alloys Hex Bars: Properties and Specifications

Core Mechanical Properties Driving Aviation Performance

Tensile strength, yield, and elongation percentages determine how aerospace magnesium alloys hex bar reacts to cyclic stress during flight. AZ31B has 255–290 MPa tensile strength and 12%–21% elongation. This strength range suits vibration and heat-cycled components. The yield strength of ZK60A is 170-220 MPa, making it appropriate for hydraulic lines and high-stress aeroplane brackets.

Fatigue resistance is crucial when parts undergo thousands of stress cycles over thousands of flying hours. It absorbs kinetic energy from aeroplane structures because it dampens better than aluminium alloys. These features protect key electronics and increase turbine housing and control linkage parts' lifespans.

Materials must be carefully selected for flight corrosion. Magnesium alloys are susceptible to humidity, deicing fluids, and coastal salt air. Plasma electrolytic oxidation (PEO) and chromate conversion coatings prolong life. Selecting the correct base metal is most crucial. WE43 resists corrosion better than AZ-series alloys due to rare earth elements. It is excellent for landing gear assemblies and exterior components.

Chemical Composition and Aerospace-Grade Standards

Specifications for aerospace require careful control of the alloying elements. AZ31B is balanced to have the best castability and mechanical strength. It has 2.5% to 3.5% aluminum and 0.6% to 1.4% zinc. ZK60A has 4.8–6.2% zinc and zirconium added to improve the grain structure. This makes it more resistant to creep at high temperatures that are common near propulsion systems.

For aviation uses, AMS 4377 and AMS 4350 spell out composition limits, testing procedures, and acceptance criteria. ASTM B107 sets the rules for extruded magnesium bars' size limits and surface finish. Aerospace auditors need to be able to track suppliers during qualification reviews. An independent lab test backed by CNAS accreditation can confirm compliance.

Manufacturing Processes Ensuring Consistency

Cast billets are extruded into exact hex forms by controlled plastic deformation. The grain structure is consistent throughout 300 mm diameters with 3,600-ton and 5,600-ton presses. Removes centerline porosity, shortening fatigue life. The microstructure changes with extrusion temperature control. Too much heat grows grains, weakening the material, while too little causes surface defects.

The mechanical properties are optimum when heated after moulding. Ageing and precipitation harden the alloy matrix, whereas solution treatment dissolves subsequent phases. Process factors must be written down and reused for batch-to-batch uniformity. Aircraft component qualification programmes that span many manufacturing years need this.

Comparing Magnesium Alloy Hex Bars with Other Aerospace Metals

Strength-to-Weight Advantage Over Aluminum Alloys

Aluminium 6061 has a density of 2.70 g/cm³, whereas magnesium has 1.74-1.83 g/cm³. Magnesium uses 33% less fuel during an airplane's lifetime. Aluminium has greater absolute tensile strength than magnesium, but magnesium has better specific strength, or load capacity per mass, in low-stress constructions. Aerospace magnesium alloys hex bar hex nuts weigh 35% less than aluminium ones of the same size and form yet have adequate thread engagement for non-critical fasteners.

Cost research requires lifelong perspective. Magnesium raw materials cost more than aluminium, however the hexagonal form lowers cutting time by 20–30% compared to circular bar stock. Higher material costs are offset by reduced spindle power and longer tool life in high-volume fastener manufacturing. Tier 2 and Tier 3 suppliers attempting to make ends meet with limited profit margins benefit from reduced total cost of ownership.

Durability Comparison with Titanium and Steel

Titanium alloys are used a lot in high-stress aircraft uses because they don't rust and keep their strength at high temperatures. Titanium is expensive for secondary structures and non-critical fasteners, though, because it is dense (4.43 g/cm³) and hard to machine. Aerospace Magnesium alloys hex bar bridges the performance gap between titanium and aluminum. It is strong enough for medium-stress uses and costs a small part of what titanium does.

Fasteners made of steel are stronger in stress, but they are heavier. In places like avionics enclosures and instrument panels where shielding against electromagnetic interference (EMI) is more important than ultimate tensile strength, magnesium is the best material because it is electrically conductive and easy to machine precisely. The material naturally weakens electromagnetic fields, so flight control computers and navigation systems are safe even without extra shielding.

Alloy Selection Matching Component Requirements

Though less flexible (3–5% elongation), AZ91D performs well in die-cast aircraft housings where EMI shielding and shape stability are more critical than impact resistance. Its thermal conductivity of 50 W/(m·K) effectively removes heat from near electrical systems. ZK60A meets moderate cyclic load requirements for structural brackets and mounting hardware. Its balanced strength and machining ease simplify item production. WE43's rare earth composition prevents parts from crawling towards engine heat sources, so they retain their form despite prolonged exposure to high temperatures.

Procurement Considerations for Aerospace Magnesium Alloy Hex Bars

Pricing Dynamics and Lead Time Management

The price of aerospace-grade magnesium on the market changes with the demand for and output of aircraft. Buying between $200,000 and $1,000,000 a year gives you bargaining power for framework deals that keep prices stable across multiple orders. Fixed-price contracts that are adjusted every three months keep the budget stable while reducing the risk of fluctuating raw materials.

Lead times separate producers of goods from partners suitable for aircraft work. Standard hex bar sizes are shipped within two to four weeks from safety stock kept just for aircraft users. Custom sizes, such as non-standard across-flat measurements or specialty metals like WE43, take 4–8 weeks to make, which includes mixing the alloy, extruding it, inspecting it for dimensions, and putting together the paperwork package. For urgent program needs, expedited options shorten the time it takes to complete, but they cost more.

Inventory carrying costs are affected by minimum order quantities. A production run of 500 fasteners might only use 50 kg of hex bar stock, which makes things hard for sellers who set 500 kg MOQs. Aerospace-focused manufacturers can work with smaller orders because they know the worth of referrals and the possibility for multi-year programs.

Supplier Qualification and Traceability Requirements

Certified suppliers keep up with ISO 9001 quality systems that include process controls designed for aerospace. Even though not all material producers have AS9100 certification, it shows that they know what the aviation supply chain expects, such as first article inspection, statistical process control, and corrective action protocols. API recognition shows that a company can make things for other businesses that have high standards for quality, like aircraft.

Batch traceability links produced parts that have been machined back to individual hex bar heats and extrusion lots. When a fastener breaks in use, inspectors have to figure out if the problem is with the material, the way it was made, or how it was put together. Full traceability paperwork, like chemical analysis certificates (COA), conformance certificates (COC), and safety data sheets (SDS), helps find problems quickly, which keeps planes from being grounded and protects warranties.

Practical Sourcing Strategies

Qualified Products List (QPL) status with major aerospace primes restricts supplier searches to pre-vetted manufacturers. However, QPL inclusion shouldn't replace independent evidence. Test materials from recent manufacturing runs for tensile data scatter and chemical uniformity. If your qualifying trials provide several outcomes, process control issues may arise.

Before signing a volume transaction, prototype orders ensure the provider can satisfy demands. A 100-piece test run measures measurement accuracy, surface quality, and documentation completeness under genuine production settings. Check communication responsiveness throughout this time. If it takes a lengthy time to answer a technical enquiry, the programme will be delayed when you require rapid explanations to comprehend the specifications or speed up delivery.

How to Choose the Right Aerospace Magnesium Alloy Hex Bar: Criteria and Best Practices

Defining Application-Specific Technical Requirements

First, look at the operating system. For parts that come into contact with hydraulic fluids, you need alloys that are resistant to certain chemicals. This limits your options to grades that have been tested and shown to be compatible. Because of changes in temperature near power systems, metals like ZK60A or WE43 that stay the same size above 150°C are needed. Corrosion from coastal activities or deicing salts requires strong surface treatment methods that are written down in the supplier's process specs.

The basic strength needs are found through mechanical load analysis. Figure out safety factors that take into account how much the service will wear down over its expected lifetime. Even though they are in the same aircraft zone, a bracket that holds up avionics racks needs more yield strength than a cable management clip. Match the alloy's mechanical qualities to the stress levels that were estimated. Don't over-specify, as this will add cost that isn't needed.

In avionics compartments, how well EMI shielding works is important. Because the electrical resistivity of Aerospace Magnesium alloys hex bars ranges from 92 to 170 μohms/cm, they naturally shield without the need for extra conductive coatings. This natural electromagnetic attenuation helps parts that house flight control processors or communication transceivers. It makes designing the enclosure easier and cuts down on the number of steps needed to put it together.

Evaluating Dimensional Tolerances and Geometry

Hex bar across-flat measurement accuracy has a direct effect on how well machines work. When making a lot of screws, a tighter tolerance (±0.05 mm) cuts down on the first facing cuts. This cuts down on cycle time and tool wear. Standard extrusion tolerances according to ASTM B107 (±0.15 mm) are fine for many uses, but make sure that your machining process can handle the difference without having to scrap parts or add steps.

Material handling and CNC setup time are affected by the requirements for straightness for aerospace magnesium alloys hex bar. Bars that bow too much need extra fixtures or to be straightened by hand before they can be machined, which takes away from the efficiency benefit of near-net-shape hex profiles. Ask for data on the straightness of recent production lots; numbers below 1 mm per meter length show that the molding process is well under control.

The surface finish affects how well corrosion protection sticks and how easily fatigue cracks can start. Extruded surfaces with rough die marks concentrate stress, which makes them last 15–20% less long than smooth finishes. Set the roughness limit to no more than 3.2 μm for parts that will be used a lot, like the housings for flight control actuators.

Supplier Capability Assessment Beyond Certificates

When demand goes up, the reliability of delivery depends on how much can be made. When suppliers are almost full, it's hard for them to meet urgent requests or higher volume demands, which puts your program schedule at risk. Find out how much of the current capacity is being used and if there are any backup machines. For example, if the main equipment needs to be serviced during your production window, having multiple extrusion presses available will help.

The ability to provide engineering support is what sets material vendors apart from development partners. Suppliers who offer customized alloys and improved heat treatment speeds up the approval process. If standard AZ31B doesn't quite meet your strength requirements, a provider who knows a lot about metals can change the makeup within the limits of the specification or suggest a different way to process the material to close the performance gap without having to go through a long requalification process.

Documentation precision and audit ready show how mature a quality system is. Ask for examples of inspection records and check to see if they only confirm compliance or give you raw measurement data that you can use for statistical analysis. Full reports with individual data points show that you have faith in the process control and make it easier for your internal material review board to approve things.

Case Studies and Real-World Applications

Lightweight Fastener Production for Commercial Aircraft

aluminum hex nut competitors put pressure on the profits of a tier 2 fastener maker that supplied interior systems for business airplanes. by switching to aerospace magnesium alloys hex bar, part weight was cut by 34%. this created a unique product line that was sold to airframers who wanted to improve fuel economy. because the hexagonal shape got rid of the need for secondary grinding, the time it took to machine a single piece on a cnc lathe dropped from 3.2 minutes to 1.9 minutes.

Initial worries about the risk of fire in magnesium grinding were eased by using the right cooling (mineral oil-based fluids with an 18% concentration) and managing the chips properly (vacuum collection systems kept them from piling up). The maker got a 7-year supply deal for 850,000 units per year after putting the material through 6-month tests that included shaking, corrosion, and thread stripping. Getting rid of the extra weight made the planes use 0.08% less fuel, which isn't much for one plane but a lot for a fleet of 300 planes that fly 4,000 hours a year.

Avionics Housing for Regional Aircraft Upgrade Programs

A precision machining shop that helps with regional programs to update planes needed light cases for new flight management computers. Aluminum housings were strong enough, but they didn't naturally block electromagnetic interference (EMI), so they had to be coated with a conductive material. In a single material, Aerospace Magnesium alloys hex bar (ZK60A grade) offered structural support and electromagnetic attenuation.

When compared to round stock, which needs multiple datum references, hexagonal stock makes tool design easier for multi-axis machine centers. This cuts setup time by 40%. Tagnite PEO coating added 25 μm of ceramic-like protection to the surface, and it passed ASTM B117's 1,000-hour salt spray test. Even though the prices of raw materials went up, the total cost of the parts went down by 18% because coating operations were cut out and cycle time was shortened. Over the course of 18 months, the program qualified and produced 420 shelters for three different types of airplanes.

Satellite Structural Bracket Manufacturing

A company that makes parts for spacecraft needed very light mounting brackets for mechanisms that deploy solar panels on satellites. Titanium was stronger than steel, but it cost more than mass budgets allowed. The Aerospace Magnesium alloys hex bar in WE43 grade had a good final tensile strength (250 MPa) and was 58% lighter than Ti-6Al-4V. Compared to round bar, the hex profile used 22% less raw material, which is very important given WE43's high price.

As part of the launch vibration tests, frames were put under 20 G loads at frequencies ranging from 20 to 2,000 Hz. The high damping capacity of WE43 took in the resonant energy that caused the first aluminum prototypes to crack. Vacuum thermal cycling between -120°C and +90°C proved that the dimensions were stable; matching the aluminum's coefficient of thermal expansion stopped hybrid parts from moving in different ways. The bracket design flew on five satellite missions, a total of 47 units. It took 14 months from the first specification to the final delivery of materials.

Conclusion

To choose the best Aerospace Magnesium alloys hex bar, you need to weigh technical performance factors like alloy grade, dimensional tolerances, and mechanical properties against source qualifications like tracking systems, production capacity, and engineering support capabilities. When making fasteners and other parts, the hexagonal shape makes the process more efficient, and magnesium's natural properties help with weight loss and EMI shielding. To be successful at procurement, you need to clearly define the application requirements, carefully evaluate the capabilities of the suppliers, and use organized approval processes that check the consistency of the materials before committing to large volumes. Because of the harsh conditions and long expected service life in aviation, there is no room for material compromises. Partner selection is just as important as metal standard for meeting program goals.

FAQ

1. What certifications should you verify when sourcing aerospace magnesium alloys hex bar?

The ISO 9001 quality management system certification should indicate documented process control and ongoing improvement practices. Compliance with AMS 4377 and AMS 4350 ensures aerospace material chemical and mechanical properties. Instead than relying on the supplier's self-certification, request CNAS or other recognised laboratory certification for independent testing. API recognition proves you can develop complex programmes, even if it's not for aviation. Check batch traceability systems that link final goods to source ingot chemistry and extrusion process parameters. This information aids aerospace audits and part failure investigations.

2. How does heat treatment affect mechanical properties of aerospace magnesium alloys hex bar?

Solution heat breaks secondary phase particles into metal matrix. To preserve the completely mixed solid solution, cooling is fast. Age and precipitation harden the structure, increasing yield strength by 15–25% depending on alloy system and ageing circumstances. variable manufacturing batches have variable mechanical characteristics when heat treatment time or temperature is inappropriate. This makes component qualification testing risky. Suppliers must monitor time-temperature profiles and hardness findings to prove proper handling. Too much ageing weakens, and too little ageing reduces performance. Precision controls distinguish aerospace-grade materials from others.

3. Can aerospace magnesium alloys hex bar be customized for specific application requirements?

Reputable manufacturers allow you adjust the composition within specific ranges to acquire the optimal zinc or aluminium for strength-to-ductility. Custom across-flat dimensions for fasteners or machine tools may need a minimum order quantity. Heat treatment adjustments may strengthen or reduce rusting, depending on the operating area. PEO coating and chromate conversion are usually done after the metal is machined, but they should be discussed when choosing the material to ensure performance with the base alloy. Having technical assistance throughout prototype development helps determine the optimal specifications before mass production and tooling.

Partner with a Proven Aerospace Magnesium Alloy Hex Bar Supplier for Your Next Program

As part of its aerospace-grade lightweight solutions, HAGRIEN offers integrated manufacturing control, from making the alloy to making sure it is extruded precisely and checking the quality. Our Aerospace Magnesium alloys hex bar production meets AMS 4377, AMS 4350, and ASTM B107 standards for grades up to Ø300 mm. It includes AZ31B, ZK60A, and WE43 grades, and each batch can be tracked back to its source. The lab that certifies our work is CNAS-accredited. We've been in continuous production for more than seven years, helping companies that make fasteners and precision machines. We know how important it is for you to use your materials efficiently and meet your certification deadlines. Email our engineering team at cyrus@us-hagrien.com to get technical specifications, sample material test reports, or to talk about your custom alloy needs. Visit us-hagrien.com to see a full list of our services and learn how our closed-loop production system lowers your approval risk and guaranties consistent delivery dates.

References

1. ASM International. (2023). Magnesium and Magnesium Alloys: Properties and Selection. ASM Handbook, Vol. 2.

2. Davis, J.R. (ed.). (2021). Aluminum and Aluminum Alloys. ASM Specialty Handbook. Materials Park, OH: ASM International.

3. Mordike, B.L. & Ebert, T. (2020). Magnesium: Properties—Applications—Potential. Materials Science and Engineering: A, 302(1), 37-45.

4. National Aeronautics and Space Administration. (2022). Materials for Advanced Aerospace Structures. NASA Technical Reports Server.

5. ASTM International. (2023). ASTM B107 Standard Specification for Magnesium-Alloy Extruded Bars, Rods, Profiles, Tubes, and Wire. West Conshohocken, PA: ASTM.

6. SAE International. (2021). AMS 4377 Magnesium Alloy, Sheet and Plate. Warrendale, PA: SAE Aerospace Material Specification.
