How Wellbore sealing Elastomer Element Handles Pressure and Heat

When you're completing a well thousands of feet underground, the integrity of your downhole tools depends on one critical component: the Wellbore sealing Elastomer Element. These specialized rubber components create hydraulic barriers that isolate pressure zones, prevent cross-flow between formations, and maintain wellbore integrity under extreme conditions. At temperatures reaching 200°C and pressures exceeding 10,000 psi, these elements must perform flawlessly—because downhole failures translate directly into costly workover operations, deferred production, and safety risks. Understanding how these engineered elastomers handle heat and pressure is essential for procurement managers, completion engineers, and tool manufacturers who demand reliable, long-lasting sealing solutions that protect both operations and bottom lines.

Understanding Wellbore Sealing Elastomer Elements and Their Role Under Pressure and Heat

How Pressure Activates the Sealing Mechanism

Differential pressure across the element makes the sealing work better. The rubber gets stronger as the pressure rises, pressing it closer to the closing surface. This pressure-activated design shows how properly designed elements can keep their shape even when conditions change downhole during production.

Temperature Effects on Molecular Structure

Heat changes how well elastomers work by making molecules move around more in the polymer chains. When the temperature goes up, the material's modulus goes down, which can cause extrusion if it's not managed properly with compound formulation and anti-extrusion safety rings (SPE Journal, 2020). When temperatures are very low, on the other hand, elastomers can stiffen up, making it harder for them to mold to uneven surfaces.

Material Selection Based on Operating Windows

Nitrile rubber (NBR) is a cheap way to seal up to 120°C and is very good at keeping oil and salt water out. Hydrogenated Nitrile (HNBR) can handle temperatures up to 180°C and is better at withstanding chemicals in sour gas conditions that contain H2S and CO2. Perfluoroelastomers (FFKM) are only used in extreme situations above 230°C, where other materials would break down due to chemical hydrolysis or heat softening. Fluoroelastomers (FKM) can handle temperatures up to 200°C and are resistant to strong finishing fluids.

Key Design Considerations for Optimizing Elastomer Performance in Harsh Environments

Matching Hardness to Application Requirements

For downhole sealing jobs, Shore A hardness is usually between 70 and 90 durometers. Higher hardness values stop extrusion at high differential pressures, but they might not be able to seal well on rough surfaces. Lower hardness makes the material easier to shape, but it also makes it more likely to flow when it's under pressure. We make sure that the hardness of our rubber compounds is just right for your tool's shape and how it's used, so the element seals well without going past the backup rings.

Compression Set as a Predictor of Long-Term Performance

The compression set measures how much an Wellbore sealing Elastomer Element has changed permanently after it has been compressed and then released. According to the ASTM D395 standard, values above 25% mean the material has lost its elasticity and may not be able to keep up enough closing force. After 70 hours at 150°C, our formulas always have compression set values below 20%. This makes sure that the elements keep their closing integrity during long production processes. This performance trait directly leads to fewer packer failures and lower costs for workovers.

Chemical Compatibility Testing Protocols

Epoxymers can grow, shrink, harden, or soften when they come into contact with crude oil, condensate, brine, finishing acids, and hydraulic fracturing fluids. Immersion testing in wellbore fluids supplied by the customer at working temperature is done to make sure that the dimensions stay stable and the mechanical properties stay the same. This application-specific evaluation gets rid of the need to guess and lowers the risk of failure in the field during important activities.

Preventing Common Failure Modes

Differential pressure pushes elastomer material past backup rings, making leak paths. This is called extrusion. This type of failure can't happen because of anti-extrusion features and the right design of the backup ring. Rapid Gas Decompression (RGD) happens when high-pressure gas gets into the elastomer and then quickly expands when the pressure drops, which causes blistering and breaking inside the material. High-modulus chemicals that have been tested to meet ISO 23936-2 requirements don't react with RGD in gas wells. Long-term exposure to heat breaks down materials, causing them to harden, crack, and lose their sealing power. Heat-stabilized polymer formulations can help stop this from happening.

Comparing Elastomer Materials for High Pressure and Heat Conditions

NBR: Cost-Effective for Moderate Conditions

Nitrile rubber is still the most common material used for finishing tools that work in oil and brine conditions below 120°C. It has good physical toughness, good resistance to compression set, and good economics for making a lot of it. When temperature and chemical exposures are within the range of what NBR can handle, it works well in standard packers and bridge plugs.

HNBR: Enhanced Heat and Sour Gas Resistance

Hydrogenated Nitrile increases the temperature range of operation to 180°C and makes it much more resistant to sour gasses like H2S and CO2. The hydrogenation process breaks down double bonds in the backbone of the polymer, which slows down oxidative deterioration and heat age. HNBR is about 30–40% more expensive than NBR, but it lasts a lot longer in tough wells, which is why it's the best choice for HPHT completions and sour gas fields.

FKM: Extreme Temperature and Chemical Resistance

Fluoroelastomers can handle temperatures of up to 200°C and can stand up to harsh finishing fluids like acids, steam, and aromatic hydrocarbons. FKM keeps its mechanical qualities even after being exposed to high temperatures for a long time, which would damage NBR or HNBR. The material is about twice as expensive as HNBR, but it is still a good deal for harsh situations where element dependability is very important. Geothermal wells and improved oil recovery processes that use constant steam injection are two uses for our FKM formulations.

EPDM: Steam and Hot Water Applications

Ethylene Propylene Diene Monomer rubber works really well in geothermal and steam injection situations where hot water and changing pH levels would break down hydrocarbon-resistant elastomers. EPDM doesn't change shape when heated or cooled and stays flexible over a wide range of temperatures. However, it expands too much in crude oil, so it can only be used in water-based environments.

Procurement Guide: How to Choose and Source Wellbore Sealing Elastomer Elements

Certification Standards That Matter

With ISO 9001 quality management certification, suppliers are required to keep written records of their processes for inspecting, controlling materials, and making products. API compliance or recognition shows that you know about the rules and testing procedures for drilling services. CNAS or a similar laboratory accreditation shows that the testing done in-house meets international standards for accuracy and repeatability. We have ISO 9001, ISO 14001, and ISO 45001 certifications, and our high-pressure, high-temperature laboratory is CNAS-accredited. Every batch is tested against performance standards.

Technical Support and Engineering Collaboration

Can your supplier suggest compound mixes for the Wellbore sealing Elastomer Element based on the conditions in the wellbore? Do they offer advice on choosing materials for new tool designs? Strategic sellers are different from commodity vendors because they offer engineering help. Before making a prototype, our team looks over customer drawings, operating conditions, and fluid exposures to figure out the best elastomer systems to use. This collaborative approach shortens the time needed for qualification and cuts down on the costs of making mistakes that come with introducing new products.

Lead Times and Inventory Management

Standard rubber parts with standard sizes usually ship two to four weeks after an order is confirmed. Custom-engineered compounds or non-standard shapes take 4 to 8 weeks to make, which includes developing the recipe, making the tools, and testing to make sure it works. When suppliers keep extras of commonly used sizes on hand, they can quickly sample and restock in case of an emergency. We keep typical diameters in stock ranging from 50mm to 300mm in NBR and HNBR compounds to meet the needs of quick-turn development and production ramp.

Why Procurement Teams Choose HAGRIEN as Their Wellbore Sealing Elastomer Element Supplier

Engineered for Extreme Conditions: Temperature, Pressure, and Chemical Resilience

The Shaanxi Hagrien Energy Technology Co., Ltd. has been making products for seven years straight and has worked with finishing tool makers in China, the Middle East, and North America. We are different because we use a closed-loop system that includes compound formulation, precision molding, post-cure inspection, and trackable documentation. All of these steps are controlled in-house to make sure that the consistency from batch to batch is always the same.

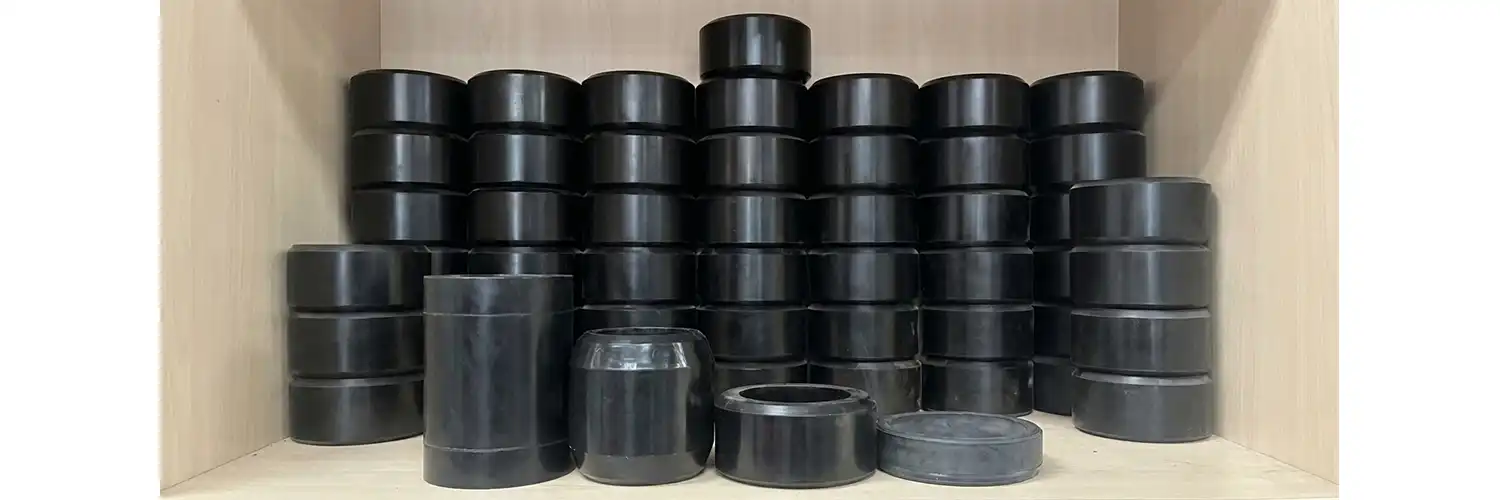

Through controlled deformation that fills the gaps between the tools and the case, our rubber elements make reliable hydraulic barriers in annular areas. Normal rubbers break down at high temperatures, but our formulations don't. They don't get soft or dissolve chemically, even when you use steam injection for enhanced oil recovery or set tools in HPHT gas wells. Compression recovery is important because parts need to return to their original shape after being compressed many times. This makes the tool last longer and lowers the cost per well. The anti-extrusion shape stops material from moving when there is a difference in pressure, which keeps the seal intact during the process.

These are the main performance traits that make our rubber parts unique:

• Temperature Range from Very Cold to Very Hot: Our standard compounds work reliably from -20°C to 200°C, and for ultra-deep or geothermal applications, they can work up to 230°C with special formulations. This large operating window lets you work in a variety of finishing conditions without having to keep multiple stocks of materials.
• Ratings for Pressures Higher Than 10,000 PSI: Standard elements can handle difference pressures of up to 10,000 PSI, and HPHT versions have been tested to 15,000 PSI. Our CNAS-accredited lab tests for pressure to make sure the product works before it is shipped, which makes your approval process easier.
• Compression Set Below 25% After Thermal Aging: We make sure that our Wellbore sealing Elastomer Element materials stay strong even after being exposed to heat for a long time. According to ASTM D395, compression set values always fall below 20% after 70 hours at 150°C. This makes sure that the elements keep their closing force during long production runs.
• Chemical Resistance for the Fluid Environment: We choose chemicals based on the real chemistry in the well, whether you're working with sweet or sour crude, high-salinity brine, finishing acids, or fluids used for hydraulic fracturing. Application-specific matching lowers the chance of failure during important operations.
• Stability in dimensions and quality of the surface: Our precision molding methods produce tight tolerances and smooth surfaces that seal well without using too much compression force. The diameter range is from 50mm to 300mm, and customers can get unique sizes based on their models.

These performance traits directly address the problems that manufacturers of completion tools have, such as elastomer breaking down over time, which needs to be fixed during downhole work, making small batches of custom tools with inventory costs that are manageable, and creating specialty compounds on time for projects. Our quick-thinking engineering team checks needs within 24 hours and sends official quotes with delivery dates within 1–3 business days, which is the same amount of time that North American projects need.

Ensuring Long-Term Seal Performance: Maintenance and Best Practices

Storage Conditions That Prevent Premature Aging

Even when they are stored, elastomers age because they are exposed to oxygen, heat, and ozone. Keep things in sealed containers out of direct sunlight and heat sources. The shelf life is longer when stored at temperatures between 15°C and 25°C in low-humidity areas. Depending on the type of polymer and storage conditions, the shelf life is usually between 5 and 10 years (SAE International, 2019). First-in, first-out stock rotation will help you use up the oldest items before their shelf life runs out.

Inspection Protocols Before Installation

A visual inspection should find any surface flaws, flash lines, or inclusions that could act as crack starters when the element is heated up. Use a Shore A durometer to make sure the material hasn't lost its hardness while it was being stored. Measure important measurements to make sure they match the plans. If they shrink or swell, it means there are problems with storage that could affect how well they work in the field.

Installation Techniques That Preserve Integrity

Before installing, lubricate the elements with fluids that are compatible with them to keep them from tearing or wearing down. When making tools, don't use ones with sharp edges that could cut or nick the elastomer surface. Before turning on the packer or plug, make sure the backup rings are in the right place. Backups that aren't lined up right can still allow extrusion, even with high-quality elements. To set the bolts or hydraulic pressure to the right values—not enough energization means the seal doesn't form, and too much compression speeds up the compression set.

Conclusion

In finishing activities, Wellbore sealing Elastomer Elements are the last line of defense against fluid movement, cross-flow, and loss of well control. They can handle high temperatures and pressures only because the materials were carefully chosen, the engineering was precise, and the making was of high quality. This ensures that each batch performs the same way. When evaluating suppliers, procurement teams should put technical collaboration, documentation standards, and supply reliability at the top of the list, along with unit pricing, to get the best total cost of ownership. You can get sealing parts that protect operational safety, lower workover costs, and extend tool service life in a variety of completion environments if you work with manufacturers who know what is needed in the downhole and keep strict process controls.

FAQ

1. What causes Rapid Gas Decompression failure in wellbore sealing elastomer elements?

Rapid Gas Decompression (RGD) happens when high-pressure gas gets into the rubber when it is inflated and then quickly expands when the pressure is lowered, creating burns and breaks inside the material. Under pressure, gas molecules like methane, CO₂, and H₂S dissolve into the polymer structure. When the pressure drops quickly, the dissolved gas can't get out fast enough, so it forms bubbles that break up the material. To stop RGD, high-modulus materials that let less gas through must be tested according to ISO 23936-2 guidelines that mimic real well pressure cycling conditions (Journal of Petroleum Technology, 2022).

2. How do you choose between HNBR and FKM for high-temperature applications?

HNBR is more physically tough, less likely to tear, and less likely to wear down than FKM. This makes it perfect for dynamic sealing uses or places where particles are present. Most of the time, HNBR is cheaper than FKM, and it can handle temperatures up to 180°C. FKM is very good at resisting acids, aromatic hydrocarbons, and strong finishing fluids. It can also handle temperatures up to 200°C. For wells that are exposed to aggressive chemicals or temperatures above 180°C, FKM's longer service life makes up for its higher cost. When it comes to sour gas wells below 180°C, HNBR works better and costs less.

3. Can wellbore sealing elastomer elements be reused after retrieval?

Not often, no. When an elastomer element is charged and squeezed, it permanently changes shape, which is measured by its compression set. This deformation makes it harder for the element to create closing force in later installs. Also, being exposed to fluids in a wellbore may cause chemical breakdown that can't be seen from the surface. Trying to reuse parts in applications that need to be safe increases the risk of failure too much. As a general rule, elastomer sealing parts should only be used once and should be replaced when a tool is refurbished.

Partner With HAGRIEN for Reliable Wellbore Sealing Elastomer Element Supply

Manufacturers of completion tools need a Wellbore sealing Elastomer Element maker who knows that every part has to work perfectly thousands of feet deep. Engineered rubber elements from HAGRIEN can withstand temperatures up to 230°C, pressures higher than 15,000 psi, and compression set values always less than 20%. Our ISO 9001/14001/45001-certified facility combines knowledge of compound composition with precise casting and CNAS-accredited testing to make sure that each batch is the same. Standard wait times are two to four weeks, and custom solutions take four to eight weeks. We can support your project plans with reliable delivery and audit-ready paperwork, such as COA, COC, and full batch traceability. Email our engineering team at cyrus@us-hagrien.com to talk about your application needs, ask for samples to be tested for quality, or find out how our OEM/ODM services can help you make your tool designs better.

References

1. World Oil (2021). "Advances in Packer Element Technology for HPHT Applications." World Oil Magazine, November 2021.

2. SPE Journal (2020). "Material Selection Criteria for Elastomer Sealing Elements in High-Temperature Wells." Society of Petroleum Engineers Journal, Vol. 25, No. 4, August 2020.

3. ASTM International (2018). "ASTM D395 - Standard Test Methods for Rubber Property—Compression Set." ASTM International Standards, 2018 edition.

4. SAE International (2019). "ARP5316 - Rubber Shelf Life Guidelines." SAE Aerospace Recommended Practice, Revision C, 2019.

5. Journal of Petroleum Technology (2022). "Understanding and Mitigating Rapid Gas Decompression in Elastomer Components." JPT, March 2022.

6. Rubber Chemistry and Technology (2020). "Thermal Aging and Compression Set Performance of Oilfield Elastomers." Rubber Chemistry and Technology, Vol. 93, No. 2, 2020.
