Dissolvable Alloy Hollow Tube: A Smarter Path to Retrieval-Free Completion

Completion engineers face a persistent challenge: balancing the need for robust downhole isolation with the operational burden of tool retrieval. Traditional mechanical plugs and tubular components require milling, coiled tubing runs, or fishing operations—driving up non-productive time and rig costs. The no retrieval required alloy hollow tube changes that equation entirely. Manufactured from dissolvable magnesium alloys that degrade predictably in wellbore fluids, these hollow profiles deliver structural strength when you need it, then vanish on schedule to restore full bore. This approach eliminates mill-out operations, reduces HSE exposure, and accelerates your move to production—all while cutting intervention complexity across unconventional, offshore, and conventional completions.

Introduction

Speed and safety are what give oil and gas projects their competitive edge today. For multistage fracturing operations, extended-reach laterals, and offshore installs, parts need to work in harsh environments and then disappear without a trace. That need is met by dissolvable alloy hollow tubes, which combine the mechanical strength of regular extrusions with designed breakdown chemistry. Dissolvable magnesium alloy profiles break down completely when they come into contact with formation brines and completion fluids, unlike steel mandrels that can get in the way of production or need to be expensively retrieved. By getting rid of the recovery step, managers shorten wait times, lower risk, and move money to activities that create value. Completion service providers, E&P operators, and tool makers have become more interested in this technology because they know that preventing intervention altogether is often more cost-effective than optimising intervention itself.

Understanding Dissolvable Alloy Hollow Tubes

Material Composition and Controlled Degradation Mechanism

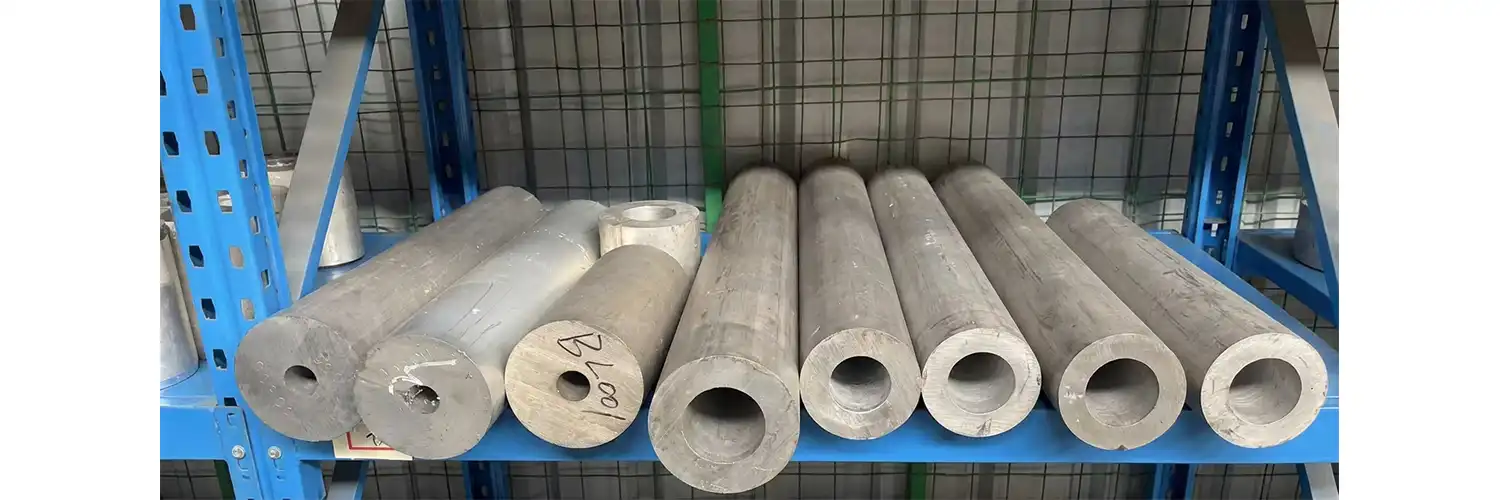

No retrieval required alloy hollow tube is a precisely extruded magnesium alloy part that is designed to be strong enough to hold weight while also dissolving slowly. There is a balance of magnesium, aluminium, zinc, and rare-earth elements in the material matrix. These elements are tuned to break down at certain rates depending on the temperature, salinity, and pH conditions downhole. During setting and stimulation, the tube acts like any other structural member, providing resistance to collapse, sealing surfaces, and mounting interfaces. After being fractured, the metal breaks down electrochemically when it comes into contact with wellbore fluid. It turns into soluble salts and small hydroxides that mix safely with the fluid.

Material Composition and Dissolution Mechanism

Galvanic corrosion is what makes magnesium alloys dissolveable: the anode (magnesium matrix) oxidises more quickly when chloride ions are present, releasing electrons that speed up the loss of metal, and this principle applies directly to the no retrieval required alloy hollow tube. Designers of alloys change the cathode fraction, which includes aluminium or zinc particles, to change how fast the alloy dissolves. Zinc speeds up degradation, while aluminium slows it down. Adding small amounts of rare earths to a material smooths out the structure of the grains, making it stronger without changing how easily it dissolves. At Shaanxi Hagrien Energy Technology Co., Ltd., we keep an eye on every detail, from the chemistry of the melt to the temperature of the extrusion. This way, we can be sure that every batch meets the dissolve windows that have been checked in our high-temperature, high-pressure laboratory, which is approved by the CNAS.

Dimensional Capabilities and Tolerance Control

Standards for no retrieval required alloy hollow tube profiles range from Ø25 mm to Ø300 mm in diameter, and wall thicknesses range from 3 mm to 30 mm. Tight tolerance control—±0.5% on wall thickness—makes sure that the stress is spread out evenly during setting and that the dissolution time is the same around the whole circumference. A uniform grain structure reduces localised pitting, which stops the material from breaking down too quickly or not fully. Our closed-loop extrusion method, which is driven by 3,600-ton and 5,600-ton presses, gives you repeatability in dimensions of more than 98%. This cuts down on machining waste and the cost of each part.

Advantages of Using Dissolvable Alloy Hollow Tubes in Retrieval-Free Completion

Elimination of Mill-Out and Fishing Operations

With traditional frac plugs, the wellbore has to be cleared with coiled tubing or drill-out runs before production can begin. Depending on the number of plugs and the condition of the holes, each mill-out cycle can take hours or days. Finding broken parts adds to the downtime and costs go up very quickly. These things don't happen at all with dissolveable alloy hollow tubes. When fluids come into touch with the tube, it starts to break down. Within days to weeks, the tube dissolves fully, leaving an open bore. In multi-stage horizontal wells, project schedules are cut by 15–30% because operators go straight from completion to production testing.

Enhanced Safety and Reduced HSE Exposure

Controlling pressure, working with chemicals, and cycling tools under stress are all mechanical tasks that put people at risk. Dissolvable components cut down on crew exposure hours and the number of high-risk operations because they don't need to be used for downhole cutting and moving coiled tubing. When retrieval-free systems are used instead of traditional hardware, completion service providers report fewer incident reports and smoother handoffs to production teams.

Cost Efficiency Through Reduced Rig Time

In unconventional plays, rig day rates often go over $25,000. Offshore, rates go over $200,000. Cutting even just one day of assistance saves real money. Field data from shale operators demonstrates that dissolvable plug systems, which are supported by no retrieval required alloy hollow tube mandrels, cut the time it takes to finish each stage by 20–40%. This directly leads to lower AFE totals and a better project IRR.

Predictable Degradation for Multi-Stage Sequencing

The time of dissolution is not random. The rate of degradation is affected by the alloy's make-up, the fluid's temperature, the amount of chlorine in it, and the pH. During well planning, engineers can model dissolution windows and set up frac stages so that they line up with the disappearance of the mandrel. This predictability helps with lean workflows: stage one ends as stage three starts, so work can keep going without having to wait for mill-out crews.

Manufacturing Process and Quality Standards

Raw Material Melting and Alloy Design

We start with bars of very pure magnesium that were mixed together in vacuum induction furnaces with an argon atmosphere to keep them from oxidising. The addition of aluminium, zinc, and rare earths is done according to exact recipes that have been worked on continuously for seven years, starting in 2019. Every mix goes through optical emission spectroscopy to make sure that the makeup is within a 0.05% error range. This makes sure that the consistency of each batch. After casting, homogenisation heat treatment spreads out the solute atoms evenly and gets rid of micro-segregation that could change how the material dissolves.

Extrusion and Dimensional Control

Our 3,600-ton or 5,600-ton hydraulic presses take heated billets and shape them into hollow profiles with uniform wall thickness by controlling the speed of the ram and the temperature of the die. Monitoring in real time keeps an eye on the extrusion force and exit temperature, letting you know about any changes before they affect the whole batch. Stress-relief annealing and post-extrusion straightening keep the dimensions stable, which reduces warpage during cutting or placement in the field.

Quality Verification and Certification

Each batch of no retrieval required alloy hollow tube products goes through a strict set of tests that are in line with ISO 9001 standards and customer requirements:

• Mechanical Property Testing: Tensile strength, yield strength, and extension were tested according to ASTM E8 to make sure the structure was strong enough during setting and stimulation.
• Dissolution Rate Verification: Sample coupons were put in autoclave rooms that mimicked the temperature and chemistry of the brine in a well, and mass loss was tracked every 24 hours to make sure the goal degradation windows were correct.
• Dimensional Inspection: Automated laser gauging checks the straightness, thickness of the walls, outer diameter, and inner diameter at several points to make sure the part fits within the tolerances set by the drawing.
• Microstructure Analysis: Optical imaging and measuring grain size show that the phases are spread out evenly and there are no large intermetallics that could cause the material to crack too soon.

With every shipment, we include CNAS-accredited inspection records, Certificates of Analysis (COA), and Certificates of Conformance (COC), which help you meet your source qualification and audit standards. Each finished tube can be fully tracked back to its melt number, extrusion date, and heat-treatment batch. This makes it possible to find out what went wrong if something goes wrong in the field.

How to Choose the Right Dissolvable Alloy Hollow Tube for Your Project

Defining Your Operating Window

Write down important details, like the temperature at the bottom of the hole, the total dissolved solids (salinity) of the formation brine, the pH range, and the time frame you want the solids to dissolve. More chloride and higher temperatures speed up degradation, while an alkaline pH slows it down. If you need the part to stay in place for 48 hours after stimulation but break down in 7 days, be clear about that time frame. Our engineering team will suggest a metal system that changes the amounts of aluminium and zinc to give you reliable performance within your budget.

Mechanical Strength Requirements

Figure out how much axial load, radial pressure, and collapse resistance your application needs. Most dissolved magnesium alloys have yield strengths of 150 MPa to 280 MPa, which are strong enough for most frac-plug mandrels and isolation sleeves. If the setting pressures are more than 10,000 psi or the failure differentials are close to 5,000 psi, we may offer thicker walls or other ways to strengthen the structure. Sharing your pressure plan and setting-tool specs early on makes it easier to make changes to the design.

Dimensional and Interface Constraints

Name the outside diameter, the inside diameter, the length, and any thread types, groove shapes, or fastening features for the no retrieval required alloy hollow tube. Standard profiles work with a lot of different bridge-plug and packer designs, and special extrusions can work with unique shapes. Our Ø300 mm extrusion capacity can handle large-bore jobs, and we do secondary work like threading, grooving, or drilling all under one roof to keep track of things and cut down on wait times.

Comparing Dissolvable Alloys to Steel Alternatives

Steel mandrels are stronger, but they need to be milled out. Dissolvable metals give up a little power in exchange for not needing to be manipulated. In multistage completions with dozens of plugs, that trade-off saves money in the long run: a lower strength per plug doesn't matter as much as no recovery cost for the whole well. When plug counts are more than ten and rig rates are high, economic modelling always favours dissolvable systems.

Practical Guidelines for Handling and Using Dissolvable Alloy Hollow Tubes

Storage and Preservation

In dry air, magnesium alloys are stable, but they become unstable when they are exposed to water for a long time. Keep tubes in cases that are sealed, climate-controlled, and have desiccant packs inside them. Steel racks and aluminium tools can start galvanic cells even when the air isn't wet, so stay away from them. Put a melt number and an extrusion date on each group so that you can track them through the supply chain.

Handling and Machining Best Practices

For cutting threads or lines, use carbide or coated tools. Because magnesium isn't very dense and doesn't carry heat well, you need sharp edges and slow speeds to keep the work from hardening or the surface from tearing. Water-based cutting tools can cause surface oxidation, so use little of it and clean up chips quickly to avoid fire risks. Wear safety glasses and stay away from grinding tasks that make fine dust. Magnesium particles can catch fire easily and burn very hot.

Installation and Setting Procedures

Before putting the no retrieval required alloy hollow tube together, look at it clearly to see if it has any dents, scratches, or discolouration that could mean it is starting to corrode too soon. When threading parts together, make sure you follow the torque specs exactly. If you over-tighten, the seal could break, and if you under-tighten, the crack could grow. While the tool is being used, keep the alloy away from acidic stimulation fluids or corrosion inhibitors that aren't approved for magnesium compatibility for long periods of time. Talk to your chemical seller to make sure that the additive packages won't speed up breakdown without your intention.

Monitoring Dissolution Progress

Once the stimulation is done, you can either use flowback chemistry to indirectly track breakdown or use downhole cams, if they are available, to directly observe it. The amount of magnesium ions in the created water shows that decay is happening. Plan to ramp up production only after the estimated dissolving window has passed, which can be checked with calliper logs or pressure tests. Too much flow too soon can move partially dissolved pieces around, which could damage the pump or cause the screen to get clogged.

Conclusion

The move toward retrieval-free completion is part of a larger trend in the industry to get more done with less help. No retrieval required alloy hollow tube technology makes that goal a reality by providing strong downhole performance without the mill-out costs, risks, and schedule delays. Dissolution chemistry that has been used in the field, precise manufacturing, and strict quality control all work together to give completion engineers a tool that just disappears when they need it to. As unconventional plays get more established, offshore projects get bigger, and pressure on margins rises, dissolvable components will become more and more important in best-practice workflows—not as a niche alternative, but as the standard method wherever the cost of retrieval exceeds the cost of material premiums.

FAQ

1. What industries benefit most from dissolvable alloy hollow tubes?

The most common use is in oil and gas finishing, especially multistage fracturing in shale, tight sand, and offshore projects. Dissolvable parts are also used in geothermal energy, carbon capture and storage (CCUS), and some types of mining where retrieval is not possible or would be too expensive.

2. How long does a typical dissolvable tube take to degrade?

Dissolution times vary from 48 hours to 21 days, depending on the type of alloy, the temperature, and the saltiness of the brine. We design each batch to fit the conditions of your well, and our work is backed up by fast lab tests that mimic months of contact in just a few days.

3. Can dissolvable tubes handle high-pressure fracturing operations?

Yes. No retrieval required alloy hollow tube profiles can withstand setting pressures above 10,000 psi while maintaining structural integrity during stimulation. Tensile tests and hydrostatic collapse modelling are used to check the mechanical properties. This makes sure that the system will work reliably under high downhole loads before it starts to dissolve.

Partner with HAGRIEN for Engineered Dissolvable Solutions

With precision-engineered no retrieval required alloy hollow tube components, Shaanxi Hagrien Energy Technology Co., Ltd. is ready to help you finish your next job. Our combined manufacturing process includes melting the alloy, extruding it, and cutting it. For normal sizes, we offer lead times of two to four weeks and dimensional accuracy of 98% or more. This is backed by ISO 9001, 14001, and 45001 certifications, as well as CNAS laboratory approval and API recognition. If you need small samples for field tests or large amounts for pad drilling, we can make alloy systems that fit your temperature, salinity, and time frame needs. These systems come with COA/COC paperwork and full batch tracking. Visit us-hagrien.com or email cyrus@us-hagrien.com to talk about your needs, get technical data packages, and get competitive prices from a reliable dissolvable alloy hollow tube maker that wants to cut your intervention costs and speed up the time to production.
