Elastomer Sealing Element for Oil and Gas: Performance Guide

Sealing reliability directly determines completion tool success in wellbore environments. The elastomer element serves as the primary pressure isolation component in frac plugs, bridge plugs, and packers, bridging the gap between metal tool bodies and formation walls. Engineered from high-performance rubber compounds, these components maintain integrity under extreme pressure differentials, corrosive fluids, and thermal cycling. Our guide addresses material selection, performance validation, and procurement strategies that completion service providers and E&P operators use to minimize intervention costs and maximize sealing reliability across unconventional, offshore, and conventional wells.

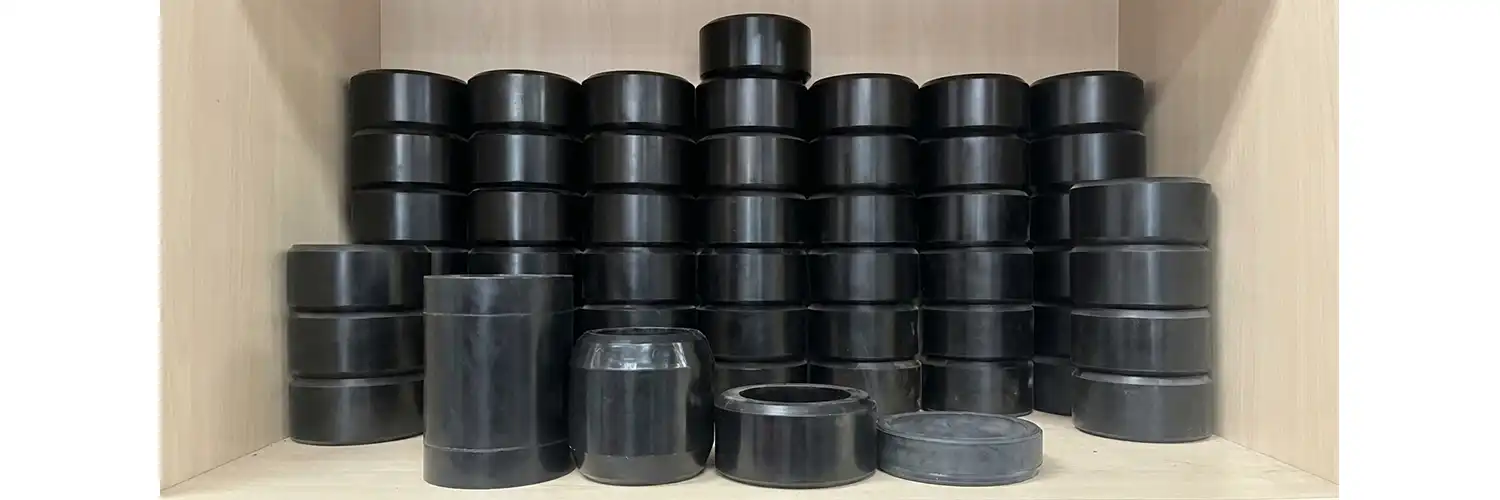

Understanding Elastomer Sealing Elements: Essential Properties and Types

What Defines a High-Performance Elastomer Element

Normal rubber materials would break down in the situations that a wellbore closing component works in. By pressing against the casing or formation sides with axial or radial force, these special polymer parts make circular pressure barriers. The elastomer element is very different from static O-rings; it has to work with wellbores that aren't perfectly round, keep the contact pressure even when the temperature rises, and stop the element from pushing through tool gaps at 10,000+ PSI differentials.

Field performance is based on the composition of the material. Base elastomers like nitrile (NBR), hydrogenated nitrile (HNBR), fluoroelastomer (FKM), or perfluoroelastomer (FFKM) are mixed with fillers, plasticisers, and bonding agents to make modern sealing materials stronger. The vulcanisation process changes these substances into three-dimensional networks of polymers that can stretch back to their original shape after being deformed.

Critical Material Properties for Downhole Applications

Operational windows are set by temperature resistance. Our elastomer element keeps its stretchy qualities at temperatures ranging from -40°C in deepwater uses to +200°C in high-temperature reservoirs. This temperature range shows how the material is made to fit the wellbore shapes; regular rubber parts break when they become too soft at low temperatures or too hot at high temperatures.

Chemical compatibility keeps things from breaking down. Completion fluids, crude oil, brine with different levels of salt, and workover chemicals can damage elastomer chains by making them swell, extracting them, or oxidising them. We check the resistance by immersing the sample in fluids according to ISO 1817 and recording the change in volume and hardness after being exposed to fluids specific to the client. HNBR compounds have a good balance of resistance to hydrocarbons and mechanical toughness, while FKM is better at resisting acids and aromatics.

How well the compression set works shows how long the covering will last. According to ASTM D395 Method B, this property measures how much permanent deformation there is after being compressed for a long time at room temperature. Low compression set values (usually less than 25% after 70 hours at 150°C) make sure that the part keeps its contact pressure during finishing operations. This stops pressure from moving between zones that are not connected.

Material Classification and Selection Logic

The last sentence talked about the technical features of different types of materials. Knowing the classification helps buying teams match chemicals to the conditions of use:

• Natural Rubber (NR): is very flexible but not very resistant to chemicals and high temperatures; it is not often used in finishing tools.
• Nitrile (NBR): is a cheap material that doesn't fight oil very well and can be used in temperatures below 100°C.
• Hydrogenated Nitrile (HNBR): Can handle temperatures up to 150°C and is more resistant to chemicals; commonly used for frac plugs and bridge plugs.
• Fluoroelastomer (FKM): is the best choice for chemical protection and temperature tolerance up to 200°C; it's best for long-term isolation and aggressive fluid contact.
• Perfluoroelastomer (FFKM): Can withstand the harshest chemicals and temperatures up to 250°C; used in high-strength HPHT applications where failure would have serious consequences.

By pointing out these important differences, engineers can better balance performance needs with cost concerns, which keeps teams from over-specifying for easy situations or under-specifying for tough ones. Material choice has a direct effect on how reliable something is in the field, how often it needs to be fixed, and the total cost of ownership.

Performance Challenges in Oil and Gas and How Elastomer Sealing Elements Address Them

Failure Modes in Wellbore Sealing Components

Failures with completion tools that shut things off happen in predictable ways. Extrusion damage happens when different pressures push rubber material through gaps between metal parts, tearing or biting it in a way that can't be fixed. In high-pressure situations, this state has the most impact on soft materials. Rapid gas decompression (RGD) happens when high-pressure gas dissolves into the rubber matrix and then explodes when the pressure drops. This is a usual way for gas wells to fail.

At high temperatures, thermal degradation breaks polymer chains, which makes them less flexible and more brittle. When chemicals attack a material, they make it swell, change its shape, and weaken its mechanical properties. Wear and tear on sealing surfaces from proppant flow or tool manipulation lowers contact pressure. Engineers can choose compounds and designs that protect against specific wellbore threats when they know these failure modes.

Engineering Solutions for Extended Sealing Performance

Design principles use material choice and structural features to fight failure mechanisms. Anti-extrusion ribs or backup rings keep the elastomer element inside the tool recesses, which stops the material from flowing when pressure is applied. The choice of compound strikes a balance between hardness (for extrusion resistance) and compliance (for surface conformance). For finishing uses, Shore A durometers usually fall between 70 and 90.

Thermal stabilisation packages in recipes slow down the rate of breakdown at high temperatures. ISO 188 heat ageing tests show that the tensile strength and stretch retention meet the required levels after exposure. We usually say that property loss is less than 30% after 168 hours at the highest temperature. Chemical resistance tests with fluids that are typical of a wellbore shows that the dimensions stay the same and the mechanical properties stay the same.

Validated Performance Through Field Deployment

Before being used in the field, our testing procedures simulate the stresses that happen downhole. A recent completion service provider used our HNBR-based elastomer element in 32-stage frac operations with a difference pressure of 8,500 PSI and a temperature of 135°C at the bottom of the hole. When the tools were inspected after the treatment, they had only minor compression set and no extrusion damage after 14 days of exposure. This proved that the seal stayed intact during the pressure cycle. This field validation shows that choosing the right materials and keeping an eye on quality control lead to operating dependability, which lowers the cost of repairs and the risk of missing deadlines.

Comparing Elastomer Elements with Alternative Solutions in Oil and Gas

Material Options in Completion Tool Sealing

When buying something, you have to look at a number of different sealing technologies. Teams can improve cost and efficiency by understanding the comparison:

Metal seals, like C-rings and K-seals, can withstand temperatures above 300°C and chemical attack. However, they need to be precisely machined, their setting forces need to be controlled, and they can't handle large wellbore flaws. Their permanent deformation after being charged makes it impossible to reuse them and makes retrieval operations hard.

Polyurethane seals are very good at resisting wear and tear and having high tensile strength, but they don't work well at high temperatures (usually below 120°C) and don't stay stable when mixed with water-based fluids. Cast polyurethane elements work well in low-temperature situations where they will be exposed to some chemicals.

Silicone elastomers are flexible at very low temperatures and don't change much in temperature, but they aren't very strong against tears and hydrocarbons. Even though they have mechanical problems, they may still be useful for specialised tasks like arctic operations.

After looking at these options, a lot of completion experts choose compound-specific elastomer element designs because they offer the best mix of conformability, pressure sealing, chemical resistance, and cost-effectiveness for most wellbore situations. The flexible nature of elastomer formulation lets properties be tailored to a wide range of operational windows without the need for precise machining or the hassles of metal seal retrieval.

Performance Trade-Offs and Application Matching

There is no one material that meets all needs. HNBR materials are used in most finishing tools because they have the right mix of properties: they are better at resisting hydrocarbons than NBR, can handle temperatures high enough for most wells, are tough enough to handle, and are much cheaper than FKM. When the temperature inside the wellbore is higher than 150°C or the fluid chemistry has a lot of acids or aromatics, FKM is worth the extra cost because it lasts longer.

Getting suppliers involved in the planning process is good for procurement teams. Materials engineers can suggest the best compounds by sharing temperature profiles, fluid compositions, pressure histories, and tool geometry. Our application engineering team compares these factors to our compound collection, which has been proven by testing at a CNAS-accredited HTHP lab. When compared to general material selection, this feedback method cuts down on qualification rounds and field trial costs.

Procurement Guide: How to Source High-Quality Elastomer Sealing Elements

Supplier Evaluation Criteria

More than just unit pricing, sourcing decisions affect the success of a program. Manufacturers of completion tools and service companies rate providers based on their professional skills, quality systems, the reliability of their supply chains, and the support services they offer. Technical ability is shown by knowing how to make compounds, having application engineering tools, and being able to test them. Suppliers with accredited labs from CNAS, A2LA, or a similar organization give verified performance data instead of material datasheets with claims that can't be proven.

Quality management systems that are ISO 9001 qualified show that they are disciplined in their processes. ISO 14001 and ISO 45001 certifications show that a company cares about the environment and safety, which is something that big operators value. API recognition shows quality norms specific to the business. Certificates of Analysis (COA), Certificates of Conformance (COC), and Safety Data Sheets (SDS) should be used to track each production batch and connect it to inspection records and lots of raw materials. This helps with qualifying suppliers and looking into problems.

Buying Strategies for Custom and Volume Orders

For prototype development of an elastomer element, minimums need to be flexible. Tool designers need 50 to 100 sample pieces to try out new setups without having to commit to making the whole set or signing a volume contract. We help with this development cycle by making small batches and making engineering changes based on the results of field tests. Once designs work well, we move smoothly to mass production with set specs.

Standard production orders keep inventory risk, lead time, and prices in check. Standard durometer ranges can be delivered in two to four weeks from safety stock. Custom formulas, which include compound development and approval, take four to six weeks. Pricing is better with volume agreements and blanket orders that are released at set times. This keeps supply flexible. When capacity and raw materials allow, expedited choices meet important project needs.

Ensuring Component Compatibility and Performance

Verification of dimensions stops problems with assembly. The shape of the elastomer element has to match the measurements of the tool pocket within certain limits. With every shipment, we include an inspection report that lists the important dimensions, Shore hardness (minimum three samples per batch), and visual quality. This information makes sure that everything works together before any machining or tool assembly starts.

Field risk is reduced by testing performance validation. Our HTHP lab does tensile property measurement (ISO 37), compression set testing (ASTM D395 Method B), and fluid compatibility testing with media provided by the client or sample fluids. These tests produce batch-specific data that helps with choices about whether a material is qualified and whether a batch should be accepted. Structured protocols are used for custom formulation development. These include defining operating parameters, designing compound chemistry, lab validation, sample production, client testing, and moving to qualified production.

Enhancing Oil and Gas Operations with Advanced Elastomer Sealing Element Solutions

Innovative Material Technologies

New developments in elastomers have been made to deal with new finishing problems. More and more, HPHT wells need materials that can keep their values above 175°C with little compression set. Our materials engineering team creates advanced HNBR and FKM systems with bonding packages that don't change when heated and fillers that make the systems stronger and last longer. These chemicals go through accelerated ageing tests that predict how well they will work after 90 days of downhole exposure.

The accuracy of manufacturing affects the consistency of sealing. Through statistical process control, our closed-loop quality system checks the time, temperature, and pressure of the cure every production shift. Analysing with a rheometer makes sure that the vulcanisation process goes smoothly, and checking the dimensions (100% confirmation of important features) and stiffness of each batch makes sure that they are all the same. In this process discipline, elastomer elements are made with Shore A hardness uniformity within ±3 points. This lowers the variation in processing that comes after.

Operational Best Practices

How the elastomer element is installed has a direct effect on how well it works. Damage from nicks, cuts, or contamination that form leak paths can be avoided by treating things the right way. Controlled interference fits are needed for tool assembly to make sure that enough energy is applied without putting too much stress on the material. We give installation instructions that include a list of oils that work with elastomer compounds, the torque values for screws, and safety tips for handling.

Maintenance plans make the most of service gaps. Wear or decline can be found before they fail by inspecting things regularly during workover processes. In-service failures can be avoided by planning replacements based on exposure time, pressure cycles, and visual state. Our technical support team helps operators come up with inspection criteria and replacement triggers that are in line with their operational economics and risk tolerance.

Regulatory Compliance and Sustainability

Environmental laws are looking more closely at finishing products. Because our compound formulations don't include substances that are banned by REACH, RoHS, and California Proposition 65, it's easier for the global supply chain to follow the rules. Material Safety Data Sheets list the chemicals that are used in workplace safety programs and environmental impact assessments that are needed for offshore operations.

Material economy is driven by goals for sustainability. Precision production lowers the amount of waste, and compound makeup increases service life, which lowers the number of replacements and the waste that comes with them. Our environmental management system, which is ISO 14001-certified, sets goals for lowering waste, saving energy, and controlling emissions across all of our manufacturing processes. These eco-friendly actions are in line with what operators say they will do and keep up the technical performance.

Conclusion

Reliability in sealing in completion tools depends on choosing the right materials, making sure they work, and working together with the supplier. The elastomer element is still the best way to seal frac plugs, bridge plugs, and packers because it has the right mix of qualities, can be designed in a variety of ways, and is cheap. To be successful, you need to match the chemistry of the compounds to the conditions inside the wellbore, test the performance in the lab, and buy from providers who can show they have the technical know-how, quality processes, and supply chain reliability you need. Our combined method, which includes materials engineering, CNAS-accredited testing, and precise manufacturing, creates sealing parts that lower the number of interventions needed and the risk of operations in both offshore and onshore completion programs.

FAQ

1. What factors affect the service life of elastomer elements in finishing tools?

Service life is affected by weather, chemical environment, regularity of pressure cycling, and the choice of material at the start. Higher temperatures speed up the rate of decline, which shortens the lifespan. Aggressive chemical exposure leads to damage and swelling. Pressure cycling too often makes you tired. Reliable repair times are extended by choosing the right compound for these circumstances. With normal finishing fluids, our HNBR materials can usually withstand temperatures below 150°C for 30 to 90 days in a wellbore.

2. How does weather affect how well a cover works?

A higher temperature lowers the elastomer's modulus and hardness, which makes it more likely that it will extrude under pressure. Low temperatures make things harden, which makes them less flexible. By optimising the formulation, our compounds keep their properties across the operational windows of -40°C to +200°C. Product specifications list the temperature range that the product can handle. Matching your bottomhole temperature profile to the compound values will make sure that the seal stays strong during finishing operations.

3. Can elastomer parts be changed to fit particular well conditions?

Customisation solves certain problems in operations. The formulations our materials engineering team makes are based on the temperature profiles, fluid chemistry, pressure conditions, and exposure time you give them. The development process includes designing the compound, validating it in the lab at our HTHP center, making samples, and trying them in the field for clients. Custom formulations usually take between 4 and 6 weeks to develop, and there is a minimum order size of 50 pieces. This is done to support qualification programs before mass production starts.
