Downhole Rubber Element Design: What Engineers Should Consider

When designing downhole completion tools, the rubber element determines sealing performance. This precision-formed elastomeric element forms a flexible, pressure-tight barrier in bridge plugs, packers, and isolation systems where metal cannot retain fluid. Multi-stage fracturing, HPHT gas wells, and workover operations require engineers to balance polymer selection, geometric design, and environmental resistance for reliable sealing. Your toolstring performs predictably from deployment to millout by understanding material behaviour under compression, thermal cycling, and chemical exposure.

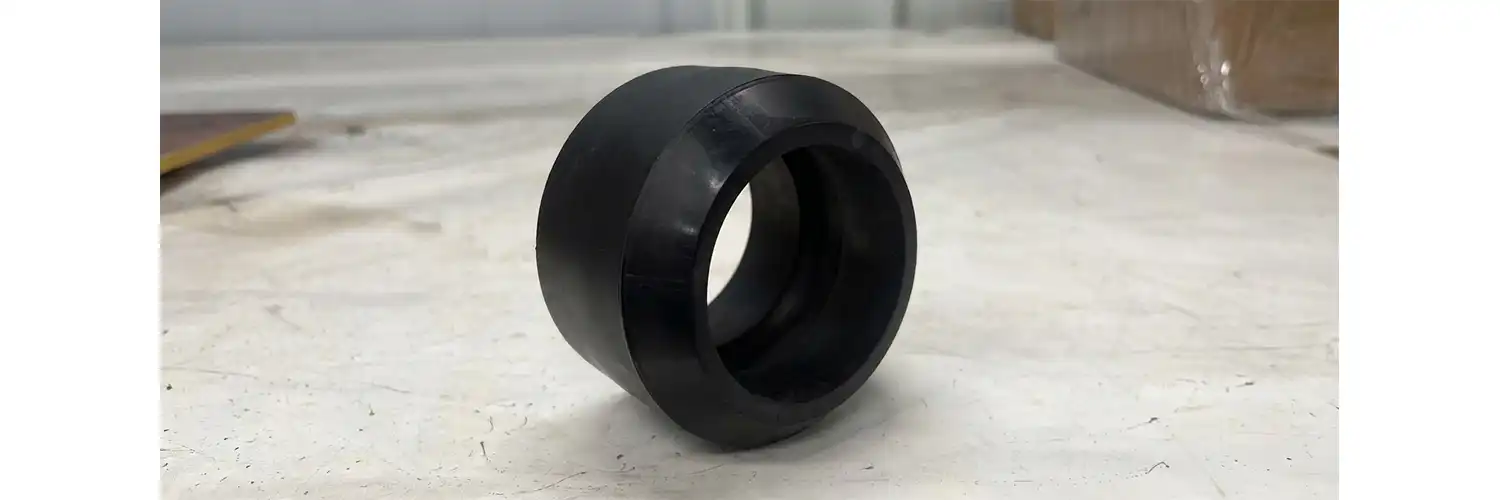

Understanding Downhole Rubber Elements: Fundamentals and Properties

Controlled radial growth is how a downhole rubber elements work. When your setting tool is turned on, the elastomeric part contracts along its length and then stretches against the wall of the case. This stretching causes contact stress that forms an annular seal that can stop reservoir pressure, treatment fluids, or proppant slurry.

Role in Sealing and Isolation Systems

Elastomeric seals can handle differences in pressure that rigid metal parts can't. They separate treatment areas while withstanding 8,000–10,000 psi and rough proppant flow in multi-stage fracture. Permanent packers use stacked cups to stop communication between zones for decades. Your design needs to take into account how long the seal needs to last, the difference in pressure, and the needs for recovery or breakdown.

Core Physical and Chemical Properties

Performance relies on measurable material properties. Shore hardness (typically 60–90 Shore A) influences compression and weight capacity. The element's 25 MPa tensile strength prevents it from being pressed between metal mandrels and slides. The compression set shows how much thickness the material loses during long-term deformation. This is a critical predictor of future sealing.

Elasticity lets things get back to normal after they've been deformed. Even when conditions in the wellbore change, high-resilience formulations keep the sealing contact. The damping coefficients tell us how the element absorbs vibrational energy when the tool is being used or when milling is being done.

The operational range is set by the temperature resistance. Nitrile (NBR) works well up to 110°C, so it can be used in shallow or moderate wells. Hydrogenated nitrile (HNBR) raises that temperature range to 150°C, and fluoroelastomers (FKM) stay strong at 200°C or higher in geothermal and deep gas wells.

Chemical compatibility keeps the seal from breaking down. Mineral oils and water-based fluids are handled by NBR. Acids, steam, and hydrogen sulphide can't hurt FKM. In improved recovery processes, EPDM can handle steam and acidic fluids. If you choose the wrong polymer, it will either swell, soften, or harden, which will make the shape stability and sealing force less stable.

Material Selection Criteria

The operating envelope directs you. Note the well bottom temperature, fluid chemistry (pH, H+, CO₂), seal lifespan, and pressure differential. Compare to polymer datasheets. ASTM D471 recommends checking volume swell after placing the sample in representative fluids. The compression set should remain the same after thermal ageing per ASTM D395. Keep hardness and tensile strength within limits after exposure.

Matter and geometry are both important. To get the longest closing touch length, packer elements use cup or chevron shapes. Plug parts weigh the risk of expansion against the force of compression. Finite element analysis (FEA) predicts how stress will be distributed and how much pressure will be on the contact surface under load. This helps you find the best taper angles, wall thicknesses, and backup ring locations.

Challenges in Downhole Rubber Element Design: Common Issues and Solutions

When design assumptions don't match up with field conditions, even well-specified elastomers don't work. You can build around failure modes if you know how they happen to the rubber elements.

Material Degradation Under Extreme Conditions

Oxidative bonding happens faster at high temperatures, which makes things harder and less flexible. In gas wells, this happens when the polymer is exposed to high temperatures for a long time, which causes it to break into weak pieces. On the other hand, when it's very cold below the glass transition temperature (Tg), the rubber gets stiff and can't keep its seal.

A chemical attack shows up as swelling or breaking down. Fluids that don't mix with the polymer matrix get inside it and mess up the crosslink density. Fluids that are acidic break down polyurethane. Diesel causes NBR to rise above what is acceptable. Through sulfidation processes, H2S makes some elastomers less flexible.

Common Failure Modes and Root Causes

Cracking usually happens because of ozone contact (surface oxidation) or repeated stress that is too high. You see cracks around the edges of parts that have been taken out of thermal cycling processes.

When an element absorbs fluids that aren't compatible with it, it swells. Growing the volume by more than 10% changes the way the dimensions fit, which lowers the stress on the closing contact and lets the skip happen. In the worst cases, the swollen part sticks to metal surfaces, which makes retrieval harder.

Compression set is permanent deformation that happens when the load is taken off. When the compression set is high, the element loses thickness and can't keep up its closing force. This type of failure happens a lot in fixed packers that are compressed for a long time at high temperatures.

Differential pressure pushes the rubber into spaces between metal parts, which is called extrusion. The extrusion process works better with soft compounds (below 70 Shore A). This risk is lessened by backup rings, which cut down on the unsupported span.

Best Practices and Engineering Solutions

Don't match the polymer type to the most common situations, but to the hardest ones that could happen. To be safe, choose FKM rated to 200°C instead of HNBR rated to 150°C if your well temperature hits 180°C.

Different elastomers are mixed together in multi-layer designs, or fiber-reinforced layers are added to make the seal stronger while keeping its flexibility. Composite designs have a hard layer on the outside (to stop expansion) and a soft layer on the inside (to bend).

Check for contact stress and extrusion risk with finite element analysis before making a prototype. Instead of doing a lot of expensive trial-and-error, FEA models can predict how shape, hardness, and differential pressure will affect each other.

Case Study Insights

During high-rate fracturing, bridge plugs used by a completion service provider in the Permian Basin had seals fail before they should have. The test showed that 65 Shore A elements were forced out under a difference pressure of 9,500 psi. When you switch to 80 Shore A HNBR with built-in backup rings, the tool lasts 40% longer and the number of plug failures in NPT goes down.

In offshore HPHT wells, another operator had problems with the compression sets in the fixed packers. After 72 hours at 175°C, thermal ageing tests showed that the shape had changed too much. When you switch from NBR to FKM formulas, the sealing force stayed the same for over 10,000 hours of rapid testing, which means decades of reliable zone isolation.

Comparing Rubber Elements: Selecting the Right Type for Downhole Applications

Engineers and buying teams have a number of rubber elements choices. Each material has different pros and cons when it comes to temperature range, chemical resistance, cost, and how easy it is to work with.

Evaluating Rubber versus Metal Seals

Lead or soft copper seals can withstand high temperatures and keep gases out of high-pressure hydrogen environments. However, they are rigid. Deformed metal seals can't be reformed to suit unusual casings. Despite pressure variations, elastomeric seals can grip rough surfaces. Rubber elements blend with dissolved metal parts to clear millout without harming the casing in quick separation usage like fracturing plugs.

In chemically aggressive wells, elastomers that are resistant to corrosion are better. Most metal materials don't stand up to acids and steam as well as FKM and EPDM do. When tools are set up, jarred, or pressure is changed, rubber elements can handle dynamic loads because they are flexible. This is when metal seals crack or lose touch.

Silicone versus Natural Rubber

Silicone is very stable at low temperatures (-50°C to +200°C) and doesn't require much compression set. It works well for long-term uses where a constant closing force is important. However, silicone is not as strong or resistant to tears as natural rubber. The mechanical strength of natural rubber keeps it from extruding and catastrophic seal failure in dynamic situations with high differential pressures.

Natural rubber is very flexible and strong, but it breaks down quickly above 80°C. It works well in shallow wells and on the surface where the temperature is normal, but it can't handle the heat downhole.

Hardness and Flexibility Trade-offs

Elements that are softer (60–70 Shore A) can better fit into irregular casing surfaces, which makes the first seal contact better. They are easy to squeeze when setting the tool, which lowers the activation force. But soft materials don't have enough mechanical power for tough jobs and extrude when there is a lot of uneven pressure.

Elements that are harder (80–90 Shore A) don't extrude and can handle more weight. They stay the same size in high-pressure situations, but they need more setting force and might not be able to smooth out small flaws in the case.

Your design should find a good mix between how hard something is and what it needs to do. Harder compounds that can handle huge increases in pressure are better for temporary barriers in fracturing. For better conformability, permanent packers in mild wells can use softer materials.

Cost-Performance Analysis for Strategic Procurement

When temperatures are moderate and fluids are oil-based, NBR is the most cost-effective choice. It works reliably in regular wells and costs the least in terms of materials.

At a 20–30% increase over NBR, HNBR can handle higher temperatures and is better at resisting chemicals. It works well for unconventional plays with warmer fluids exposed at the bottom of the hole.

FKM costs 50–100% more than other materials, but it can be used in the toughest conditions, like deep gas wells, geothermal systems, and sour gas uses. Total ownership cost stays low because FKM stops failures before they happen and lowers NPT.

Check not only the unit price but also the lifecycle cost. A less expensive NBR element that breaks after one stage costs more in rig time and recompletion than a more expensive FKM element that lasts the whole well program.

Procurement Guide: Sourcing and Buying Downhole Rubber Elements

To find the right provider of rubber elements, you need to look at their manufacturing skills, quality processes, and how fast their supply chain is.

Supplier Qualification Criteria

Process control is proven by certifications. ISO 9001 makes sure that manufacturing practices are always the same. ISO 14001 shows how to control the environment. To find providers with CNAS-accredited testing labs that do compression set, thermal ageing, and fluid compatibility tests that meet international standards for important downhole uses, look for them.

Standards for product quality are important. Check with the seller to see if they use ASTM D2000 to classify elastomers or ISO 3302-1 for dimensional limits. For each production lot, you should ask for inspection records that show Shore hardness proof, tensile strength tests, and compression set data.

OEM customisation potential tells you if the provider can design parts to fit your tool's shape and range of operations. You need a partner who knows how to formulate polymers, improve processes, and understand how the properties of materials affect how well they work in the field.

Buying Options and Lead Time Management

Directly sourcing from a manufacturer is the fastest way to get engineering help and make changes. You are part of the team that decides how the metal is made, how it is extruded, and when it is vulcanised. Lead times for standard sizes are usually between 2 and 4 weeks. Lead times for custom geometries or engineered formulations are between 4 and 8 weeks.

Distributors make things easier by keeping stock close by, but they make it harder to get professional help. They can be used for small orders or to replace standard parts in an emergency.

Bulk orders give you more power in negotiations and protect you against supply problems. Many makers keep extra profiles in stock in case they need to make a lot of them. This lowers the risk of wait time for important projects.

Technical Support and Aftersales Service

A supplier is worth more than just the part. You need application-specific advice, like choosing a material that fits your well shape, making sure that the contact stress is correct using FEA, and testing prototypes in HTHP autoclaves that mimic conditions downhole.

After-sales help includes finding out why seals don't work when they're supposed to, making changes to the process to make it more consistent, and providing paperwork (COA, COC, traceability records) that meets the needs of your quality system and audits.

Responding to information is important. Can the supplier confirm the specs within 24 hours and give official quotes within 1–3 business days? Do they give weekly reports on the project's progress and choices to speed things up for important projects? These things lower the risk of the program and make sure that operations stay on schedule.

Design Optimization and Future Trends in Downhole Rubber Elements

As wells get deeper, hotter, and more chemically aggressive, traditional rubber elements designs can't keep up. Innovation and optimisation open up new performance frontiers.

Material Innovations and Geometric Refinements

Advanced polymer mixes take the best parts of several elastomers and put them together. Hybrid versions combine HNBR, which is good at withstanding high temperatures, with FKM, which is good at withstanding chemicals. This gives better performance than full FKM at a lower cost.

Nanotechnology adds fillers that make materials stronger and better at transferring heat without reducing their flexibility. Graphene and carbon nanotubes improve mechanical qualities while keeping the low compression set.

Geometric optimisation through computer design looks at tens of thousands of different shape options. The taper angles and wall thicknesses that maximise sealing contact stress while minimising extrusion risk and actuation force are found using parametric modelling.

Simulation Technologies Driving Design

The stress distribution, contact pressure, and deformation under combined thermal, mechanical, and pressure loads can be predicted using finite element analysis. FEA lets you check designs before you cut metal, which cuts down on the number of prototypes you have to make.

Computational fluid dynamics simulates how fluid moves around sealing surfaces, finding bypass paths and adjusting element shape to stop leaks when conditions are rough.

These modelling tools connect to libraries of materials that have stress-strain curves, thermal expansion coefficients, and ageing behaviour. This lets you do virtual tests across your whole working envelope.

Industry Trends and Supplier Collaboration

As drillers aim for deeper reservoirs, they need to be able to handle higher temperatures. In response, suppliers offer next-generation fluoroelastomers and perfluoroelastomers (FFKM) that can withstand temperatures above 250°C.

Compression set resistance and thermal ageing stability are getting better because of the need for longer service lives. Protocols for faster testing now predict that seals will work well for 30 years.

Because no two wells are the same, customised production solutions are needed. Customised solutions can be made by suppliers who offer engineerable metal systems and process factors that can be changed. This is because fully customised components are more expensive.

Expectations for regulatory compliance and tracking get higher. Full paperwork packages (COA, COC, batch traceability, SDS) help with problem-solving and supplier qualification checks. Suppliers with strong quality control systems make your job easier while making sure that the features of the materials you buy are always the same.

Conclusion

develop sure the polymer chemistry and shape match your operating envelope to develop a good downhole rubber element. Engineers must consider temperature restrictions, chemical exposure, differential pressure, and seal length when selecting elastomers and element forms. Better materials, composites, and FEA validation reduce extrusion, compression set, and chemical degradation. Buying teams should prioritise suppliers with the certifications, testing equipment, and engineering assistance to translate technical demands into dependable sealing performance. Modelling, material science, and smart sensing might extend seal life and enable operations in harder environments. Strategic supplier connections that enable customisation, monitoring, and immediate communication reduce program risk and hasten approval.

FAQ

1. What causes a downhole rubber element to fail prematurely?

Early rubber element failure is usually caused by material mismatch with working conditions. Polymers harden and break when temperatures exceed their limits. Unmixed fluids expand, making it impossible to fit. Too much differential pressure pushes soft materials into gaps. These failure scenarios occur quicker when backup support is insufficient or the hardness setting is inappropriate. Choose the proper material for temperature, chemistry, and pressure to prevent most issues.

2. How does Shore hardness affect sealing performance?

Shore hardness tells you how much weight something can hold and how well it will prevent expansion. Elements that are softer (60–70 Shore A) can better fit into flaws in the case, but they push out when pressure is high. Harder materials (80–90 Shore A) can handle more differential pressure and don't bend easily, but they need more setting force. The best mix between conformability and mechanical strength depends on the task at hand.

3. Can rubber elements perform reliably in HPHT environments?

Yes, when it's clearly stated. Fluoroelastomers (FKM) can keep their seals intact at temperatures up to 200°C and pressures higher than 10,000 psi. With perfluoroelastomers (FFKM), the temperature range goes above 250°C. Picking the right materials, making sure they can handle thermal ageing, and testing them in a compression set make sure they work reliably in deep, hot wells and geothermal applications where other elastomers fail.

Partner with HAGRIEN for Engineered Sealing Solutions

When you need high-performance rubber elements for your finishing tool, HAGRIEN has what you need. Our precision-grade plastics give our elastomeric parts a Shore hardness of 60 to 90 Shore A and a temperature resistance of up to 200°C. They support multi-stage fracturing, HPHT separation, and workover operations in both unconventional and offshore fields. With ISO 9001, 14001, and 45001 certifications and a CNAS-accredited HTHP laboratory, we can fully trace every production batch through COA and COC paperwork. Our integrated production blends material science knowledge with quick supply chain execution, so we can ship standard shapes in two to four weeks or make custom formulations that work with your well's chemistry and temperature profile. As a reliable supplier of rubber elements, we help you through the whole development process, from testing prototypes in our high-pressure autoclaves to producing large quantities on a scale that suits your needs. This lowers the risk of qualification and keeps lead times consistent. Get in touch with cyrus@us-hagrien.com to talk about your closing problems and get application-oriented engineering help that matches the qualities of the material with the performance needs of the field.
