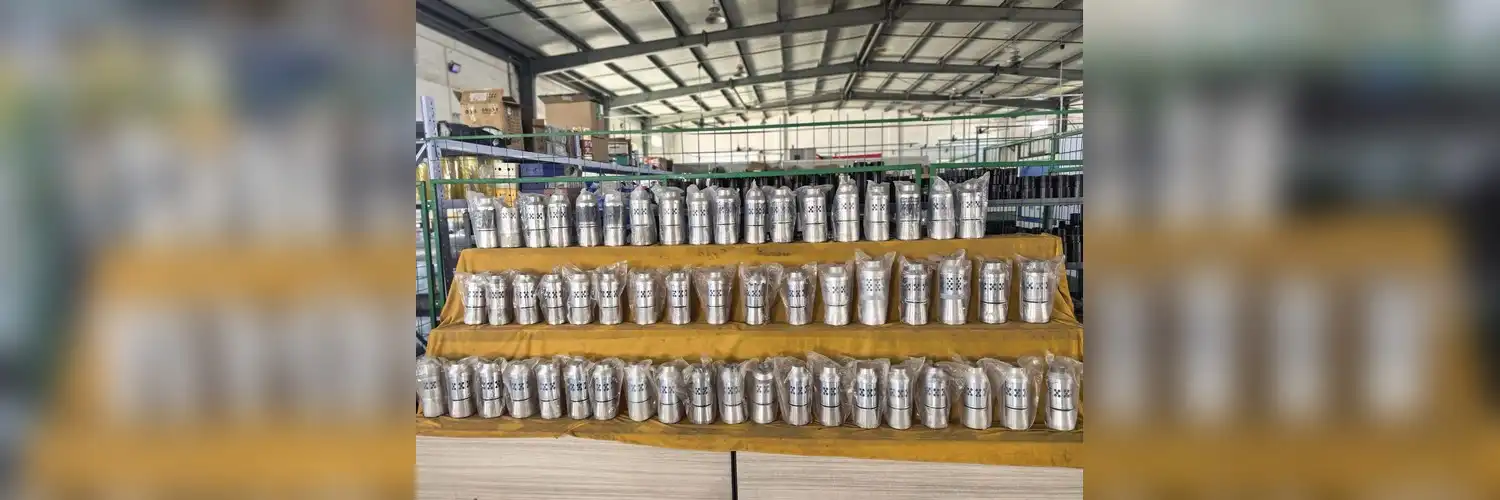

Dissolvable Magnesium Alloy Plug With Controlled Dissolution

Dissolvable Magnesium Alloy Plug options are ahead of their time when it comes to well completion technology. They have changed the oil and gas business in big ways. These high-tech isolation tools are made from special magnesium-based composites that are made to shut off areas reliably during hydraulic fracturing and then dissolve fully in wellbore fluids after a set amount of time. Controlled dissolution plugs don't need expensive cutting processes like standard cast iron or composite bridge plugs do. Instead, they don't need to be fixed after the fracture, they cut down on rig time, and they speed up the time it takes to make something. This guide talks about the technical, purchasing, and operating issues that completion service providers, E&P operators, tool makers, and procurement teams that want to find efficient, traceable, and cost-effective downhole solutions should think about the most.

Understanding Dissolvable Magnesium Alloy Plugs: Composition, Function & Benefits

The Dissolvable Magnesium Alloy Plug is a modern option to retrievable isolation tools. It uses designed metals to break down slowly in underground settings. The plug is made from magnesium matrix compounds that are mixed with rare earth elements, manganese, aluminum, and zinc. This exact alloy balance has the mechanical strength to handle differential pressures of up to 10,000 to 15,000 psi. It also allows for expected electrochemical corrosion in wellbore brines or potassium chloride solutions.

How Controlled Dissolution Works

The micro-galvanic corrosion process that is built into magnesium metals controls controlled dissolution. The plug breaks down in a way that can be predicted when it comes into contact with chloride-rich fluids at high temperatures (usually 40°C to 180°C). Manufacturers set the rate of breakdown by changing the alloy's makeup and the structure of its grain boundaries. This lets them create degradation windows that last from 24 hours to 14 days. Because it can be tuned, operators can match the plug's lifespan to specific completion dates. This way, the plug stays in place during high-pressure pumping and then disappears on time to return full-bore production flow.

Key Benefits Compared to Traditional Plugs

The benefits of dissolvable plug technology go far beyond how easy it is to use. Magnesium-based plugs are better in a number of important ways than steel, polymer, or aluminum substitutes:

• Elimination of Milling Operations: Milling operations are no longer needed, so there is no need for coiled tubing units or drill-out runs. This cuts post-frac costs by hundreds of thousands of dollars per well.
• Reduced Mechanical Risk: Less mechanical risk: removing a hole mechanically doesn't cause milling waste, stuck tools, or damage to the case.
• Accelerated Production: Faster Production: Wells start producing gas or oil days or even weeks earlier, which makes the project more profitable.
• Lightweight Deployment: Lightweight Deployment: Magnesium plugs are 75% lighter than steel (about 1.8 g/cm³), which makes deployment easier in long-reach horizontal laterals.
• Environmental Sustainability: Sustainability for the environment: biodegradable materials reduce trash and damage to the environment, which is in line with ESG requirements.

Because of these advantages, dissolvable magnesium plugs are very popular for unusual shale gas, deepwater offshore, and remote access wells where cost and difficulty of involvement are very important.

Applications & Practical Use Cases in Industry

The Dissolvable Magnesium Alloy Plug has been useful in many industrial settings, but multistage hydraulic fracturing is by far the most well-known. Its brief zonal isolation feature that doesn't require recovery has changed the way finishing work is done in North America's shale basins, offshore platforms, and new energy projects around the world.

Multistage Fracturing in Horizontal Wells

In horizontal shale gas and tight oil wells, operators often pump 30, 50, or even 100 fracturing steps to make the most of the touch with the reservoir. For each stage, separation is needed, and the usual ways of doing this are to either run and retrieve bridge plugs or mill them out after activation. This process is changed by dissolvable plugs. The plug breaks down on time once a stage is broken, so there is no need for a separate clean-out run. This "set-and-forget" method cuts down on the time it takes to finish, the cost of running the machine, and the chance of tools getting stuck or damaging the case.An important North American operator said that using dissolvable magnesium plugs in a 50-stage horizontal well cut the time needed for the rig by seven days and the cost of finishing by more than $400,000. It took less time for the well to start producing, which increased cash flow and return on investment.

Temporary Zonal Isolation in Complex Completions

Dissolvable plugs do more than just break, they also provide partial zonal separation in a number of situations. In deepwater offshore completions where rig costs are more than $500,000 per day, getting rid of just one repair run saves a lot of money. When working with geothermal wells and CCUS (Carbon Capture, Utilization, and Storage) projects, dissolvable plugs make it possible to inject or stimulate in stages in high-temperature, high-pressure areas where mechanical recovery is not possible or not realistic.

Emerging Applications in New Energy and Special Projects

The controlled dissolving feature also makes new uses possible in geothermal energy, storing gas underground, and injecting water into projects. Dissolvable magnesium plugs are a reliable, low-maintenance option that can adapt to changing salt, temperature, and fluid chemistry conditions in these places. Because the dissolution rates can be tailored to specific working times, these plugs can be used in many industries besides oil and gas.

Comparing Dissolvable Magnesium Alloy Plugs with Alternatives

To pick the best isolation tool, you need to know how to balance speed, cost, and operational difficulty. Dissolvable Magnesium Alloy Plugs mostly go up against steel bridge plugs, composite plugs, and other dissolvable materials like zinc and aluminum alloys.

Dissolvable Magnesium vs. Steel Bridge Plugs

Steel bridge plugs have been the standard for a long time because they are very strong and can handle a lot of pressure. But they need to be mechanically milled after use, which adds a lot of time, cost, and risk to the finishing process. When steel is milled, metal chips are made that can hurt finishing equipment, slow down production, or wear out the case. Dissolvable magnesium plugs get rid of all of these risks and provide a clean, full-bore output path that doesn't need any help from a person. Steel plugs may be cheaper per unit, but when you add up the costs of the rig, the coiled tubing, and output delays, the total cost of ownership is higher for dissolvable options.

Magnesium vs. Zinc and Aluminum Alloys

Alloys made of zinc and aluminum can also dissolve, but they do so in different ways. Zinc dissolves quickly in acidic or chloride-rich environments. This makes it good for short-term uses but less reliable for long-term ones. Aluminum alloys break down more slowly, but they might not be strong enough for high-pressure fracture. Magnesium alloys are a good compromise because they have a high compressive strength (280–450 MPa tensile strength, or more than 250 MPa yield strength) and a variable rate of breakdown. Because it can be used in so many ways, magnesium is the best material for multistage fracture in tough downhole situations.

Cost Considerations and ROI Analysis

When purchasing managers look at dissolvable plugs, they need to think about both the unit price and the total cost of ownership. Dissolvable magnesium plugs may cost more up front than standard steel plugs, but they offer a big return on investment because they don't need to be milled, take less time on the rig, and start up production faster. Dissolvable plugs are a cost-effective choice for large-scale finishing projects because they can be bought in bulk and with long-term supply deals.

Procurement Guide: How to Source Quality Dissolvable Magnesium Alloy Plugs

To find good Dissolvable Magnesium Alloy Plugs, you need to carefully look at the skills of the suppliers, the approval of the products, and the dependability of the supply chain. Purchasing managers and engineers should give more weight to makers with a history of success, strong quality control systems, and the ability to tailor solutions to the needs of each project.

Assessing Supplier Credentials and Certifications

Credentials of the provider are the first step in quality security. Look for companies that have ISO 9001, ISO 14001, and ISO 45001 certifications. These show that they care about quality management, being good to the earth, and making sure their workers are safe and healthy at work. API approval and CNAS-accredited lab testing give customers even more trust in the tracking and performance proof of their products. To help with internal quality control and auditing, suppliers should provide full paperwork packages that include Safety Data Sheets (SDS), Certificates of Analysis (COA), and Certificates of Conformance (COC).

Evaluating Custom Manufacturing and Flexibility

Each project to finish a well has its own set of needs. Suppliers who can make custom alloys, adjust dissolution rates, and offer flexible minimum order amounts are more valuable than those who can only offer standard stock goods. Help with engineering should include choosing the right metal, making the best use of heat treatment, and making a sample that works well in the ground. Scalability from prototypes to mass production makes sure that your providers can grow as your project does.

Understanding Lead Times and Logistics

Having clear release dates is important for keeping the project moving forward. Lead times are more stable for manufacturers who do key production steps themselves, like melting the metal and precise machining, than for manufacturers who rely on third-party sources. Standard dissolvable magnesium extruded bars and billets usually ship in two to four weeks. Custom specs, on the other hand, may take four to eight weeks, based on how complicated they are. For important projects, there should be choices for faster creation. North American cooperation and trade words like EXW, FOB, and CIF make foreign logistics easier and lower the risk of delivery.When it comes to product approval, unique solutions, and managing the global supply chain, HAGRIEN is the best. As a technology-driven company that can do alloy melting, extrusion, and precise machining all in-house, HAGRIEN provides provable, designed materials with full paperwork and quick expert support. With safety stock for standard sizes and faster choices for urgent projects, HAGRIEN builds buyer trust by making delivery times predictable and ensuring a steady supply of goods.

Environmental Impact & Sustainability Considerations

In the energy business, being responsible for the environment is no longer a choice. Operators are under more and more pressure to leave smaller environmental footprints, follow strict rules, and show they care about doing the right thing by society. These goals can be met by Dissolvable Magnesium Alloy Plugs because they break down naturally, dissolve slowly, and make little waste.

Biodegradability and Reduced Solid Waste

Steel or composite plugs stay in the wellbore or break down into metal chips during grinding. Dissolvable magnesium plugs, on the other hand, break down totally into harmless corrosion products. The electrochemical dissolving process breaks down the plug into magnesium hydroxide and other salts that are easily dissolved in wellbore fluids. This biodegradability lowers the amount of solid garbage and the need for waste removal operations. This has a positive effect on the environment and lowers the costs of following the rules.

Engineered Dissolution Rates for Safe Degradation

Safety and knowing what to expect are very important. Manufacturers design breakdown rates so that plugs only break down after they've done their job of isolating. Accurate control over the alloy's makeup, grain structure, and surface treatment keeps it from breaking too soon and makes sure that it dissolves in the right amount of time when it's no longer needed. This balance between mechanical integrity and controlled decline fits the needs of operations and the rules for protecting the environment, which helps well operations be safe and responsible.

Supporting ESG Mandates and Green Operations

Environmental, Social, and Governance (ESG) goals are being set by energy companies around the world. These goals include lowering their carbon emissions and causing as little damage to the environment as possible. Dissolvable magnesium plugs help reach these goals by getting rid of milling processes that use a lot of energy, lowering car emissions from moving coiled tubes, and cutting down on surface waste. When operators use dissolvable plug technology, they can show real environmental benefits. This builds trust among stakeholders and supports long-term sustainability plans.

Conclusion

The Dissolvable Magnesium Alloy Plug has become a revolutionary technology in well completion, giving owners and service providers an option to standard isolation tools that is dependable, cost-effective, and good for the environment. Dissolvable plugs save a lot of time and money because they eliminate the need for cutting, shorten the time needed to set up the rig, and speed up the start of production. When purchasing these products, procurement workers should look for suppliers with strong certifications, the ability to do custom engineering, and reliable supply lines. Dissolvable magnesium plugs will continue to be an important part of modern finishing strategies as the energy industry moves toward being more efficient and environmentally friendly.

FAQ

1. What is the typical lifespan of a dissolvable magnesium plug?

The length of time it lasts depends on the temperature, salinity, and chemistry of the stream downhole. Dissolution rates are designed to fit specific finishing times and run from 24 hours to 14 days. Suppliers can change the makeup of the metal to reach specific dissolution windows.

2. Can dissolvable magnesium plugs be customized for unique well conditions?

Of course. Manufacturers who offer custom alloy composition and engineering support can make sure that plugs work best during certain working windows by making sure they are strong enough to break and dissolve in a way that can be predicted afterward.

3. What advantages do dissolvable plugs offer over retrievable plugs?

Milling processes are not needed with dissolvable plugs, which cuts down on rig time, intervention costs, and mechanical danger. They also speed up the start of production, make it safer, and help reach goals for environmental sustainability.

Partner with HAGRIEN for Reliable Dissolvable Magnesium Alloy Plug Solutions

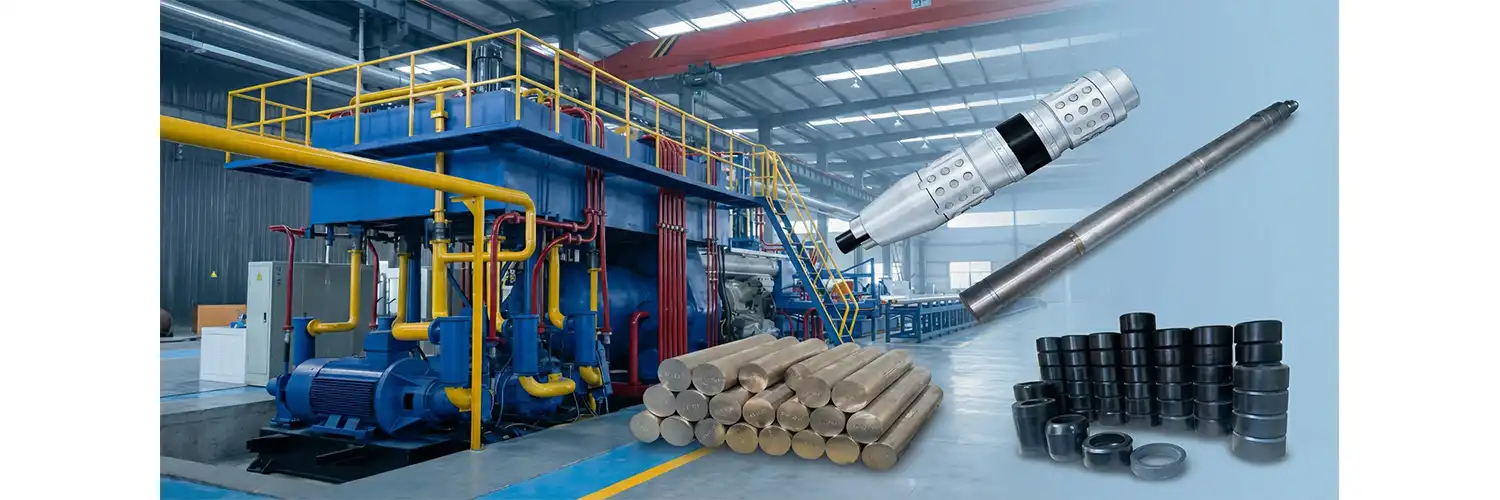

HAGRIEN is ready to help you with your next finishing project by providing high-performance Dissolvable Magnesium Alloy Plug solutions that are designed to be reliable, traceable, and work as expected. We are a top company that makes Dissolvable Magnesium Alloy Plugs. We have a lot of experience with different types of materials, the ability to extrude big amounts of material (up to 300 mm diameter bars), and quality control systems that are approved to ISO 9001, ISO 14001, ISO 45001, and API standards. Our CNAS-accredited lab makes sure that the testing can be tracked, and our fast engineering team can design custom alloys, make rapid prototypes, and make enough of them to fit your project schedule. HAGRIEN always provides stable quality and reliable lead times, no matter if you need stock inventory that can be delivered in two to four weeks or custom specs that are made to fit the conditions downhole. Email us at cyrus@us-hagrien.com right now to get detailed datasheets, talk about the benefits of buying in bulk, or look into OEM/ODM partnership possibilities. Let us help you lower the chance of delivering your project and improve your operations.
