Rubber Sealing Element for Oil and Gas: Selection Guide

Selecting the ideal rubber element for downhole sealing is not about chasing the latest polymer compound, it’s about matching elastomeric qualities to your well’s pressure, temperature and fluid chemistry. Properly designed sealing components prevent zonal isolation failure, reduce non-productive time and extend tool life in multi-stage fracturing, HPHT completions and workover operations. This book provides the technical basics, material selection criteria, procurement techniques and actual world performance data to equip completion engineers, procurement teams and tool manufacturers to make confident, cost efficient selections.

Understanding Rubber Sealing Elements: Definition, Types, and Working Principles

What Is a Rubber Sealing Element?

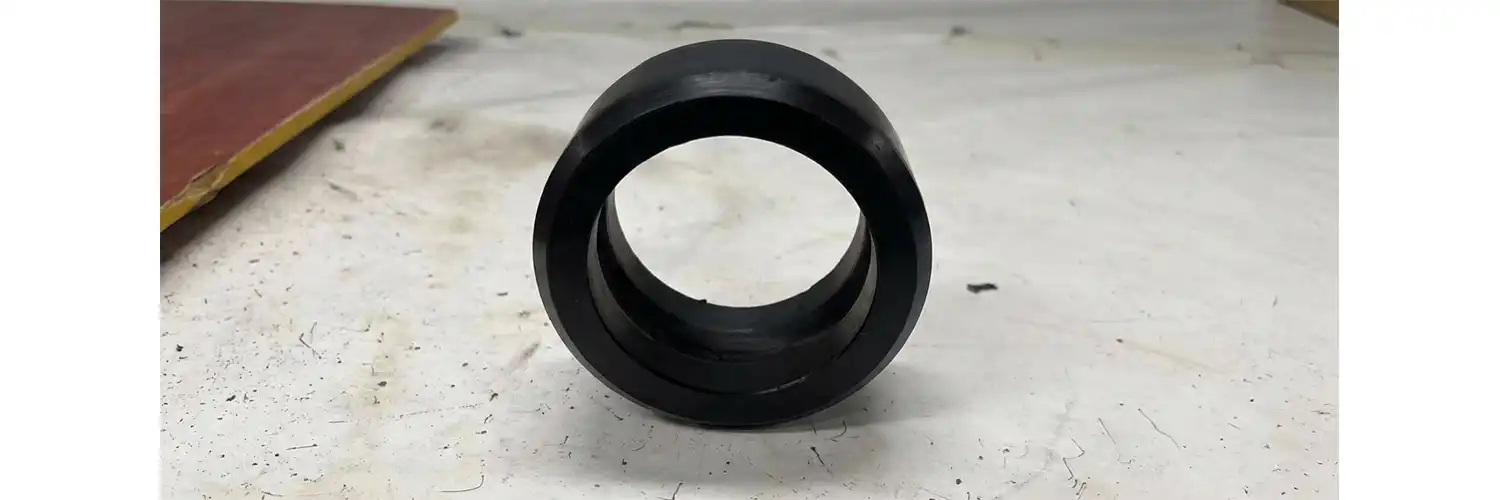

A precision-formed rubbery part called a rubber sealing element is used to make flexible, pressure-tight walls in downhole tools. Unlike hard metal seals, these parts bend when they are compressed to fill the spaces between the tool bodies and the walls of the case. When a bridge plug or packer is put downhole, the element stretches outward, creating contact stress that stops fluid from moving between zones. This deformation-and-recovery mechanism is what makes it possible for zones to stay intact for a long time in permanent completions or for temporary isolation during the fracturing stages.

Common Types and Material Distinctions

Depending on the purpose, sealing parts come in a number of different geometric shapes. In static joints, O-rings make radial seals that are tight and compact. Cup-style packers stack several rubber parts to handle large differences in pressure. Threaded connections and valve seats are kept sealed by compression gaskets. Each geometry is used for a different purpose, but they all work on the same idea: controlled deformation of the elastic under load.

The limits of performance are set by the materials used in the rubber element. Nitrile Rubber (NBR) can handle fluids that are oil-based and temperatures up to 120°C, which means it can be used in normal wells. That range is increased to 180°C by Hydrogenated Nitrile (HNBR), which also makes it more resistant to sour gas. Fluoroelastomers (FKM) can handle strong acids and temperatures up to 200°C, which makes them perfect for steam injection and High-Pressure High-Temperature (HPHT) environments in deep water. In thermal recovery processes, Ethylene Propylene Diene Monomer (EPDM) doesn't get old when exposed to steam. If the polymer core doesn't match the chemistry downhole, the seal will start to swell and break down within hours.

Sealing Mechanisms Under Harsh Conditions

Three things work together to make seals work: contact pressure, material strength, and anti-extrusion design. Radial stress is put on the case when the setting force squeezes the element. To stop bypass, this contact pressure must be higher than the wellbore pressure. This contact force decreases over time due to changes in temperature, chemical exposure, and mechanical relaxation. This is measured by compression set. High-quality compounds keep their low compression set values even after being exposed to high temperatures for a long time. This makes sure that the seal stays tight for the whole life of the tool.

Extrusion is a common way for things to break under high pressure. When the differential pressure is higher than the element's hardness and backing support, the rubber flows into the spaces between the metal parts, which can cause the seal to nibble or fail completely. This risk is lessened by anti-extrusion rings, choosing the right Shore hardness, and making sure the shape of the elements is just right.

Key Selection Criteria for Rubber Sealing Elements in Oil and Gas

Material Characteristics: Chemical Compatibility and Temperature Range

It is necessary to match the chemistry of polymers to fluids in wellbores. Chemicals that don't mix with each other cause things to swell, soften, or crack. NBR works well with crude oil and diesel, but it breaks down quickly in aromatic hydrocarbons and steam at high temperatures. As the chemical resistance goes up and the temperature ceiling goes up, HNBR becomes the best choice for gas wells with H₂S. FKM works great in acidic settings, like the HCl and HF used in matrix stimulation, and can handle being exposed to 200°C for a long time. In Steam-Assisted Gravity Drainage (SAGD) wells, where temperature stress and moisture change over time, EPDM or Aflas-based formulas work best.

Temperature directly affects mechanical qualities. When the temperature drops below the glass transition temperature, elastomers stop being flexible and start breaking. When the temperature goes above the highest service temperature, reactive cross-linking makes the material harder, which makes it less flexible and more rigid. For long-term dependability, you must choose a polymer with a thermal window that includes your well's temperature profile plus an extra margin for operational changes.

Mechanical Attributes: Hardness, Abrasion Resistance, and Durability

Shore A hardness tells you how much weight the rubber element can hold and how well it seals. Softer materials (60–70 Shore A) can easily fill in rough spots on the surface and form a seal at lower setting forces, but they can come apart under high differential pressure. Harder compounds (80–90 Shore A) don't extrude and can handle more weight, but they need more setting force and might not seal well on rough case surfaces. It is a trade-off in design that has an effect on both sealing performance and tool reliability. It involves balancing hardness with downhole pressure, surface finish, and tool geometry.

In dynamic situations where the element slides while setting or unsetting or when a slurry full of proppants runs past the seal, abrasion resistance is important. Polyurethane mixes are more resistant to wear than regular NBR, which means they last longer in high-speed settings. If you measure the compression set resistance after exposing the element to heat for a long time, you can guess how well it will keep its sealing force over time. Low compression set values are linked to longer seal integrity, which makes it less likely that the seal will fail early.

Design Features and Industry Standards

To make sure that the parts fit and work, the surface finish, slot shape, and dimensional tolerances must all meet industry standards. API specifications set the rules for how to test materials, and ISO 3601 describes the sizes and tolerances of O-rings. Custom parts for bridge plugs and packers are usually made to specific requirements, but they still use common test methods like ASTM D2240 for hardness, ASTM D395 for compression set, and ASTM D412 for tensile strength. Following these guidelines to ensure that rubber sealing elements can be tracked and are ready for approval.

Comparing Rubber Sealing Elements with Alternative Materials

Rubber vs. Silicone: Flexibility, Temperature Tolerance, and Chemical Resistance

Silicone is more stable at temperatures between -60°C and 230°C than most elastomers made from hydrocarbons. But its tensile strength and tear resistance are lower, which means it can't be used for high-pressure downhole protection where mechanical stress is high. Silicone also swells up in hydrocarbon fluids, which means it can only be used in certain situations, like for electrical insulation or low-pressure gas seals. Because rubber compounds like HNBR and FKM are stronger, don't get clogged with oil, and work well at normal temperatures in most wellbore conditions, they are the best choice for completion tools.

Rubber vs. Polyurethane and Foam: Wear Resistance and Cost Efficiency

Polyurethane is great at resisting wear and dynamic sealing, but it breaks down easily in hot water and steam, which means it can't be used in thermal recovery wells. Closed-cell foam elastomers are great at reducing vibrations and closing at low pressure, but they aren't strong enough or resistant to chemicals enough to be used for downhole separation. The rubber element is the best choice because it is affordable, performs well, and is easy to find. It also comes in a wide range of materials that can be used in different situations.

Assessing Brand Credibility, Supplier Reliability, and Manufacturer Partnerships

Sourcing choices involve more than just choosing the materials. Buyers need to look at what a supplier can do, such as batch consistency, traceability, lead times, and technical support. Getting ISO 9001 certification means that you handle quality in an organised way. Testing in a lab that is recognised by the CNAS is an independent way to confirm the qualities of a material. Full paperwork packages from suppliers, including Certificates of Analysis (COA), Certificates of Conformance (COC), and Safety Data Sheets (SDS), make the qualification process easier and help get ready for audits. Manufacturers who do their own compounding and moulding can change formulations and shapes to fit the specific needs of rubber sealing elements. This cuts down on development time and makes sure that the final product meets the needs of the tool design.

Procurement Guide: How to Buy Rubber Sealing Elements for Oil and Gas

Sourcing Strategies and the Benefits of Custom Manufacturers

Working with a custom rubber element manufacturer is better than using off-the-shelf parts in a number of ways. Customised formulations are made to fit the conditions of a specific wellbore, which improves sealing performance and tool life. Custom shapes work perfectly with unique tool designs, so there are no fit problems and fewer changes need to be made in the field. Projects stay on track because lead times are shorter—often 2 to 4 weeks for standard compounds and 4 to 8 weeks for engineered formulations. Validation testing is sped up with prototype support, and consistency is ensured from the first sampling to large-scale deployment with scalable production.

Pricing Dynamics: Material Choice, Volume, and Customization

The cost of the rubber element depends on the type of polymer and how well it works. NBR is the least expensive choice and works best in moderate situations. Because they are better at resisting heat and chemicals, HNBR and FKM cost more. Cost is also affected by additives like antioxidants, plasticisers, and reinforcing fillers. There are volume savings for orders over a certain number of items, usually starting at around 500 pieces. Prices get more aggressive for orders over 5,000 units. Customisation costs more in engineering and tooling up front, but it pays off in the long run by improving performance and lowering the number of failures. To make sure they stick to their budgets, buyers should ask for thorough quotes that break down the prices of materials, tools, testing, and documentation.

Vetting Supplier Reliability, Service Capabilities, and After-Sales Support

When judging a supplier, you should look at their production ability, quality processes, and how quickly they respond. Ask for inspection reports, data on process capability, and records that show how each batch was made. Ask the seller about their HTHP testing facilities and if they can do in-house accelerated ageing, fluid immersion, and compression set testing. During the RFQ phase, you should look at how fast they communicate and how technical their answers are. Suppliers who give you detailed suggestions and engineering support at the start are more likely to provide consistent quality throughout the relationship. After-sales support, such as help with fixing problems, figuring out what went wrong, and planning what to do next, cuts down on downtime and makes the supply chain more resilient.

Real-World Applications and Case Studies in Oil and Gas Industry

Common Applications: Pump Seals, Valve Gaskets, Pipeline Flanges, and Hydraulic Systems

In upstream, midstream, and downstream operations, elastomeric seals are used all the time. Centrifugal pump seals keep fluid from leaking and make bearings last longer. Valve stem packings and seat seals keep equipment on the surface and below the water from not being able to shut off. Pipeline flange covers protect threaded joints from heat and pressure. Rod seals and piston seals are what turn fluid pressure into mechanical force in hydraulic actuators. For each use, the right mix of hardness, chemical protection, and mechanical strength is needed.

Case Study: Optimizing Sealing Performance in Multi-Stage Fracturing

A company that does finishing work in the Permian Basin had problems with seals breaking on dissolvable bridge plugs many times during high-rate fracking stages, particularly with the rubber element failing under extreme conditions. After the job was done, an analysis showed that the lack of hardness and backup ring support caused extrusion damage. The operator switched to a custom HNBR element that was 85 Shore A hard, had better groove geometry, and had anti-extrusion rings built right in. The next steps used a treatment pressure of 9,500 psi without bypass, and after the frac milling, the elements were removed cleanly with no damage to the casing. This change cut down on non-productive time by 15% per well and increased the reliability of stage isolation overall.

Measurable Benefits: Durability, Cost Savings, and Operational Safety

When closing elements are properly designed, they make tools last longer, require less maintenance, and cost less overall. Better seal reliability lowers the chance of wellbore communication, which keeps the reservoir pressure under control and protects the formation. Better material performance makes inventory simpler because one product can be used in more than one way in different types of wells. These advantages lead to a measurable return on investment (ROI) through shorter rig times, fewer tool failures, and higher operational safety.

Conclusion

To choose the right closing part for oil and gas operations, you need to know about the material's features, the job's needs, and the supplier's abilities. Rubber-based elastomers have been shown to work well in a lot of different temperatures, pressures, and fluid types. Procurement teams can find parts that make tools more reliable and lower operational risk by checking how well they work with chemicals, how they are made, and how well they follow industry standards. Working with a manufacturer that offers engineering help, traceability, and production that can be scaled up or down makes sure that project deadlines and quality standards are met, which leads to long-term value in tough downhole environments.

​​​​​​​FAQ

1. How Do I Identify the Best Rubber Material Based on Chemical and Temperature Considerations?

Make sure the polymer base works with the fluids and temperatures in your well. NBR can work in places with oil up to 120°C. That range is increased by HNBR to 180°C, and it can handle sour gas. Acids and temps up to 200°C don't bother FKM. EPDM doesn't get old when it's heated up again. To make sure they are compatible, ask your supplier for fluid immersion test data and thermal ageing reports.

2. What Are the Fundamental Differences Between Rubber and Metal Sealing Elements?

For metal seals to work, they need to be deformed plastically and have high setting forces. They can handle high and low temperatures, but they can't bend like elastomers can. Rubber parts seal with less force, can adjust to rough surfaces, and can expand and contract with temperature changes. But their temperature ranges are smaller, and they are more sensitive to chemicals. For harsh conditions, choose metal. For flexibility and low cost, choose rubber.

3. What Is the Expected Service Life of Rubber Seals in Demanding Environments?

Temperature, pressure, fluid chemistry, and tension set resistance all affect how long something will last. In wells with fluids that are 100–120°C and made of oil, NBR elements can last for 6–12 months. In HPHT wells, HNBR and FKM elements may keep the seals in good shape for one to three years. In thermal wells, formulations that are resistant to steam can withstand repeated cycling for 2–5 years. Ask for rapid ageing data and field performance records to get an idea of how long the service will last in your situation.

Partner with HAGRIEN for Reliable Rubber Element Solutions

It takes more than low prices to find a reliable provider of rubber elements. You also need technical know-how, consistent batches, and a reliable supply chain. Shaanxi Hagrien Energy Technology Co., Ltd. (HAGRIEN) sells well-designed sealing parts that come with full traceability (COA/COC available), ISO 9001/14001/45001 certifications, and HTHP testing that is approved by CNAS. Our rubber elements can be customised and have a Shore hardness of 60 to 90 Shore A. They can withstand temperatures up to 200°C and have been shown to work with fracking fluids, acids, and fuels. With wait times of 2–4 weeks for normal sizes and 4–8 weeks for custom formulations, we can meet the deadlines for your projects and keep a close eye on quality at all times. You can talk about your sealing needs at cyrus@us-hagrien.com, ask for technical documentation, or get in touch with a rubber element manufacturer who knows how to integrate completion tools and meet downhole performance requirements.

References

1. Parker Hannifin Corporation. (2021). Parker O-Ring Handbook: Sealing Solutions for Fluid and Pneumatic Power Systems. Cleveland, OH: Parker Hannifin.

2. American Petroleum Institute. (2020). API Specification 11D1: Packers and Bridge Plugs. Washington, DC: API Publishing Services.

3. Flitney, R. K. (2014). Seals and Sealing Handbook (6th ed.). Oxford, UK: Butterworth-Heinemann.

4. ASTM International. (2019). ASTM D2000-18: Standard Classification System for Rubber Products in Automotive Applications. West Conshohocken, PA: ASTM International.

5. Brown, M. J., & Davis, L. A. (2018). Elastomer Selection for High-Pressure, High-Temperature Oil and Gas Applications. Journal of Petroleum Technology, 70(4), 56-62.

6. ISO Technical Committee 45. (2017). ISO 3601-1: Fluid Power Systems – O-rings – Part 1: Inside Diameters, Cross-sections, Tolerances and Designation Codes. Geneva, Switzerland: International Organization for Standardization.
