Eco-friendly Magnesium Ingot Buyer’s Guide for Oilfield Use

Procurement teams must choose Eco-friendly Magnesium Ingot options that strike a mix between operational performance and environmental duty when looking for materials for dissolvable downhole tools. These special metals are the basis for dissolvable frac plugs, bridge plugs, and stage separation equipment. These parts have to be able to handle harsh conditions downhole while dissolving in a controlled way after fracturing operations. Completion service providers, E&P operators, and tool makers can make multistage fracturing operations more efficient and environmentally friendly by learning about the unique qualities, comparison benefits, and best practices for purchasing these materials.

Understanding Eco-friendly Magnesium Ingots for Oilfield Use

What Makes Magnesium Alloys "Eco-friendly" for Downhole Applications?

In this case, "eco-friendly" refers to magnesium metal materials that are made to break down fully in certain wellbore fluids without needing to be mechanically retrieved or milled. In contrast to regular plugs that need to be dug out, which creates waste, takes up rig time, and raises the cost of intervention, these materials dissolve in formation brines or finishing fluids and break down through controlled electrochemical reactions. This gets rid of the need for post-frac management steps, lowers the carbon emissions that come with workovers, and keeps wellbore waste to a minimum.These days, recipes balance a number of important qualities. The mix of metals in the alloy has to be strong enough to withstand differential pressures during the breaking stages, which are often higher than 10,000 psi, while still keeping the structure intact at temperatures of 300°F or higher. The dissolution rate must also be able to be changed to fit operating timelines, which can be anywhere from hours to weeks based on the chemistry, temperature, and salinity of the fluid.

Chemical Composition and Mechanical Properties

High-performance dissolvable magnesium metals often have aluminum, zinc, and manganese added in a controlled way to make them stronger and more resistant to corrosion during the operating window. The purity standards are usually between 99.90% and 99.98%, and there are strict limits on trace contaminants like iron, nickel, and copper that could form galvanic cells and cause dissolution to happen too soon or in a random way.Key mechanical parameters include a tensile strength of more than 200 MPa, a yield strength of more than 150 MPa, and a stretch rate of between 6 and 12%. These parameters make sure that tools can handle setting forces and pressure differences without breaking. The low density of about 1.74 g/cm³ makes tools lighter, which makes them easier to handle and move around than steel options. The machinability scores are very good, which lets makers make the tight tolerances and complicated shapes that are needed for slip systems and sealing elements.

Sustainability-Driven Manufacturing and Traceability

In addition to the qualities of the materials, the way they are made also plays a role in the "eco-friendly" label. Modern makers use closed-loop melting systems that recover leftover heat. These systems use less energy and produce fewer greenhouse gases than older methods. Up to 100% of magnesium trash can be recycled, which cuts down on loss of raw materials all along the supply chain.It's now just as important to be able to trace things. It is possible to connect each extruded bar or billet to a specific melting batch, chemical makeup, and mechanical test result thanks to batch paperwork that includes Certificates of Analysis (COA), Certificates of Conformance (COC), and full heat traceability. This paperwork helps with seller qualification programs, internal quality checks, and reviews of legal compliance that are common in upstream oil and gas operations.

Comparing Eco-friendly Magnesium Ingots with Alternatives in Oilfield Use

Performance Benchmarks: Magnesium vs. Traditional Materials

Dissolvable tools can be made from engineered magnesium alloys, conventional magnesium ingots, or aluminum-based alternatives, each differing in strength, dissolution behavior, and environmental performance. Engineered magnesium alloys provide the best strength-to-weight ratio, enabling thinner walls and compact tool designs for slim-hole or multi-string completions, with tunable dissolution via chemistry and heat treatment. Conventional magnesium ingots often lack tight process control, leading to impurities, inconsistent grain structure, and unreliable dissolution, with limited traceability. Aluminum alloys are more available but dissolve much more slowly, often require activators, are denser (~1.5× magnesium), and may passivate in brines, causing operational delays and residual debris.

Environmental Impact and Carbon Footprint Considerations

The move toward sustainable finishes has made people pay more attention to the effects things have over their whole life. Dissolvable magnesium tools get rid of the need for coiled tubing units, milling kits, and the diesel fuel they use during post-frac cleanup. This could cut CO₂ emissions from each well by several metric tons compared to regular plug-and-perf operations with millout.Emissions from manufacturing are very different depending on how the goods are made. Compared to older methods that used a lot of coal, vertical retort technologies and electrolysis driven by green energy sources can cut the carbon intensity of magnesium production by 40 to 60%. Suppliers who give Product Carbon Footprint (PCF) reports and Life Cycle Assessment (LCA) data that has been checked by third-party auditors are open and honest, which helps with ESG reporting and meeting company sustainability goals.

Evaluating Supplier Quality and Certifications

Verifying a supplier's qualifications goes beyond what they say in their marketing materials. Some important qualifications are ISO 9001 for quality management systems, ISO 14001 for environmental management, and ISO 45001 for health and safety at work. API certification and lab tests approved by CNAS show scientific know-how and compliance with international standards like ISO 8287:2011 and ASTM B92/B92M. During approval, buyers should ask for sample paperwork packages that include reports on chemical analyses, certificates for mechanical tests, analyses of grain size, and checks of surface quality. For problem resolution and getting ready for audits, it's important to be able to provide batch-level tracking, which means connecting finished parts to specific ingot lots and melting records.

How to Choose the Right Eco-friendly Magnesium Ingot for Oilfield Applications

Aligning Material Specifications with Operational Requirements

To choose the right alloy system, you must first define the operating window, which includes the temperature downhole, the fluid makeup (salinity, pH, and chloride content), the time frame you want the alloy to dissolve, and the mechanical performance you need, including Eco-friendly magnesium Ingot. For uses at higher temperatures, metals with better thermal stability may be needed. On the other hand, settings with a lot of salt allow for faster dissolving rates, which cuts down on the time between fracturing stages.The form factor must also be thought about by procurement teams. Extruded bars and billets, especially those with diameters up to 300 mm, are more stable in size and have more regular microstructures than cast goods. By aligning the grain structure and reducing internal gaps, extrusion lowers the risk of cracks starting when the tool is being set up and pressed.

Verifying Environmental Compliance and Supply Chain Robustness

Completion chemicals and materials are getting more and more attention from regulators, especially in places with strict environmental approval. Suppliers should give Safety Data Sheets (SDS) that show that the results of dissolution, which are mostly magnesium hydroxide and small amounts of alloying elements, stay below regulation limits and don't pose a long-term environmental risk. Recently, problems in the global metals markets have made supply chain robustness more important. Dual-sourcing tactics, regional inventory hubs, and checks on suppliers' financial health can help prevent shortages of raw materials or supply delays. When it comes to quality and wait times, manufacturers who control melting, extrusion, and machining all under one roof are usually better than middlemen who buy from a number of foundries.

Decision Framework for Procurement Professionals

A structured review method makes it easier to choose a provider and handle risks:

1. Technical Qualification: Ask for information on the material's properties, studies of its ability to be processed, and test results samples that show the same results will be found in different production runs. Make sure that the mechanical features meet or go beyond what is needed for the purpose, leaving enough room for error.

2. Quality Systems: Check the ISO licenses, lab accreditations, and internal quality control methods. Make sure that batch tracking and paperwork packages are available that work with the way you approve things internally.

3. Commercial Terms: Look at how prices are set, savings for buying in bulk, payment terms, and minimum order amounts. You should weigh the original cost against long-term value drivers like lower intervention costs and better operating efficiency.

4. Logistics and Support: Look at the wait time promises, the ability to speed things up, the standards for packing, and the export paperwork. Make sure there is expert support available for help choosing materials, fixing problems, and application engineering.

Procurement Process and Best Practices for Buying Eco-friendly Magnesium Ingots

Navigating the Supplier Landscape

Dissolvable magnesium alloys are still a niche market, with only a few companies having the technical know-how and production capacity to meet the needs of industrial uses. Buyers can get goods in a number of ways, including directly from integrated makers, through area distributors, or through platforms that bring together many providers. The most openness and customization options are available through direct maker ties. Integrated makers who are in charge of metal development, extrusion, and cutting can come up with solutions that work best in certain downhole situations and make product development go more quickly. This model works well for tool makers who are making their own designs or for users who want to stand out in terms of performance. Regional wholesalers offer local inventory and easier operations, which is especially helpful for tests with small amounts of goods or when you need to quickly restock. In exchange, you get less detailed information and can't change the alloy's makeup or size requirements as much. This route works well for regular parts that need to meet certain performance standards.

Understanding Pricing Dynamics and Cost Drivers

The price of magnesium alloy depends on a number of factors besides the cost of the main metal, including Eco-friendly magnesium Ingot. Processing prices go up because alloys are complicated, need to be pure, and have tight compositional limits. Large-diameter extrusions cost more because they need a special kind of press and have higher scrap rates during approval. The total landed cost is also affected by third-party tests, documentation files, and faster shipping. When you commit to buying a lot, you can get big savings. Manufacturers can get the most out of their production schedules and raw material purchases by signing annual deals with quarterly call-offs. They can share the savings they make through tiered price structures. When analyzing value propositions, buyers should include not only the price of the material but also the rate at which tools break down, the cost of repairs, and the increase in operating efficiency.

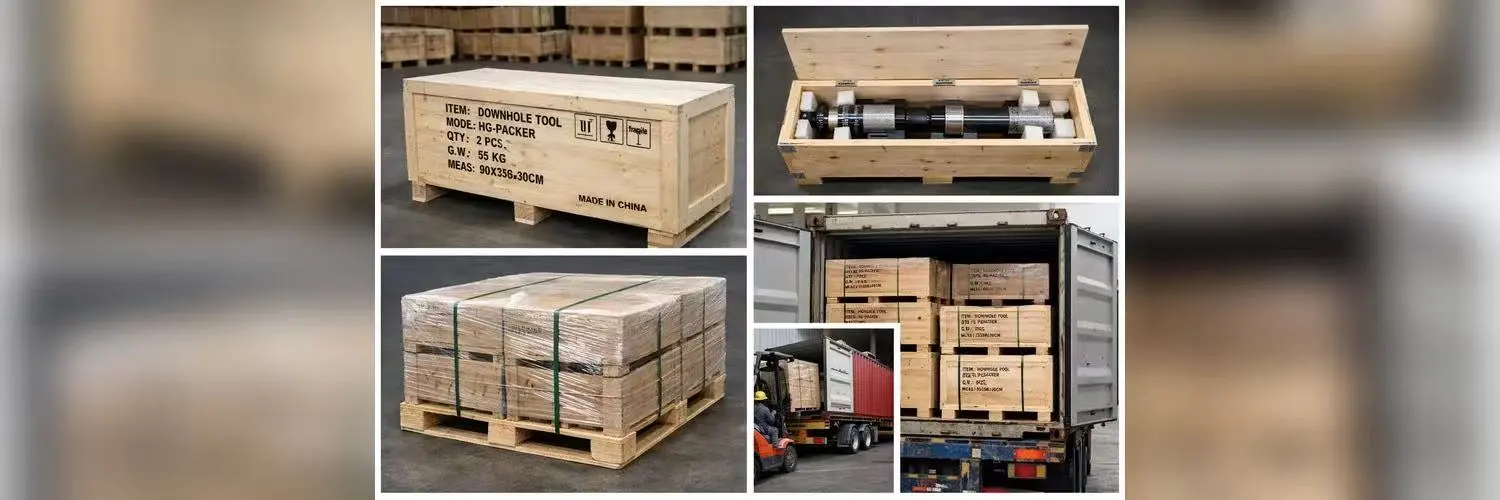

Logistics Considerations and Trade Terms

When you buy things from other countries, you need to pay close attention to Incoterms, export paperwork, and clearing customs. When you buy something on EXW (Ex Works) terms, you are fully responsible for all shipping and customs processes. This option has the cheapest price but is the hardest to set up. FOB (Free on Board) and CIF (Cost, Insurance, and Freight) words put these costs on the provider, which makes internal processes easier but costs more. Lead time management includes more than just the time it takes to make something; it also includes the time it takes to ship, clear customs, and deliver the last few miles. Shipping goods by sea from big production areas usually takes three to five weeks to get to their destination. Shipping goods by air can cut this time down to days, but it costs a lot more. Buyers who do business in more than one area benefit when sellers keep North American inventory hubs or coordination bodies that make cross-border operations easier and offer local technical support.

Customization Capabilities and Engineering Support

In addition to normal catalog items, major providers offer OEM/ODM agreements that let people work together to create new materials and tools. This shared method improves the interface between the material and the part by balancing how the parts dissolve with their mechanical performance and how easy they are to make. Engineering-to-specification services help with making prototypes, trying them in small groups, and then scaling up to full production volumes while making sure the process is recorded and proven to work. Support after the sale is what sets top sellers apart from commodity providers. Application engineering help can be used to fix problems with performance in the field, choose the best materials for new working conditions, and adjust to new finishing designs. Remote tests, on-site expert visits, and training programs make sure that the product is implemented correctly and keeps getting better over its lifetime.

Case Studies and Real-World Applications

Reducing Intervention Costs in Unconventional Plays

A company in the Permian Basin switched from traditional wood plugs that needed to be milled out to dissolvable magnesium plugs across a 20-well pad development. The eco-friendly metal tools broke down totally in 48 hours in high-salinity produced water. This got rid of the need to move coiled tubing and saved three days of rig time per well. Total cost saves across the program were more than $2.1 million. The smaller size of surface equipment and lower fuel use were also benefits. Each pad saved about 15 metric tons of CO2 equivalent. Material tracking was very important when one of the tools didn't dissolve as quickly as expected. Batch documentation helped the seller find a small change in the composition of that specific heat, set up process controls to fix the problem, and deliver new material on time for the original job. This quick action stopped delays from getting worse and showed how important strong quality systems are.

Enabling Offshore Efficiency Gains

In the Gulf of Mexico, an offshore operator put dissolvable stage separation tools into underwater completions. Each trip to the well can cost more than $500,000. The designed magnesium metal kept its shape through a differential pressure of 12,000 psi and a temperature of 275°F in the bottom of the hole. It then broke down in formation brine within 72 hours. Instead of having to clean out the through-tubing, this cut down on production delays and sped up the time it took to get oil by two weeks compared to normal plug-and-perf processes. The supplier's HTHP lab facilities let them do pre-deployment validation tests that were the same as those that would happen downhole. This gave trust in the time of dissolution and the mechanical performance of the system before it was fully deployed. After the job was done, research showed that all the material had been broken down and there was no more debris. This proved that the model was correct and allowed for growth to more wells.

Supporting Emerging Energy Applications

A geothermal developer testing improved geothermal systems needed temporary isolation tools that could survive temperatures of up to 400°F in acidic fluids and then dissolve to reconnect the reservoirs. Standard metals used in the oilfield weren't stable enough at high temperatures, and regular materials wouldn't breakdown in the low-salinity geothermal brine. The creator and a company that makes dissolvable alloys worked together to make a special formulation that balanced high-temperature strength with controlled dissolving kinetics. Large-bore completions could be made with extruded bars up to 250 mm in diameter, and the project's quality standards were met by recorded process validation and batch tracking. The successful test showed that eco-friendly magnesium solutions can be used for more than just oil and gas. This makes it possible for projects to store hydrogen and store carbon.

Conclusion

The qualities of the material, the supplier's skills, and the overall value provided must all be carefully considered when sourcing Eco-friendly Magnesium Ingots for oilfield uses. The best option strikes a mix between mechanical performance, expected dissolution behavior, environmental benefits, and the dependability of the supply chain. Leading providers stand out by offering engineered alloy systems, the ability to extrude big diameters, strict process controls, and a lot of paperwork to back up approval and tracking. As completion designs become more environmentally friendly and effective, dissolvable magnesium technologies have been shown to lower intervention costs, speed up production, and leave smaller environmental footprints in conventional, unconventional, offshore, and new energy applications.

FAQ

1. What dissolution rate should I specify for my completion design?

When something dissolves depends on how it was made and where it is in the stream. Most parameters are between 24 hours and 14 days. For high-salinity brines and operations that need to move quickly between fracturing steps, faster rates work best. For freshwater systems or longer operating windows, slower rates work best. Your provider of materials should give you dissolution rate graphs that have been tested in an HTHP lab and are proven to work in conditions similar to those found underground, including temperature, salinity, pH, and fluid makeup. Always include safety gaps to account for differences between what happens in the wellbore and what was planned.

2. How do I verify the quality and consistency of dissolvable magnesium materials?

Ask for complete sets of paperwork that include mechanical test certificates (tensile strength, yield strength, elongation), grain size analysis, surface quality inspections, and chemical analysis results that confirm the alloy's makeup. It is important to be able to link finished goods to individual melting records so that each batch can be tracked. Check to see if the seller still has ISO 9001 approval and testing labs that are CNAS-accredited or similar. Sample qualification programs, which test sample lots using your own methods or third-party labs, give you more trust before you commit to buying in bulk.

3. What should buyers consider when choosing Eco-friendly magnesium Ingot for oilfield applications?

When selecting Eco-friendly magnesium Ingot for oilfield use, buyers should evaluate key factors such as material purity, corrosion resistance, and environmental compliance. It is also important to consider whether the magnesium ingot meets oilfield operational requirements like controlled reactivity and stable performance under harsh downhole conditions. In addition, sourcing from qualified manufacturers with consistent quality control and relevant certifications helps ensure reliability and safe application in oilfield operations.

Partner with HAGRIEN for Reliable Eco-friendly Magnesium Ingot Supply

We at HAGRIEN know how important it is for oilfield buying to find the right mix between performance, traceability, and supply reliability. Our all-in-one manufacturing platform includes alloy research, large-diameter extrusion (up to Ø300 mm), and precise machining. It provides dissolvable magnesium materials that are designed to work with your unique operating window. We have been making things continuously for about seven years, are certified by ISO 9001, 14001, and 45001, and have an HTHP laboratory that is recognized by the CNAS. This means that we can support qualification programs and long-term supply deals with thorough documentation and scientific depth.Our OEM/ODM services and fast engineering team make it easier to go from idea to launch, whether you're making dissolvable bridge plugs, stage isolation packers, or custom completion tools. Standard sizes ship between 2 and 4 weeks, and special versions ship between 4 and 8 weeks, with choices for faster delivery. Our U.S. coordination body makes logistics easier and offers expert help in a way that fits the schedules of North American projects.With uniform quality, expected lead times, and full traceability, you can lower the risk of delivering your program. Email our team at cyrus@us-hagrien.com to talk about your needs and ask for reference packages. Learn why top tool and finishing service providers choose HAGRIEN as their dependable Eco-friendly Magnesium Ingot maker.

References

1. Smith, J.R., & Thompson, L.A. (2022). "Dissolvable Magnesium Alloys in Hydraulic Fracturing: Material Science and Field Applications." Journal of Petroleum Technology, 74(8), 45-58.

2. Williams, M.K. (2021). "Environmental Impact Assessment of Dissolvable Completion Technologies in Unconventional Resource Development." Society of Petroleum Engineers Technical Paper SPE-205432-MS.

3. Chen, H., & Rodriguez, P. (2023). "Corrosion Behavior and Dissolution Kinetics of Magnesium Alloys in High-Salinity Oilfield Brines." Corrosion Science, 198, 110-125.

4. International Organization for Standardization. (2019). "ISO 8287:2011 - Magnesium Alloys - Unalloyed Magnesium - Specifications." Geneva: ISO Standards Publishing.

5. Anderson, R.T., & Kumar, S. (2022). "Supply Chain Optimization for Dissolvable Downhole Materials: A Case Study Approach." Energy Procurement Quarterly, 15(3), 78-92.

6. Baker, E.L., & Zhang, W. (2023). "Life Cycle Assessment of Dissolvable vs. Conventional Completion Tools: Carbon Footprint and Economic Analysis." Journal of Sustainable Energy Engineering, 11(2), 134-149.
