Why Is No Retrieval Required Magnesium Plug Gaining Attention?

In well finishing operations, the no retrieval required magnesium plug has become a game-changing device that fixes long-standing problems with the way hydraulic fracturing works. This downhole isolation tool is made from specially designed degradable magnesium alloys, so it doesn't need to be milled out, which is an expensive and time-consuming process that is needed for standard plugs. In North American shale basins and offshore development projects, operators are finding that this technology cuts the time it takes to intervene by days, lowers the risk of wellbore debris, and speeds up the start of production. It also helps with environmental responsibility because it is fully dissolvable and doesn't leave any residue downhole.

Introduction

Today, procurement managers, completion engineers, and downhole tool manufacturers must deliver shorter cycle times, lower well costs, and lesser environmental consequences in the oil and gas business. By entirely modifying temporary zone separation throughout many phases of fracture, the no-retrieval magnesium plug addresses these issues. After stimulation, composite or cast iron bridge plugs must be manually pulled out, whereas dissolvable magnesium plugs dissolve spontaneously in wellbore fluids in 24–72 hours. This clears the wellbore for production without additional intervention.Completion service providers, E&P operators, OEM tool manufacturers, materials sourcing teams, and workover specialists may learn all they need to know about this technology's popularity from this article. We will examine the basic properties of magnesium alloys that make them ideal for this use, compare their performance to other materials, examine real-life use cases in unusual and offshore settings, and offer decision-makers practical procurement advice to help them find high-quality, traceable materials that meet their operational reliability and sustainability goals.

Understanding No Retrieval Required Magnesium Plugs

What Sets This Technology Apart

Unlike other bridge plugs, the magnesium plug requires no retrieving. Coiled tube or cable is needed to mill composite, cast iron, or drillable ceramic plugs. This mill-out process may take 72 hours per well, damages downhole equipment, and may leave debris that blocks output flow lines. Dissolved magnesium plugs eliminate these issues by using controlled galvanic corrosion: when the plug contacts formation brine or acid, the magnesium alloy breaks down into tiny magnesium oxide and hydroxide particles that are easily carried to the surface by the fluids.Because of its natural composition, magnesium is ideal for this. Magnesium alloy plugs are lighter than steel due to their lower mass (1.74 g/cm³ vs. 7.85 g/cm³). Pumping them down quicker during installation reduces hydraulic friction in long-reach horizontal laterals. Despite their low density, magnesium alloys may have compressive strengths of 500 MPa when correctly developed. This implies the plug can withstand 10,000 or 15,000 psi differential pressures during high-rate fracturing.

How the Plug Functions in Real-World Applications

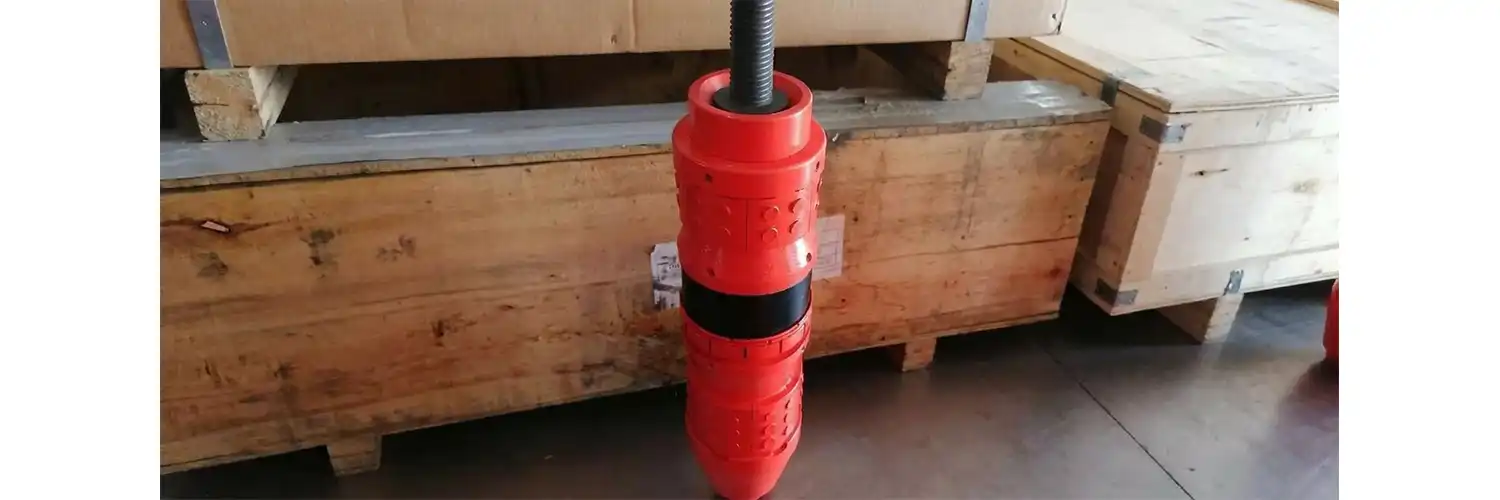

Completion teams push the no-retrieval magnesium plug downhole using a wireline or pump-down assembly during multi-stage fracturing. They then insert it at the correct depth to divide the treated zone. The plug's slip assembly keeps it against the casing wall, and its elastomer sealing element creates a pressure barrier certified for the well's greatest predicted treatment pressure. After fracturing, the crew perforates and treats the next interval uphole. They use the plug to maintain pressure and prevent stage communication.After the final phase, workers wait instead of drilling out each plug using a coiled tubing equipment. The temperature, salinity, and chemistry of the wellbore fluid establish the dissolving window for magnesium metal corrosion. To ensure dependable deterioration, the alloy's microstructure, grain size, and alloying elements (typically zinc, aluminum, or rare earth metals) are carefully managed during casting and heat treatment. The plug's solid sections will break down in one to three days, allowing mobility. Production may start immediately.

Material Advantages Compared to Conventional Plug Materials

Each conventional plug material has merits and downsides. Composite holes are wasteful and time-consuming to drill. Cast iron plugs are sturdy yet hefty, making pump-down in lengthy laterals harder. Aluminum works well but lacks the strength-to-weight ratio for high-pressure applications. Plastic or polymer plugs degrade differently and leave bits. Zinc metals are weak and break down readily, thus they can't be employed in high-pressure, hot environments.The no-retrieval magnesium plug is a suitable balance since it can maintain differential pressures during strong fracture but also breaks down cleanly thereafter. Advanced magnesium-aluminum and magnesium-rare earth alloy systems can work in low-chloride waters to high-salinity brines off the coast at 40°C to 150°C. Procurement teams and finishing engineers may pick materials that match their well conditions and operations schedules since alloy composition and heat treatment can be altered.

Key Benefits Driving Industry Adoption

Elimination of Mill-Out Rig Time

By getting rid of the mill-out step, the well finishing time is cut down by a large amount. Regular milling can add three to seven days to the rig time, depending on the plug count and lateral length. In a horizontal shale well, there are usually twenty to fifty plugs. With day rates locally between $20,000 and $30,000 and overseas rates above $100,000, the time saved directly leads to big cost savings. With no retrieval required magnesium plugs, operators can go from the last step of fracturing to flowback and production starting in hours instead of days. This speeds up cash flow and improves the economics of the project.

Reduced Wellbore Debris and Flow Restriction Risk

Metal shavings, composite pieces, and ceramic dust can build up in the lateral during mechanical milling, blocking production flow routes and raising the risk of premature pump failures or problems with artificial lift. Dissolvable magnesium alloys break down into small particles called magnesium oxide and hydroxide. These particles stay floating in the fluids that are created and flow out of the wellbore without settling or bridging. This clean breakdown cuts down on the need for expensive wellbore cleanouts and helps the well keep producing at a higher rate for longer.

Enhanced Operational Flexibility in Extended-Reach and Offshore Wells

Extended-reach horizontal wells, which have laterals longer than 10,000 feet, are hard to work on with coiled tubing because of the risk of bowing and friction limits. Offshore subsea completions make these problems even worse because they have limited operating times, are affected by weather, and require very expensive intervention boats. With the no retrieval required magnesium plug, completion designs are possible that would not be possible or would not be cost-effective with traditional drillable plugs. This lets you get to stocks in deeper, more complicated reservoirs.

Alignment with Environmental and Sustainability Goals

Regulatory monitoring and business promises to sustainability are increasing the need for tools that reduce waste and damage to the environment. Magnesium is easy to find, can be recycled, and is not harmful. The byproducts of its dissolution do not affect the structure of the formation or the chemistry of the created water. By getting rid of the mill-out phase, completion activities use less fuel, produce less pollution, and leave a smaller carbon footprint altogether. These factors help operators' ESG (environmental, social, and governance) reports and are in line with efforts made by the whole industry to make hydrocarbon output less harmful to the environment.

Comparing Magnesium Plugs with Alternative Materials

Cost-Performance Metrics

When it comes to upfront material costs, no retrieval required magnesium plugs are usually more expensive per plug than composite or cast iron options. For example, extruding magnesium metal, heat treating it, and making precise cuts all need special tools and controls that raise the cost of production. The investment pays off, though, because intervention costs aren't needed. For example, cutting out three to seven days of coiled tubing rig time per well can save between $60,000 and $200,000, which is much more than the cost of the extra plug. When used in multiple well pads, dissolvable plugs save a lot of money over time, making them a lower-cost option overall.

Corrosion Resistance and Mechanical Strength

Another common material that dissolves is zinc alloys. They deteriorate consistently but don't have the compressive strength needed for high-rate treatments above 10,000 psi. Aluminum is easy to work with, but it has variable electrolytic behavior and lower tensile strength, which means it can't be used in high-strength situations. Steel and alloy plugs work well mechanically, but they can't dissolve, so they have to be taken out. When it comes to downhole use, magnesium alloys have the best properties: they have compressive strengths of over 500 MPa, tensile strengths of around 250 MPa, and reliable, tunable breakdown rates that can be adjusted to fit the needs of each well.

Environmental Suitability Across Wellbore Conditions

Well conditions are very different. Shale formations on land may have low-salinity frac fluids and mild temperatures, while HPHT reserves offshore have high-salinity brines and temperatures over 130°C. The no retrieval required magnesium plug can be made to work reliably across this range by choosing the right metal and heating it. Standard magnesium-aluminum alloys break down regularly in oilfield brines; special "active" alloys keep breaking down steadily even in low-chloride environments; and high-temperature grades keep their structure even when they are under a lot of heat stress before breaking down as planned.

Industry Applications and Use Cases

Multi-Stage Hydraulic Fracturing in Unconventional Shale Plays

Unusual shale areas like the Permian, Eagle Ford, Bakken, and Marcellus depend on high-density multi-stage fracking to get hydrocarbons out of reservoirs with low permeability. A lot of the time, completion plans call for 30 to 50 stages per side. A bridge plug or motorized packer separates each stage. Sequential cutting is needed for traditional composite plugs, which adds days to the rig time and makes a lot of waste. By using no retrieval required magnesium plugs, operators get rid of the mill-out phase completely. This cuts down on the time it takes to start production and the cost of finishing each well. Case studies from users in the Permian Basin show that they saved three to five days of work and had over 70% fewer problems with production because of waste.

Temporary Zonal Isolation in Horizontal Well Completions

To make sure that each fracture stage gets the best proppant placement and reservoir contact, horizontal well designs need precise zonal separation. The no retrieval required magnesium plug provides this separation without making it harder to get into the wellbore after the frac. Since the plug disappears totally, it doesn't get in the way of production logging, assistance tools, or future workovers. This clean wellbore shape makes it easier to watch production more closely and do repairs throughout the well's useful life.

Offshore Subsea and HPHT Environments

Offshore completions put a lot of pressure on costs because day rates for offshore rigs can go over $150,000 and weather windows make it hard to keep working. In these situations, the no retrieval required magnesium plug is a great deal because it gets rid of the need for expensive coiled tube movement and shortens the total finishing time. High-strength magnesium alloy types that can withstand 15,000 psi and 150°C can handle the harsh temperature and pressure conditions that are common in deepwater reservoirs. The plug's light weight makes it easier to move and set up in subsea settings.

Emerging Applications in CCUS and Geothermal Energy

Advanced completion methods are being used more and more in carbon capture, utilization, and storage (CCUS) projects and geothermal energy developments to keep the subsurface intact and improve operating efficiency. Dissolvable magnesium plugs help separate zones temporarily during CO₂ injection well completions and geothermal stimulation treatments. They offer the same operational benefits as oil and gas plugs, such as shorter intervention times, less wellbore debris, and reliable performance.

Procurement Insights for B2B Clients

Evaluating Supplier Quality Assurance and Certifications

Finding good no retrieval required magnesium plugs or the extruded magnesium alloy materials that are used to make them needs careful planning of the supply chain, quality control, and evaluating suppliers. To reduce risk and make sure uniform performance across multi-well projects, procurement managers have to find a balance between cost, lead time, expert support, and tracking. Reliable sellers have strong quality management systems that are approved to ISO 9001, ISO 14001, and ISO 45001 standards. This shows that they care about the quality of their products, the environment, and the health and safety of their workers. A supplier's ability to supply materials that meet strict oilfield performance requirements is further proven by making sure they are API-recognized and follow handling safety standards. Look for providers that have approved testing labs, like CNAS-certified ones, that can do hydraulic pressure testing, dissolution rate immersion testing, spectrochemical alloy analysis, and shear load testing. These features make sure that each batch is the same and give you the proof you need for internal quality checks and project milestone reviews.

Customization Capabilities and Engineering Support

Different completion settings have different needs, and methods that work for all of them rarely improve performance. Leading providers can do OEM/ODM work with customers to customize the no retrieval required magnesium plug to specific operating windows. They do this by working with customers on alloy formulation, heat treatment methods, and mechanical design. Engineering support goes beyond the initial design phase. Application engineers help choose materials, train and guide processes, and provide both virtual and on-site support during rollout. With this partnership method, the cost of trying things out and seeing what works is cut down, qualification times are sped up, and long-term supply stability is built.

Lead Times, Bulk Purchasing, and Inventory Management

Standard magnesium alloy extruded bars and billets, especially in popular sizes up to Ø300 mm, are often kept on hand as backup stock by reliable suppliers. This lets customers quickly test samples and get more in case of an emergency, with lead times of two to four weeks. It usually takes four to eight weeks for custom specs, engineered dissolution windows, or non-standard measures. This includes matching the metal, setting up the process, and testing to make sure the measurements are correct. For important projects, faster production choices are often possible, but only if the capacity and raw materials are there. Framework deals with flexible call-off schedules and strategies for buying in bulk help procurement teams keep track of inventory levels, keep cash flow smooth, and make sure that material supply matches project schedules.

Documentation, Traceability, and Audit Readiness

For seller approval, internal reviews, and regulatory compliance, it's important to have complete paperwork packages with things like Certificates of Analysis (COA), Certificates of Conformance (COC), Safety Data Sheets (SDS), batch traceability records, and inspection reports. Suppliers with strong tracking systems can keep track of each batch from the time they receive the raw materials until they are inspected, machined, heated, and finally extruded. This provides the audit trail needed to support correction actions, problem-solving, and ongoing improvement efforts. This documentation practice lowers the risk of project performance and helps the supply chain stay strong over time.

Conclusion

The no retrieval required magnesium plug has become an important part of well finishing processes that are quick, cheap, and good for the environment. By getting rid of the mill-out phase, which takes time and creates a lot of waste, this technology speeds up production starting, lowers the risk of wellbore integrity issues, and saves money in a way that makes the project more profitable. Magnesium alloys are the best material for separation tools in unconventional shale, offshore HPHT, and new energy uses because they have a high strength-to-weight ratio, reliable dissolution behavior, and can be engineered to work in a wide range of wellbore circumstances. When procurement workers look at suppliers, they should put quality assurance, traceability, customization options, and fast technical support at the top of their list. This way, they can get materials that meet strict performance standards and support long-term business success.

FAQ

1. What makes the no retrieval required magnesium plug dissolve without milling?

When wellbore fluids with electrolytes like chloride ions come in contact with dissolvable magnesium metals, they are designed to go through controlled galvanic corrosion. The microstructure, grain boundaries, and alloying elements of the metal set off a predictable degradation process that turns the plug's structural parts into small magnesium oxide and hydroxide particles that are taken away by the fluids that are created.

2. How long does the breakdown process take?

The temperature, salt, fluid chemistry, and grade of the metal all affect how long it takes to dissolve. After the cracks are filled, standard magnesium plugs disappear 24 to 72 hours later. Suppliers can change the alloy system and heat treatment to speed up or slow down breakdown. This lets them match the plug's performance to specific well conditions and operating timelines.

3. Can these plugs work in places with a lot of pressure and heat?

For HPHT uses, there are special magnesium alloy types that can handle up to 15,000 psi and temps of up to 150°C. These metals keep their shape and sealing ability during the fracturing process. When the job is done, they break down as planned, making them ideal for tough offshore and underwater reserves.

Partner with HAGRIEN for Reliable, Traceable Dissolvable Magnesium Alloy Solutions

Help your finishing program along with HAGRIEN's top-of-the-line dissolvable magnesium alloy extruded bars and billets, designed to work with no retrieval required magnesium plugs. As a fully integrated maker and provider, we are in charge of every step, from melting and extruding the metal (up to Ø300 mm) to heat treatment, precision machining, and quality control. This way, we can make sure that each batch is the same and that the dissolution performance is predictable. Our ISO 9001, 14001, and 45001 certifications, API recognition, and CNAS-accredited testing lab give your engineering and sourcing teams the paperwork rigor they need. Whether you need quick samples from our safety stock (standard sizes in 2–4 weeks) or custom-engineered alloys made to fit your wellbore conditions (4–8 weeks), our technical team is ready to help. They offer application engineering, OEM/ODM collaboration, and audit-ready COA/COC packages to make your supply chain less risky. Visit us-hagrien.com or email cyrus@us-hagrien.com to talk about your project needs and find out how our materials-process-validation closed loop can help you get tools ready for production faster.
