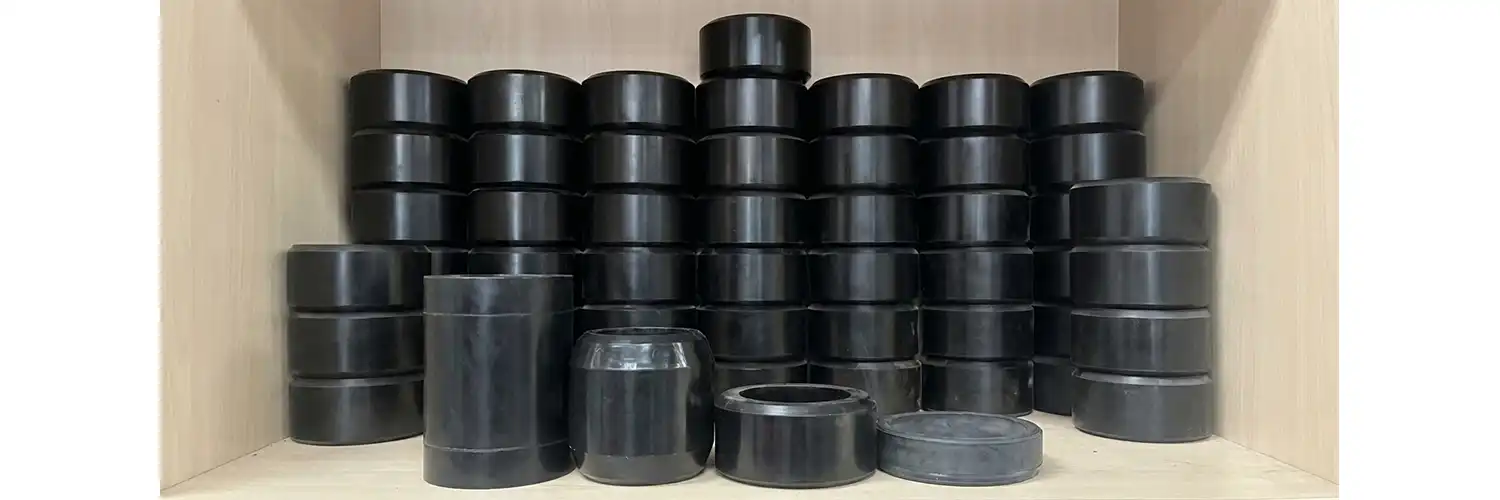

Elastomer Element for Downhole Tools: Ensuring Reliable Sealing

When sealing performance determines whether your completion operation succeeds or fails, elastomer element technology becomes the silent guardian of wellbore integrity. These high-performance rubber components create the critical barrier between pressurized zones in frac plugs, bridge plugs, and packers, maintaining isolation under temperature swings from -40°C to +200°C and pressures exceeding 10,000 PSI. At HAGRIEN, we've spent seven years engineering sealing solutions that balance chemical resistance, thermal stability, and mechanical resilience—turning elastomer elements from commodity parts into application-specific components that protect your field operations from costly seal failures.

Understanding Elastomer Elements in Downhole Tools

Elastomer elements act as a flexible barrier between the hard wellbore surroundings and the rigid metal tool bodies. In contrast to metallic seals that need precise surface contact, these polymer-based parts use molecular flexibility to adapt to uneven surfaces and heat expansion.

What Defines a Downhole Elastomer Element?

The main thing that sets downhole elastomer elements apart from regular rubber parts is how they are engineered to balance different properties. You need a material that is both soft enough to make gas-tight seals and stiff enough to keep it from coming apart when the pressure changes. Synthetic rubbers like nitrile (NBR), hydrogenated nitrile (HNBR), or fluoroelastomers (FKM) are often used to make materials. Each type of rubber is chosen for a specific chemical environment. Shore hardness can be anywhere from 70A to 95A, and the choice of durometer has a direct effect on the resistance to extrusion and the sealing force.

The ability to handle temperature is another defining factor for the elastomer element. Standard elastomers stop working above 150°C, but certain formulas keep their mechanical qualities above 200°C. Our materials engineering team confirms thermal stability by using ASTM D395 compression set testing to measure how much the material has changed permanently after being exposed to target temperatures for 70 hours. Chemical resistance is checked by immersing the test sample in real wellbore fluids, such as crude oil, high-salinity brine, and finishing chemicals. Over 30 days, changes in size and hardness are recorded.

Static Versus Dynamic Sealing Requirements

There are two different ways that sealing techniques can work. Static seals in set bridge plugs are under constant pressure and don't move much, so they need a low compression set to keep their sealing force for months. When slide sleeve tools are used, the dynamic seals have to deal with friction, roughness, and changing pressure, so they need to be very strong and not tear easily. Material choices are very different in these two situations. For static applications, softer compounds work best because they are more flexible, but for dynamic seals, harder formulations are needed to resist mechanical wear.

Elastomer Elements Compared to Alternative Sealing Technologies

Metal-to-metal seals get rid of the risk of polymer breakdown, but they need to be machined precisely and can't handle differences in heat expansion. Expandable foam seals can be shaped to fit, but they don't have the right pressure grade for high-differential uses. When it comes to performance, elastomer elements are where flexibility, pressure capability, and cost-effectiveness meet. As a trade-off, there are limits on temperature and the possibility of chemical breakdown, which we work around by designing the substance and the shape of the backup ring.

Challenges in Downhole Sealing and How Elastomer Elements Solve Them

When wellbore protection fails, expensive problems follow. Communication between zones during splitting lowers the effectiveness of the treatment. When seals in production packers leak, gas can move through them. When a bridge plug fails, it requires expensive repairs. Figuring out how things fail helps you choose the right elastomer elements.

Pressure-Induced Extrusion and Gap Filling

Differential pressures higher than 5,000 PSI push elastomer material into gaps between tool parts, which leads to nibbling and, eventually, seal failure. As the temperature rises, the risk of extrusion goes up because the material is less hard. We deal with this in two ways: by making recipes with a higher durometer and by machining anti-extrusion backup rings into the shape of the tool. Our engineering team finds the best mix between keeping the material soft enough for closing and giving it mechanical support to stop it from flowing.

Thermal Cycling and Compression Set

The temperature downhole changes over the life of a well. When you fracture something, heat shocks happen. Polymers are heated during production and go through temperature changes of 100°C or more. Every turn makes the material less flexible by causing it to permanently deform, which lowers the binding force of the elastomer element. More than 40% of the recovery of lower-quality elastomer elements is lost after long-term exposure. After ASTM D395 testing, HAGRIEN formulations achieve a compression set below 25%, which means that the seal stays intact for longer periods of time.

Chemical Attack and Fluid Compatibility

It can be sweet crude oil, sour gas with H2S, new finishing brines or formation water with CO2 dissolved in it. Different fluids damage polymer chains in different ways. Aromatic molecules make NBR products bigger. Polyurethane breaks down in acids. Aspects that are based on amino acids damage some fluoroelastomers. Through controlled water testing, we check for compatibility by measuring how much the volumes grow, how hard they change, and how much of their tensile strength they keep. Instead of using general compatibility charts, this method makes sure that the elastomer element you choose can live in the real chemical environment.

Real-World Performance: Case Study Insights

In the Permian Basin, where temperatures were high, a major completion service provider had 12% of their frac plug seals fail. Forensic research showed that elastomer elements from a provider that couldn't be trusted had lost their tension set. When they switched to HAGRIEN-supplied parts with proven HTHP performance, their failure rate dropped below 2% across more than 800 plug deployments. The consistent sizes from our extrusion process and batch-tested compression resistance got rid of the differences that were causing the seal to break down too soon.

Selecting the Right Elastomer Element for Your Downhole Tools

What kind of material you use will determine whether your elastomer element is reliable or needs to be fixed often. To make the right choice, you need to match the qualities of the compound to your operating area.

Temperature and Pressure Windows

First, figure out what the highest temperature and pressure difference are in the bottom hole. If the BHT temperature hits 180°C, you should use products that have been tested to 200°C. It depends on the durometer, the design of the backup ring, and the gaps between the rings. We help you with application engineering by matching your conditions to the right material grades. Temperature capability alone doesn't guarantee success; how well it works in the long term depends on how well it compresses at temperature.

Fluid Chemistry Matching

General requirements like "oil-resistant" aren't enough. Give your supplier the actual fluid compositions. Salinity of completion brine changes growth. The amount of diesel affects the chemical protection needs. Acidic attack risk is based on CO₂ partial pressure. Our CNAS-accredited lab does custom compatibility testing with your fluids and gives you data on how much the dimensions change and how the properties stay the same. This step of verification stops field shocks caused by chemical reactions that weren't expected.

Hardness and Elasticity Trade-offs

Shore hardness finds a balance between different needs. Softer elastomer elements (70–80A) can better fit uneven surfaces and form seals with lower setting forces, making them perfect for delicate tool assemblies. Harder materials (85–95A) don't easily extrude or wear away, but they need stronger forces to move and precise finishing of the surface. We make this choice based on the shape of your tool, how it works, and the difference in pressure. The goal is to find the softest material that meets the requirements for extrusion resistance and seals as well as possible.

Custom Formulation Benefits

It's rare for off-the-shelf materials to work best with your specific temperature, pressure, fluid chemistry, and mechanical limits. Custom composition lets you change the antioxidant packages, crosslink density, filler systems, and polymer base to fit your needs. We've made special compounds for H₂ service, Haynesville completions at high temperatures, and proppant environments that are rough. The development process takes 4 to 6 weeks, and you need to provide your working parameters and validate samples through field testing. This investment pays off because the service lasts longer and fails less often.

Procurement Guide: Sourcing Elastomer Elements for Downhole Tools

There's more to choosing a provider than just comparing prices per piece. Your choice about what to buy affects how reliable the field is, how long it takes to get qualified, and how predictable the supply chain is.

Supplier Evaluation Criteria

Give makers who can show they know about finishing tools more weight. Generic rubber shops don't know how downhole sealing works, how backup rings combine, or how temperature cycling affects things. By making both dissolvable magnesium alloy tool bodies and elastomer elements, HAGRIEN takes a combined method. This means that we design parts as systems instead of separate parts. If you're looking for a supplier, make sure they offer more than just order fulfilment.

Certification depth is important. ISO 9001 sets up basic methods for quality. Accreditation by the CNAS makes sure that the lab can do tests. API recognition shows expertise in a certain field. We take care of all three, as well as HSE systems and safety production licenses. These certificates mean that processes can be tracked, which makes it easier for you to find qualified suppliers.

Documentation and Traceability Requirements

For supplier qualification checks on an elastomer element, a lot of paperwork is needed. Each package from HAGRIEN comes with a Certificate of Analysis that shows the results of a batch-specific compression set, tensile qualities according to ISO 37, and a hardness check. Material Safety Data Sheets help make sure that safety rules are followed at work. Full traceability connects finished parts to lots of raw materials, which lets you figure out what went wrong if problems happen in the field. Dimensional inspection reports confirm important features that were measured during production. This package of paperwork comes before the shipment, not after you ask for it.

Lead Time and Inventory Strategy

From our safety stock, standard durometer ranges ship within two to four weeks. Custom formulations take between 4 and 6 weeks, which includes developing the compound and testing it to make sure it works. Make sure your qualification schedule works with your production lead time responsibilities. You shouldn't start evaluating prototypes until you have them. Our weekly production updates are in line with your assembly schedule, so there are no surprises when the work gets delayed. We offer expedited choices for important jobs that can use our large-capacity extrusion presses and priority schedule.

Bulk Purchasing and Volume Commitments

When it comes to the curing and compounding cycles, volume pricing shows how economies of scale work. But minimum order quantities shouldn't force you to keep too much inventory on hand. We can help with prototype projects that need at least 50 to 100 pieces, and they can easily move to production levels without any changes to the specifications. Framework agreements lock in prices and capacity for planned rollout plans, but they leave room for changes in demand. This method strikes a balance between your cost goals and the weight of your goods.

Future Trends and Innovations in Elastomer Elements for Downhole Tools

The world of sealing technology is always changing because well conditions are getting tougher and sustainability is becoming more important.

Advanced Material Systems

Through new polymer structures and crosslinking systems, next-generation elastomer formulas raise the temperature limit above 230°C. As proven by ISO 23936-2, rapid gas decompression (RGD) resistant substances stop high-pressure gas wells from blowing up during decompression. We are working on formulas that will have better grinding resistance for proppant-filled conditions and better H₂S resistance for sour gas uses. Before they are sold to the public, these materials go through a lot of HTHP validation. This makes sure that they work in the field and aren't just lab experiments.

Sustainability and Environmental Considerations

Pressure from the business world to have less of an effect on the environment also applies to the elastomer element. Bio-based plastics are made from natural materials and still work well. We are looking at substances that contain recovered rubber when the properties allow it. The bigger effect on sustainability comes from longer service life. Seals that work better mean that they don't need to be replaced as often, which lowers the practical carbon footprint. When figuring out the total cost of ownership, reliability is given more weight than the cost of the initial component.

Supply Chain Resilience and Strategic Partnerships

Recent problems in the supply chain have shown how dangerous it is to depend on just one source. Leading operators now check out more than one source for important parts and keep preferred partnerships for special developments. HAGRIEN's position in both China for manufacturing and the U.S. for coordination gives them a wide range of locations and makes contact easier. Our "materials + downhole tools" integration means that you work with a manufacturer that controls many parts of the assembly of your tools. This makes it easier to coordinate across supply chains that are spread out.

Conclusion

The choice of elastomer element has a direct effect on the reliability of your completion tool, the cost of interventions, and how well your business runs. Commodity rubber parts and engineered elastomer elements are different because engineered elastomer elements are made with a material formulation that is matched to your specific temperature, pressure, and chemical environment, manufacturing consistency that ensures dimensional stability batch after batch, and a supplier partnership that provides application engineering through the qualification process. With seven years of continuous production experience, CNAS-accredited testing capabilities, and knowledge of how to make integrated tools, HAGRIEN can protect your downhole operations with sealing solutions. You can focus on improving production instead of fixing seal failures when the right elastomer element is there and doesn't stand out.

FAQ

1. What elastomer material works best for high-temperature frac plug applications?

Fluoroelastomers (FKM) and hydrogenated nitrile (HNBR) work well over 150°C. Because it is less flexible, FKM costs more and requires more force to set, but it resists chemicals and can withstand temperatures up to 200°C. HNBR is cheaper, more dynamic, and can withstand 180°C. Your best choice depends on temperature, fluid chemistry, and pressure. We recommend testing both materials in a compression set at the maximum temperature you predict, then choosing based on performance and cost. Our materials team provides application-specific comparative data.

2. How long does custom elastomer formulation development take?

Custom compound development takes 4–6 weeks from parameter specification to sample delivery. This timetable covers recipe creation, small batch production, test sample preparation, and first-time property testing. Your particular details on how the prototype will operate, fluid samples to test for compatibility, and timely feedback on its performance speeds up the process. Our development batch minimum purchase is 50 items. This enables you field-test them without committing to production. Since the standards remain the same from testing to full production, there is no need to requalify when the quantity grows.

3. How do elastomer elements improve the reliability of downhole sealing systems?

Flexible barriers like elastomers adapt to uneven surfaces, temperature changes, and pressure variations inside the wellbore, improving downhole sealing reliability. Engineered elastomer elements have specific polymer formulations, hardness levels, and chemical resistance to seal HPHT wells, fracturing operations, and enhanced oil recovery applications. Operators may limit extrusion, compression set, and chemical degradation by choosing the proper material based on temperature, pressure, and fluid compatibility, extending tool life and reducing seal failures.

Partner with HAGRIEN for Engineered Elastomer Element Solutions

Your finishing tasks should use closing parts that are backed by knowledge in materials engineering and consistent production. Through our combined "materials + tools" manufacturing platform, HAGRIEN provides high-performance elastomer elements for downhole tools. This platform combines seven years of continuous production experience serving global finishing tool makers with HTHP laboratory proof that is recognised by CNAS. Our team offers application-focused technical support from the prototype stage through production, whether you need standard-durometer parts shipped within two to four weeks or formulations made to fit specific well conditions. You can email our engineering team at cyrus@us-hagrien.com to talk about your sealing needs, ask for samples to be tested for quality assurance, or look into bulk prices as your reliable elastomer element provider. You can find out how our quality systems, full traceability paperwork, and flexible transportation can help you reach your supply chain goals by going to us-hagrien.com.
