Exploring Downhole Completion Tools: Enhancing Efficiency in Oil and Gas Operations

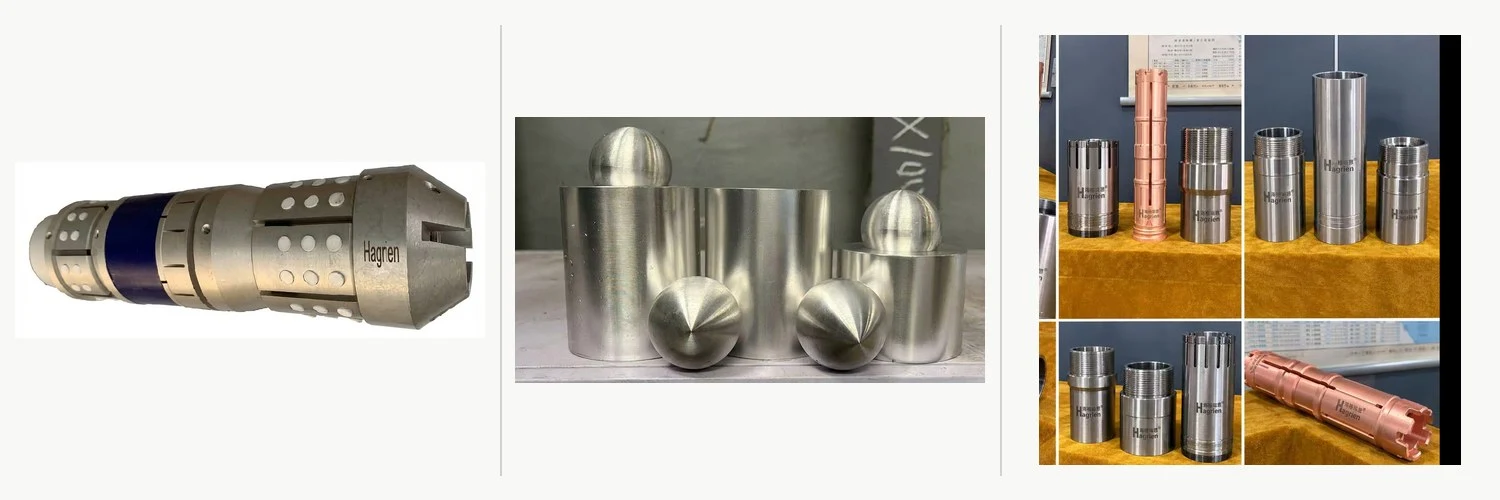

Downhole completion tools are the specialized hardware assemblies installed in a wellbore after drilling reaches target depth. They control fluid flow, isolate reservoir zones, and protect wellbore integrity during production. From bridge plugs and frac plugs to setting tools and elastomer seals, these components form the mechanical backbone of any well completion program. Whether you operate in shale plays, deepwater fields, or HPHT environments, choosing the right downhole completion tools directly affects production output, intervention frequency, and long-term cost structure.

Understanding Downhole Completion Tools: Functions and Types

What Do These Tools Actually Do?

A bored wellbore can be turned into a productive asset by using downhole completion tools. They separate different parts of the reservoir, control the flow between the formation and the surface, and hold other parts in place when the pressure and temperature are very high. Without reliable finishing gear, operators risk well failure too soon, fluid migration that can't be stopped, and expensive workovers.

Mechanical vs. Hydraulic Tool Categories

To set mechanical downhole completion tools like slip-set packers, bridge plugs, and frac plugs, a wireline or coiled tubing is used to apply force. Setting mechanisms on hydraulic tools are turned on by wellbore pressure, and they are often used in multi-zone horizontal completions. Different types of tools work best in different well shapes. For example, mechanical tools are best for precisely controlling the depth of a well, while hydraulic tools are better for speed in fracing programs with a lot of stages.

Material Selection and Operating Ratings

Long-term tool performance depends on the choice of material. High-grade metal steels don't break when forces above 15,000 psi are applied. Bridge plugs and frac plugs made of dissolveable magnesium metals break down on their own after stimulation, so cutting runs are not needed. At temperatures up to 350°F, elastomer covers made from Viton, Aflas, or Chemraz will still work as they should. It is necessary for finishing engineers to match the material to the conditions of the well.

Enhancing Operational Efficiency: Benefits and Maintenance of Downhole Completion Tools

Production and Safety Benefits

Using well-matched downhole finishing tools to precisely isolate zones lowers the amount of water or gas that leaks out from neighboring intervals. According to SPE field studies released between 2020 and 2023, operators using dissolvable plug-and-perf systems in horizontal wells in the Permian Basin have cut rig time by 15–25% per well by not having to do post-frac milling operations. Because of these improvements, moving costs go down and time to output goes up.

Common Maintenance Challenges

Three types of failure that happen a lot in completion string maintenance are elastomer seal degradation, thread galling on connection joints, and slip-element wear. Scheduled breakdown checks, checking the dimensions against the original plans, and replacing the sealing elements before putting the tool back into use are all normal procedures for well-kept tool stocks. Skipping these steps makes it more likely that the system will fail downhole, where it costs a lot to get it out.

Case Evidence from Shale Operations

It was shown in a case study from the Eagle Ford Shale that using dissolvable magnesium alloy frac plugs instead of cast-iron bridge plugs cut the time needed to fix coiled tubing by 18 hours per well on average across a 12-well pad program. This directly cut down on the cost of spreading coiled tubing while keeping the quality of the completion the same. The supply chain manager makes choices about what to buy based on this kind of success data.

How to Choose the Right Downhole Completion Tools for Your Operation?

Match Tool Specifications to Well Conditions

Options are chosen based on the depth of the reservoir, the temperature of the bottomhole, and the chemistry of the fluid. HPHT wells, which are generally defined as those that are more than 10,000 psi and 300°F, need materials and elastomers that are rated higher than standard API grades. For Sulfide Stress Cracking protection, sour service conditions need to follow NACE MR0175/ISO 15156. If you get these factors wrong during the selection stage, they will cause problems during the finishing and output stages as well.

Mechanical vs. Hydraulic and Wireline vs. Coiled Tubing

Wireline-deployed mechanical tools are more accurate at placing and cost less to move, but they move more slowly in wells with a lot of stages. Coiled tube lets activities go on all the time, but it costs more per day. Multi-stage fracing is faster with hydraulic sleeve systems, but they need pressure-operated finishing designs from the start. The best way to deploy relies on the number of stages, the variation of the wellbore, and the surface equipment that is available.

Evaluating Suppliers: What to Look For

There are both large service companies and focused manufacturers in the downhole completion tools supplier market. API certification scope, batch tracking documents, delivery wait times, and the ability to make products from models provided by the customer are some of the most important things that are looked at. When suppliers give procurement teams Material Test Reports, Charpy effect data, and ISO 14310-compliant seal test records, they have the proof chain they need to pass internal quality checks and project milestone reviews.

Procurement Guide: Where and How to Source Downhole Completion Tools

Standard vs. Custom Components

For most bridge plug and packer sizes, standard stock things will work. But companies that make bridge plugs, packers, and setting tools often use low-volume production models that make a lot of different types of products and need special mandrels, connectors, and slip carriers made from plans. Getting these custom downhole completion tools parts from a supplier that takes orders based on drawings and delivers first articles within two to four weeks cuts the time it takes to go from prototype to production by a large amount.

Here are the main things that procurement managers always look for in a supplier:

• Drawing-based sampling and first-article delivery within 2–4 weeks, with same-specification continuity from prototype to small-batch production, so assembly dimensions remain consistent across builds.
• Integrated material and machining supply, where the same source controls alloy chemistry and CNC processing, removing the dimensional mismatch risk that arises when material and machining come from separate vendors.
• Batch traceability and documentation packages including COA, COC, and inspection records that support supplier qualification audits and customer acceptance without secondary paperwork requests.

These criteria directly address the issues of cumulative tolerance and batch variation that make it hard to buy things in small-batch completion component programs.

Cost, Lead Time, and Logistics

The cost per unit of high-turnover parts like dissolvable frac plug mandrels goes down when you buy them in bulk. Repair and remanufacturing shops that need to buy new parts care more about flexible minimum order quantities and consistent dimensional interchangeability than about getting savings for buying in bulk. Export paperwork, flexible trade terms (EXW/FOB/CIF), and planning based in North America make customs processing easier and keep project plans intact.

Warranty and After-Sales Support

Suppliers of reliable downhole completion tools back up their parts with records of dimensional inspections, hydrostatic shell test data at 1.5× rated working pressure, and clear ways to fix problems that arise. After-sales support, such as online debugging and application engineering help, makes it easier to add new parts to tool designs that are already in use.

Future Trends in Downhole Completion Tools

Dissolvable Materials Expanding into New Components

Dissolvable magnesium alloy is being used for more than just frac plugs. It is also being used for mandrels, slip carriers, and structural connectors. This change cuts down on or gets rid of milling operations along whole completion strings. Alloy engineering can now target particular dissolution windows by changing the tolerance for saltiness, the activation levels for temperature, and the mechanical strength. This gives operators more control over when and how quickly parts dissolve.

Digital Monitoring and Predictive Maintenance

Permanent downhole monitors that are combined with hydraulic or electric control valves make it possible to handle reservoirs in real time without having to make multiple cable runs. Predictive repair programs based on past data on pressure and temperature make unplanned interventions less common. As a result of this trend, procurement planners will have to include sensor compatibility and data transfer requirements in tool specs along with the usual mechanical grades.

Strategic Supplier Partnerships

As tool designs become more application-specific, partnerships with a single source that cover material formulation, precision machining, and qualification documentation are more valuable than lists of different vendors. Suppliers that can do everything in a closed loop, from designing the alloy to CNC machining to keeping track of the paperwork, lower the risk of program delivery and allow for faster iterations from prototype to production.

Conclusion

Choosing, maintaining, and getting downhole completion tools is an important choice that impacts the well's economics at all stages, from the start of production to plug-and-abandon. The move toward materials that dissolve, tighter tolerances for machining, and combined tracking paperwork shows how workers and tool makers are handling risk in more complicated well environments. Work with a provider that handles materials, machining, and paperwork all in one place to lower the overall risk of the buying chain, whether you make completion tools or fix them.

FAQ

1. What is the difference between V0 and V3 rated completion tools?

V0 means that the seal is gastight and there is no bubble leaking under ISO 14310 test conditions. V3 is a standard for testing liquids that allows very little leaking within certain limits. Tools that are V0 rated should be used in HPHT or bad service wells.

2. Can retrievable packers be reused after field service?

Yes, as long as the packer is completely taken apart, its elastomer is replaced, its dimensions are checked, and it is re-certified to meet the original API standards. Reusing something without fully inspecting it raises the chance that the seal will break downhole.

3. How do dissolvable frac plugs reduce well costs?

Because they dissolve in fluids that are created or injected after stimulation, they get rid of the need for a coiled tube milling run to remove cast-iron or composite plugs. Field data from horizontal wells with more than one stage regularly shows that each well saves 15 to 25 percent of rig time.

4. What documentation should accompany custom-machined completion components?

At the very least, you should have Material Test Reports that prove the alloy's chemistry, records of measurement inspections, hydrostatic test data, and a reference for tracking each batch. The COA and COC papers are common ways for customers to approve suppliers and make sure they meet their needs.

5. How are completion tools selected for sour service?

As per NACE MR0175/ISO 15156, metals and elastomers that have been shown to be resistant to Sulfide Stress Cracking and Chloride Stress Corrosion Cracking in the well's specific partial pressure and temperature conditions are chosen first.

Partner with HAGRIEN for Precision-Engineered Downhole Completion Tools

HAGRIEN designs and makes parts for downhole completion tools, like dissolvable mandrels, slip carriers, and connectors, that can withstand up to 15,000 psi and 350°F. Each batch can be fully tracked, and samples can be taken based on drawings in two to four weeks. As a maker of downhole finishing tools that handles alloy formulation, CNC machining, and approval paperwork, we help supply chain managers lower the risk of buying things without losing accuracy or lead time. You can email us at cyrus@us-hagrien.com or go to us-hagrien.com to ask for a quote or a first-article review.
