What Are Downhole Completion Tools and How Do They Work?

Downhole completion tools are purpose-built hardware assemblies installed in a wellbore after drilling reaches target depth. Their job is to turn a drilled hole into a controlled, productive asset. These tools manage zonal isolation, regulate fluid flow, maintain wellbore pressure integrity, and reduce the need for costly post-completion interventions. From mechanical bridge plugs to dissolvable frac plugs and elastomer-sealed packers, downhole completion tools form the mechanical backbone of every modern well completion—especially in multi-stage horizontal fracturing and HPHT environments where reliability is non-negotiable.

Understanding Downhole Completion Tools: Definition and Functions

What They Are?

Downhole completion tools are a special kind of oilfield equipment that is different from wellhead equipment that you see on the surface. They are put inside the casing string to do certain jobs at the depth of the reservoir, like isolating zones, holding production tubing in place, and managing fluid flow. They are needed for a well to produce in a safe and effective way.

Core Operating Functions

There are four main things that these tools do: they separate zones to stop flow between reservoir intervals, they keep pressure in to protect casing and tube strings, they control flow with chokes and valves, and they keep sand and other debris out with screens and filters. Each function has a direct effect on the rate of output and the life of the well.

How They Work Mechanically?

Most downhole finishing tools work by using hydraulic pressure, mechanical setting force sent through cable or coiled tubing, or, more and more often, dissolution triggers. For instance, a slip element in a bridge plug holds it against the wall of the casing, and an elastomer part inside it expands when it's under axial load to make a pressure seal. Dissolvable versions don't need to be milled at all, which cuts down on rig time.

Types of Downhole Completion Tools and Their Applications

Mechanical Tools: Bridge Plugs, Frac Plugs, and Packers

The biggest group is made up of mechanical tools. During plug-and-perf fracking activities, bridge plugs and frac plugs can separate zones temporarily or permanently. Permanent and removable packs hold production tubing in place and separate the annular space. These are made by HAGRIEN and come with a full mechanical chain that can withstand up to 15,000 psi differential pressure and 350°F. They can be used in both normal vertical wells and long lateral completions.

Hydraulic and Elastomer-Based Devices

The pressure of wellbore fluid is used to set or release hydraulic tools. They can precisely and repeatedly move things in wells with complicated shapes. Elastomer seal elements, which can be made from Viton, Aflas, or Chemraz materials, are very important to the performance of packers and plugs because they keep their shape even at high temperatures. The chemistry of the fluid, such as the amounts of H₂S and CO₂, affects the choice of material for these elastomers.

Dissolvable and Smart Completion Systems

Dissolvable bridge plugs and frac plugs made from designed magnesium metals are a move away from completions that need human help. Once the cracks are fixed, these tools break down in produced or injected brine, allowing full bore access again without the need for milling. With smart systems, monitors are put downhole and valves are controlled from the surface. This lets the reserve be managed in real time, without having to run wirelines.

These groups of tools are used in a variety of well conditions, and picking the right one can affect both the cost of completion and the performance of the well in the long term. HAGRIEN has products in all three groups. Components can be made from high-grade metal steels and magnesium alloys that don't rust. Each batch can be fully tracked.

Benefits and Maintenance of Downhole Completion Tools

Operational and Financial Benefits

Total well cost goes down directly when the right completion hardware is used. For example, dissolvable plug methods get rid of the need for post-frac milling runs, which can cost between $50,000 and $150,000 per well, based on the length of the lateral and the day rate of the rig. When properly kept, retrievable packers can be recertified and re-used, which lowers the cost of gear per well.

Maintenance Best Practices

To keep reusable tools like packers, setting tools, and retrievable bridge plugs in good shape, they need to be completely taken apart, their elastomer parts replaced, and their sizes checked against the original API tolerances. Setting tools should have their hydraulics checked every time they are used. Keeping full run records for each tool's serial number lets workers keep track of the total number of load cycles and plan preventative maintenance work that needs to be done before the tool breaks.

A Case Reference: Deepwater Packer Reliability

A 2022 SPE case study from deepwater operations in the Gulf of Mexico showed that operators who put in place organized packer teardown-and-inspect procedures cut the number of unplanned pulling jobs by 34% over the course of three years. The money saved was more than $2.1 million per asset across the tracked well population. This shows that being careful with downhole completion gear repair pays off.

These findings show that the value of downhole completion tools doesn't stay the same after they are installed. Rather, it grows or shrinks based on how well the hardware is handled during the well's useful life.

How to Choose the Best Downhole Completion Tools for Your Project

Technical Selection Criteria

Start with readings for temperature and pressure. As required by API guidelines, tools must have a safety cushion that is at least 1.5 times the rated working pressure and higher than the expected differential pressure in the reservoir. When judging temperatures, they need to take into account both the steady temperature at the bottom of the hole and the changing temperatures that happen during stimulation. Material choice for sour service wells is based on NACE MR0175/ISO 15156, with a focus on sulfide stress cracking resistance.

Comparing Major Suppliers

Halliburton, SLB (Schlumberger), Baker Hughes, Weatherford, and NOV all have large stores and service networks that reach all over the world. Their standard items work well with most common well profiles. For mixed small-batch, multi-specification orders—like when bridge plug and packer makers make a lot of different types of low-volume products—these big providers might not be able to give procurement teams the freedom or first-article turnaround speed they need.

Where Customization Matters?

When custom-machined parts like dissolvable mandrels, slip carriers, and connecting subs are made from a single approved material source, there is less chance that the mechanical qualities of the material will not match the tolerances of the final part. HAGRIEN's closed-loop method includes designing the metal, extruding it, and CNC milling it all in-house. This makes sure that the dissolution behavior, tensile strength, and physical accuracy are all controlled by a single, traceable production chain instead of being put together from parts from different suppliers.

Procurement Guide: Buying Downhole Completion Tools Made Easy

Sourcing Channels and Supplier Verification

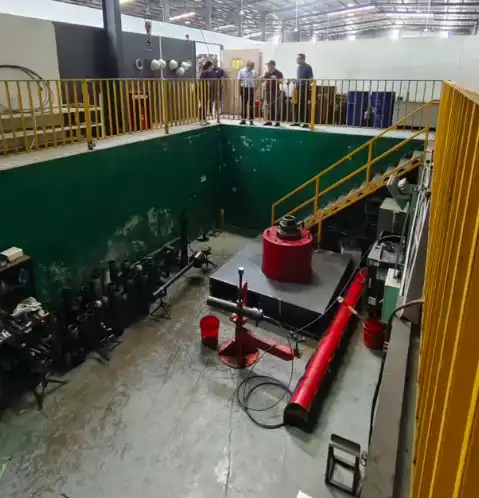

Procurement teams source completion hardware through direct manufacturers, authorized distributors, and B2B platforms. When verifying a supplier, request current Material Test Reports (MTRs), batch traceability records, and functional test data—such as ISO 14310 gas test grades and hydrostatic shell test results. API certification and CNAS-accredited laboratory validation are reliable indicators that a supplier's quality system meets industry audit expectations.

Here are the core documentation items to request from any completion tool supplier before placing a first order:

• Material Test Reports (MTRs): Confirm chemical composition and mechanical properties match the specified alloy grade and heat treatment condition.
• Batch Traceability Records: Link each finished part back to a specific melt or extrusion lot, supporting failure investigation and audit readiness.
• Functional Test Certificates: Include hydrostatic shell test results at 1.5x rated working pressure and, where applicable, ISO 14310 V0/V3 gas test records.
• First-Article Inspection Report (FAIR): Dimensional verification of prototype or first-production parts against drawing tolerances, confirming fit before batch release.

These documents protect procurement teams during client acceptance reviews and internal quality audits, reducing the risk of parts being rejected after delivery.

Pricing Strategy and Lead Time Management

Volume pricing applies to standard sizes, but for custom-machined dissolvable components in low quantities, per-drawing quotation is the standard model. HAGRIEN maintains safety stock for common sizes—typical lead time runs 2–4 weeks for standard specifications. Custom engineering conditions require 4–8 weeks, with expedite options for critical-path projects.

Building Long-Term Supply Agreements

Single-source supplier agreements for dissolvable components reduce qualification overhead and batch-to-batch variability risk. A framework agreement with defined specifications, traceability requirements, and delivery schedules gives both parties predictability—especially important when material batch changes could affect dissolution behavior in the field.

Conclusion

Downhole completion tools are what make the difference between a well that works well and one that needs expensive repairs over and over again. In the completion design, each type of component, such as mechanical packers, bridge plugs, dissolvable frac plugs, and smart control valves, has a clear job to do. From the first item to full production, program risk can be cut by choosing tools with verified pressure ratings, material documentation that can be tracked, and customization options backed by the supplier. This is especially true for dissolvable mandrels and slip carriers. The ability to deliver per-drawing parts with uniform quality and full paperwork is the most important thing for procurement teams running multi-variety low-volume completion projects. Catalog breadth is not the most important thing for these teams.

FAQ

1. What is the difference between V0 and V3 rated completion tools?

V0 indicates a gas-tight seal validated to zero bubble leakage under ISO 14310 testing. V3 is a liquid-test standard that permits minimal leakage under defined conditions. V0-rated tools are required for high-pressure gas wells where any leakage path poses safety or production risk.

2. Can retrievable packers be reused?

Yes. Provided the tool undergoes full teardown, elastomer element replacement, dimensional inspection, and re-certification against original API specifications, retrievable packers can re-enter service with documented qualification.

3. How are tools selected for sour service wells?

Material selection follows NACE MR0175/ISO 15156, targeting alloys with verified resistance to sulfide stress cracking and chloride stress corrosion cracking. Elastomer compounds must also be qualified for H₂S exposure.

4. What triggers dissolution in dissolvable bridge plugs?

Dissolution initiates on contact with brine—either produced formation water or injected fluid. The rate depends on fluid salinity, temperature, and the alloy's engineered dissolution window. HAGRIEN tunes alloy systems to specific operating conditions to achieve predictable dissolution timing without premature degradation during the fracturing stage.

5. What documentation should accompany completion tool components?

At minimum: COA/COC, batch traceability records, MTRs, and functional test reports. For dissolvable components, dissolution validation data referenced to the operating temperature and fluid chemistry should also accompany the shipment.

Ready to Source Completion Tool Components from a Verified Manufacturer?

HAGRIEN supplies precision-machined dissolvable mandrels, slip carriers, connecting subs, and full completion tool assemblies to downhole completion tools manufacturers across North America. Our components carry full batch traceability, COA/COC documentation, and CNAS-laboratory-backed validation—built for your drawing, not ours. Contact our U.S. coordination team at cyrus@us-hagrien.com or visit us-hagrien.com to request a quotation for your next completion tool component program.

​​​​​​​

References

1. Society of Petroleum Engineers (SPE) — SPE Production & Operations Journal, 2022.

2. American Petroleum Institute — API 11D1: Packers and Bridge Plugs, 5th Edition, 2015.

3. American Petroleum Institute — API 14A: Subsurface Safety Valve Equipment, 12th Edition, 2015.

4. NACE International / ISO — NACE MR0175 / ISO 15156: Petroleum and Natural Gas Industries — Materials for Use in H₂S-Containing Environments, 2015.

5. ISO — ISO 14310: Petroleum and Natural Gas Industries — Downhole Equipment — Packers and Bridge Plugs, 2008.

6. World Oil — Completions Technology Report: Dissolvable Plug Adoption in Unconventional Wells, 2023.
