How Dissolvable Magnesium Alloy Hexagonal Bar Works Downhole

When you're operating multi-stage hydraulic fracturing completions or subsea tool installations, every component needs to perform flawlessly under extreme conditions—then disappear without leaving debris or requiring expensive intervention. The Dissolvable Magnesium Alloy Hexagonal Bar achieves exactly that. This engineered material combines high mechanical strength with predictable electrochemical degradation, dissolving completely in wellbore fluids after serving its structural purpose. The hexagonal geometry prevents rotation during assembly and setting operations, ensuring reliable torque transmission at depth. Temperature, salinity, and fluid chemistry determine the dissolution timeline, allowing you to match the material to your specific well conditions and operational window. The result? Full-bore access without milling, reduced non-productive time, and elimination of retrieval risks.

Understanding Dissolvable Magnesium Alloy Hexagonal Bars

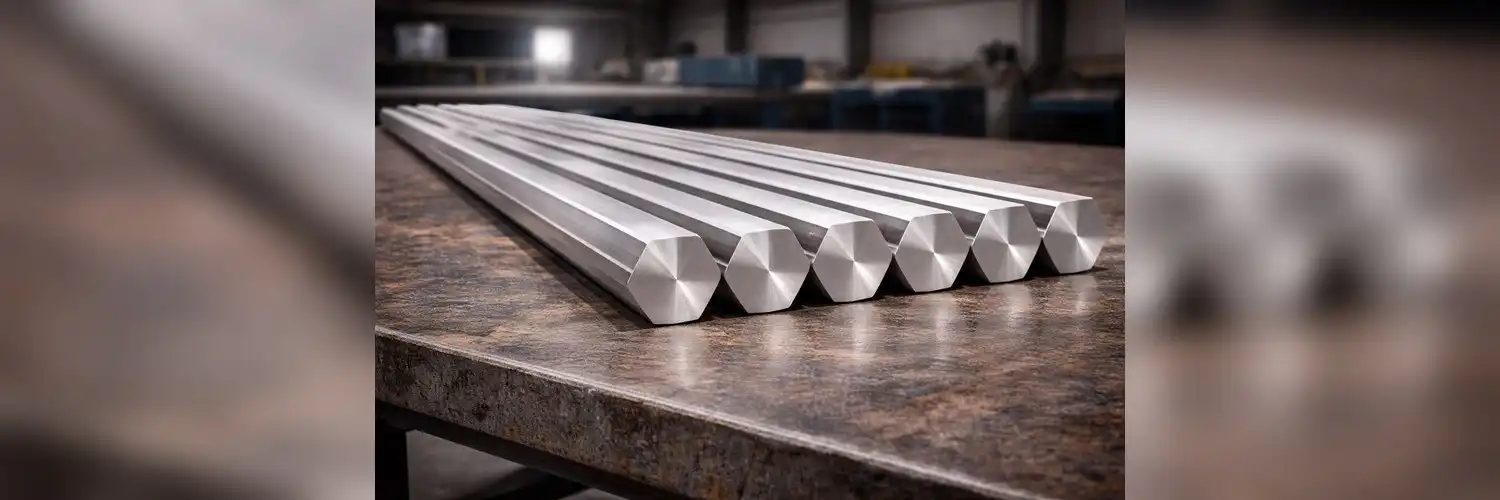

Hexagonal Geometry: Function Meets Engineering

The hexagonal cross-section is very important for the way the structure works. When putting together and setting tools in wellbores that are straight or curved, round profiles can spin, which can make it harder for seals to engage and tools to stay in place. The hexagonal shape holds parts in place, spreading torsional stress well and letting more makeup torque happen without spinning. When your production teams put tools in place at a depth under high pressure, they will notice the difference. This shape also makes the surface area-to-volume ratio better, which helps predict how the material will dissolve when it comes in contact with wellbore fluids.

Alloy Chemistry: Strength Meets Controlled Degradation

Dissolvable magnesium alloys are made with certain alloying elements, like aluminum, zinc, and rare earth metals, to make sure that the mechanical properties and degradation behavior are equal. Based on the metal grade, Shaanxi HAGRIEN's materials have tensile strengths between 200 MPa and 450 MPa and yield strengths between 120 MPa and 340 MPa. With a density of about 1.8 to 1.9 g/cm³, these bars weigh about 25% less than similar steel parts, which cuts down on shipping costs and makes them easier to handle. The microstructure of the alloy is designed to make micro-galvanic cells that start controlled electrochemical breakdown when it comes in contact with electrolyte solutions like brine or finishing fluids2.

Environmental and Operational Benefits

Magnesium metals break down into small pieces, mostly magnesium hydroxide and metallic salts, that can be easily moved by fluids used in production. Because the dissolution is even, there are no pits or chunks that could get in the way of flow or damage equipment downhole. This ability to break down naturally fits in with the industry's push for environmentally friendly practices, cutting down on metal trash and getting rid of the damage that fixed hardware left in the wellbore does to the environment. In addition to being better for the environment, there is a clear practical benefit: you don't have to do as many cutting runs, and the time it takes to start production is shortened.

How Dissolvable Magnesium Alloy Hexagonal Bars Work Downhole

The Dissolution Mechanism

When the hexagonal bar comes into contact with wellbore fluids, which are usually salty brines that change in temperature and salinity, an electrochemical reaction starts on the surface of the alloy. In this galvanic cell, magnesium is the anode. It slowly oxidizes and dissolves into the liquids around it. Because the Arrhenius equation controls the reaction, the rate of breakdown speeds up as the temperature rises. HAGRIEN gives you temperature-rate charts for each grade of alloy, so you can use your well's thermal profile to guess when the alloy will dissolve. For slow-degrading grades, dissolution rates can be as low as 2 mg/cm³/h. For fast-dissolving formulations, they can be over 150 mg/cm³/h. All of these were tested in controlled conditions, such as 3% KCl solutions at temperatures between 50°C and 93°C.

Factors Influencing Dissolution Rate

How fast the Dissolvable Magnesium Alloy Hexagonal Bar breaks down downhole depends on a number of factors. The most important factor is temperature; higher temperatures in the bottomhole speed up the electrochemical process by a factor of ten. Salinity also matters; more chloride makes ions move more easily, which speeds up the dissolution process. The chemistry of the fluid is also important. Conditions that are acidic speed up degradation a lot, while conditions that are neutral or slightly alkaline slow it down. Different types of flow, such as static and dynamic, affect the movement of mass at the surface of the metal. Generally, moving fluids speed up the dissolution process. By knowing these factors, you can precisely engineer the dissolution window, making sure that the material keeps its shape during the breaking process but dissolves completely within the time frame you have planned for production.

Real-World Field Performance

When fracturing is done in more than one step, hexagonal bars are used to make dissolvable frac plug mandrels that keep each step separate. The triangular shape keeps the mandrel from turning while it's being set, which makes sure that the seal engages properly. Once the breaking stage is over, the mandrel starts to dissolve according to the planned timeline, which can be anywhere from 48 hours to several weeks, depending on the type of metal and the conditions of the well. By getting rid of all milling operations, operators in the Permian Basin and Eagle Ford Shale have reported big drops in completion costs and faster cycle times3. It's even harder for subsea workers to get temporary hardware back. Dissolvable fasteners and structural pins help hold things in place during installation and then break down naturally in seawater, leaving production paths clear and lowering the environmental impact.

Comparison and Selection Criteria for Dissolvable Bars vs Traditional Metals

Strength-to-Weight Ratio and Mechanical Performance

It is true that steel parts are very strong—their yield strengths are often higher than 500 MPa—but they are also very heavy—about 7.8 g/cm³. Aluminum alloys are about 2.7 g/cm³ lighter than steel, but they aren't as strong and can't be broken down in a controlled way. The tensile strength of the Dissolvable Magnesium Alloy Hexagonal Bar is up to 450 MPa (grades like AML023), and its density is about 1.8 g/cm³. This mix can hold enough weight for high-pressure fracking operations while also cutting down on shipping costs and making handling easier. Because the hexagonal shape makes the rotational strength even higher, these bars can be used in torque-heavy situations where round forms would fail.

Corrosion Resistance and Operational Lifespan

Because traditional metals are made to never rust, they create the very problem that dissolvable alloys fix. To stay alive downhole, steel needs protective coatings or cathodic protection. Even then, it needs to be retrieved or milled. Dissolvable magnesium metals are made to rust in a predictable way. The benefit is the controlled decline, not a way for it to fail. You choose the dissolution window based on the conditions of your well—fast dissolution for quick turnaround, slower rates for longer multi-stage operations, and so on. Because it can be tuned, you can perfectly match the performance of the material to your operational timeline.

Cost Analysis and Total Cost of Ownership

When you look at the price per kilogram, dissolvable magnesium metals cost more than steel. Cost of ownership, on the other hand, tells a different story. Depending on the amount of plugs and the complexity of the wellbore, milling can cost anywhere from $50,000 to $150,000 per well. Getting rid of milling cuts down on finishing time by days, which speeds up production and increases income. When you think about less time spent on non-productive tasks, lower shipping costs because they are lighter, and no need to worry about recovery, dissolvable metals often have better economic performance. HAGRIEN has normal wait times of two to four weeks for common sizes, and four to eight weeks for special alloy formulas. This makes sure that the supply of materials fits in with your project plan.

Procurement Guide for Dissolvable Magnesium Alloy Hexagonal Bars

Customization Options and Ordering Process

You can get Dissolvable Magnesium Alloy Hexagonal Bars from HAGRIEN that are made to fit your needs. Small bar diameters are used for fasteners and pins, while large bar diameters of up to 300 mm are used for big mandrels and structural parts. You can get custom alloy formulations that work with the conditions of your well. Just tell our metallurgy team the working temperature, salt, fluid chemistry, and goal dissolution window, and they'll either suggest the best grade or make a custom chemistry just for you. The order process starts with an RFQ. Next comes the technical review, which usually takes two to four weeks. Finally, there are samples, which can be free or cost money based on the amount, and validation testing. We set up a framework agreement with agreed-upon lead times, prices, and delivery schedules once your team approves the material performance.

Supplier Certifications and Quality Assurance

When buying materials for high-pressure downhole uses, you can't skimp on quality control. HAGRIEN uses the ISO 9001, ISO 14001, and ISO 45001 management systems to make sure that processes are strictly controlled and that the company is environmentally responsible for Dissolvable Magnesium Alloy Hexagonal Bar. Our high-temperature, high-pressure lab is recognized by the CNAS and checks each batch's mechanical features and how it dissolves. We follow the ASTM B107/B107M guidelines for extruded magnesium alloy profiles, making sure that the dimensions are accurate and the grains are smooth. You can use our products in your current quality processes without any extra approval problems because they are API certified and licensed for machining compliance. Each batch comes with a full set of paperwork, including a Certificate of Analysis (COA), a Certificate of Conformance (COC), and Safety Data Sheets (SDS). This makes it easy to track and prepare for an audit4.

Payment Terms, Delivery Schedules, and After-Sales Support

HAGRIEN lets you choose from different trade terms, such as EXW, FOB, or CIF, so you can get your goods however you want. Standard goods are shipped between two and four weeks, while special formulations take four to eight weeks, with weekly progress reports that are timed to fit your project schedule. Our U.S. branch handles deliveries in North America, making sure that communication is smooth across time zones and that responses are quick. Our regional offices offer on-site help, online troubleshooting, and application building advice as part of our after-sales support. We keep a safety stock of commonly used sizes so that we can quickly sample and restock if your project schedule changes. This unified method, which combines knowledge of the materials, the ability to make things, and quick service, lowers the risk in your supply chain and helps you plan for long-term production.

Machining and Handling Best Practices for Dissolvable Magnesium Alloy Hexagonal Bars

Safety Protocols and Machining Techniques

Magnesium alloys are made of elements that respond. Fine chips and dust can catch fire if they come into contact with sparks or high temperatures during machine processes like turning, milling, and drilling. To keep cutting temperatures low and stop chip burning, use flood coolant or mist lubrication. Coolants that are based on oil can leave behind leftovers. Mineral oil or coolants that dissolve in water work well instead. Make sure there is enough air flow and that Class D fire extinguishers (which can put out metal fires) are easy to get to. Put chips in containers that won't catch fire and throw them away according to the rules in your area. Picking the right cutting tool is important. Carbide tools with high rake angles lower cutting forces and heat production. Cutting speeds between 200 and 400 square feet per minute are a good compromise between productivity and temperature control. With every shipment, HAGRIEN includes detailed machining instructions. These include suggested feeds, speeds, and tooling for each alloy grade.

Storage and Handling to Prevent Premature Degradation

The performance of the material is protected until it is used by storing it correctly. Bars should be kept in places with low humidity and stable temperatures, ideally below 50% relative humidity and between 15°C and 25°C. Surface oxidation and moisture uptake can be stopped with vacuum packing or containers sealed with desiccant. Avoid exposing it for a long time to saltwater, acidic vapors, or high temperatures, as these can cause it to break down too quickly. Dissolvable magnesium metal bars stay structurally and chemically sound for more than 24 months if they are kept properly. To help with inventory movement and tracking, clearly label storage cases with the alloy grade, batch number, and date of receipt.

Packaging Standards for Secure Transportation

HAGRIEN wraps dissolvable magnesium metal bars in protected materials to keep them from getting damaged while they're being shipped. Bars are sealed in foam-lined boxes, covered in moisture-resistant film, and labeled with care directions. The packaging for export meets the ISPM 15 standards for shipping goods between countries. Each shipment comes with the full set of paperwork (COA, COC, and SDS) needed for customs clearance and receiving inspection. If you package the bars correctly, they will come in perfect shape, ready to be machined, with no surface flaws or measurement changes.

Conclusion

The Dissolvable Magnesium Alloy Hexagonal Bar is a tried-and-true answer to today's completion problems because it has a high mechanical strength, a predictable degradation rate, and is easy to use. This material makes both productivity and sustainability better by getting rid of expensive milling processes, cutting down on time spent not working, and leaving no waste. The hexagonal shape makes sure that power is transferred reliably, and the metal formulations can be changed to fit your well conditions exactly. From developing new alloys and extruding big diameters to CNAS-accredited proof and fast delivery, HAGRIEN has all the skills you need for the whole project lifecycle, from prototyping to full-scale production. If you choose a provider of Dissolvable Magnesium Alloy Hexagonal Bars with a history of good production practices and quick customer service, you can cut down on qualification cycles, make sure batches are consistent, and build long-term supply reliability.

FAQ

1. What dissolution timeline can I expect in my well?

Temperature, salinity, and the chemistry of the fluid all affect how long it takes to dissolve. Grades like AML001 break down at a rate of 2–10 mg/cm³/h in a well heated to 90°C and filled with 3% KCl brine. This process takes several weeks to finish. Faster grades, like AML004, break down in days at 130–150 mg/cm³/h. HAGRIEN gives you temperature-rate graphs for each grade of metal, so you can use your well's thermal profile to model dissolution. When working in cooler wells (around 50°C), slower dissolve rates make the time frame longer, which lets you do longer multi-stage processes.

2. How do I match the alloy grade to my well conditions?

First, write down the temperature, salt, and chemistry of the liquids in your well. Give this information to HAGRIEN's tech team during the RFQ process. We'll suggest alloy grades that strike a good balance between your desired dissolution window and their mechanical strength. We will suggest grades that dissolve more slowly if you need the material to keep its shape for 30 days after it has been broken. When you need full entry within a week for an urgent application, faster grades are the way to go. Our CNAS-accredited lab can simulate your well conditions and check how the dissolution works before you place large orders, which lowers your qualification risk5.

3. Is the material compatible with acidic stimulation fluids?

Acidic environments speed up dissolution by a large amount. If your work involves stimulating acids, we suggest using protective coatings or choosing metal types that break down more slowly and have better corrosion inhibitors. The metallurgy team at HAGRIEN can change the alloy's chemistry to match the profile of your fluid. This makes sure that the material stays structurally sound during the stimulation phase and dissolves in a predictable way afterward. Clear communication about the chemistry of your fluid during the specification phase makes sure that the material will work reliably in your application.

Partner with HAGRIEN for Reliable Dissolvable Magnesium Alloy Hexagonal Bar Supply

Engineered Dissolvable Magnesium Alloy Hexagonal Bars from HAGRIEN are made to meet the tough needs of multi-stage completions, operations that take place underwater, and high-pressure downhole settings. As a fully vertically integrated company that makes Dissolvable Magnesium Alloy Hexagonal Bars, we are in charge of every step, from making the alloy and being able to extrude it up to Ø300 mm to helping with precise machining and keeping track of every batch. Our CNAS-accredited lab checks the mechanical properties and dissolution behavior to make sure that the performance is the same from the prototype to the 1,000th production unit. Standard lead times of two to four weeks, fast choices for important projects, and full paperwork (COA, COC, SDS) all help your qualification process and get you ready for an audit. Our technical team responds within 24 hours and sends formal quotes within 1–3 business days, whether you're looking for a second source to lower your supply risk or to make sure that a new material is safe to use in the field. You can talk to us about your project needs and ask for samples by emailing cyrus@us-hagrien.com or visiting us-hagrien.com. Let's come up with a material answer that works with your well, cuts down on the time it takes to finish, and saves you money.

References

1. Society of Petroleum Engineers (SPE). (2020). "Dissolvable Materials in Unconventional Completions: State of the Art and Field Applications." SPE Production & Operations, 35(3), 489-502.

2. American Petroleum Institute (API). (2019). "Recommended Practices for Dissolvable Alloys in Wellbore Completion Equipment." API Technical Report 19DS1.

3. ASTM International. (2018). "Standard Specification for Magnesium-Alloy Extruded Bars, Rods, Profiles, Tubes, and Wire." ASTM B107/B107M-18.

4. Materials Performance. (2022). "Electrochemical Degradation Mechanisms in Dissolvable Magnesium Alloys for Downhole Applications." NACE International Materials Performance, 61(5), 38-47.

5. Oil & Gas Journal. (2021). "Field Trials Demonstrate Cost Savings with Dissolvable Completion Tools in Multi-Stage Fracturing." Oil & Gas Journal, 119(8), 54-59.

6. Murphy, M., Turski, M., Warfield, W., & Lyon, P. (2019). The Effect of Changes in Hydraulic Fracking Fluid Chemistries on the Dissolution Rate of Dissolvable Magnesium Frack Plug Components. SPE Annual Technical Conference and Exhibition, SPE-195987-MS.
