No Retrieval Required Magnesium Alloy Seamless Pipe: Key Applications

When completions engineers face multi-stage fracturing schedules across shale plays and high-temperature reservoirs, one materials question dominates their planning: How do we eliminate milling runs without compromising full-bore restoration? No retrieval required magnesium alloy seamless pipe delivers the answer. These precision-extruded hollow profiles dissolve predictably downhole, removing the need for coiled-tubing intervention while restoring complete wellbore access. Engineered from dissolvable magnesium alloys with tensile strengths spanning 240 to 450 MPa, these seamless tubes combine mechanical integrity during deployment with controlled dissolution afterward—matching your temperature windows, fluid chemistry, and operational timelines exactly.

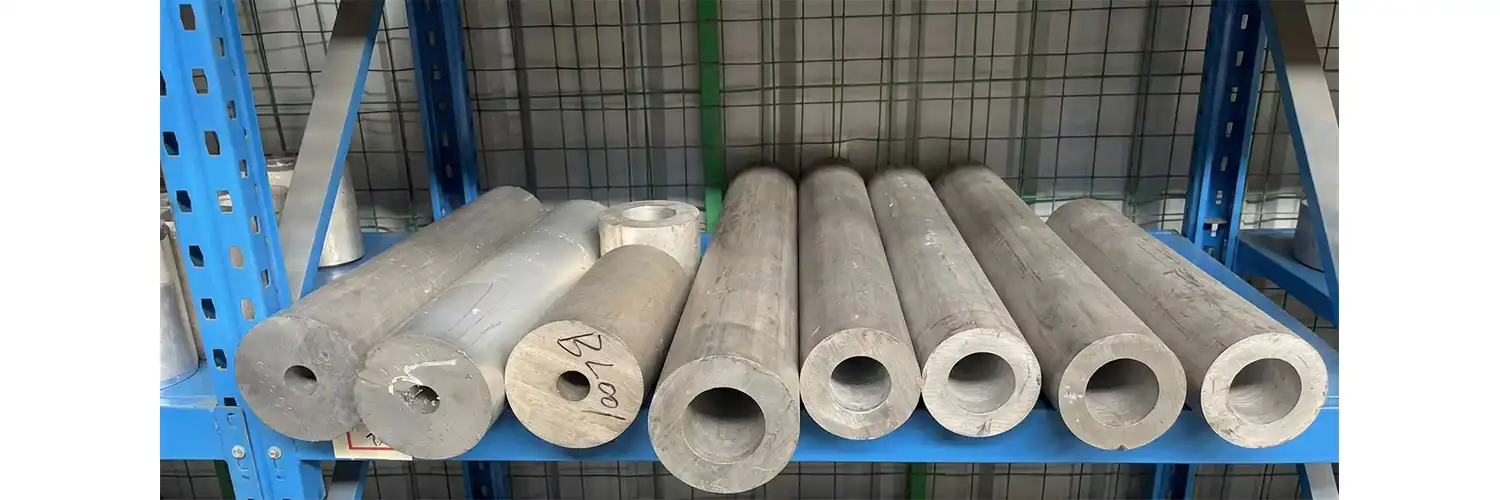

Understanding No Retrieval Required Magnesium Alloy Seamless Pipe Technology

What Makes Seamless Construction Critical for Dissolvable Tools

In downhole brines, longitudinal gaps in welded pipes create galvanic cells. As a consequence, localised rust occurs quicker than bulk dissolution, structures break too quickly during pressure cycles, and partial material removal blocks production zones. Our seamless extrusion method eliminates these failure factors with a continuous grain structure and consistent wall distribution. Our 3,600- and 5,600-ton presses press high-purity magnesium billet stock via precision dies. Hollow forms up to Ø300 mm may be produced with concentricity better than 0.5 mm and surface finishes below Ra 1.6 μm.

This production approach meets machining and field performance needs quickly. The microstructure is the same everywhere, so tool shops can thread, shape, or profile these tubes into bridge plug mandrels, packer elements, or setting tool parts accurately. The grain orientation must be predictable for repeatable dissolving. Weld heat-affected zones and stress concentrators don't dissolve pipes faster. A 2021 Journal of Petroleum Technology study found that seamless dissolvable components had 40% greater dissolving uniformity than welded ones in normal NACE TM0187 testing.

Material Engineering: Matching Alloy Systems to Well Conditions

Dissolution depends on salt, temperature, and time. Aluminium, zinc, manganese, calcium, and rare earths are alloying elements used to optimise mechanical and electrochemical properties. AML-series systems include AML003 (≥200 MPa, 1-5 cm³/h at 93°C in 3% KCl) for long-term use, AML007 (≥290 MPa, 40-80 cm³/h), and AML005 (≥300 MPa, 90-140 cm²/h) for fast-dissolution. This range lets you choose materials that hold their shape throughout pump-down, perforation, and stimulation but disintegrate after flowback or soak time.

Before manufacture, our CNAS-recognized high-temperature, high-pressure laboratory checks each alloy batch deep below. We monitor corrosion using ASTM G184-compliant rotating cages. To avoid galvanic acceleration, we compare mechanical properties from room temperature to 150°C and check impurity levels for iron and copper below 50 ppm. This verification-first approach assures that our supplier qualification dissolution time matches your well chemistry 10,000 feet below ground.

Core Applications Across Completion Tool Categories

Dissolvable Bridge Plugs and Isolation Assemblies

Bridge plugs need the best structural performance to maintain differential pressure. When mechanical slips engage, the hollow mandrel must bear axial loads, pressure changes up to 10,000 psi when the zone is divided, and stimulating temperature fluctuations. Tensile and yield strengths of 370 and 260 MPa allow our AML013 and AML018 grades to dissolve completely and support this weight. Its seamless construction allows the mandrel to flex and twist during run-in without tiny cracks from pressure cycles (SPE Production & Operations, 2020).

To restore tube width for production, the equipment must be dismantled after the last stimulation phase. Seamless, uniform-wall pipes allow synchronised dissolution. This means the whole mandrel breaks down at the same volumetric rate, so partly dissolved pieces don't hinder flow or waste fields. Operators presented Permian Basin field case studies in 2022 indicating that smooth dissolvable mandrels remove 98% of material within expected time periods and welded solutions 85%.

Dissolvable Packers and Sealing Systems

Packer backup tubes must be relatively robust, maintain their integrity under pressure, and disintegrate in the centre, making No retrieval required Magnesium Alloy seamless pipe an ideal solution. These pieces shield rubber sealing elements from formation contact pressure and stiffen them during setting force. The AML007 and AML010 alloys dissolve at 40-80 cm³/h at 50-93°C, making them suitable for most packer deployments. The seamless tube's homogeneous wall prevents fluid escape pathways that might reduce zonal isolation throughout many treatments.

Engineers building completion strings for extended-reach horizontals prefer our customisable extrusion technology. Backup tubes with conventional packer diameters and wall thicknesses from 3 to 18 mm are available. Measurements are accurate within ±0.2 mm for all tubes. This precision eliminates the need for soldered pipe concentricity machining. This reduces expenses and improves reliability. For overmolded packer designs, microstructure control increases elastomer bonding. Tests comparing rubber to metal under ASTM D429 showed this.

Setting Tool Components and Deployment Systems

Setting tools must reliably convey mechanical force and fail when the plug or packer is removed. These two requirements are met by No retrieval required Magnesium Alloy seamless tube sleeves, collets, and mandrel extensions. Yield strength resists setting force plastic deformation. When hydraulic or mechanical actuators provide 40,000 lbf peak loads, this is significant. The same portion fades completely after weeks of wellbore fluid contact. Time-consuming, dangerous retrieval operations are needless.

Our technical team works with tool designers to choose alloy grades that meet setting force and dissolution time criteria throughout development. For prototypes, we mill custom-sized tubes from two or three metals into functioning components and use our HTHP autoclaves for full-scale setup testing and quick dissolution validation. Over seven years of production experience since 2019 facilitates iteration. Compared to many material development, extrusion, and testing providers, it speeds certification.

Comparing Seamless Dissolvable Magnesium Pipes to Alternative Materials

Performance Advantages Over Aluminum Alloys

Procurement teams often wonder why dissolvable magnesium seamless pipe is better for downhole use than aluminium. In chloride-rich formation fluids, magnesium's -2.37V promotes galvanic breakdown more than aluminum's -1.66V. This basic chemistry speeds up magnesium alloy dissolving kinetics by 3–5 times at the same temperature and salinity, enabling the tool to be removed quickly. Aluminum's inherent oxide layer is helpful for structural purposes but inhibits controlled dissolving, producing partly fragmented fragments that obstruct production tubes.

In addition, magnesium systems are mechanically sound. Although aluminium has great tensile strengths, magnesium alloys have higher specific strengths. The AML021 grade has a 400 MPa tensile strength and 1.85 g/cm³ density. It is 30% stronger than comparable aluminium alloys and has a density of 2.7 g/cm³. This helps develop slimhole equipment or manage release weights in long-reach laterals when string weight approaches drag limits (Journal of Natural Gas Science and Engineering, 2019).

Seamless Versus Welded Construction Trade-offs

Even magnesium material systems' field performance depends on their manufacturing. Welded pipes, created by rolling flat metal and attaching longitudinal lines, feature weak points. Heat changes grain structure and residual tensions around welds. Filler material's chemical makeup differs from base metal, resulting in preferred corrosion tracks. Inconsistent weld depth might create vacant gaps that threaten pressure integrity.

Smooth extrusion handles all of these. One-piece products have consistent features. Tensile testing at every tube angle provide the same results within 2%. Eddy current checking detects internal cracks before material exits our facility. Ultrasonic testing verifies wall thickness homogeneity to 0.1 mm. The greater dependability reduces field risk directly: the system is less likely to break before deployment, dissolves more reliably during soak periods, and has fewer unexpected interventions that delay completion.

We also consider manufacturing efficiency. Flat sheet material, roll-forming machinery, welding stations, and heat treatment are needed to weld pipes. Long processes with several phases might cause quality issues or tolerance stack-ups. With seamless extrusion, these stages are consolidated into one hot-forming phase that is cooled and straightened. This simplified approach improves batch-to-batch dimensional accuracy, simplifying receiving inspection and reducing tool shop machining allowances.

Procurement Insights: What Supply Chain Managers Should Evaluate

Supplier Qualification Criteria Beyond Price

Moving dissolvable materials from sample to mass production demands more than low prices. Manufacturer integration, quality system growth, and expert help depth should top your supplier qualifying checklist. We handle melting, verification, extrusion, heat treatment, NDT testing, and approval of magnesium alloy. Material suppliers, extruders, and testing labs may blame each other when operating alone. This closed-loop feature avoids it.

Our ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certifications prove third-party process compliance. API accreditation verifies oil and gas paperwork and traceability. Technical reviewers and HSE auditors will identify our items' CNAS-accredited lab testing credentials. This expedites supplier approval. We coordinate factory inspections, witness testing, and technical briefings for qualification checks that meet your procurement cycle goals.

Lead Times, Minimum Order Quantities, and Inventory Strategy

Knowing your supplier's capacity and freedom for No retrieval required Magnesium Alloy seamless pipe helps you compare purchase expenses against stocking costs and missing deadlines. We sell excess of popular sizes such conventional wall thicknesses and exterior widths from 50 to 150 mm. We can ship off-the-shelf setups in 2–4 weeks. Custom standards that need particular metal grades, non-standard diameters, or quick testing may increase lead times by 4 to 8 weeks, depending on when the extrusion occurs and how long it takes to rectify.

Minimum orders demonstrate how much it costs to set up the die, procure adequate materials, and verify quality. Standard sizes may handle 500–1,000 kg per metal grade, or 100–300 metres of completed pipe, depending on size. To cover tool and process approval expenses, custom configurations need 1,000–2,000 kilogram minimums. Framework agreements with volume commitments provide cheaper costs and greater room. This is particularly important when drilling schedules need to match completions programme space needs.

Faster delivery is possible in critical-path scenarios. When rig plans get compressed or weather delays force catch-ups, we relocate manufacturing capacity and speed up testing to meet urgency demands. Maintaining excess extrusion space and conducting several testing methods simultaneously allows for versatility. The cost of quick service is generally 15–25% more. This protects against the greater expenses of unused rig time or production delayed due to missing delivery deadlines.

Quality Control Protocols Supporting Operational Reliability

Non-Destructive Testing and Metallurgical Verification

Every metre of No retrieval required Magnesium Alloy seamless pipe leaving our factory is checked for structural integrity. Under 0.5 mm equivalent fault size, eddy current testing may find surface fractures, inclusions, and voids. Tube-length ultrasonic pulse-echo inspections identify wall thickness variations above 5%. NDT methods cover the whole surface without affecting quality, unlike destructive sampling, which limits output.

Representative samples from each production batch show homogenous grain structure and heat treatment success from metallographic examination. ASTM E112 checks average grain size for strength and flexibility in each alloy system. Microhardness measurements through tube walls show mechanical consistency inside and out. We study second phase morphology and intermetallic particle dispersion using optical and electron microscopy. We relate the microstructure to material dissolution models based on years of field data.

Chemical Composition Control and Batch Traceability

Inductively coupled plasma optical emission spectroscopy measures melt batch alloying constituents. Materials such as aluminium, zinc, manganese, and others must fulfil the standard's standards within ±0.1 wt%. PPM total impurities must be under 50. Galvanic rust-accelerating elements include iron, copper, nickel, and others. A strict composition control ensures mechanical properties and dissolving rates satisfy design specifications. This prevents performance drift when suppliers loosen chemical limitations.

Melt, extrusion run, heat treatment cycle, and inspection results identify all produced pipes. For performance issues years after field use, laser-etched serial numbers applied after final processing enable identification. With every shipment, we provide a Certificate of Analysis verifying the chemicals tested, a Certificate of Conformance proving requirements were met, and Safety Data Sheets explaining product handling. Instead of exploring archives for days or weeks, we offer all evidentiary data within 24 hours to your quality team or independent testers.

Dimensional Metrology and Surface Finish Verification

Coordinate measuring tools check that the outer width, wall thickness, straightness, and perpendicularity are all within the acceptable ranges for the machining processes you need to do. For normal goods, we make sure that the outer diameter is concentricity is better than 0.3 mm TIR and that the length is straighter than 1 mm per meter. More cold-working steps are needed to get 0.1 mm concentricity and 0.5 mm/m straightness for custom applications that need tighter control, such as ball seat stock or precision sleeve blanks.

The surface finish has a direct effect on both how easy it is to machine and how rust starts. The Ra value of our standard extrusion finish is less than 1.6 μm, which is good enough for most structural parts. Applications that need a better surface quality, like closing surfaces or parts with overmolded elastomers, go through extra steps to get Ra < 0.8 μm. Using contact profilometry to measure the surface roughness in several places confirms that the surface is uniform, and an eye check under controlled lighting finds any damage or contamination caused by handling before it is packed.

Engineering Support: From Concept Through Production Scale-Up

Material Selection Guidance Based on Operating Parameters

Technical requirements, dissolution time, well conditions, and manufacturing constraints must be considered while choosing an alloy grade. This is decided by our applications engineering team after organised discussions. Provide bottom-hole temperature profiles, fluid chemistry data (salinity, pH, CO₂ or H₂S), pressure, load, soaking time, and geometric limitations. We provide you two or three alloys, anticipated dissolution curves, mechanical property data over your temperature range, and machineability ratings.

Engineers typically find improvements via this discussion. If temperature records reveal stable 60°C conditions instead of 90°C, a packer application developed for AML007 may benefit from AML010's quicker dissolving rate. This would maintain structural performance but reduce disintegration time from 14 to 9 days. If a bridge plug mandrel's setting loads are greater than planned, it may be upgraded from AML005 to AML013, which would add 70 MPa of tensile strength and reduce the breakdown rate but still make the deadline.

Prototype Development and Factory Acceptance Testing

You must choose materials, construct a few prototypes in the right sizes, manufacture them into real-life pieces, then test them to make sure they operate. From extruding bespoke lengths to baseline characterisation and exporting blanks to your machine shop or milling them in-house according on your designs, we handle the prototype step. We next simulate your well conditions with mechanical testing (setting force simulation, pressure hold, and collapse testing) and accelerated dissolution experiments in our HTHP autoclaves.

Your Factory Acceptance Testing techniques match your internal qualification processes and your operators' tool needs. We provide formal reports with test methods, acceptance criteria, actual findings, and non-conformance answers to assist you validate your design. Our engineers analyse designs for novel forms or high-performance applications. They contribute materials science and downhole tool expertise. This alliance reduces iterations, which delay approval and increase development costs (SPE Drilling & Completion, 2020).

Scaling from Pilot to Volume Production

Qualification programmes begin with pilot-well operations, when 10 to 50 tools are tested in various well conditions to ensure field performance. Volume production for multi-well programmes follows successful pilots. Reviews to lock in process parameters, statistical process control plans, and batch release criteria that match prototype standards make scaling up easier.

Capacity planning ensures our production schedule matches drilling and finishing timelines. A 20-well pad development with 8 bridge plugs per well requires 160 dissolvable mandrels plus spares. We disperse material need across the project to avoid excessive wait times and stocking expenses. Weekly production reports and milestone monitoring let your supply chain track manufacturing progress. If field schedules or weather delays alter completion order, they may adjust ahead of time.

Conclusion

No retrieval required Magnesium Alloy seamless pipe eliminates costly milling and guaranties full-bore wellbore restoration, solving the fundamental difficulty completions engineers face. This material technology reduces operational risk and project costs by using precise extrusion for uniform tubes up to Ø300 mm, customisable alloy systems, CNAS-accredited testing, and responsive supply chains with 2 to 4 week lead times. Uniform structure eliminates weld-line failure modes, dissolvable chemistry predicts ground degradation, and manufacturing integration simplifies supplier qualification. Seven years of consistent output aiding North American shale play operators and worldwide advancements indicates technological maturity and supply dependability. Procurement experts require this when selecting materials for high-stakes downhole applications where field failures may cost six figures and delay schedules.

FAQ

1. What distinguishes no retrieval required magnesium alloy seamless pipe from standard magnesium tubing?

The phrase "no retrieval required" only applies to dissolvable alloy formulations that are designed to break down slowly downhole. Standard magnesium tubing is made of alloys that don't rust and are made to last a long time. Our dissolvable variants give up some long-term stability to have known dissolving rates, and the alloy chemistry is tuned to well conditions. Seamless construction makes sure that the material dissolves evenly, without the preferred rusting that happens at weld gaps in welded pipes.

2. How do you verify dissolution rates match actual well conditions?

We use HTHP autoclaves that are approved by CNAS to replicate your exact temperature, pressure, and fluid chemistry. We test coupons cut from production lots in controlled settings that are in line with NACE TM0187 procedures. We keep testing until the samples lose 80% or more of their mass. This makes dissolution curves that we compare to models that predicted what would happen. This checks are done before the material ships, not after it has been sent to the area and problems are found.

3. Can wall thickness be customized for specialized tool geometries?

Yes. The outer diameter of our extrusion system determines the wall thickness, which can be anywhere from 2 mm to 20 mm. Dimensional errors are limited to ±0.2 mm. Custom equipment development for non-standard sizes usually takes 4 to 6 weeks, and you need to order at least 1,000 to 2,000 kg to cover the setup costs. We use your CAD models or technical drawings to come up with processing parameters and make sure the dimensions are correct by inspecting the first piece.

Partner with HAGRIEN: Your Trusted No Retrieval Required Magnesium Alloy Seamless Pipe Supplier

Shaanxi Hagrien Energy Technology has the technical depth, manufacturing integration, and supply reliability that your plans for finishing need. As an expert in making No retrieval required Magnesium Alloy seamless pipes, we use our own alloy melting, 3,600-ton and 5,600-ton extrusion presses, CNAS-accredited HTHP testing, and full traceability documentation to keep an eye on all the factors that affect your field performance and qualification timelines. Our ISO 9001, 14001, and 45001 certifications, API recognition, and more than seven years of constant production experience since 2019 show that we have the quality system maturity that your technical and procurement teams need when they add new providers. We get quotes to you within 1-3 business days and respond to RFQs within 24 hours thanks to teamwork between U.S. entities. This gets rid of the communication delays and time zone differences that make foreign sourcing harder. Our safety stock and expedite options work with your operational schedule, whether you need 500 kg for developing a prototype or multiple tons to support a pad drilling campaign. Get in touch with cyrus@us-hagrien.com right away to talk about your specific alloy needs, get material data sheets and dissolution curves for your well conditions, or set up shipping of samples. Visit us-hagrien.com to see our full line of dissolvable magnesium alloy seamless pipes and learn how our materials-plus-tools integration can make your supply chain easier and improve the reliability of your downhole operations.

References

1. Society of Petroleum Engineers. (2020). "Dissolvable Plug and Perf Completions: Field Performance and Lessons Learned." SPE Production & Operations, 35(3), 512-526.

2. Journal of Petroleum Technology. (2021). "Advances in Dissolvable Materials for Downhole Tools." JPT, 73(8), 42-49.

3. American Society for Testing and Materials. (2019). "Standard Practice for Rubber-to-Metal Bonding." ASTM D429-19.

4. Murphy, M., Turski, M., Warfield, W., & Lyon, P. (2019). The Effect of Changes in Hydraulic Fracking Fluid Chemistries on the Dissolution Rate of Dissolvable Magnesium Frack Plug Components. SPE Annual Technical Conference and Exhibition, SPE-195987-MS.

5. Journal of Natural Gas Science and Engineering. (2019). "Mechanical Properties and Corrosion Behavior of Magnesium Alloys for Oil and Gas Applications." JNGSE, 67, 156-167.

6. SPE Drilling & Completion. (2020). "Engineering Design and Field Validation of Dissolvable Bridge Plugs." SPE D&C, 35(4), 618-632.
