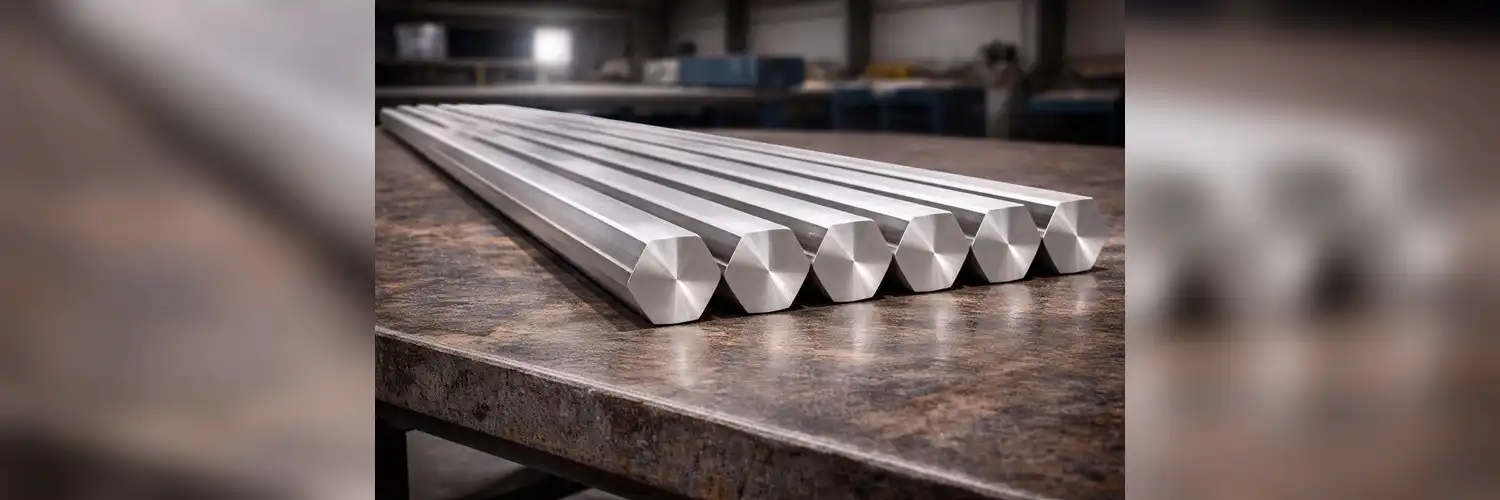

How Magnesium Alloy Hex Bar Improves Lightweight Structures

When we talk about pushing the boundaries of structural efficiency in oil and gas operations, magnesium alloy hex bar delivers measurable impact. This specialized hexagonal profile, composed of magnesium alloyed with aluminum, zinc, and manganese, achieves what conventional materials struggle with: maintaining mechanical integrity while dramatically reducing weight. With a density ranging from 1.74 to 1.80 g/cm³—33% lighter than aluminum and 75% lighter than steel—these hex bars enable completion service providers and downhole tool manufacturers to cut intervention time, lower transportation costs, and improve operational safety without sacrificing tensile strength or dimensional stability.

Understanding Magnesium Alloy Hex Bars and Their Core Properties

The main reason why Magnesium alloy hex bars are so popular is that they have the right mix of properties that matter most to completion engineers and procurement teams. Instead of being simple metals, these profiles are precisely extruded with controlled microstructures that have a direct effect on how well they work in the field.

Density and Strength-to-Weight Ratio

Magnesium alloy hex bar's low density gives it real benefits when it comes to launching. Every pound counts when you're placing bridge plugs or packers in wells that are far out at sea. Our AZ31B, AZ61A, and ZK60 grades have tensile strengths between 250 and 310 MPa and still have the important weight benefit. This mix lets tool makers choose lighter equipment without lowering its load-bearing capacity. This cuts down on the need for raising and speeds up rig operations.

Alloying Elements and Mechanical Optimization

Adding aluminum makes the metal stronger and more resistant to corrosion. Adding zinc makes it easier to shape at room temperature, and adding manganese smooths out the grain structure. These aren't just random adds; they're designed to work in places with a lot of pressure and heat deep underground. The heat treatment methods that HAGRIEN uses improve these qualities even more, letting you make changes based on specific working windows, like when you're using tools in brines with a lot of salt or shale formations with a reasonable temperature.

Hexagonal Geometry Advantages

The six-sided cross-section is useful as well as pretty. It has built-in gripping areas for applying force, stops spin while assembly is going on, and makes CNC machining more efficient. This shape cuts down on setup time and tool wear when making dissolvable plugs or precision couplings. This means that production cycles go faster and tolerances for size are tighter.

Magnesium alloy hex bar regularly beats conventional materials in lightweight structure projects, especially when repeatability and traceability are essential. Procurement experts can see why by understanding these fundamental characteristics.

Comparing Magnesium Alloy Hex Bars with Other Metal Hex Bars

When making finishing tools, choices about which materials to use depend on trade-offs that can be measured. Let us compare magnesium to the other options that E&P owners and service companies are most familiar with.

Magnesium vs. Aluminum

Magnesium alloy hex bar goes even further than aluminum, which has long been the most popular lightweight metal. Magnesium profiles can save up to 35% more weight than aluminum profiles, which have a density of about 2.70 g/cm³. This is very important when you're trying to get the best stage separation tools for long laterals. Lowering the overall string weight can help keep handling equipment from tiring out and causing trips. High-quality magnesium metals are as strong as or stronger than many types of aluminum, especially when it comes to specific strength (strength per unit mass). Magnesium is also better at damping vibrations than aluminum, which means it prevents failures caused by vibrations in high-frequency operations.

Magnesium vs. Steel

Although steel is very strong and cheap for many uses, its high density (about 7.85 g/cm³) makes it unsuitable for projects that need to save money by reducing weight. A magnesium part that weighs about 2.5 kg could be used instead of a steel hex bar part that weighs 10 kg. This weight difference speeds up the launch and retrieval processes for workover companies that want to keep rig time as low as possible. Steel is still better at resisting wear and is less reactive in some chemicals, so the choice depends on the specific working conditions.

Grade Selection for B2B Buyers

Which one to use—AZ31B, AZ61A, or ZK60—depends on the stress levels and environmental conditions of your application. The AZ31B has great all-around performance and can be shaped easily, which makes it a cost-effective choice for basic finishing tools. AZ61A is great for hydraulic fittings and high-stress frac uses because it has higher tensile strength and better pressure tightness. ZK60 is very strong and can be used in aerospace applications, but it costs a lot. You can find the right grade without over-specifying by balancing these factors with the needs for rust protection and machinability.

This method for comparison helps business buyers make smart choices, making sure that the Magnesium alloy hex bar they choose meets both their technical needs and their budget.

Machining and Handling Magnesium Alloy Hex Bars for Optimal Lightweight Performance

To get the most out of Magnesium alloy hex bar, you need to pay attention to the best ways to handle and machine it. Because magnesium is soft and reactivity, it needs to be worked with in a certain way. However, the results are excellent machinability and surface finish quality.

Cutting Tool Selection and Speeds

Cutting speeds can be up to 50% faster with magnesium than with aluminum, which speeds up production. Positive rake angles on carbide tools reduce the cutting forces and heat that are made. Sharp edges are important because dull tools cause too much friction, which can cause small chips to catch fire. The type of coolant you use is also important. Stay away from fluids that are based on water and use mineral oil-based coolants instead, which stop hydrogen from absorbing and keep chips stable.

Welding Techniques and Joint Integrity

To keep magnesium alloys like the ones in our hex bars from oxidizing while they are being welded, an inert gas shielding is needed. Argon or helium are common choices. Filler rods that match, like ER-AZ61A, work well with both the TIG (GTAW) and MIG (GMAW) processes. Cleaning the surface before welding gets rid of oxides, and controlling the amount of heat used stops cracks. These methods make sure that welded joints keep the strength of the base material, which is very important when making special downhole tool systems.

Dimensional Precision and Tolerances

At HAGRIEN, we keep flat-to-flat tolerances within ±0.05 mm. This makes sure that machined parts fit perfectly without the need for extra work. With this level of accuracy, assembly time is cut down and fit-up problems are avoided during field deployment. These tolerances are checked from batch to batch using ultrasonic and laser measurements during extrusion. This gives buying teams faith in the stability of the supply.

Heat Treatment for Microstructural Refinement

Solution annealing, aging, and other heat treatment methods smooth out the structure of the grains, which improves the material's mechanical properties. Temperatures that are controlled keep the shape stable, which is important for high-tolerance uses. This microstructural improvement leads to better wear resistance and fracture toughness, which makes parts last longer in settings with repeated loads.

Magnesium alloy hex bar can be used to its full potential when it is machined and handled correctly. This makes sure that its lightweight benefits are turned into reliable field performance.

Procurement Considerations for Magnesium Alloy Hex Bars in B2B Markets

There are more factors to consider than just price per kilogram when looking for magnesium alloy materials. In the oil and gas industry, strategic buying requires suppliers to have the skills needed to meet project deadlines, meet quality assurance standards, and be reliable over the long run.

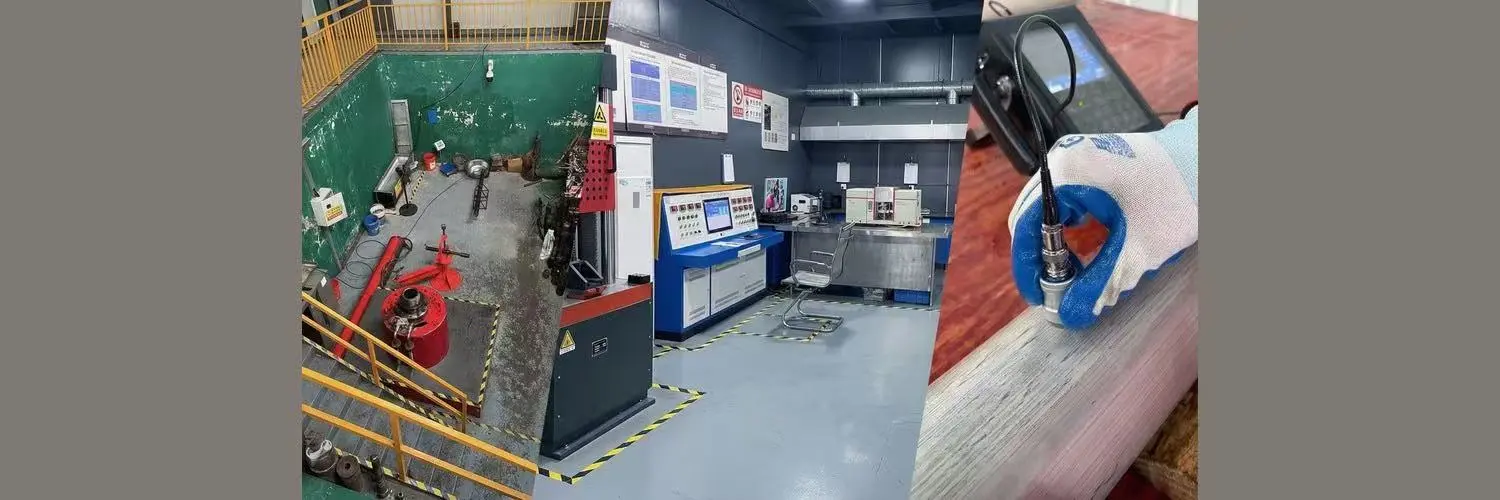

Certified Suppliers and Quality Assurance

Give more weight to sellers who have ISO 9001, ISO 14001, or ISO 45001 certifications. These show that they have a method for managing quality and the environment. Every batch of Magnesium alloy hex bar meets the required chemical composition and mechanical properties thanks to traceable verification provided by HAGRIEN's CNAS-accredited laboratory. Each package comes with a COA (Certificate of Analysis), a COC (Certificate of Conformance), and an SDS (Safety Data Sheet). This makes your internal approval processes easier and helps you get ready for an audit.

Lead Times and Order Minimums

Standard sizes of magnesium hex bars usually ship in two to four weeks. Custom sizes, on the other hand, take four to eight weeks. Knowing these dates helps project managers plan when to buy things so that delays don't happen on the critical path. Suppliers who keep extras of common diameters, like HAGRIEN's stock up to Ø300 mm, can quickly meet your needs for urgent samples or emergency restocking. Minimum orders vary by grade and size, so making these clear from the start keeps things from being a surprise when the contract is being negotiated.

Pricing Factors and Cost Efficiencies

The unit price depends on the alloy grade, the width, the length, and the number. When you buy in bulk, you can get savings, especially on standard profiles that are used in many tasks. There are extra costs for custom alloy formulas or faster shipping, but the money is well spent when meeting deadlines or improving performance is worth it. Buyers can quickly compare choices and make decisions based on facts thanks to HAGRIEN's clear price structures and quick quote response times (within 1 to 3 business days).

Custom Alloy Compositions and Engineering Support

Working with makers who can do OEM/ODM production and engineering-to-spec services gives you more options. If you need a high-strength alloy for reusable packers or an alloy with a dissolution rate that is just right for dissolvable bridge plugs, suppliers with their own research and development departments can work with you to make materials that are perfect for your needs. This partnership approach cuts down on the costs of trying things out and speeds up the time it takes to get products to market.

Magnesium alloy hex bar buying done strategically ensures that you can get the materials you need for your project, provided on time, and with all the necessary paperwork.

Real-World Applications and Case Studies Showcasing Magnesium Alloy Hex Bars

Magnesium alloy hex bar has a wide range of applications in the energy and industrial sectors. Putting the information to use in the real world proves its value beyond what was seen in the lab.

Dissolvable Bridge Plugs in Unconventional Completions

In U.S. shale plays, completion service providers are relying more and more on dissolvable bridge plugs to get rid of the need for post-frac mill-out activities. These tools are made from engineered magnesium alloys and dissolve reliably in wellbore fluids. This cuts down on time spent not working and the cost of interventions. The triangular shape of the bar stock makes it easier to machine complicated plug parts while keeping the dimensions accurate. Operators say that the weight savings and ability of magnesium-based tools to dissolve directly cause finishing cycle times to drop by up to 30%.

Offshore Packer Components

Offshore E&P operators have to be careful about how much they can lift because of crane and platform load limits. Magnesium alloy hex bar variants can be used to replace steel packer parts, which reduces handle weight and increases transportation efficiency. Micro-Arc Oxidation (MAO) coatings make AZ61A grade more resistant to corrosion, which means it will last for a long time in salty environments. Case studies from operations in the Gulf of Mexico show that service gaps were stretched and upkeep was done less often. This proves that the material is durable in harsh subsea conditions.

Downhole Tool OEM Manufacturing

The strength and ease of machining of magnesium alloys make them useful for equipment makers who use them to make bridge plugs, stage isolation sleeves, and custom completion systems. Being able to make profiles with a diameter of up to 300 mm and a consistent microstructure gives designers more freedom without affecting the repeatability of batches. When OEMs work with HAGRIEN, they can use our closed-loop production to improve their supply lines and cut down on wait times. This includes everything from making the alloy to coordinating the extrusion and machining.

Workover and Intervention Applications

Dissolvable tools are used by workover companies that want to optimize production to cut down on rig time. Because magnesium hex bar parts are light, they make lifting loads lighter and speed up the placement of tools in deep wells. Operators working on recompletion projects say they can get things done faster and with less difficulty, which saves them money and makes the well more profitable.

CCUS and Geothermal Deployments

New energy fields like geothermal development and carbon capture, utilization, and storage (CCUS) have their own problems that need to be solved below the ground. In places with a lot of pressure and heat, you need materials that are strong, don't rust, and behave in a predictable way. Magnesium alloy hex bar profiles that are set for specific working windows help with innovation in these areas. They allow developers to put up temporary downhole structures that break down after they're done their job, which eliminates the need for retrieval logistics.

These case studies show how Magnesium alloy hex bars help with practical benefits, cost savings, and performance enhancements in tough energy uses.

Conclusion

For downhole tool makers, completion service providers, and energy operators looking to make structures lighter without sacrificing performance, Magnesium alloy hex bar represents a strategic material choice. Its high strength-to-weight ratio, along with its excellent machinability and designed dissolution qualities, solves important problems in the areas of fracturing efficiency, reducing handling time, and operating logistics. Procurement teams can get measured benefits like less rig time, lower handling costs, better safety, and better project economics by learning about core properties, comparing different materials, mastering machining processes, and working with certified sources. As a trusted partner for B2B buyers who need stability, predictability, and technical support, HAGRIEN's combined manufacturing skills include alloy formulation, large-diameter extrusion, and traceable quality assurance. Magnesium alloy hex bars will continue to be at the forefront of lightweight structural solutions as long as the energy industry keeps putting an emphasis on efficiency and innovation.

FAQ

1.What advantages does magnesium alloy hex bar offer over aluminum hex bars in machining?

Due to smaller cutting pressure, Magnesium alloy hex bar can cut up to 50% faster than aluminum, which cuts down on cycle times and increases tool life. But strict Class D fire safety rules must be followed for chip management because magnesium chips can catch fire if they are not treated properly. The hexagonal shape also makes the gripping surfaces better, which keeps the workpiece from moving around during high-speed CNC operations.

2.What is the standard flat-to-flat tolerance for an extruded magnesium alloy hex bar?

Standard deviations are based on ASTM B107/B107M and are usually between ±0.008 and ±0.020 inches, depending on the size of the bar. We keep tighter limits (within ±0.05 mm) at HAGRIEN by measuring with ultrasound and lasers during extrusion. This makes sure that the dimensions are always the same, which is important for making precision downhole tool parts.

3.Can magnesium alloy hex bar be used in corrosive downhole environments?

Magnesium alloy hex bar can withstand acidic environments, including high-salinity brines, when coated with high-quality surface coats like Micro-Arc Oxidation (MAO) or specialized epoxy primers. The AZ61A grade is better at resisting corrosion, which makes it good for use in offshore and unconventional wells where fluid chemistry can be tricky.

4.Why choose AZ61A over AZ31B for dissolvable tool applications?

AZ61A has a higher tensile strength (up to 310 MPa) and better pressure tightness, which makes it better for hydraulic uses and high-stress frac operations. AZ31B is still a good value for money when it comes to general structure use and can be shaped easily. How you choose between grades depends on the mechanical loads and working situations your tools will be in.

Partner with a Trusted Magnesium Alloy Hex Bar Manufacturer

Magnesium alloy hex bars made by HAGRIEN are precisely engineered to meet the specific needs of oil and gas completion, downhole tool manufacturing, and new energy applications. We have over seven years of continuous production experience, ISO 9001/14001/45001 certifications, and a laboratory that is recognized by the CNAS. We can offer reliable lead times, full traceability (COA/COC/SDS), and engineering-to-spec skills. Our closed-loop production system oversees each and every important step, from making the metal to extruding it up to Ø300 mm. This makes sure that each batch is the same, the dimensions stay the same, and the quality is ready for an audit. Our team responds quickly to RFQs and gives quotes within 1–3 business days, whether you need standard profiles that can be delivered in 2–4 weeks or custom alloy compositions for specific operating windows. You can email HAGRIEN at cyrus@us-hagrien.com or visit us-hagrien.com right now to get detailed datasheets, learn about custom manufacturing options, and work with a provider that will lower your project delivery risk by ensuring consistent quality and long-term supply reliability.
